Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
CF flanges are available with tapped or untapped holes.
Vacuum flange is a type of mechanical component that plays a crucial role in the construction of high-vacuum systems, particularly those used in the fields of physics, chemistry, and engineering research.
Helium leakage test passed before shipping
Plastic flange protective cap is included to avoid flange scratching during transportation
CF vacuum flanges come in various sizes and shapes to accommodate different system configurations. Commonly, they feature a threaded or unthreaded design with standard or custom flange faces.
|
Product Name |

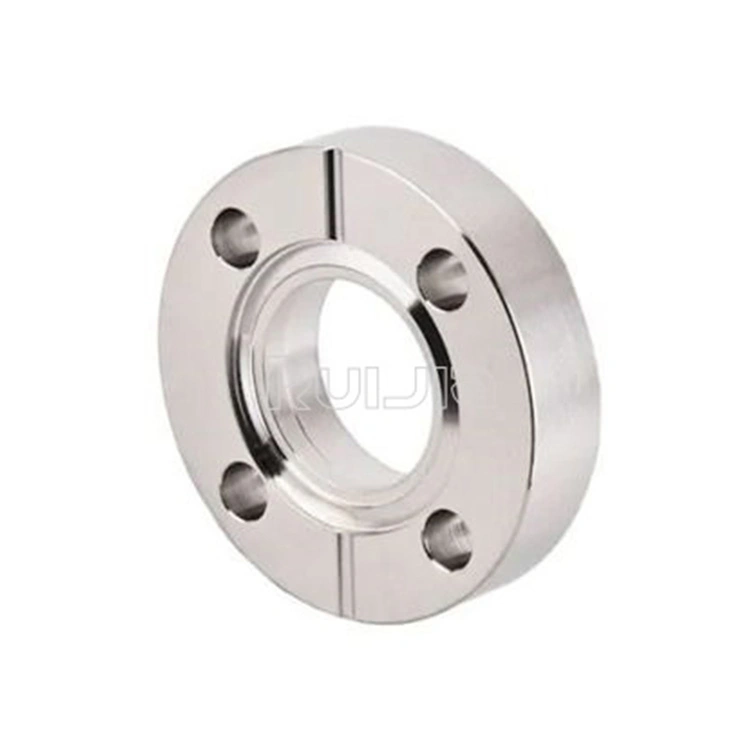

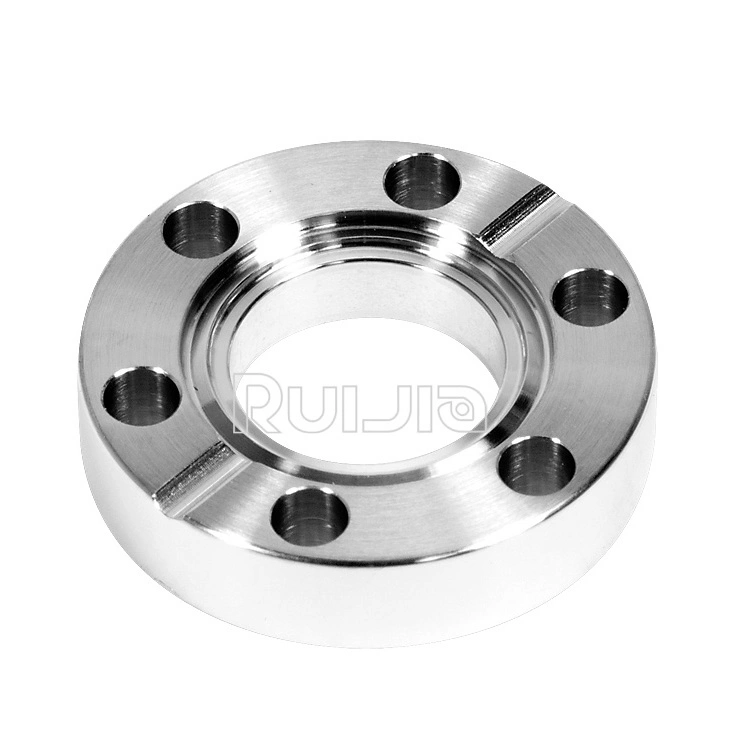

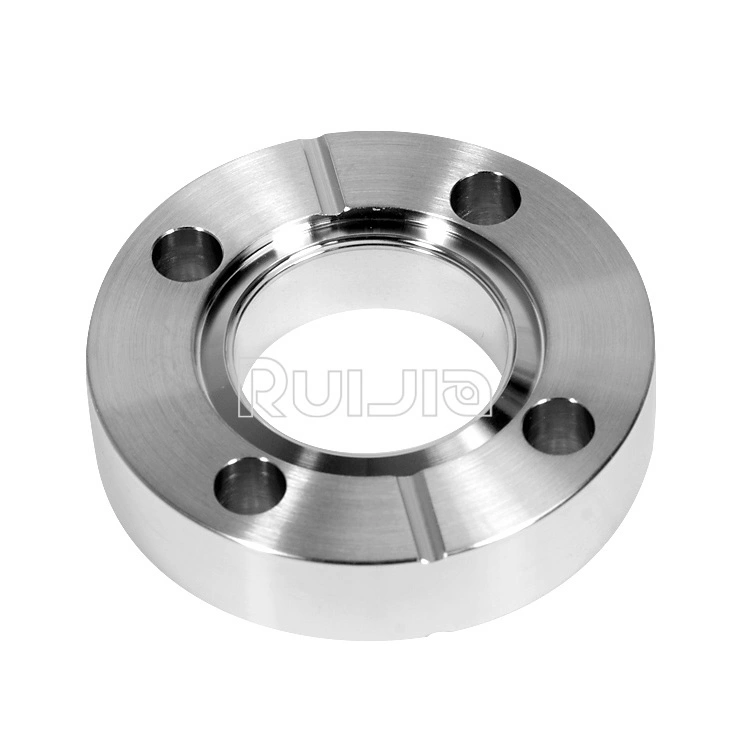

CF Vacuum bored flange Nonrotatable |
|
Brand |
RUIJIA |
|
Size |
CF16,CF35,CF63,CF100,CF150,CF200,CF250,CF275,CF300,CF350 |
|
Material |
SS304, SS316L |
|
Seal material |
Oxygen free copper, silver plated copper |
|
Standard |
CF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
CF Vacuum flange types |
CF Vacuum bored flange nonrotatable,CF Vacuum bored flange nonrotatable-tapped bolt holes,CF Vacuum bored flange Rotatable,CF Vacuum bored flange rotatable-tapped bolt holes,CF Reducing flange |
CF Vacuum bored flange Non-rotatable
|
Model No. |
Material |
A |
B |
C*NO |
D |
P.C.D |
|
CF16B7 |
S.S.304/316 |
33.8 |
7.5 |
4.4*6 |
6.5 |
26.9 |
|
CF16B12 |
S.S.304/316 |
33.8 |
7.5 |
4.4*6 |
12.9 |
26.9 |
|
CF16B19 |
S.S.304/316 |
33.8 |
7.5 |
4.4*6 |
19.15 |
26.9 |
|
CF35B25 |
S.S.304/316 |
69.5 |
12.7 |
6.7*6 |
25.6 |
58.7 |
|
CF35B38 |
S.S.304/316 |
69.5 |
12.7 |
6.7*6 |
38.3 |
58.7 |
|
CF35B42 |
S.S.304/316 |
69.5 |
12.7 |
6.7*6 |
42.9 |
58.7 |
|
CF63B51 |
S.S.304/316 |
113.6 |
19 |
8.4*8 |
51.1 |
92.1 |
|
CF63B63 |
S.S.304/316 |
113.6 |
19 |
8.4*8 |
63.7 |
92.1 |
|
CF100B102 |
S.S.304/316 |
151.6 |
21.5 |
8.4*16 |
102.2 |
130.3 |
|
CF150B153 |
S.S.304/316 |
202.5 |
24 |
8.4*20 |
153.1 |
181 |
|
CF200B204 |
S.S.304/316 |
253.2 |
24.7 |
8.4*24 |
203.7 |
231.8 |
|
CF250B255 |
S.S.304/316 |
304 |
28.5 |
8.4*32 |
255 |
284 |
|
CF275B255 |
S.S.304/316 |
336.5 |
28.5 |
10.3*30 |
255 |
306.5 |
|
CF300B305 |
S.S.304/316 |
355.6 |
28.5 |
10.3*30 |
305.4 |
325.7 |
|
CF350B356 |
S.S.304/316 |
419.1 |
28.5 |
10.3*36 |
356.1 |
388.9 |
Special sizes available upon request.
|
Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
