CF Vacuum Bellows - Flexible & All-Metal Seal

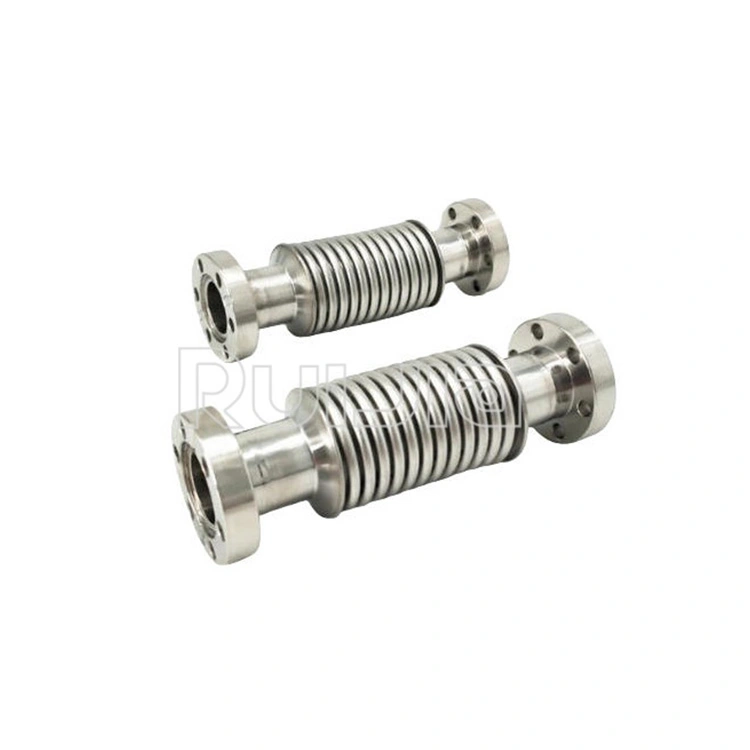

CF Compressible Bellows Connections-One Flange Rotatable CF vacuum bellows CF16-CF100 SS304/316L

CF vacuum bellows made of SS304 or SS316L stainless steel for connecting CF flanges of different sizes for ultrahigh vacuum chambers, ultrahigh vacuum systems and ultrahigh vacuum equipment environments.

Add to Basket

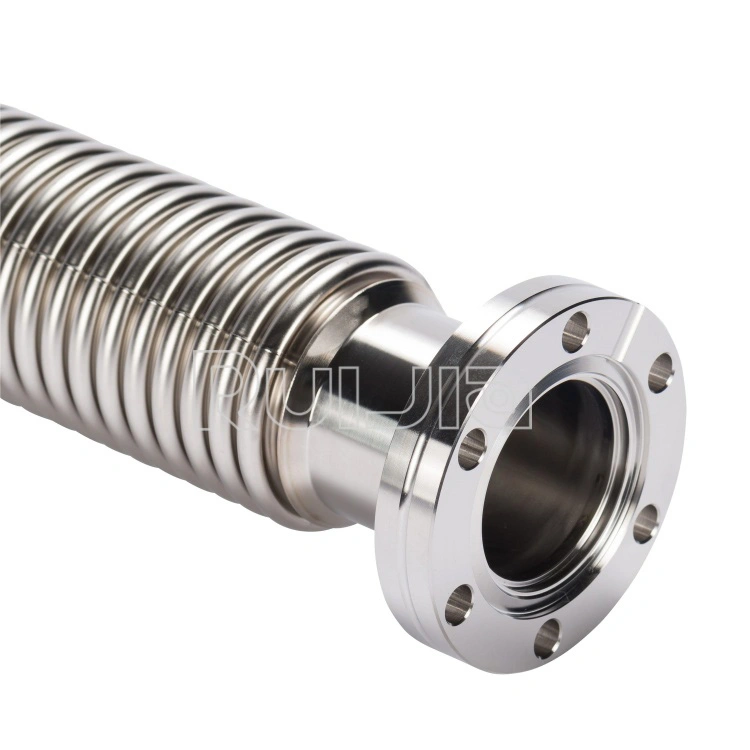

CF Flexible Hoses-One Flange Rotatable vacuum hoses bellows CF16-CF100 SS304/316L

CF vacuum flexible hoses bellows of flange connections, available in sizes from CF16 to CF100, can be adapted to a wide range of vacuum equipment connections. A distinctive feature is the swivel flange at one end, which allows the hose to be flexibly angled during installation.

Add to Basket

Why choose us

Flexibility & Strength

Made from thin-walled 304/316L stainless steel, they provide excellent flexibility for absorbing axial, lateral, and angular movements without compromising vacuum integrity.

High Cycle Life

The hydraulically formed, weld-free design ensures long service life and reliability through repeated flexing and thermal cycles.

UHV Compatible

With electropolished interiors and the ability to withstand high bake-out temperatures, they are perfectly suited for sensitive UHV and XHV applications.
