Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.
Helium leakage test passed before shipping
Plastic flange protective cap is included to avoid flange scratching during transportation
The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.
|
Product Name |

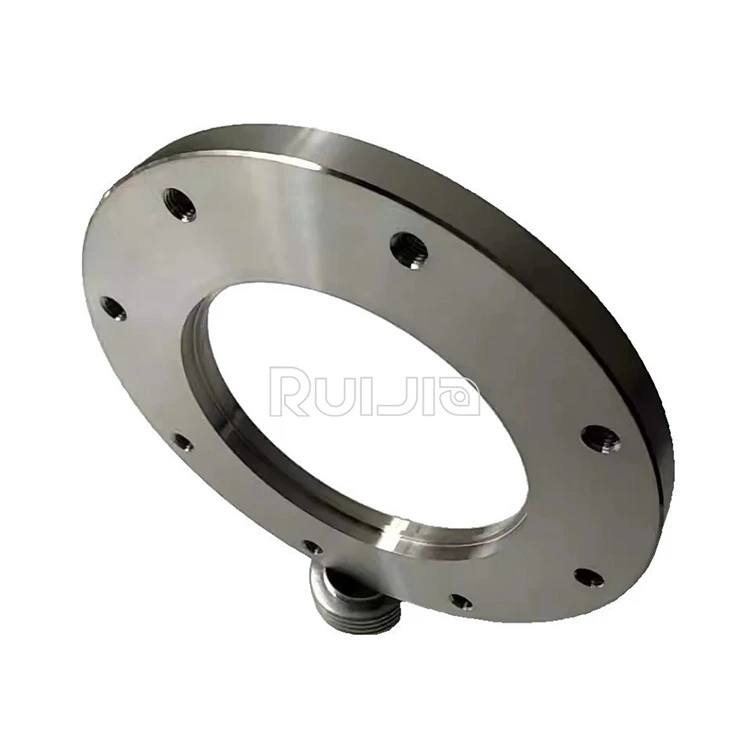

ISO-BF vacuum bolted flange tapped ISO63-ISO630 |
|
Brand |
RUIJIA |
|
Size |
ISO63,ISO80,ISO100,ISO160,ISO200,ISO250, ISO320,ISO400,ISO500,ISO630 |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
ISO Standard flange |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
ISO Vacuum flange types |
ISO blank flange, ISO bored blank, long weld stub flange, ISO half nipple (long and short) |
ISO-BF Bolted Flange-Tapped Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
E*No |
P.C.D. |
|
ISO63BFTAP |
SS304 |
130 |
70 |
12 |
63.7 |
M8*4 |
110 |
|
ISO80BFTAP |
SS304 |
145 |
83 |
12 |
76.8 |
M8*8 |
125 |
|
ISO100BFTAP |
SS304 |
165 |
102 |
12 |
102.2 |
M8*8 |
145 |
|
ISO160BFTAP |
SS304 |
225 |
153 |
16 |
152.9 |
M10*8 |
200 |
|
ISO200BFTAP |
SS304 |
285 |
213 |
16 |
203.7 |
M10*12 |
260 |
|
ISO250BFTAP |
SS304 |
335 |
261 |
16 |
254.5 |
M10*12 |
310 |
|
ISO320BFTAP |
SS304 |
425 |
318 |
20 |
305.3 |
M12*12 |
395 |
|
ISO400BFTAP |
SS304 |
510 |
400 |
20 |
406.9 |
M12*16 |
480 |
|
ISO500BFTAP |
SS304 |
610 |
501 |
20 |
508.8 |
M12*16 |
580 |
|
ISO630BFTAP |
SS304 |
750 |
651 |
24 |
610.4 |
M12*20 |
720 |
Special sizes available upon request.
|
