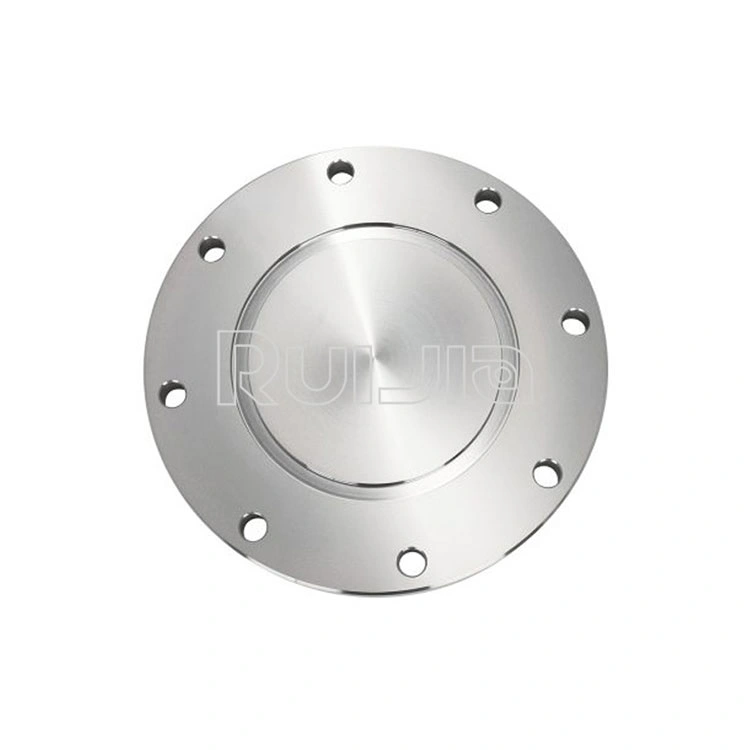

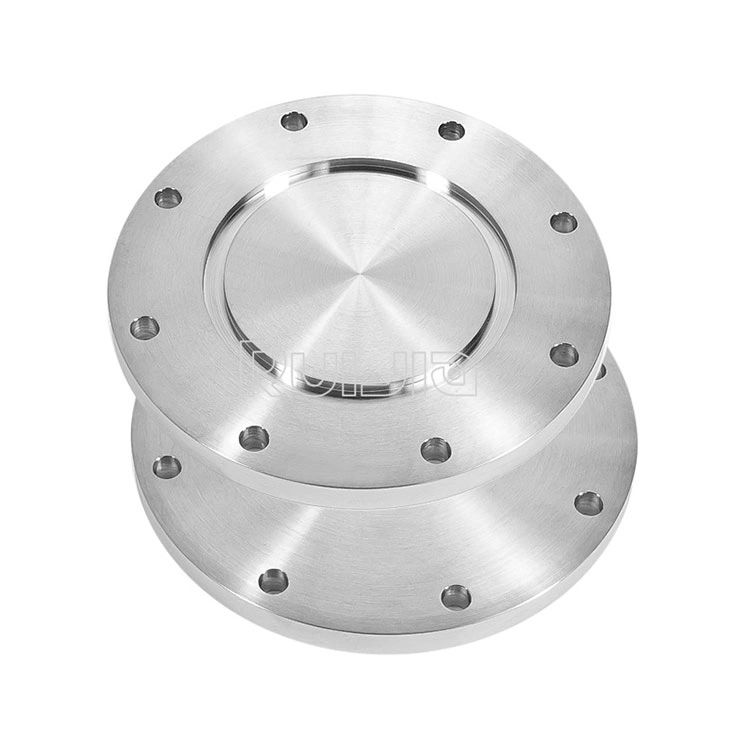

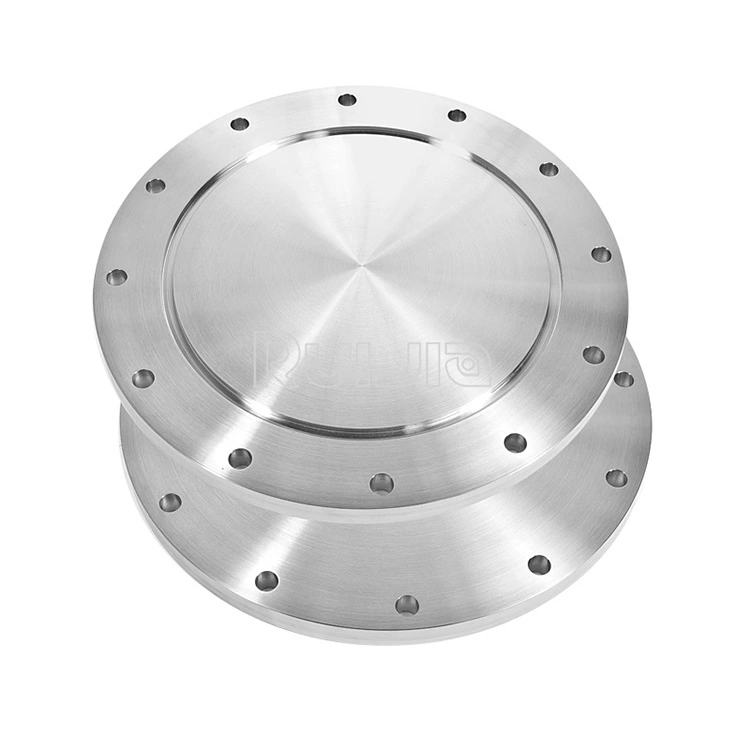

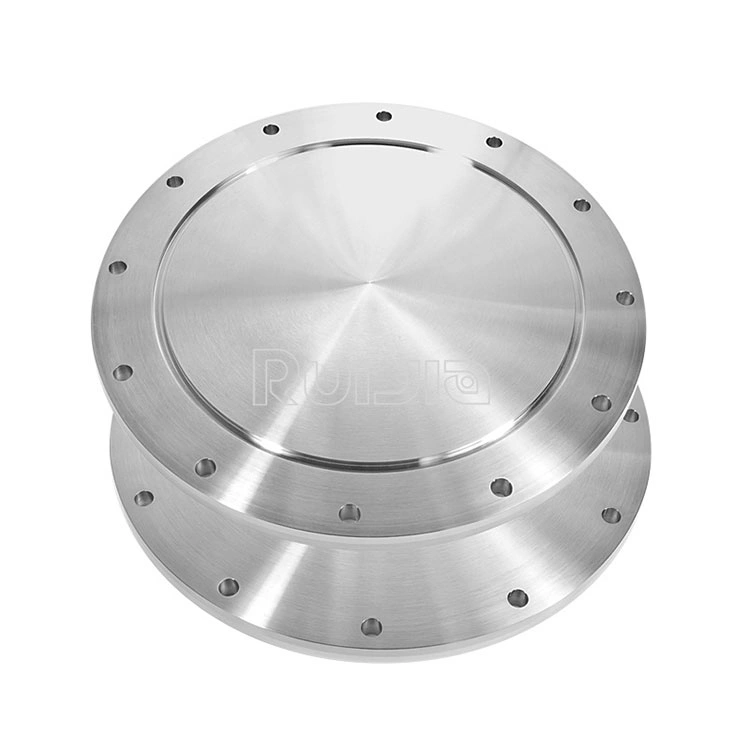

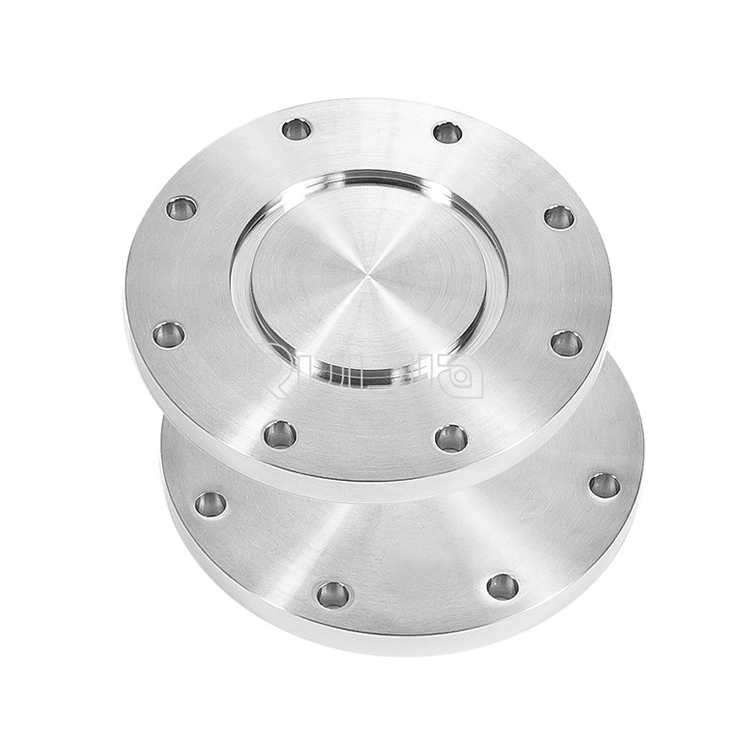

Vacuum ISO Bolted Blank Flanges SS304/SS316L ISO63-ISO630

ISO vacuum bored blank flange are made of type 304/316L stainless steel, centering ring and seal assemblies are offered with a stainless centring ring and an aluminium retainer ring.O-ring material are Viton and Buna-N for your choices.Single and double claw clamp are made of stainless.ISO bored blank size range from ISO63-ISO630 vacuum blank flanges.

Standard:	KF,ISO,CF Standard
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.

Plastic flange protective cap is included to avoid flange scratching during transportation

The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.

Specification

Product Name	ISO bolted blank flange ISO63-ISO630
Brand	RUIJIA
Size	ISO63,ISO80,ISO100,ISO160,ISO200,ISO250, ISO320,ISO400,ISO500,ISO630
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silocone,Buna-N seal
Standard	KF,ISO,CF Standard
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO Vacuum flange types	ISO blank flange,ISO bored blank, long weld stub flange,ISO half nipple(long and short)

Product parameters

ISO Vacuum Bolted Blank Flange Unit:mm

Model No.	Material	A	B	C	E*No	P.C.D.
ISO63BB	SS304	130	70	12	9*4	110
ISO80BB	SS304	145	83	12	9*8	125
ISO100BB	SS304	165	102	12	9*8	145
ISO160BB	SS304	225	153	16	11*8	200
ISO200BB	SS304	285	213	16	11*12	260
ISO250BB	SS304	335	261	16	11*12	310
ISO320BB	SS304	425	318	20	14*12	395
ISO400BB	SS304	510	400	20	14*16	480
ISO500BB	SS304	610	501	20	14*16	580
ISO630BB	SS304	750	651	24	14*20	720

SS316, Aluminum is upon request
