| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
Utilized in vacuum systems and equipment for industries like semiconductor manufacturing, research laboratories and clean room environments.
The main function of this ring is to ensure precise alignment between two flanges during connection

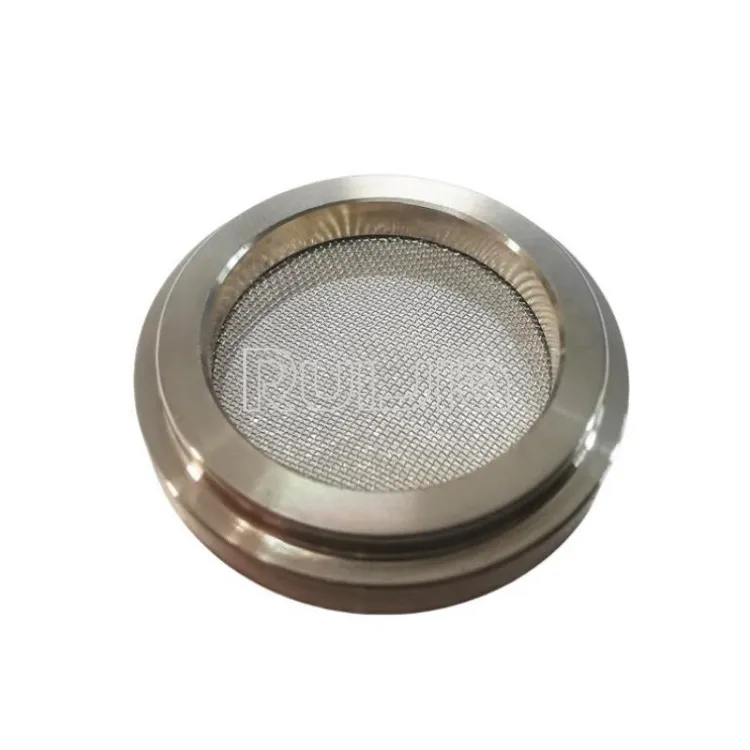

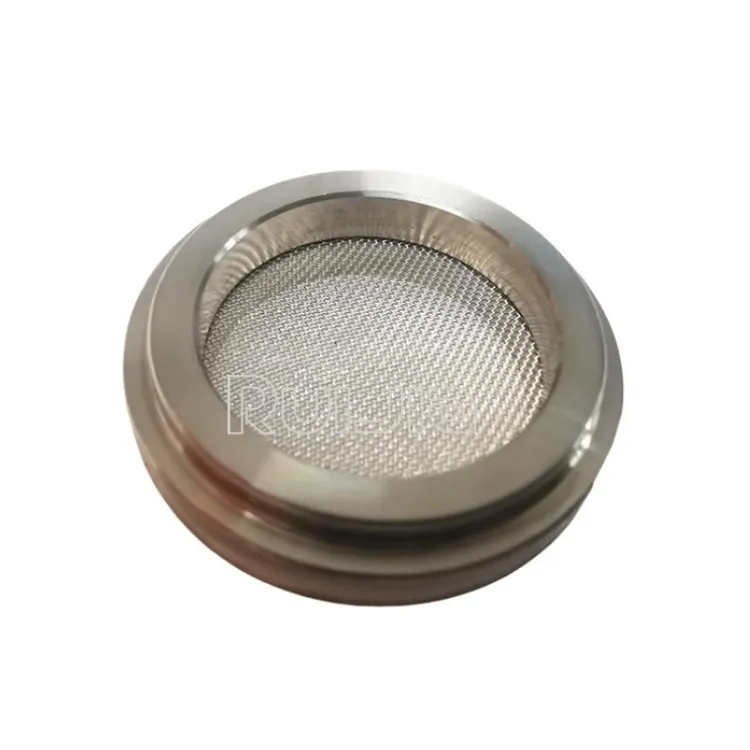

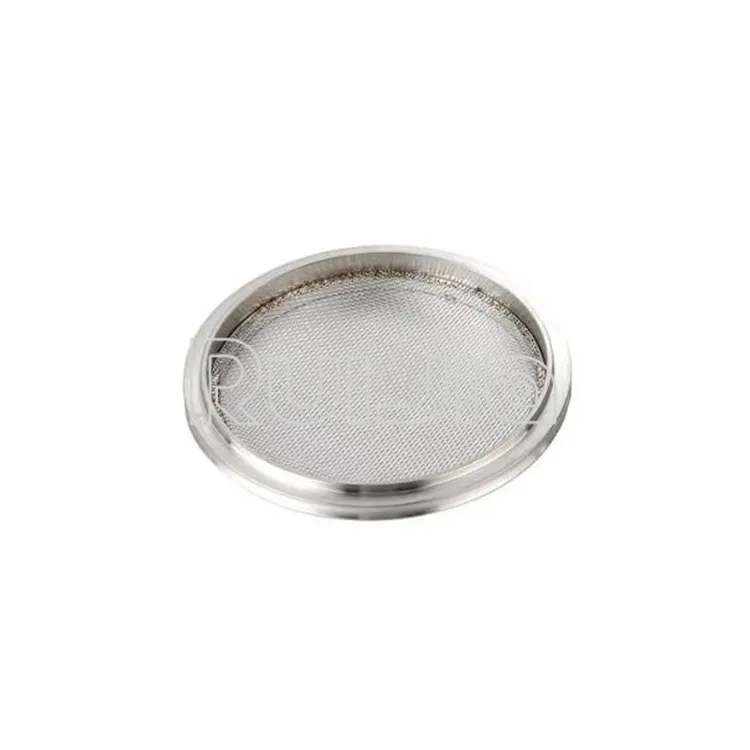

Meshed centering rings can be made from various materials including stainless steel 304/316,about mesh,it have several different densities,depending on the application requirements
|
Product Name |
KF Vacuum meshed centering ring |
|
Brand |
RUIJIA |
|
Size |
KF16,KF25,KF40,KF50,KF63,KF80,KF100,KF160 |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~260℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF Vacuum Centering Ring types |

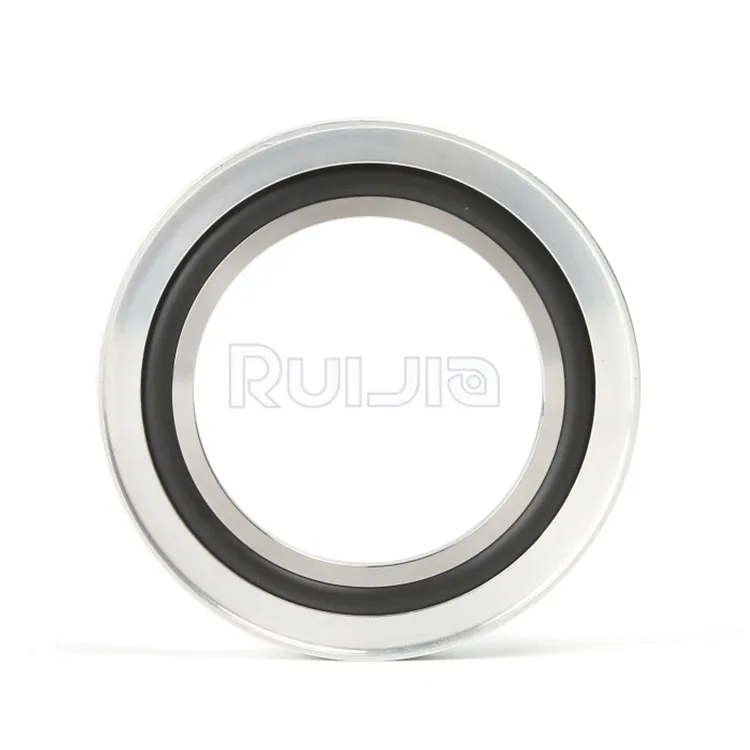

KF centering ring,KF meshed centering ring, KF overpressure ring, KF centering ring adaptor & O’ring, KF centering ring with outing ring |

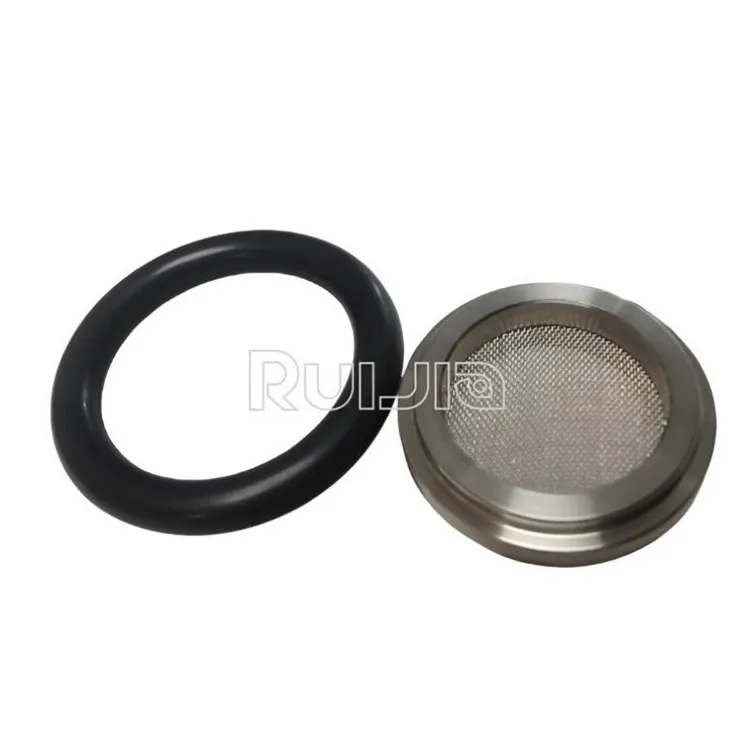

KF vacuum meshed Centering Ring Unit: mm
|
Model No. |
Material |
Material O'Ring |
Mesh |
A |
B |
C |
|
KF16MCRV |
304 S.S. |
Viton/NBR |
72 mesh |
12 |
17 |
3.9 |
|
KF25MCRV |
304 S.S. |
Viton/NBR |
72 mesh |
20.5 |
26 |
3.9 |
|
KF40MCRV |
304 S.S. |
Viton/NBR |
72 mesh |
35.8 |
41 |
3.9 |
|
KF50MCRV |
304 S.S. |
Viton/NBR |
72 mesh |
46.3 |
52 |
3.9 |
|
KF63MCRV |
304 S.S. |
Viton/NBR |
72 mesh |
60.5 |
69.6 |
3.9 |
|
KF80MCRV |
304 S.S. |
Viton/NBR |
72 mesh |
73.6 |
82.6 |
3.9 |
|
KF100MCRV |
304 S.S. |
Viton/NBR |
72 mesh |
91.8 |
101.6 |
3.9 |
|
KF160MCRV |
304 S.S. |
Viton/NBR |
72 mesh |
143.5 |
152.6 |
3.9 |
We can provide different mush sizes upon your request.
| Standard: | KF Standard |
|
Brand |
RUIJIA |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
| Standard: | KF Standard |
| Brand | Rujia |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
