| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
Used in manufacturing or engineering processes where precise positioning is required under vacuum conditions..
This could be in applications such as semiconductor manufacturing, optics assembly, or any high-precision part handling requiring vacuum control.
Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel, aluminium EN1.4301, EN1.4404
Designed to maintain airtight seals when placed in a vacuum environment, preventing leaks that could compromise the integrity of the vacuum chamber.
|
Product Name |
KF Vacuum centering ring with O’Ring |
|
Brand |
RUIJIA |
|
Size |
KF10,KF16,KF25,KF40,KF50 |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~260℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF Vacuum Centering Ring types |
KF centering ring,KF meshed centering ring, KF overpressure ring, KF centering ring & O’ring, KF centering ring with outing ring |
KF Centering Ring With O’ring Unit: mm
|
Model No. |
Material |
Material O'Ring |
A |
B |
C |
D |
O'ring Size |
|
KF1OCRVS |
304 S.S./AL |
Viton/NBR |
10 |
12 |
8 |
3.9 |
AS-311 |
|
KF16CRVS |
304 S.S./AL |
Viton/NBR |
16 |
17 |
8 |
3.9 |
AS-314 |
|
KF25CRVS |
304 S.S./AL |
Viton/NBR |
25 |
26 |
8 |
3.9 |
AS-320 |
|
KF40CRVS |
304 S.S./AL |
Viton/NBR |
40 |
41 |
8 |
3.9 |
AS-326 |
|
KF50CRVS |
304 S.S./AL |
Viton/NBR |
50 |
52 |
8 |
3.9 |
AS-330 |
*O'Ring color for NBR material is black, brown is available upon request.

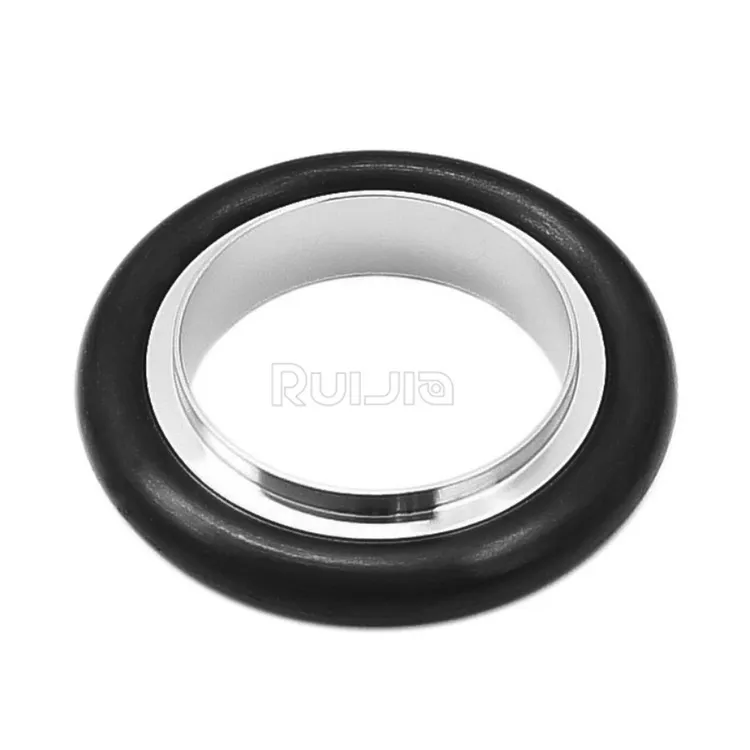

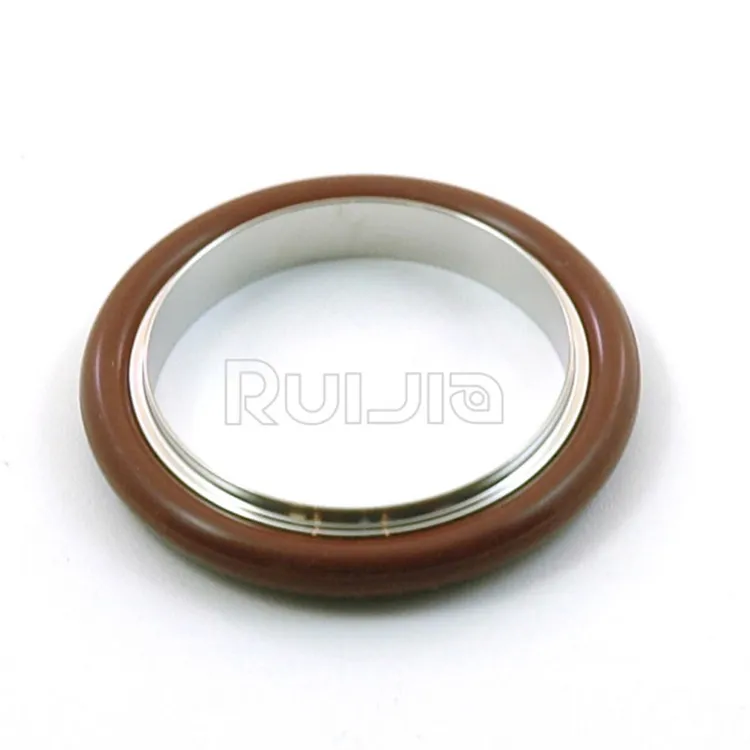

*O'Ring color for Viton material is brown, black is available upon request.
