| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
Application: Suitable for various scientific research and industrial applications, such as materials research, semiconductor manufacturing, bio medicine, and other fields,
Material: Typically made from materials like ,stainless steel304/316/316l, these adaptor resist corrosion an maintain a vacuum seal under high vacuum conditions.
Testing: The main testing includes checking its sealing performance, dimensional accuracy, and material qualification
|
Product Name |

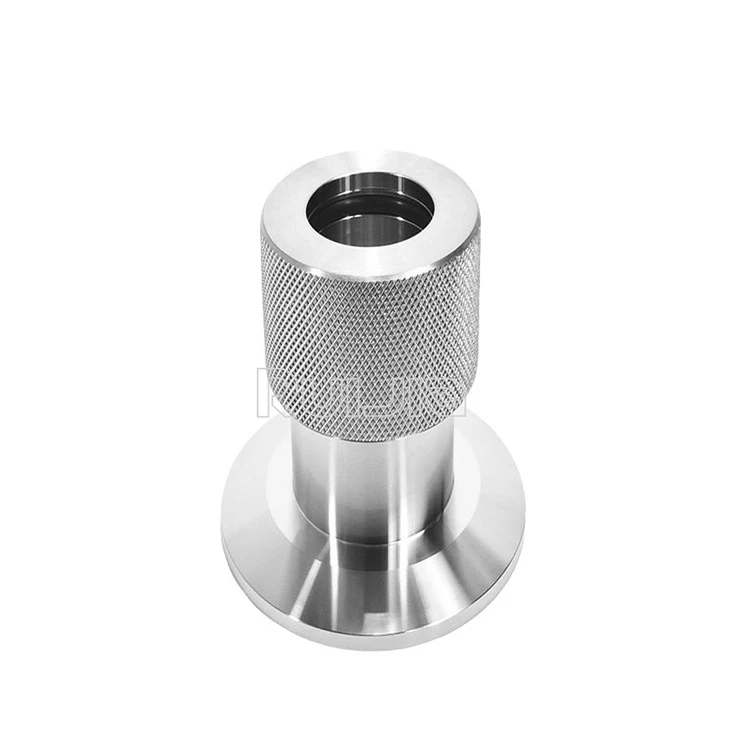

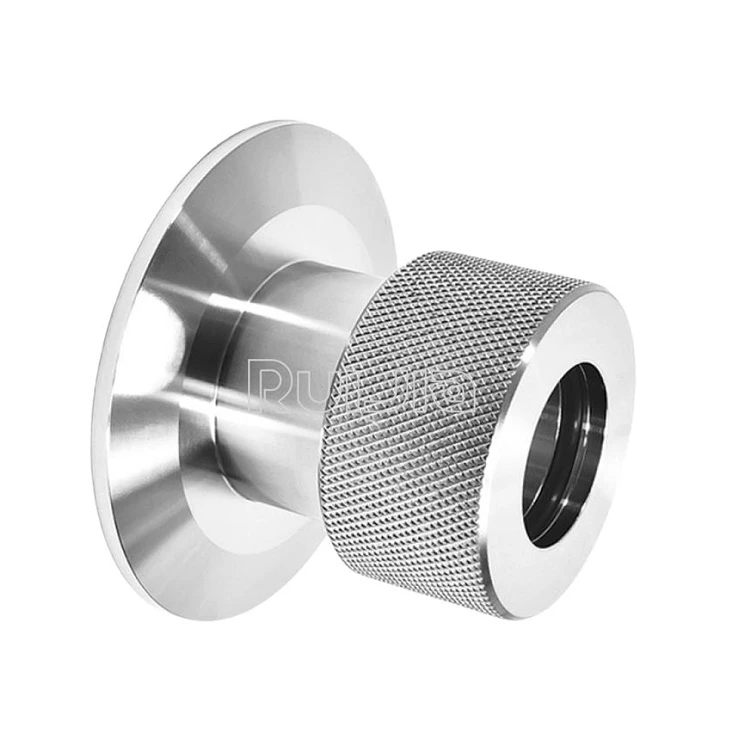

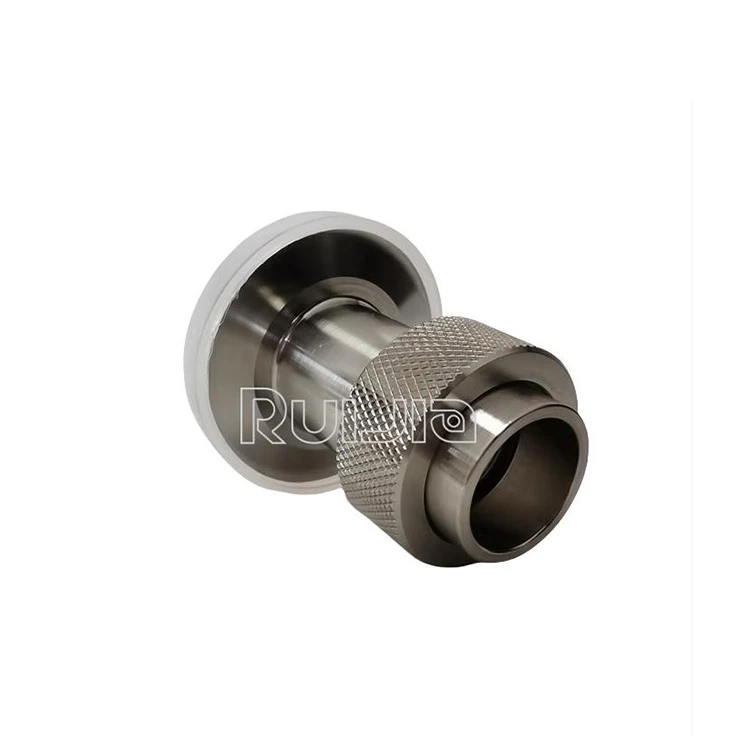

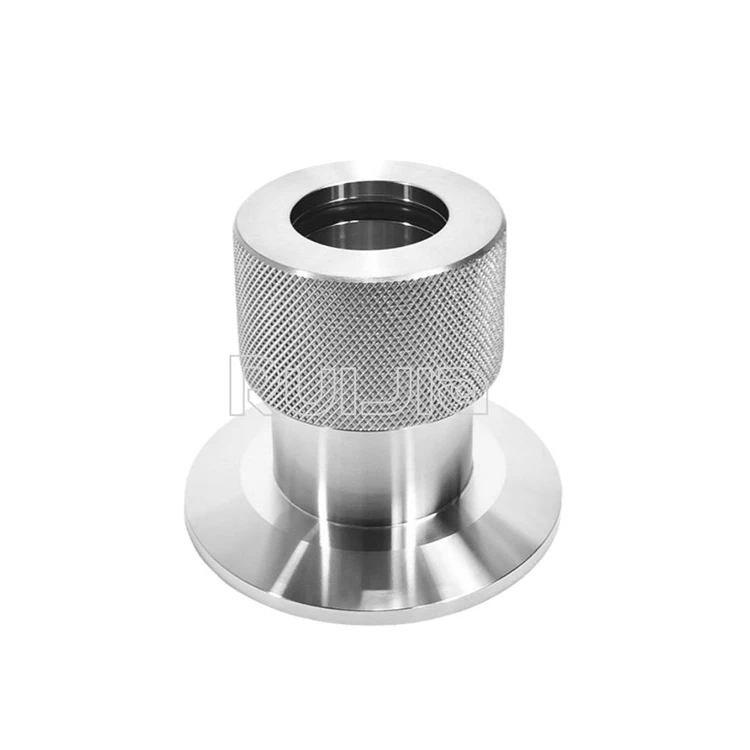

Vacuum fittings KF Quick Disconnect adaptor |
|
Brand |
RUIJIA |
|
Size |
KF16QDA6, KF25QDA3, KF25QDA6, KF25QDA13, KF25QDA19, KF40QDA3, KF40QDA6, KF40QDA13, KF40QDA19. |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Flange Adaptor types |
ANSI-KF Tubulated Adaptor, CF-ISO Tubulated Adaptor, ISO-KF Tubulated Adaptor, CF reducing adaptor, KF-VCR Male/Female Adaptor, KF-Swagelok adaptor, KF Male/Female Pipe adaptor, KF-KF conical reducing adaptor, ISO-KF/ISO-ISO conical Reducing adaptor. |
Vacuum fittings KF Quick Disconnect adaptor Unit:mm
|
Model No. |
Material |
A |
B |
C |
Tread |
|
KF16QDA6 |
304S.S |
6.5 |
33.4 |
30 |
1/4'' |
|
KF16QDA12 |
304S.S |
13 |
36.5 |
30 |
1/2'' |
|
KF16QDA19 |
304S.S |
19.3 |
44.5 |
30 |
3/4'' |
|
KF25QDA12 |
304S.S |
13 |
36.5 |
40 |
1/2'' |
|
KF25QDA19 |
304S.S |
19.3 |
44.5 |
40 |
3/4'' |
|
KF25QDA25 |
304S.S |
25.7 |
50.8 |
40 |
1'' |
|
KF40QDA12 |
304S.S |
13 |
36.5 |
55 |
1/2'' |
|
KF40QDA19 |
304S.S |
19.3 |
44.5 |
55 |
3/4'' |
|
KF40QDA25 |
304S.S |
25.7 |
50.8 |
55 |
1'' |
|
KF40QDA38 |
304S.S |
38.4 |
60.3 |
55 |
1 1/2'' |
|
KF50QDA38 |
304S.S |
38.4 |
60.3 |
75 |
1 1/2'' |
|
KF50QDA50 |
304S.S |
51 |
60.3 |
75 |
2'' |
Special Sizes Available Upon Request.
