Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application: Suitable for various scientific research and industrial applications, such as materials research, semiconductor manufacturing, bio medicine, and other fields,
Size: They are available in various sizes to suit different flange diameters.
Testing: The main testing includes checking its sealing performance, dimensional accuracy, and material qualification
|
Product Name |

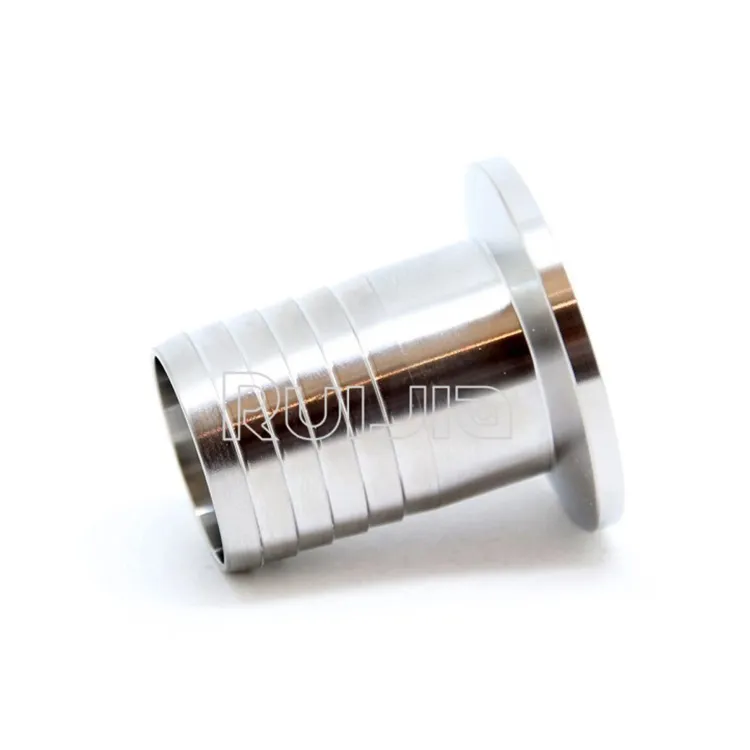

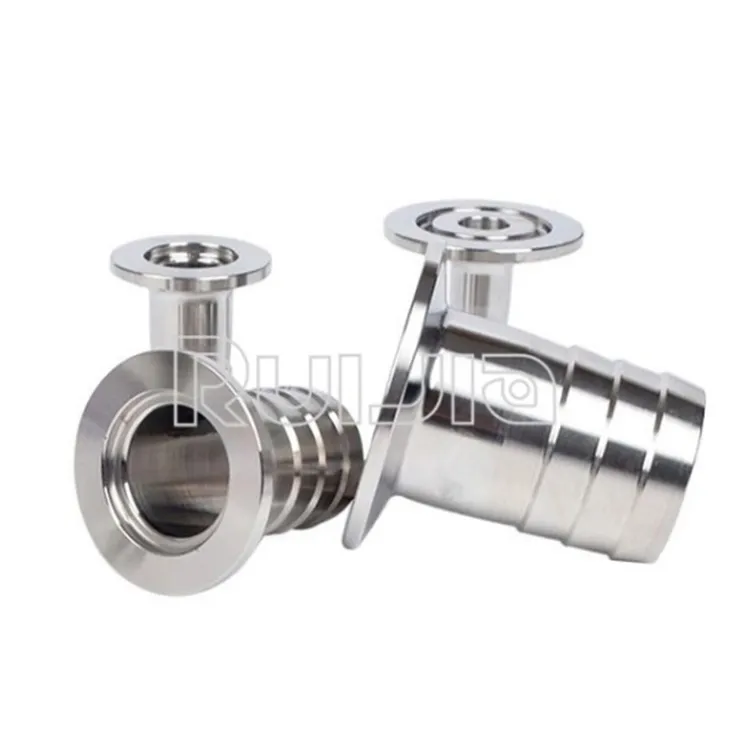

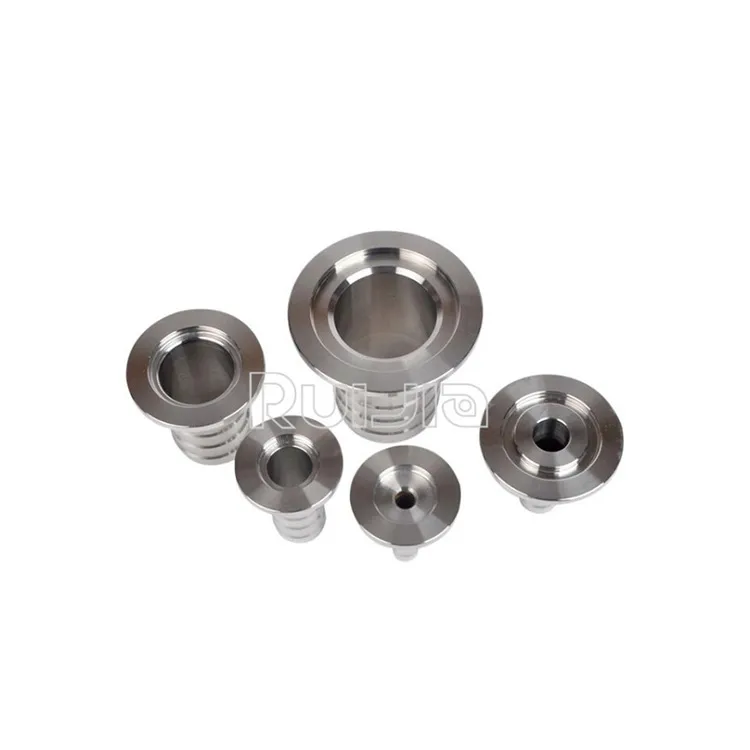

Vacuum fittings KF Rubber Hose Adaptor |
|
Brand |
RUIJIA |
|
Size |
KF10RHA, KF16RHA, KF125RHA, KF40RHA, KF50RHA, |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Flange Adaptor types |
ANSI-KF Tubulated Adaptor, CF-ISO Tubulated Adaptor, ISO-KF Tubulated Adaptor, CF reducing adaptor, KF-VCR Male/Female Adaptor, KF-Swagelok adaptor, KF Male/Female Pipe adaptor, KF-KF conical reducing adaptor, ISO-KF/ISO-ISO conical Reducing adaptor. |
Vacuum fittings KF Rubber Hose Adaptor Unit:mm
|
Model No. |
Material |
A |
B |
Hose Size |
|
KF10RHA |
304S.S |
16 |
40 |
5/8'' |
|
KF16RHA |
304S.S |
19.1 |
40 |
3/4'' |
|
KF25RHA |
304S.S |
22.2 |
40 |
7/8'' |
|
KF40RHA |
304S.S |
41.3 |
40 |
1 5/8'' |
|
KF50RHA |
304S.S |
47.7 |
40 |
1 7/8'' |
Special Sizes Available Upon Request.
|
