| Standard: | KF-Swagelok Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
Application: Suitable for various scientific research and industrial applications, such as materials research, semiconductor manufacturing, bio medicine, and other fields,
Size:Vacuum flanges Adaptor come in various sizes and types to ensure compatibility and seal integrity when connecting different pieces of equipment.
Testing: The main testing includes checking its sealing performance, dimensional accuracy, and material qualification
|
Product Name |

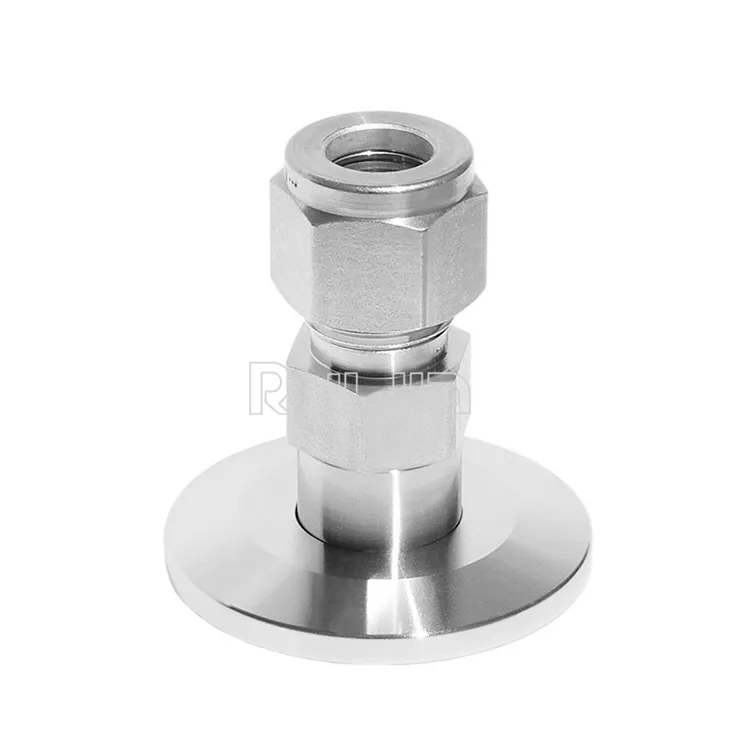

Vacuum fittings KF swagelok adaptor |
|
Brand |
RUIJIA |
|
Size |
KF16SWA6, KF16SWA13 ,KF25SWA6, KF25SWA13, KF40SWA6, KF40SWA13, KF50SWA6, KF50SWA13 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton, Silicone, Buna-N seal |
|
Standard |
KF-Swagelok Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Flange Adaptor types |
ANSI-KF Tubulated Adaptor, CF-ISO Tubulated Adaptor, ISO-KF Tubulated Adaptor, CF reducing adaptor, KF-VCR Male/Female Adaptor, KF-Swagelok adaptor, KF Male/Female Pipe adaptor, KF-KF conical reducing adaptor, ISO-KF/ISO-ISO conical Reducing adaptor. |
Vacuum fittings KF swagelok adaptor Unit:mm
|
Model No. |
Material |
A |
B |
C |
VCR |
|
KF16SWA6 |
304S.S |
30 |
4.8 |
36.6 |
1/4'' |
|
KF16SWA13 |
304S.S |
30 |
10.8 |
45 |
1/2'' |
|
KF25SWA6 |
304S.S |
40 |
4.8 |
36.6 |
1/4'' |
|
KF25SWA13 |
304S.S |
40 |
10.8 |
54.3 |
1/2'' |
|
KF40SWA6 |
304S.S |
55 |
4.8 |
36.6 |
1/4'' |
|
KF40SWA13 |
304S.S |
55 |
10.8 |
54.3 |
1/2'' |
|
KF50SWA6 |
304S.S |
75 |
4.8 |
36.6 |
1/4'' |
|
KF50SWA13 |
304S.S |
75 |
10.8 |
54.3 |
1/2'' |
Special Sizes Available Upon Request.
