Temperature |
-26˚C to 200˚C |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
Corrects misaligned connections
One fixed and one rotatable flange per fitting
O-ring groove available
|
Product Name |
Vacuum flexible Bellows-ASA rotatable flanges |
|
Brand |
RUIJIA |
|
Size |
ASA100-ASA600 |
|
Material |
SS304, SS316L |
|
Seal material |
Nbr, Viton, EPDM |
|
Standard |
ASA/ANSI Standard |
|
Temperature |
-26˚C to 200˚C |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
ASA Bellows types |
Bellows-ASA fixed flanges, flexible bellows-ASA rotatable flanges. |

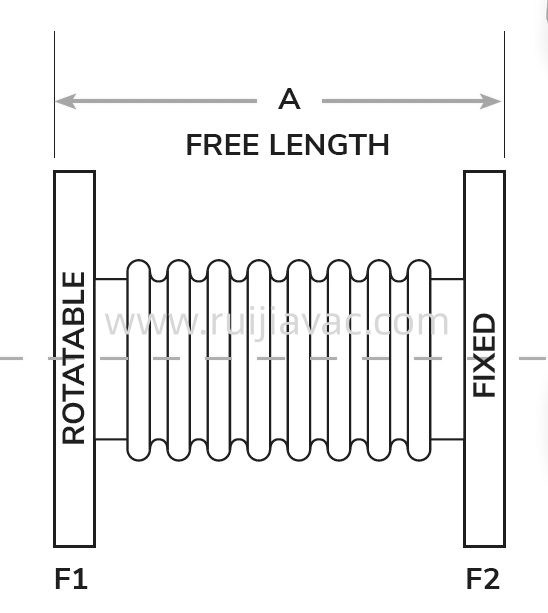

Vacuum flexible bellows -ASA rotatable Flanges Unit:mm
|
Reference ID |
Flange Type |
Hose I.D(in) |
Wall Thickness (in) |
A(in) |
|
ASA100-100-B-4.00 |
ASA100 |
25.4 |
0.1524 |
101.6 |
|
ASA100-150-B-4.00 |
ASA100 |
38.1 |
0.1524 |
101.6 |
|
ASA150-200-B-4.00 |
ASA150 |
50.8 |
0.1524 |
101.6 |
|
ASA150-250-B-6.00 |
ASA150 |
63.5 |
0.2032 |
152.4 |
|
ASA200-300-B-6.00 |
ASA200 |
76.2 |
0.2032 |
152.4 |
|
ASA300-400-B-6.00 |
ASA300 |
101.6 |
0.254 |
152.40 |
|
ASA400-400-B-6.00 |
ASA400 |
101.6 |
0.254 |
152.40 |
|
ASA400-600-B-8.00 |
ASA400 |
152.4 |
0.3048 |
203.20 |
|
ASA600-600-B-8.00 |
ASA600 |
152..4 |
0.3048 |
203.2 |
|
Temperature |
-26˚C to 200˚C |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Temperature |
-26˚C to 200˚C |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
