Standard: |
CF Standard connection |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Soft and flexible, bends easily and absorbs vibration.
Passes helium leakage test before delivery.
Comes with plastic flange protective caps to prevent scratches during transit.
Features delicate welding for integrity and reliability.
|
Bellows Type |

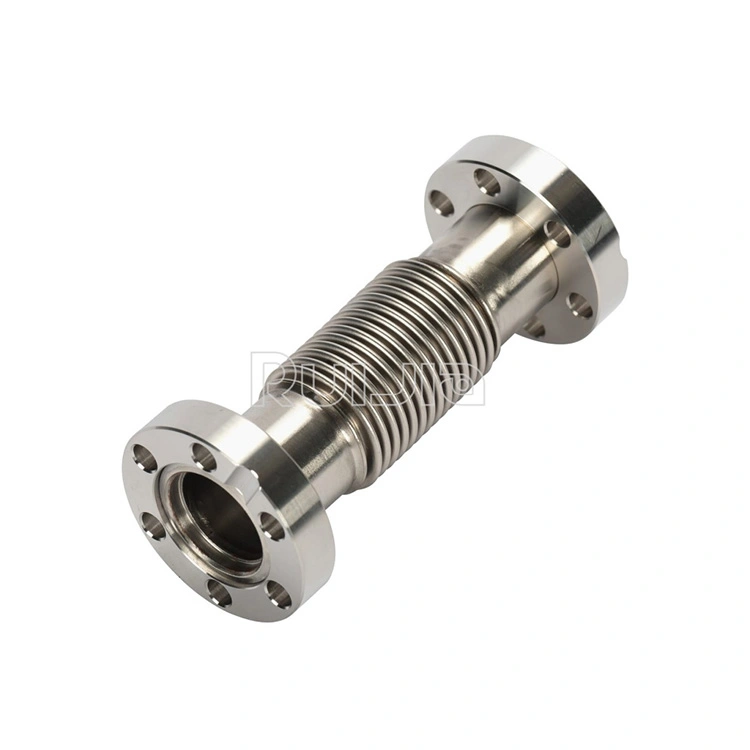

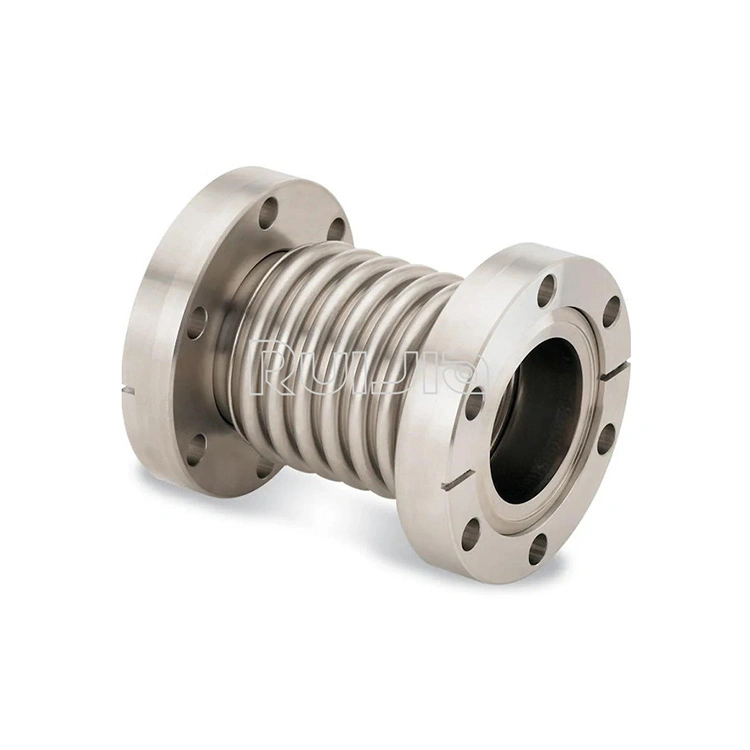

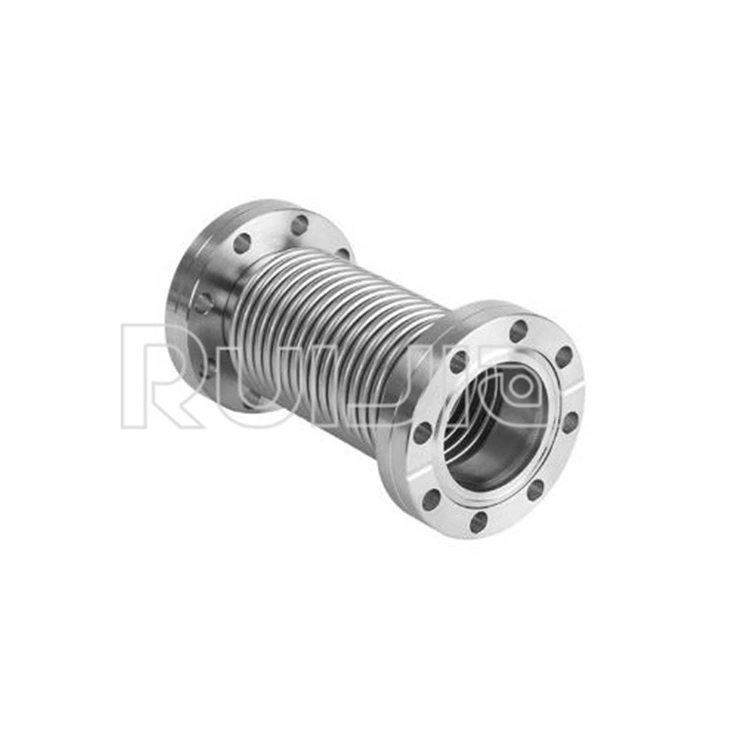

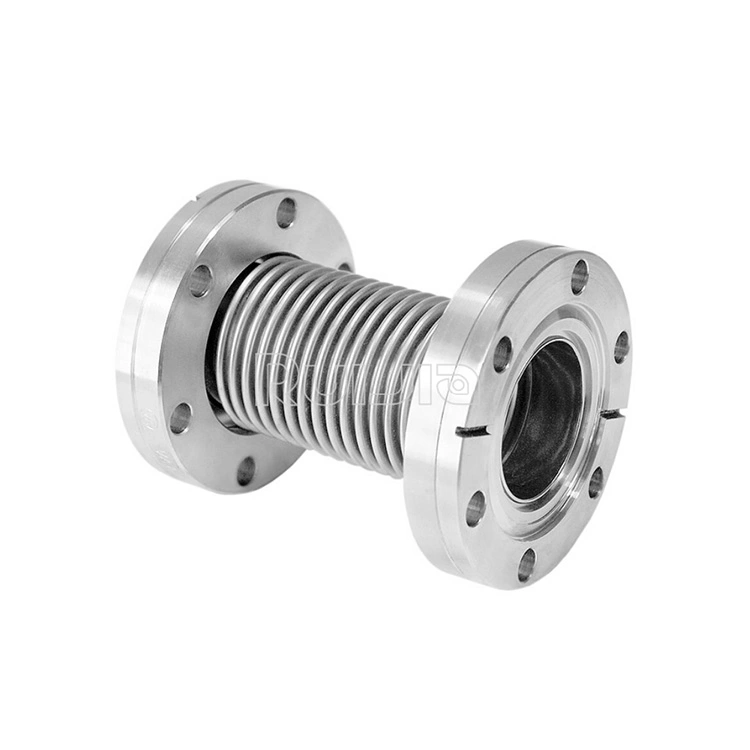

Vacuum CF Compressible Bellows Connections-One Flange Rotatable |
|
Material |
Bellows SUS304, SUS316L |
|
Flange SUS304, SUS316L |
|
|
Standard |
CF Flange connection |
|
Size Range |
CF16,CF35,CF63,CF100 |
|
Length |
150mm,180mm,250mm,270mm or as customer request |
|
Wall Thickness |
0.2mm,0.25mm,0.3mm |
|
Elasticity of bellows |
40% |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Leakage rate |
1×10 -9 Pa・m³/sec or less |

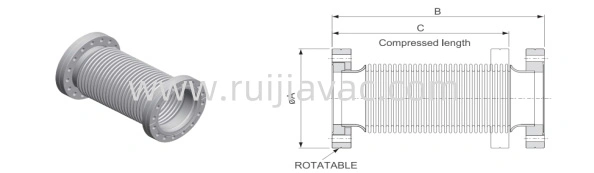

CF Compressible Bellows Connections-One Flange Rotatable Unit:mm
|
Item No. |
Flange Size |
Material |
A |
B |
C |
|
CF16FXC150R |
CF16 |
SS304 |
33.8 |
150 |
130 |
|
CF35FXC180R |
CF35 |
SS304 |
69.5 |
180 |
160 |
|
CF63FXC210R |
CF63 |
SS304 |
113.6 |
210 |
190 |
|
CF100FXC270R |
CF100 |
SS304 |
151.6 |
270 |
250 |
**Material SS316,Customized length is acceptable upon request..
|
