CF16,CF35,CF63,CF100

CF Flexible Hoses-One Flange Rotatable vacuum hoses bellows CF16-CF100 SS304/316L

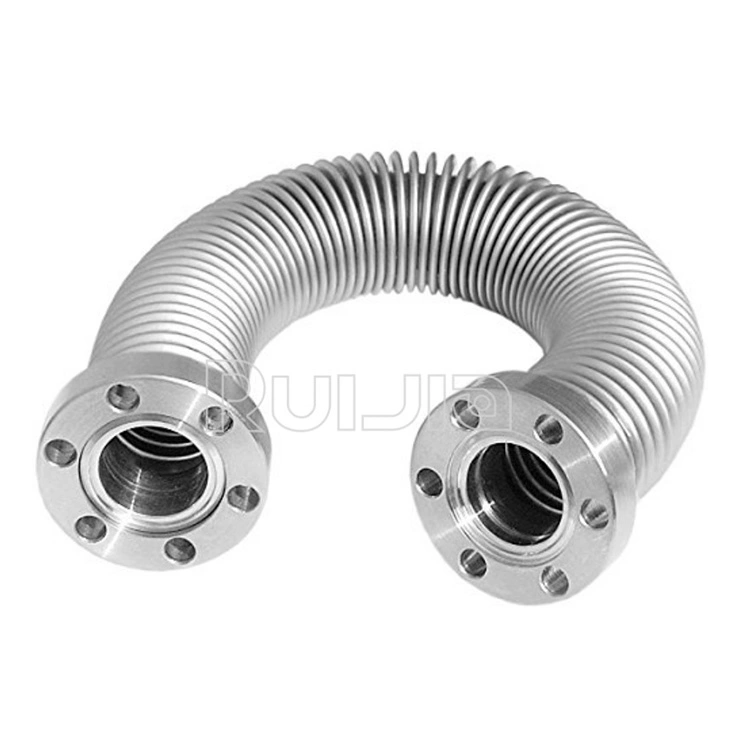

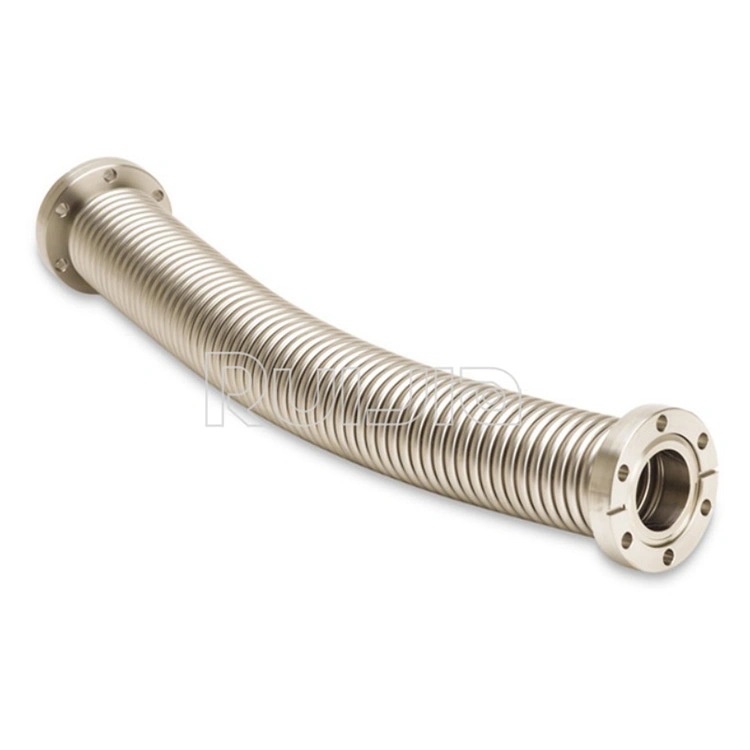

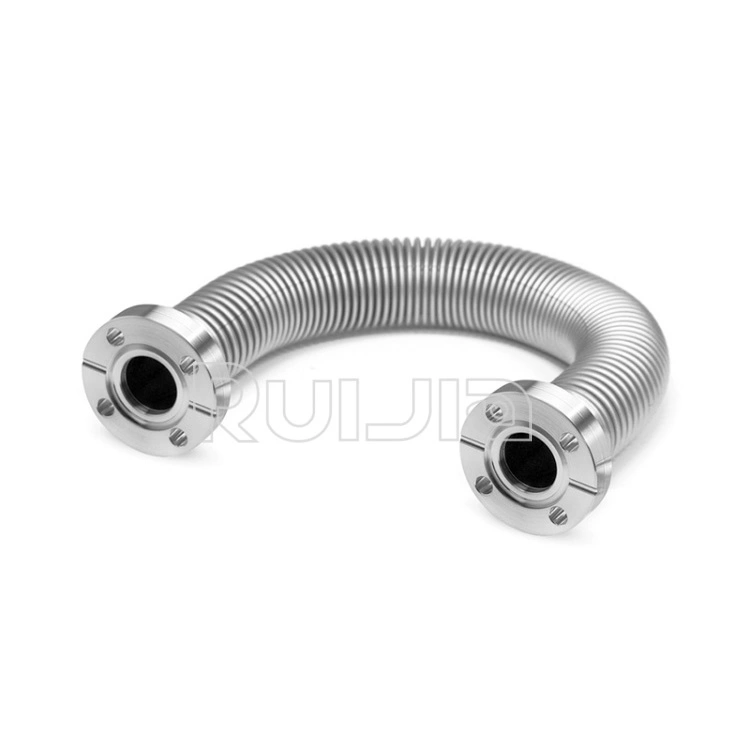

CF vacuum flexible hoses bellows of flange connections, available in sizes from CF16 to CF100, can be adapted to a wide range of vacuum equipment connections. A distinctive feature is the swivel flange at one end, which allows the hose to be flexibly angled during installation.

Standard:	CF Standard connection
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Soft, flexible, easy to bend, vibration absorbing

Helium leakage test passed before shipping

Plastic flange protective cap is included to avoid flange scratching during transportation

Delicate Welding to ensure integrity and reliability

Specification

Bellows Type	Vacuum CF Flexible Hoses-One Flange Rotatablee
Material	Bellows SUS304, SUS316L
Material	Flange SUS304, SUS316L
Standard	CF Flange connection
Size Range	CF16,CF35,CF63,CF100
Length	150mm,180mm,250mm,270mm or as customer request
Wall Thickness	0.2mm,0.25mm,0.3mm
Elasticity of bellows	40%
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Leakage rate	1×10 -9 Pa・m³/sec or less

Product parameters

CF Flexible Hoses-One Flange Rotatable Unit:mm

Item No.	Flange Size	Material	A	B
CF16FX250R	CF16	SS304	33.8	250
CF16FX500R	CF16	SS304	33.8	500
CF16FX750R	CF16	SS304	33.8	750
CF16FX1000R	CF16	SS304	33.8	1000

CF35FX250R	CF35	SS304	69.5	250
CF35FX500R	CF35	SS304	69.5	500
CF35FX750R	CF35	SS304	69.5	750
CF35FX1000R	CF35	SS304	69.5	1000

CF63FX250R	CF63	SS304	113.6	250
CF63FX500R	CF63	SS304	113.6	500
CF63FX750R	CF63	SS304	113.6	750
CF63FX1000R	CF63	SS304	113.6	1000

CF100FX250R	CF100	SS304	151.6	250
CF100FX500R	CF100	SS304	151.6	500
CF100FX750R	CF100	SS304	151.6	750
CF100FX1000R	CF100	SS304	151.6	1000

Material SS316,Customized length is acceptable upon request. CF160-CF320 is upon request.
