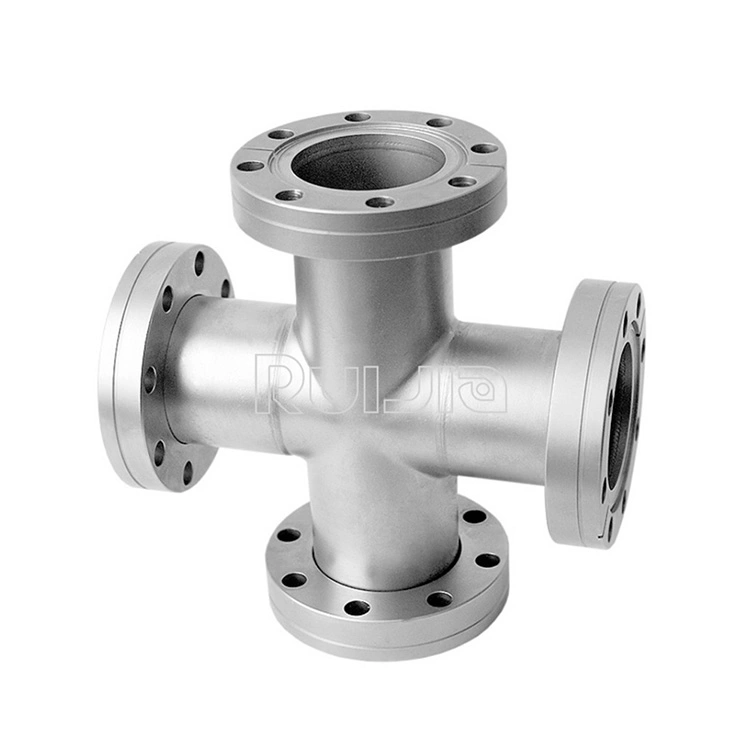

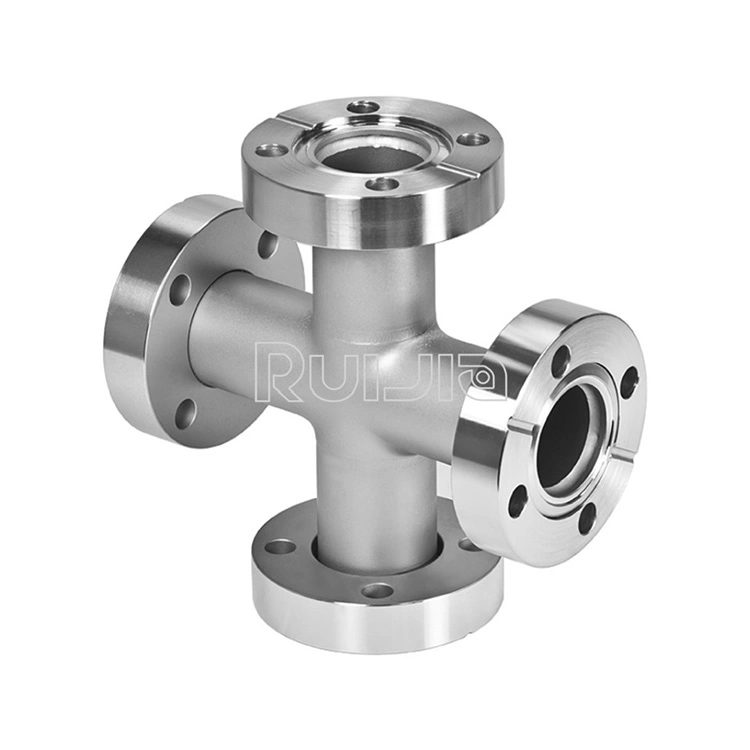

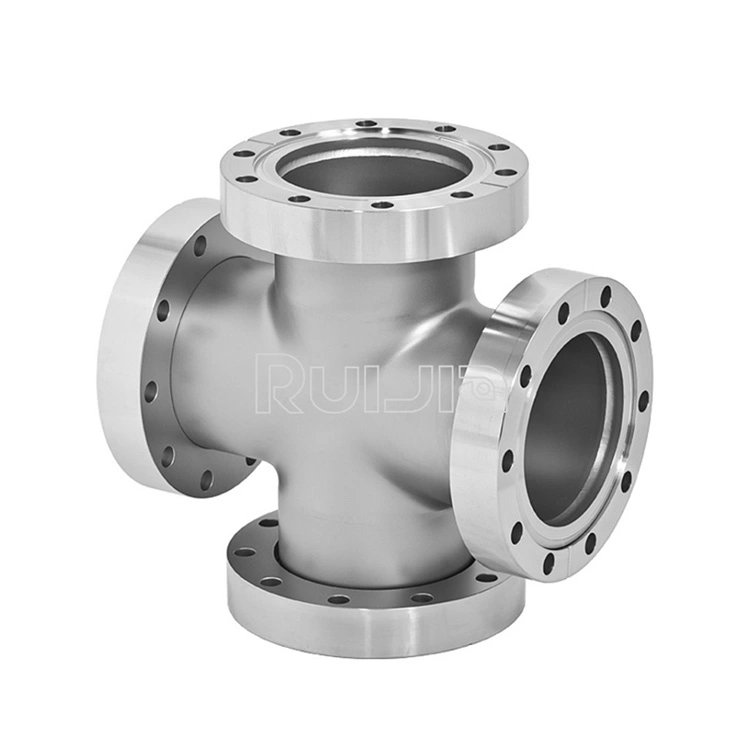

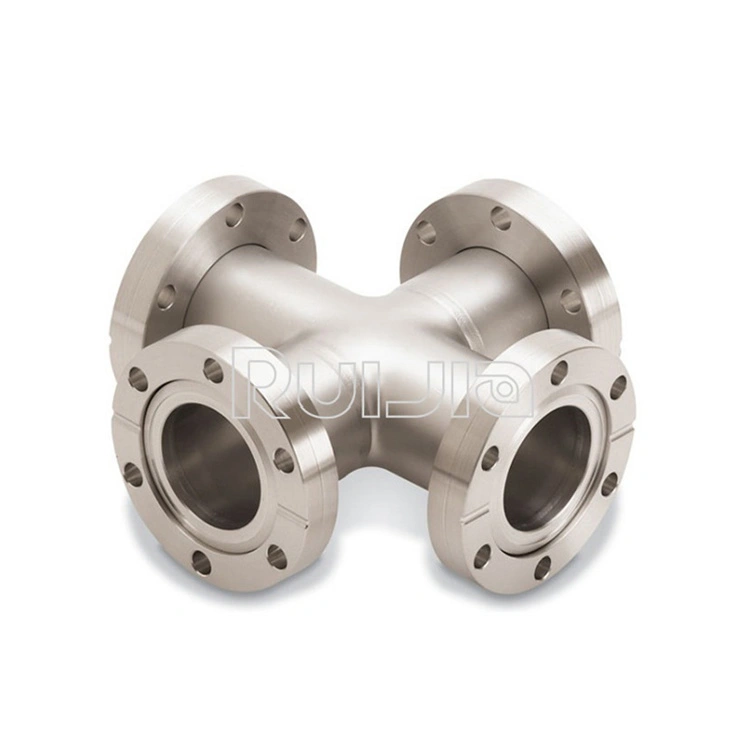

CF Vacuum Crosses 4 way -two Flange Rotatable CF Vacuum Components

CF four way crosses, stainless steel,vacuum crosses is mainly focuses on ultra-high vacuum systems, and its packaging and testing process requires special attention to protecting the sealing surface to ensure its good sealing performance and long-term stability.

Standard:	CF Standard
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Mainly used in ultra-high vacuum systems. The connection method of 4 way crosses is suitable for applications that require high temperature baking. Its nominal diameter sizes include CF16, CF35, CF63, CF100, CF150 and the applicable vacuum degree is up to 10 ^ -12 mbar.

Packaging method: Special packaging materials are usually used for protection. During packaging, anti-static materials and foam packaging will be used to reduce the damage to products caused by vibration and collision during transportation

Testing: Appearance inspection, size inspection, sealing performance testing

Specification

Product Name	CF Vacuum 4 way Crosses-Two Flange Rotatable
Brand	RUIJIA
Size	CF16,CF35,CF63,CF100,CF150
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF flange fittings types	CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.

Product parameters

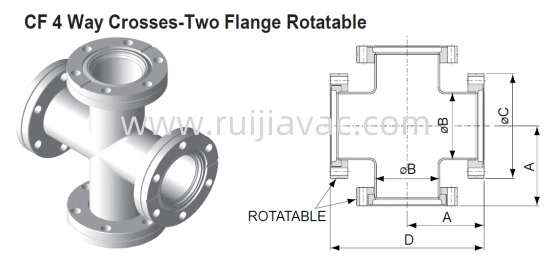

CF Vacuum 4 way Crosses-Two Flange Rotatable Unit:mm

Model No.	Material	A	B	C	D
CF16X	304S.S	47.2	19.05	33.8	94.4
CF35X	304S.S	62.5	38.1	69.5	125
CF63X	304S.S	85.7	63.5	113.6	171.4
CF100X	304S.S	109.5	101.6	151.6	219
CF150X	304S.S	139.7	152.4	202.5	279.4

Special Size available Upon Request.

Part number plus "k" for sand blasting surface.

Part number Plus "L" for polished surface.
