Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Applied to various occasions that require ultra-high vacuum environments, such as scientific research, vacuum equipment in industrial production, semiconductor manufacturing, etc.
Thread type: Metric Thread, the thread size have M4,M6,M8.
Test: Cleanliness testing, packaging environment testing, pressure testing, temperature testing
|
Product Name |

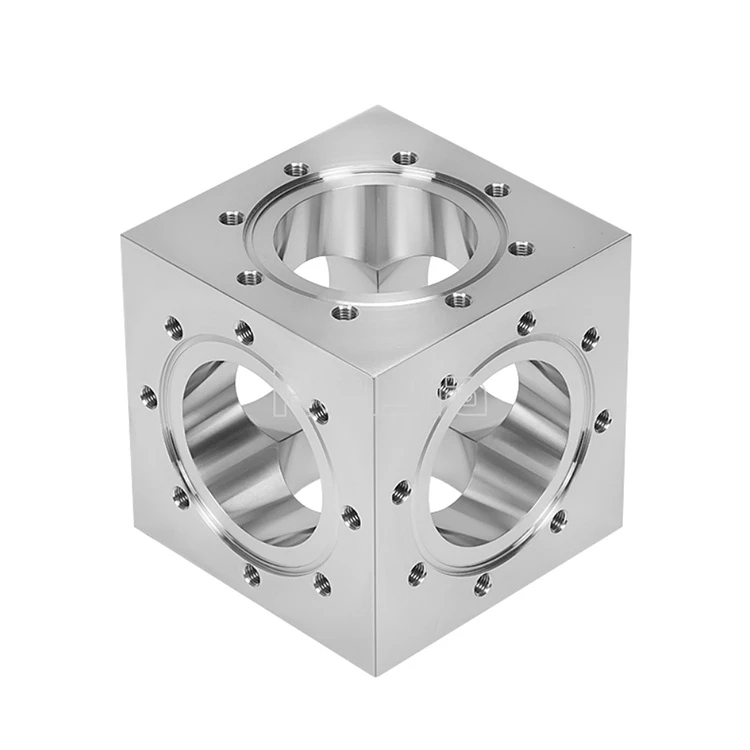

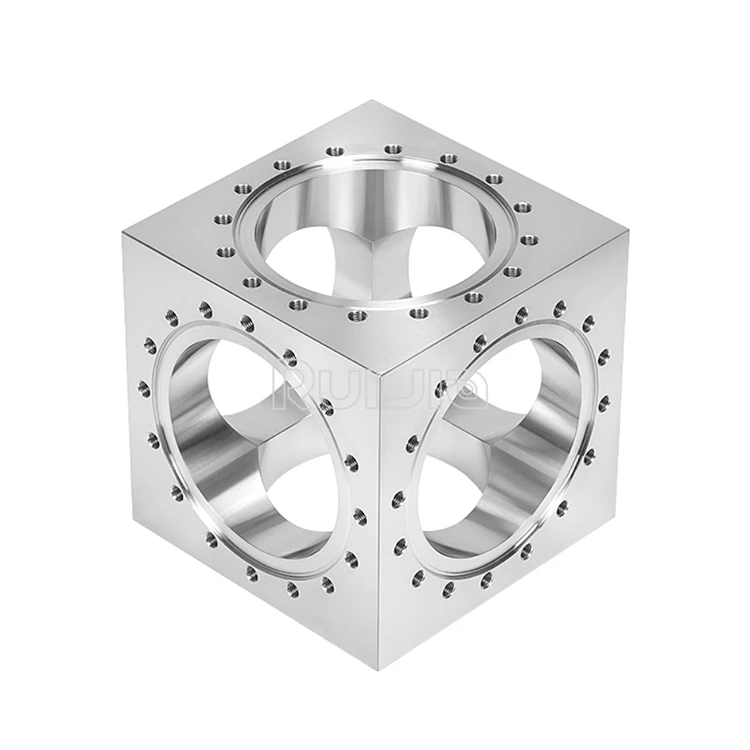

CF Vacuum 6-way cubes Metric Thread |
|
Brand |
RUIJIA |
|
Size |
CF16,CF35,CF50,CF63,CF100,CF150,CF200 |
|
Material |
SS304, SS316L |
|
Seal material |
Oxygen free copper, silver plated copper |
|
Standard |
CF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
CF flange fittings types |
CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread. |

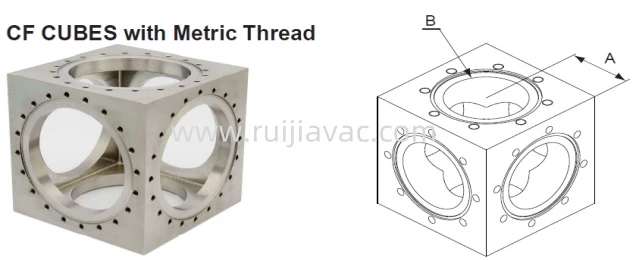

CF Vacuum 6-way cubes Metric Thread Unit:mm
|
Model No. |
Flange Size |
Material |
A |
B |
Thread Size |
Thread Depth |
|
CF16CUM |
CF16 |
304S.S |
17.25 |
15.7 |
M4 |
6 |
|
CF35CUM |
CF35 |
304S.S |
35.05 |
38.1 |
M6 |
9 |
|
CF50CUM |
CF50 |
304S.S |
43 |
50.8 |
M8 |
9 |
|
CF63CUM |
CF63 |
304S.S |
56.65 |
63.5 |
M8 |
12 |
|
CF100CUM |
CF100 |
304S.S |
76.2 |
102 |
M8 |
12 |
|
CF150CUM |
CF150 |
304S.S |
101.6 |
152.4 |
M8 |
12 |
|
CF200CUM |
CF200 |
304S.S |
127 |
203.2 |
M8 |
12 |
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
|
Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
