CF16,CF35,CF63,CF100,CF150,CF200,CF250

CF Vacuum Flange Fittings 90°Elbows Rotatable,Stainless Steel,Suitable For Ultra-high Vacuum Applications

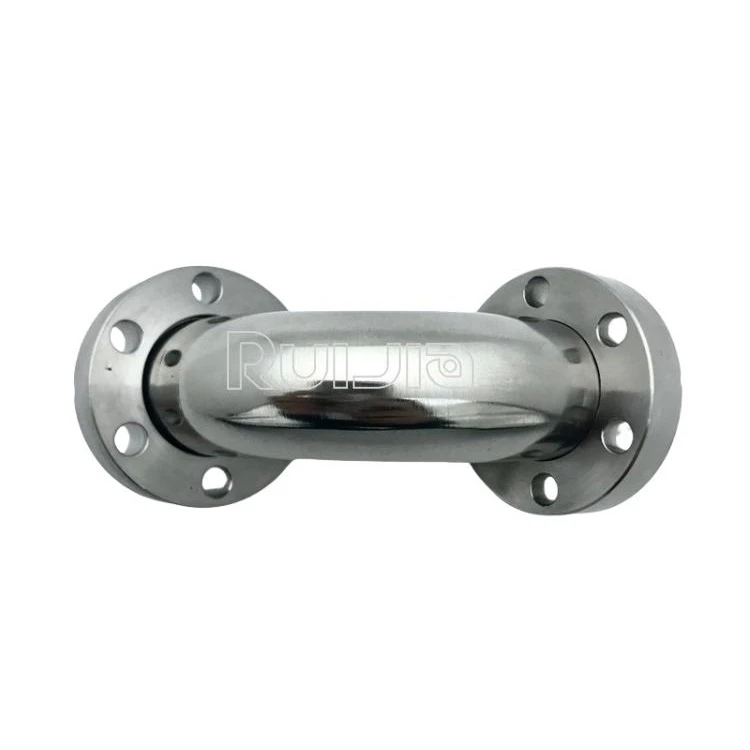

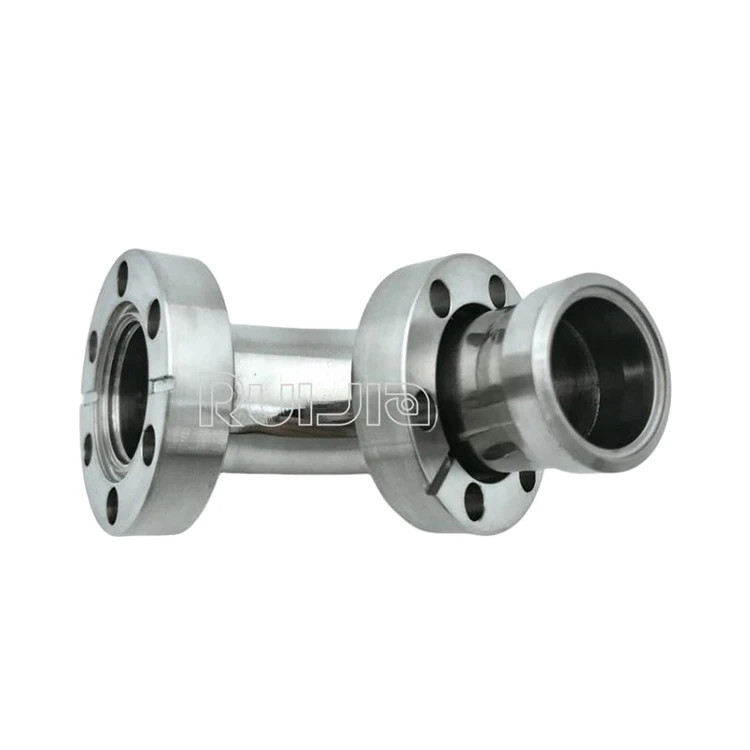

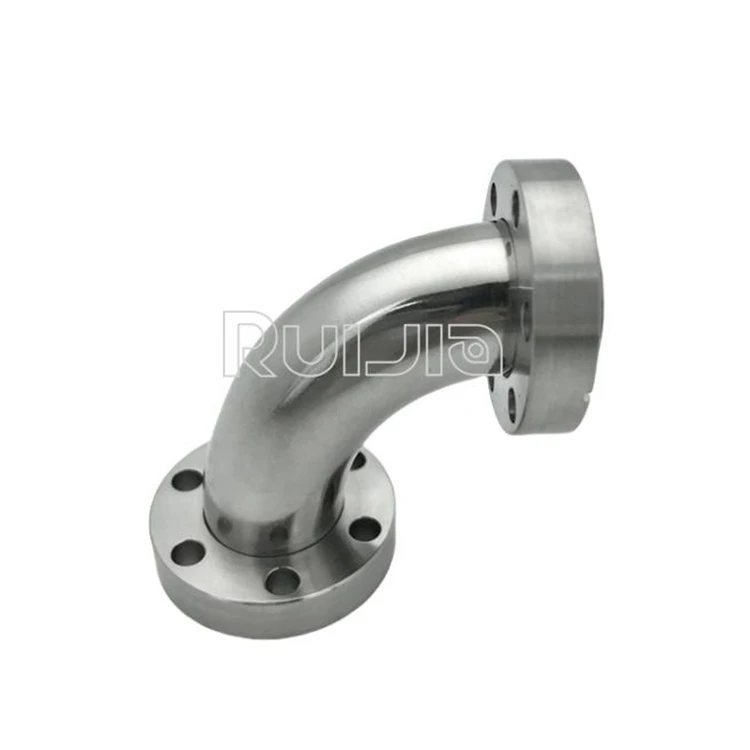

Vacuum fittings,rotatable elbow, 90 degree rotatable elbow is made of 304 and 306 stainless steel, with rotatable CF vacuum flanges at both ends, used to connect two CF flange faces with a right angle change in direction.

Standard:	CF Standard
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Application: Suitable for ultra-high vacuum applications below 10-13 Torr, as well as maintaining stable performance in the temperature range of -196 ° C to 500 ° C.

Packaging method: shockproof packaging materials, such as foam or bubble film, are usually used to reduce vibration and impact during transportation

Testing: Appearance inspection, size inspection, sealing performance testing

Specification

Product Name	CF Vacuum flange 90 degree Elbow Rotatable
Brand	RUIJIA
Size	CF16,CF35,CF63,CF100,CF150,CF200,CF250
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF flange fittings types	CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.

Product parameters

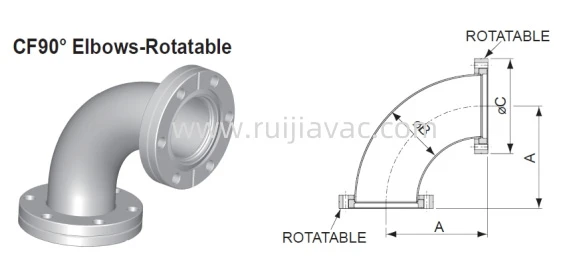

CF Vacuum flange 90 degree Elbow Rotatable Unit:mm

Model No.	Material	A	B	C
CR16EL90	304S.S	47.2	19.05	33.8
CR35EL90	304S.S	79.8	38.1	69.5
CR63EL90	304S.S	141.3	63.5	113.6
CR100EL90	304S.S	222.2	101.6	151.6
CR150EL90	304S.S	241.3	152.4	202.5
CR200EL90	304S.S	215.9	219.08	253.2
CR250EL90	304S.S	266.7	273.05	336.5

Special Size available Upon Request.

Part number plus "k" for sand blasting surface.

Part number Plus "L" for polished surface.
