CF-RT-275×133,CF-RT-275×212,CF-RT-338×133

CF Vacuum Flange Components & Fittings Reducing Tees Wholesale China

CF fittings,CF reducing fittings,The design of this Vacuum reducing Tees fluid to flow freely in the pipeline, and through its rotatable characteristics, it is convenient to connect and adjust the direction of the pipeline.

Standard:	CF Standard
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Applied in industries, laboratory equipment, scientific research instruments, medical equipment and other fields, it ensures the stable operation and efficient work of the system.

Packaging method: shockproof packaging materials, such as foam or bubble film, are usually used to reduce vibration and impact during transportation

Testing: Appearance inspection, size inspection, sealing performance testing

Finish: polish surface or sand blasting surface.

Specification

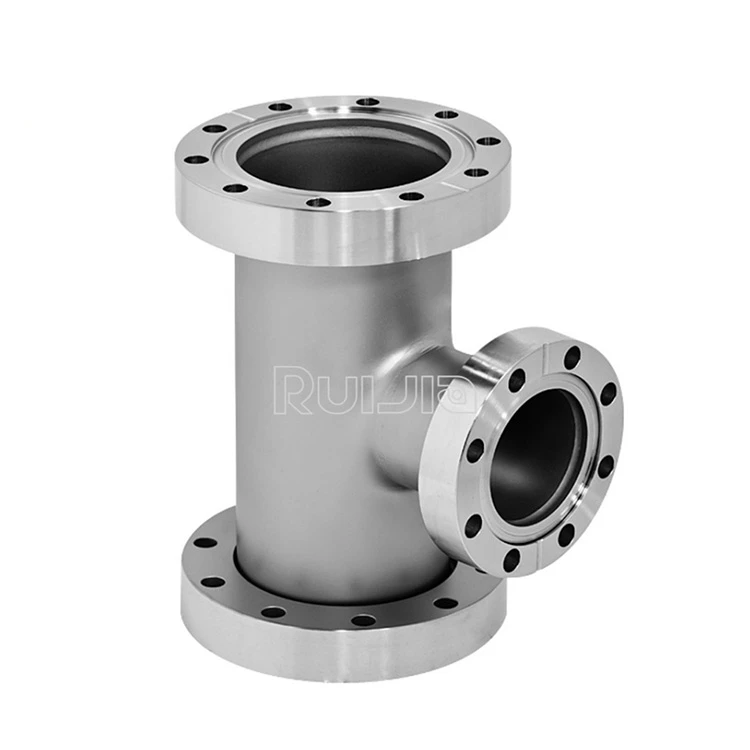

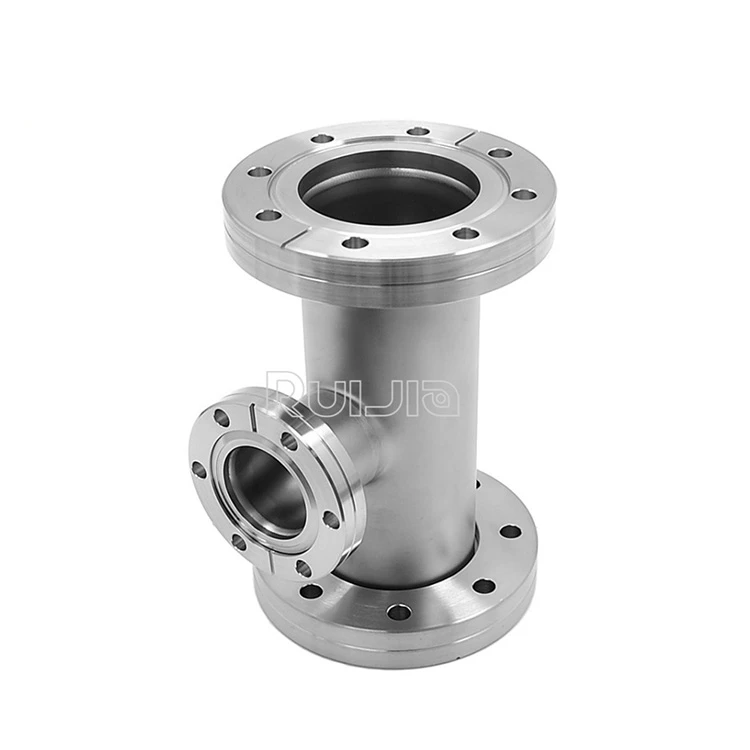

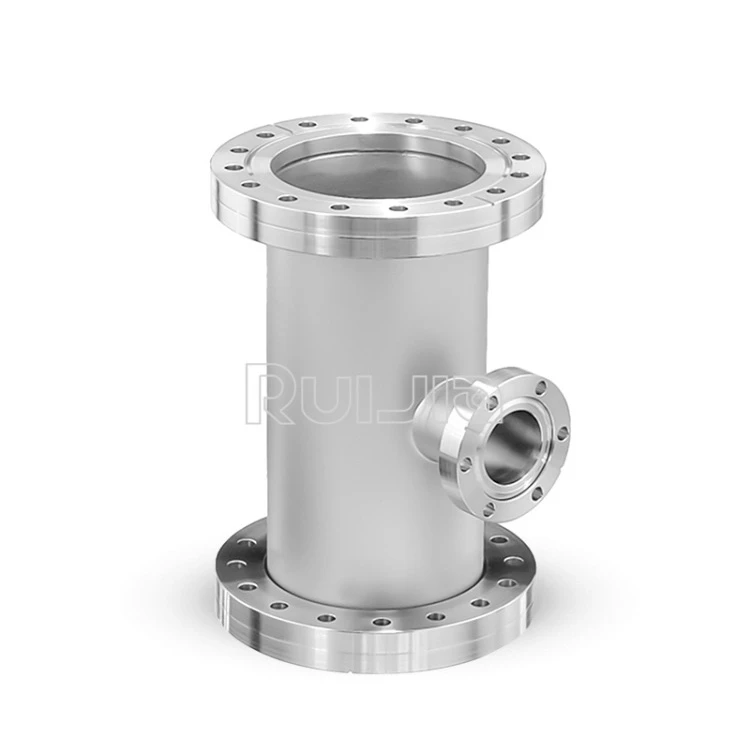

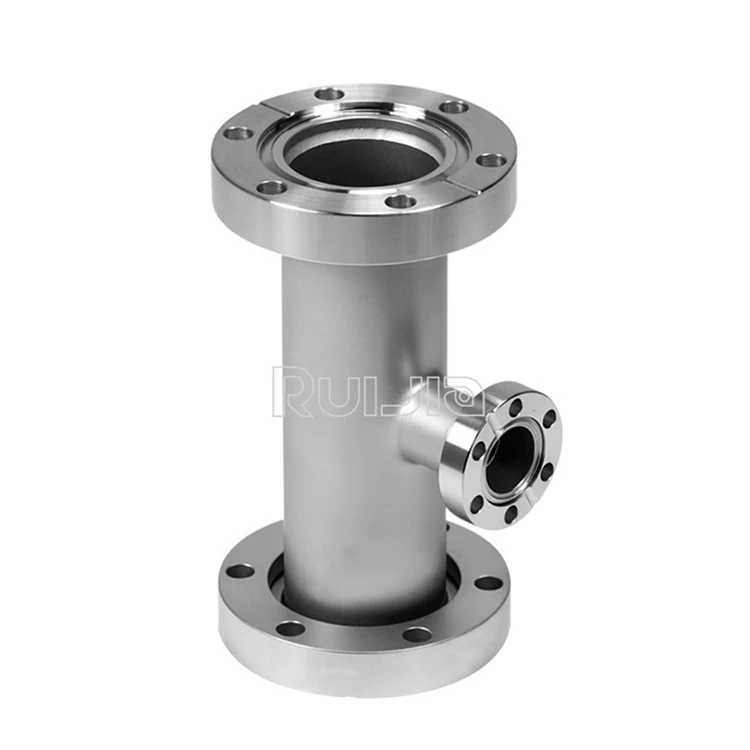

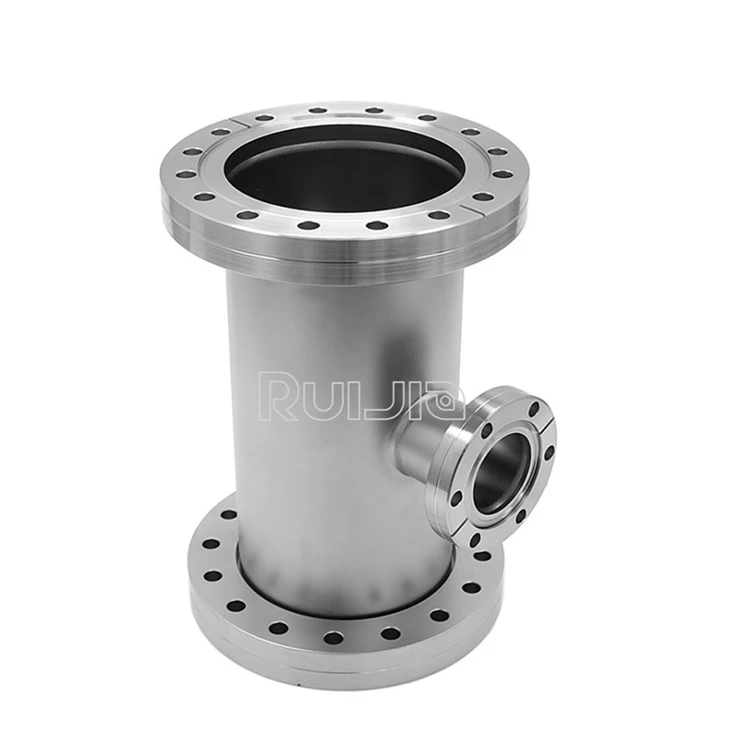

Product Name	CF Vacuum flange Fittings reducing Tees
Brand	RUIJIA
Size	CF-RT-275×133,CF-RT-275×212,CF-RT-338×133 etc
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF flange fittings types	CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.

Product parameters

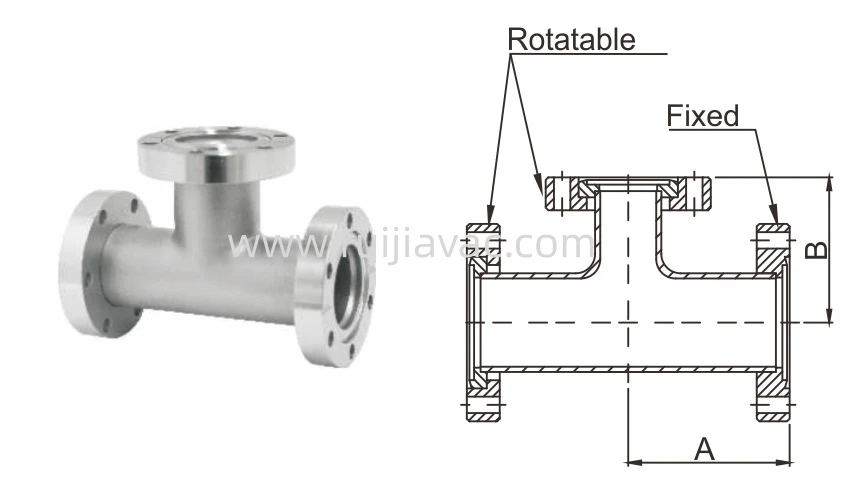

CF Vacuum flange Fittings reducing Tees Unit:mm

Model No.	Flange Size	A	B
CF-RT-275×133	CF 2.75''/1.33''	62.5	47.5
CF-RT-275×212	CF2.75''/2.12''	62.5	58.2
CF-RT-338×133	CF3.38''/1.33''	81.8	54.1
CF-RT-338×275	CF3.38''/2.75''	81.8	68.8
CF-RT-450×275	CF4.5''/2.75''	85.9	75.2
CF-RT-450×338	CF4.5''/3.38''	85.9	88.4
CF-RT-462×338	CF4.62''/3.8''	89.7	94.7
CF-RT-462×450	CF4.62''/4.5''	89.7	92.2
CF-RT-600×275	CF6.00''/2.75''	109.7	94.2
CF-RT-600×338	CF6.00''/3.38''	109.7	107.4
CF-RT-600×450	CF6.00''/4.5''	109.7	104.9
CF-RT-600×462	CF6.00''/4.62''	109.7	102.4
