Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Mainly used for multi-channel and multi-purpose sealed connections in ultra-high vacuum systems
Packaging method: Special packaging materials are usually used for protection. During packaging, anti-static materials and foam packaging will be used .
Finish:polish surface or sand blasting surface.
|
Product Name |

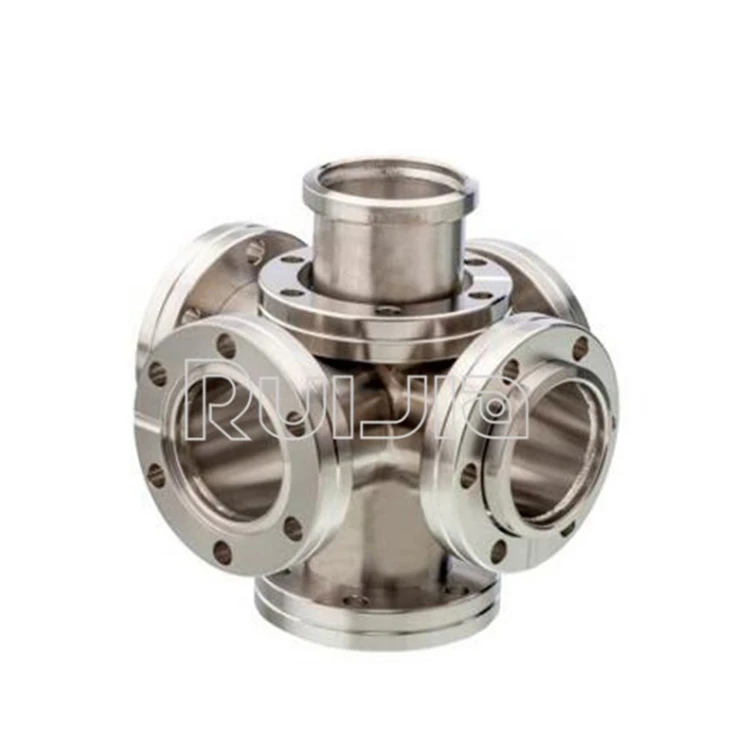

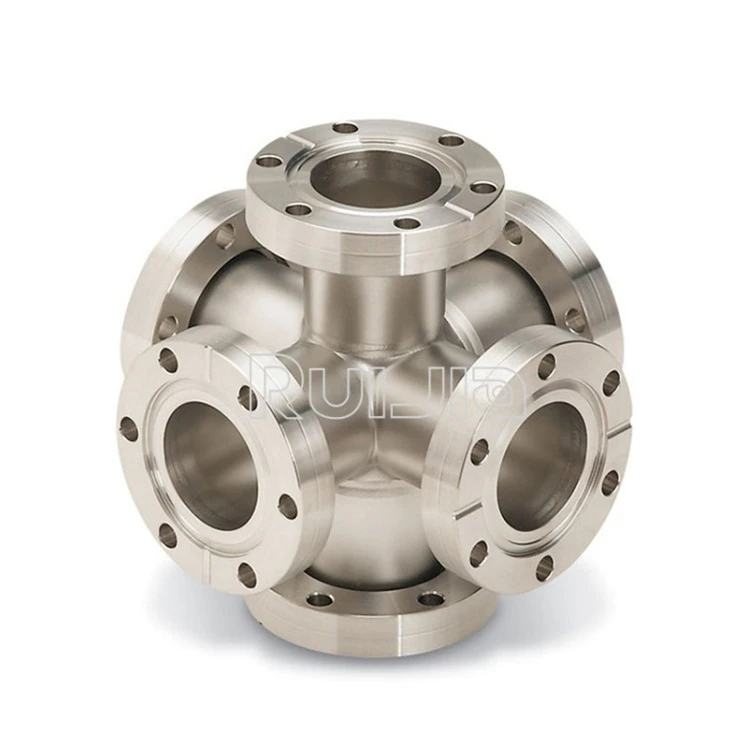

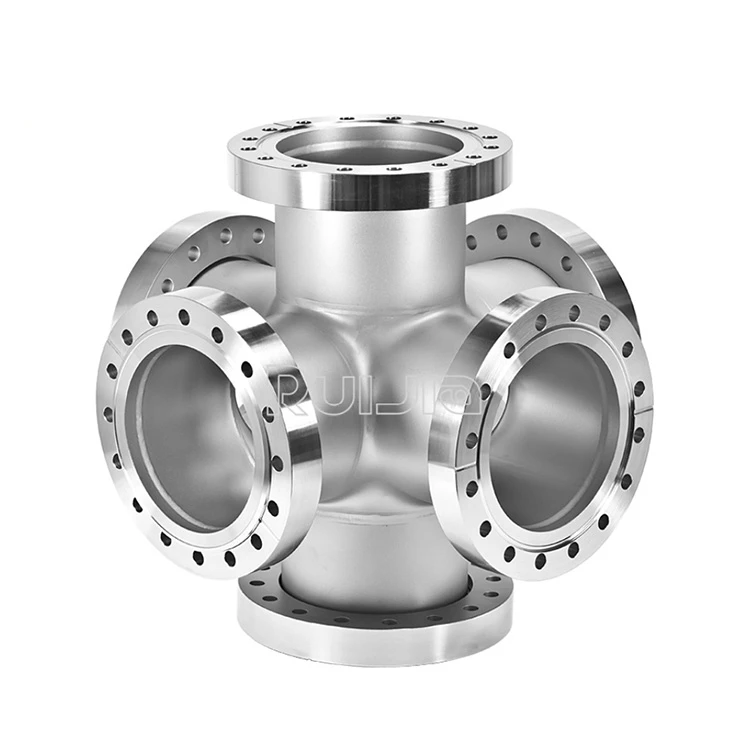

CF Vacuum 6 way Crosses-three flange Rotatable |
|
Brand |
RUIJIA |
|
Size |
CF16,CF35,CF63,CF100,CF150 |
|
Material |
SS304, SS316L |
|
Seal material |
Oxygen free copper, silver plated copper |
|
Standard |
CF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
CF flange fittings types |
CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread. |

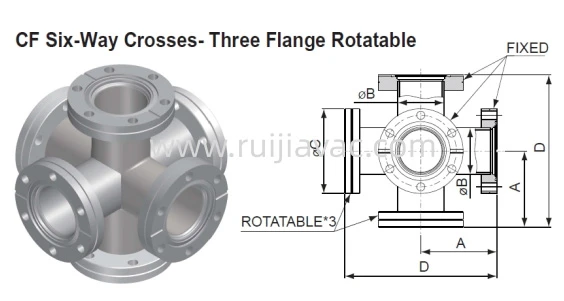

CF Vacuum 6 way Crosses-three flange Rotatable Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
|
CR16SXA |
304S.S |
47.2 |
19.05 |
33.8 |
94.4 |
|
CR35SXA |
304S.S |
62.5 |
38.1 |
69.5 |
125 |
|
CR63SXA |
304S.S |
85.7 |
63.5 |
113.6 |
171.4 |
|
CR100SXA |
304S.S |
109.5 |
101.6 |
151.6 |
219 |
|
CR150SXA |
304S.S |
139.7 |
152.4 |
202.5 |
279.4 |
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
|
Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
