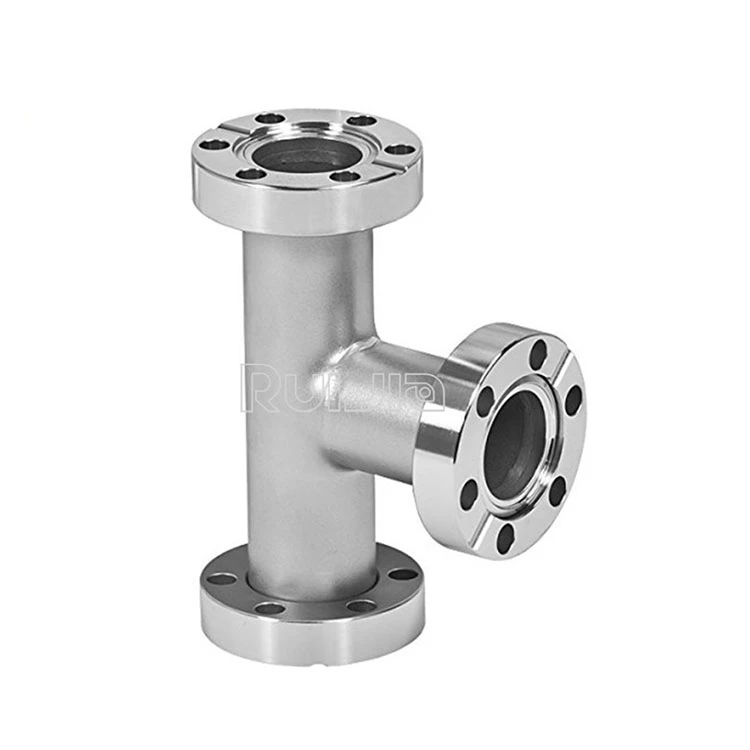

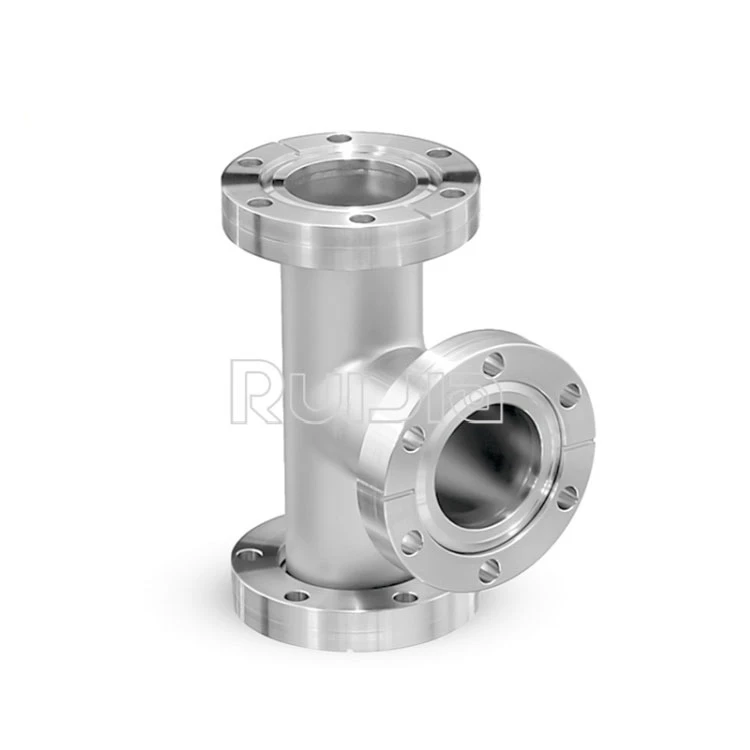

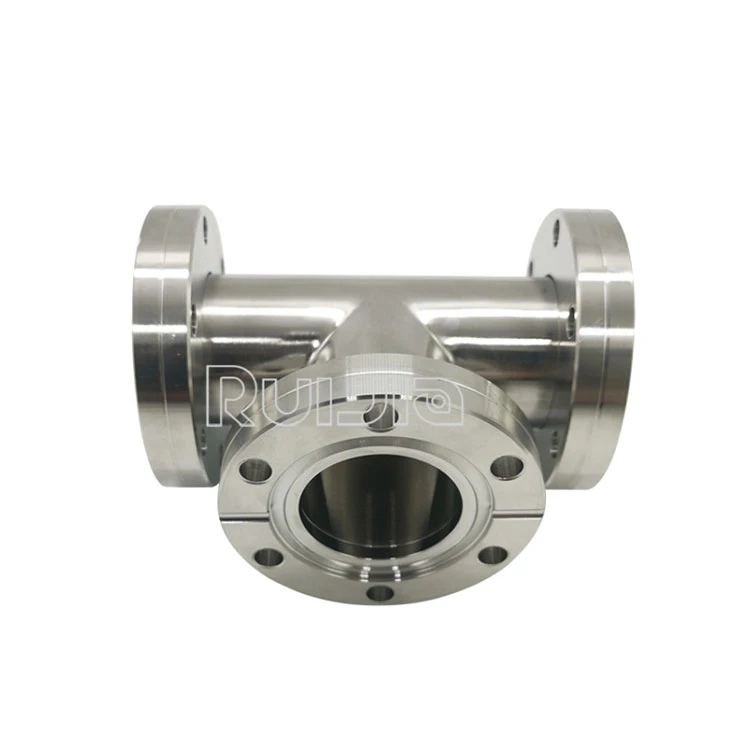

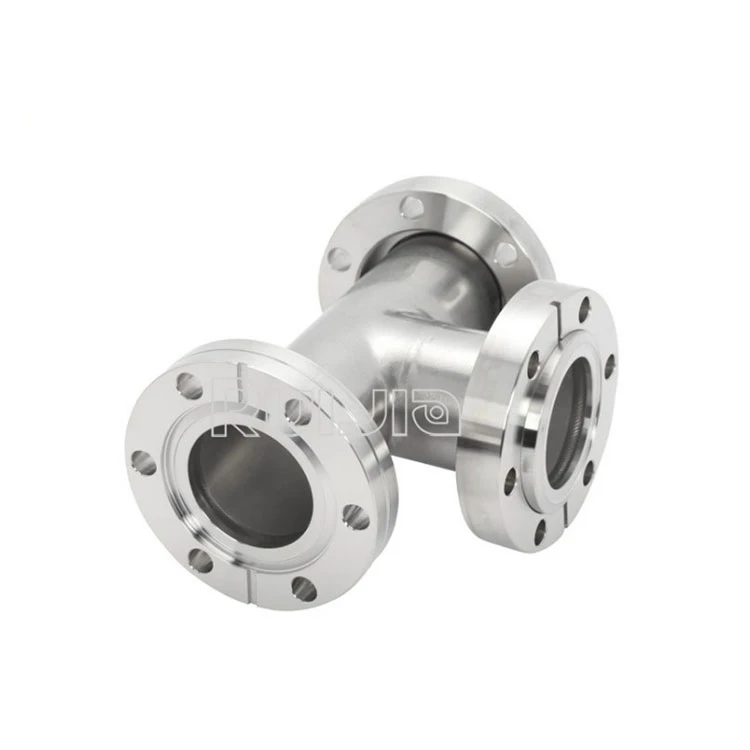

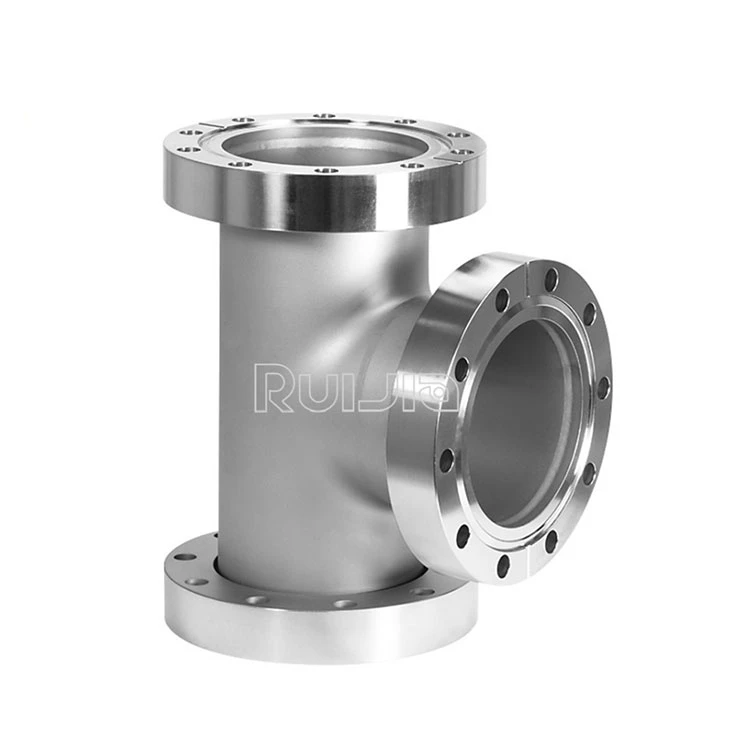

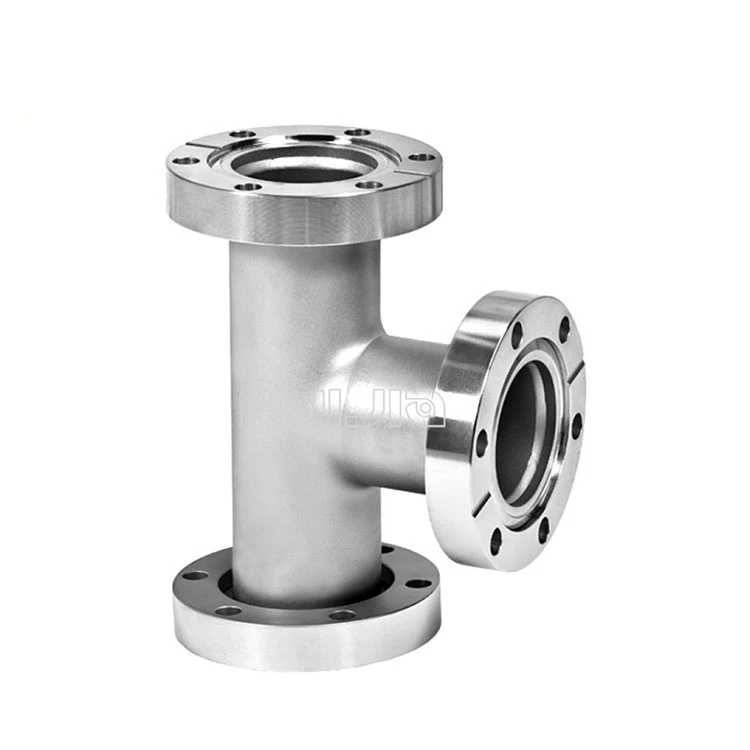

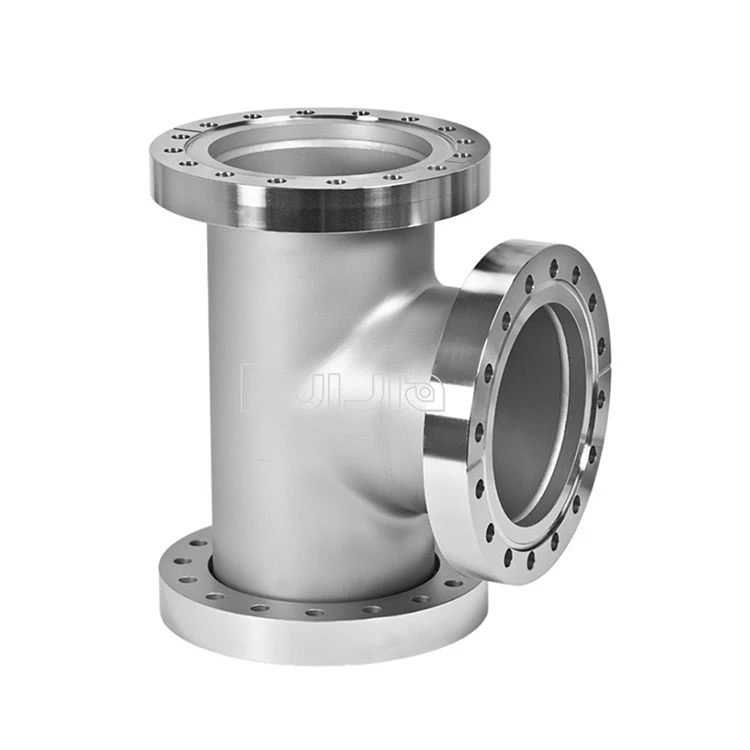

CF16,CF35,CF63,CF100,CF150

CF Vacuum Flange Fittings Tees-Fixed Stainless Steel Wholesale China

CF vacuum fittings, CF Tees, high sealing, low leak rate, the seal material: Oxygen free copper, silver plated copper, CF fittings is made out of stainless steel.

Standard:	CF Standard
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Applied in industries, laboratory equipment, scientific research instruments, medical equipment and other fields, it ensures the stable operation and efficient work of the system.

Packaging method: shockproof packaging materials, such as foam or bubble film, are usually used to reduce vibration and impact during transportation

Testing: Appearance inspection, size inspection, sealing performance testing

Specification

Product Name	CF Vacuum flange Fittings Tees Fixed
Brand	RUIJIA
Size	CF16,CF35,CF63,CF100,CF150
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF flange fittings types	CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.

Product parameters

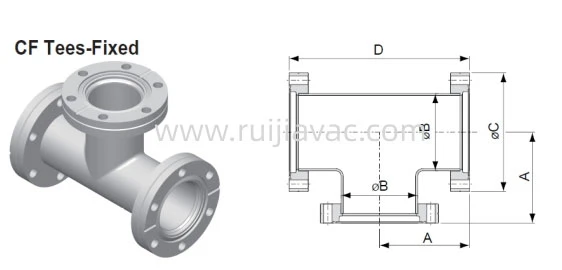

CF Vacuum flange Fittings Tees Fixed Unit:mm

Model No.	Material	A	B	C	D
CR16T90	304S.S	37.5	19.05	33.8	75
CR35T90	304S.S	62.5	38.1	69.5	125
CR63T90	304S.S	85.7	63.5	113.6	171.4
CR100T90	304S.S	109.5	101.6	151.6	219
CR150T90	304S.S	139.7	152.4	202.5	279.4

Special Size available Upon Request.

Part number plus "k" for sand blasting surface.

Part number Plus "L" for polished surface.
