Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Mainly used in ultra-high vacuum systems. The connection method of 5 way crosses-fixed is suitable for applications that require high temperature baking. Its nominal diameter sizes include CF16, CF35, CF63, CF100, CF150..
Packaging method: Special packaging materials are usually used for protection. During packaging, anti-static materials and foam packaging will be used to reduce the damage to products caused by vibration and collision during transportation
High pressure system air tightness, low pressure system air tightness testing, quantitative oxygen supply, exhaust pressure testing, and automatic supply pressure testing, etc.
|
Product Name |

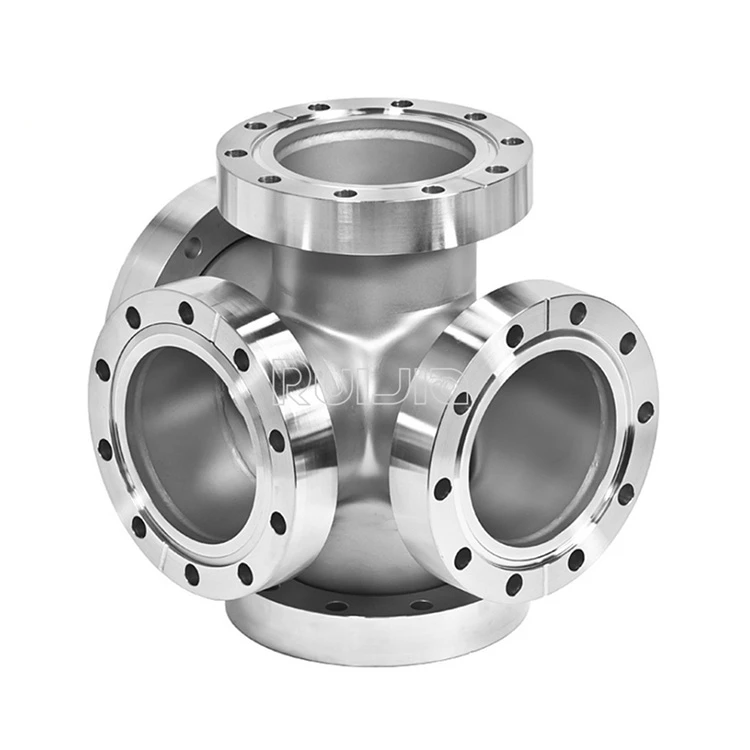

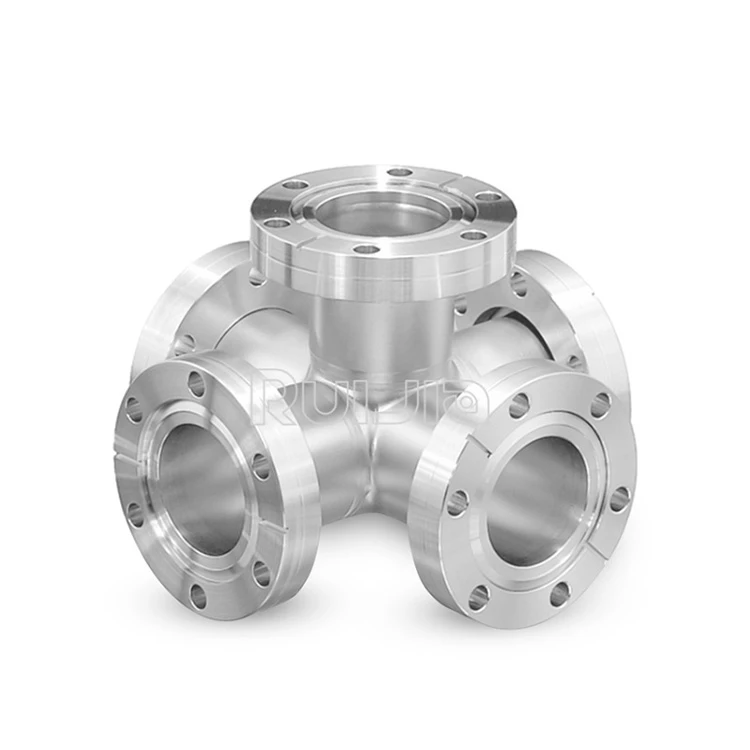

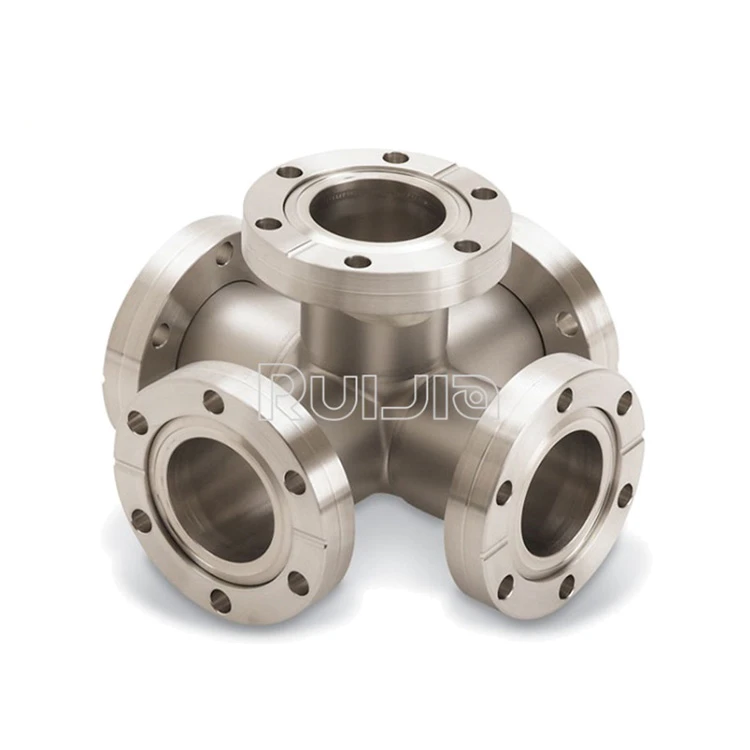

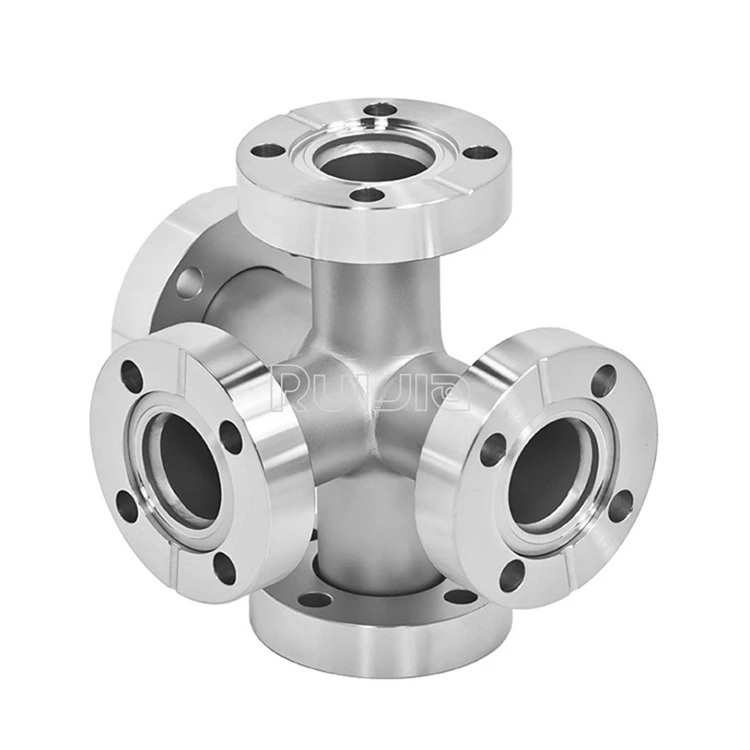

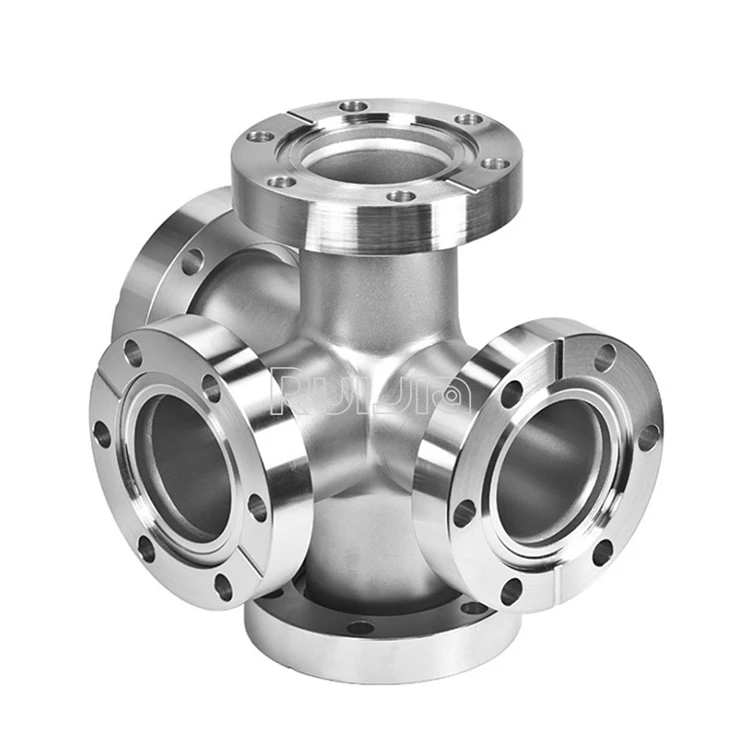

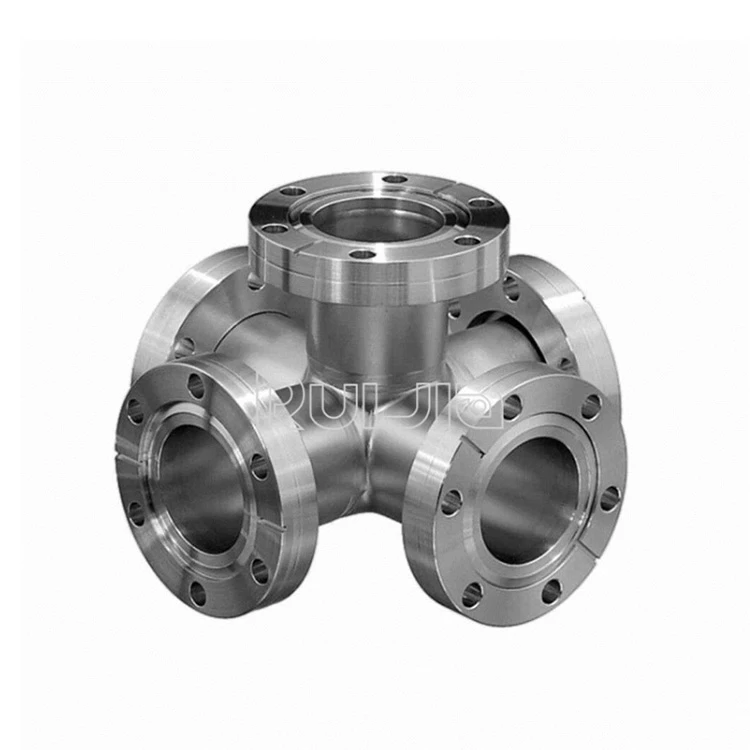

CF Vacuum 5 way Crosses-three flange Rotatable |
|
Brand |
RUIJIA |
|
Size |
CF16,CF35,CF63,CF100,CF150 |
|
Material |
SS304, SS316L |
|
Seal material |
Oxygen free copper, silver plated copper |
|
Standard |
CF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
CF flange fittings types |
CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread. |

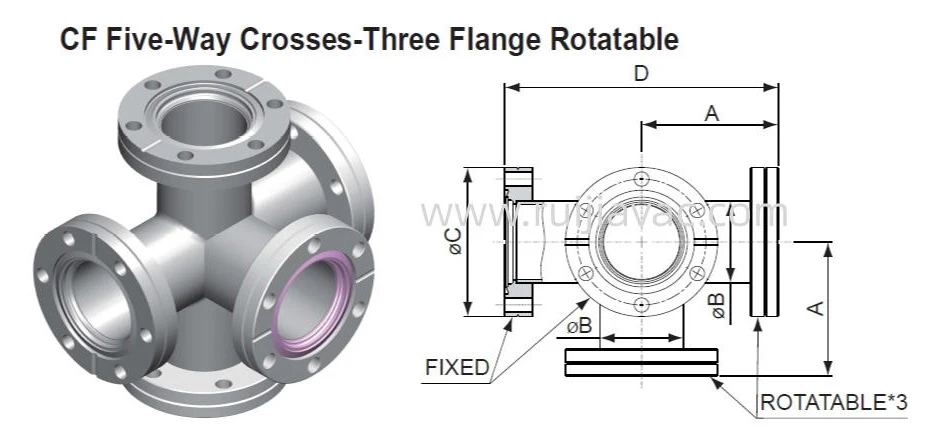

CF Vacuum 5 way Crosses-three flange Rotatable Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
|
CR16FXA |
304S.S |
47.2 |
19.05 |
33.8 |
94.4 |
|
CR35FXA |
304S.S |
62.5 |
38.1 |
69.5 |
125 |
|
CR63FXA |
304S.S |
85.7 |
63.5 |
113.6 |
171.4 |
|
CR100FXA |
304S.S |
109.5 |
101.6 |
151.6 |
219 |
|
CR150FXA |
304S.S |
139.7 |
152.4 |
202.5 |
279.4 |
Special Size available Upon Request.
|
