CF Vacuum Flanges Fittings & Component 4 way Reducing Crosses China Manufacture

Product Name

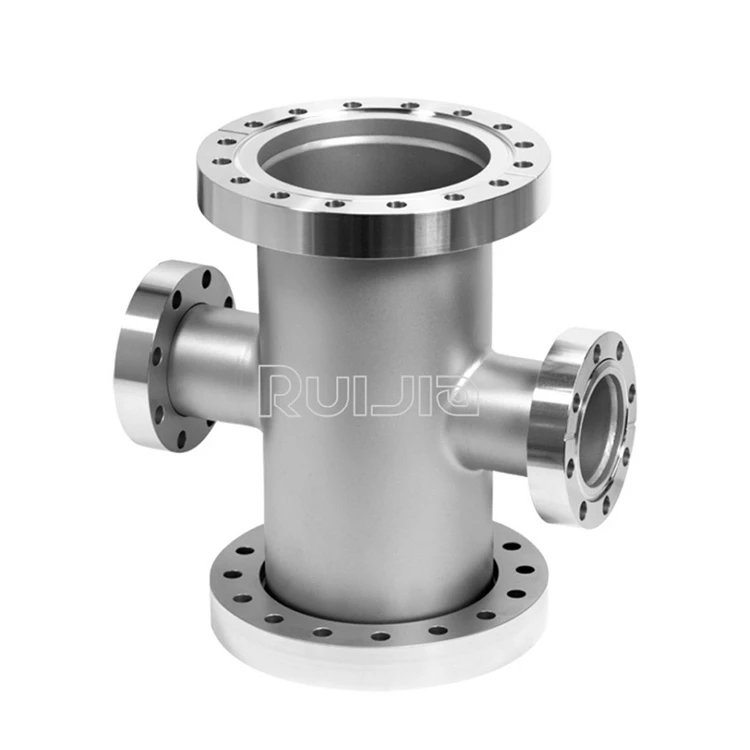

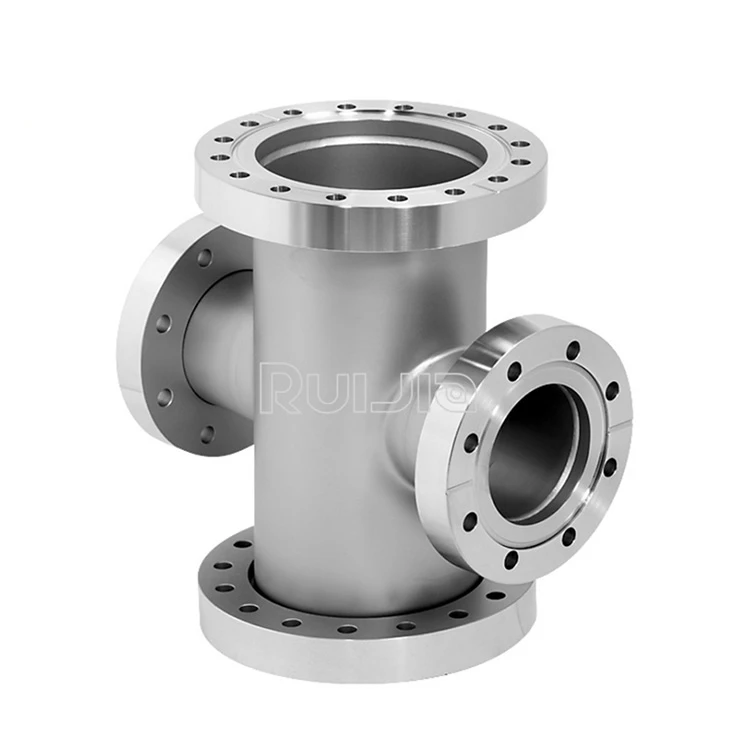

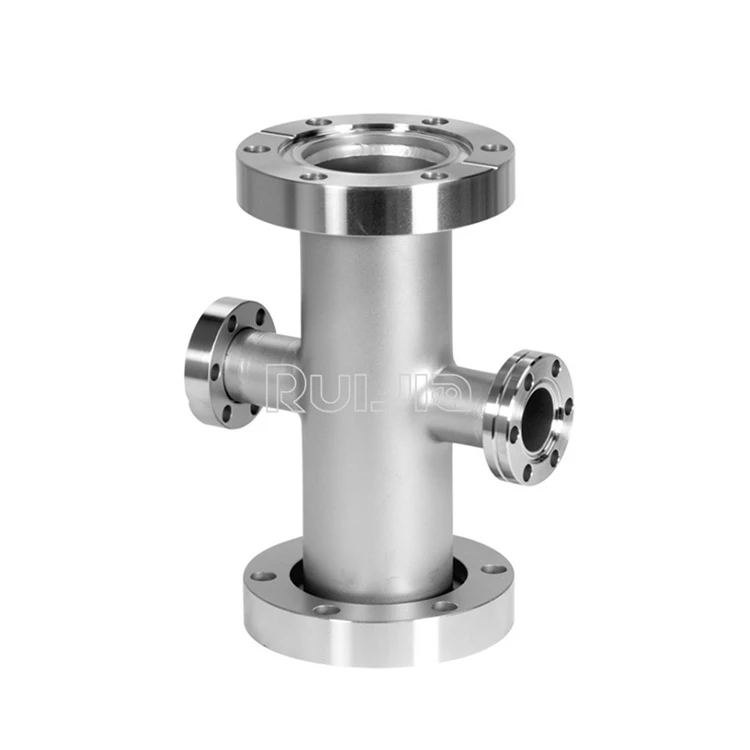

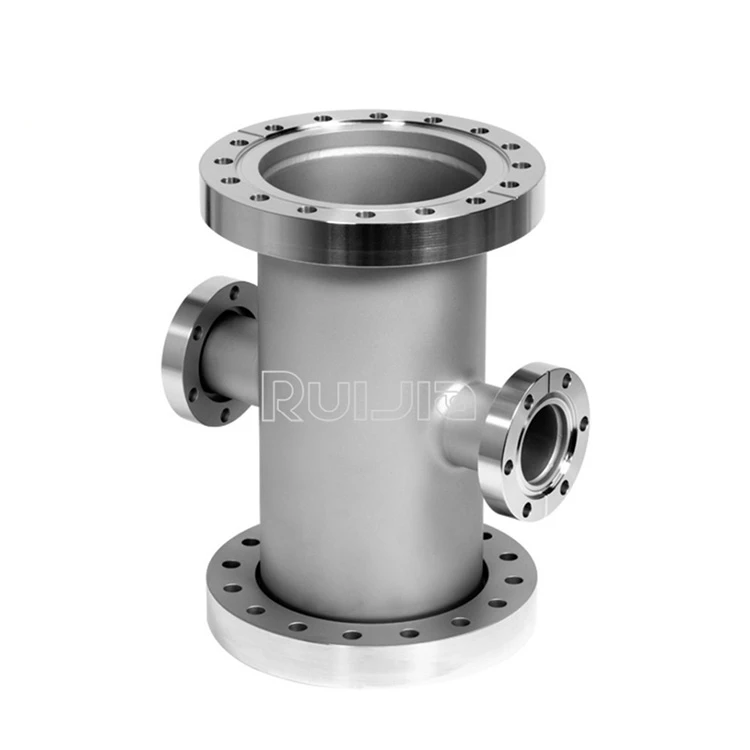

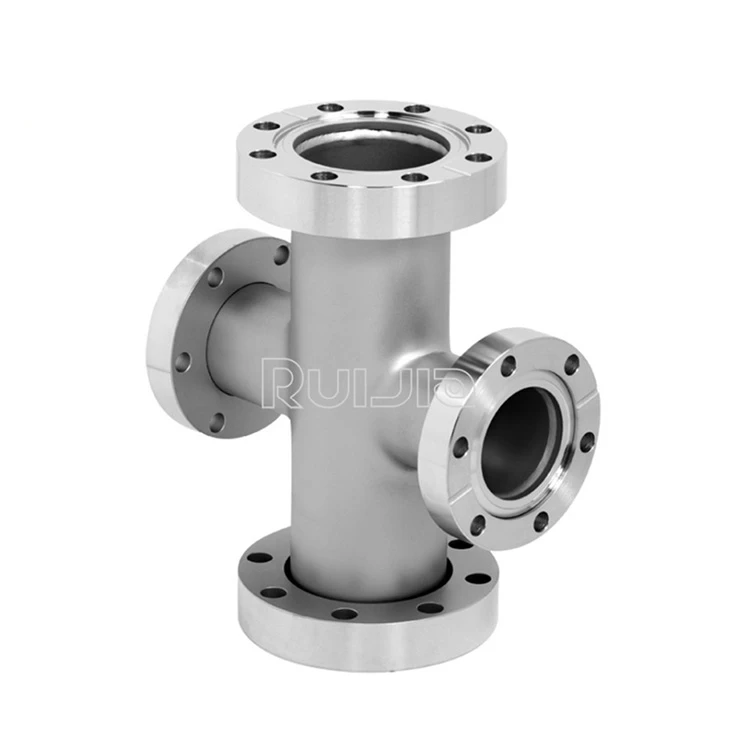

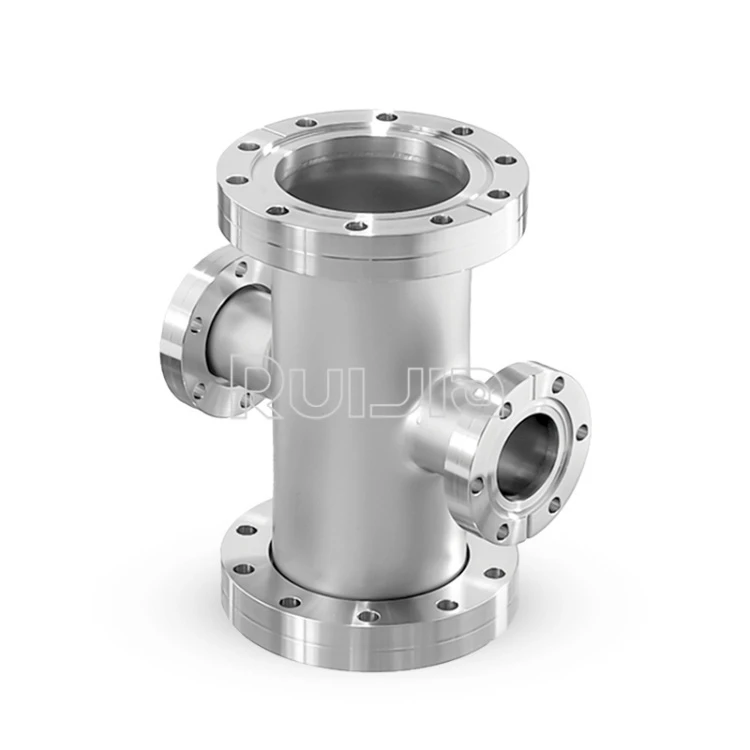

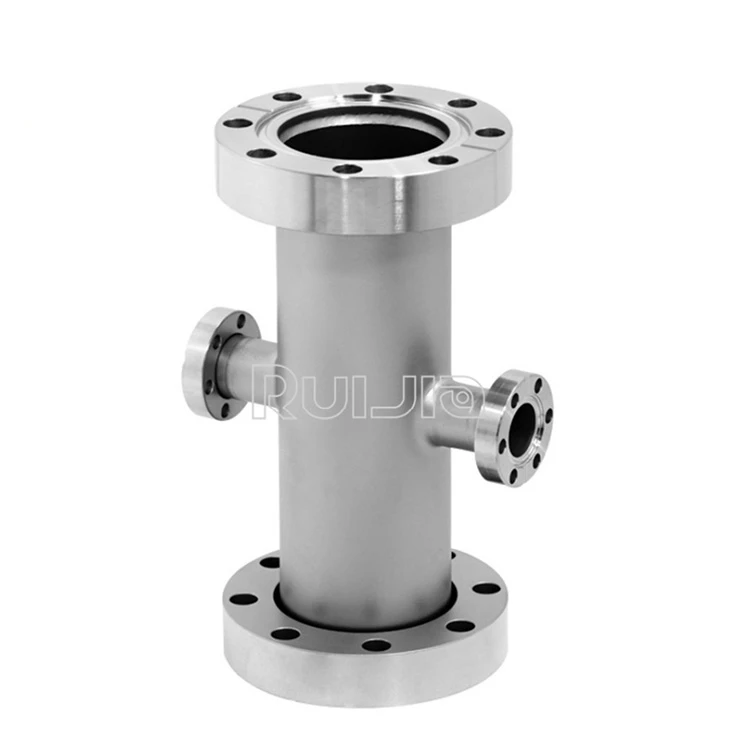

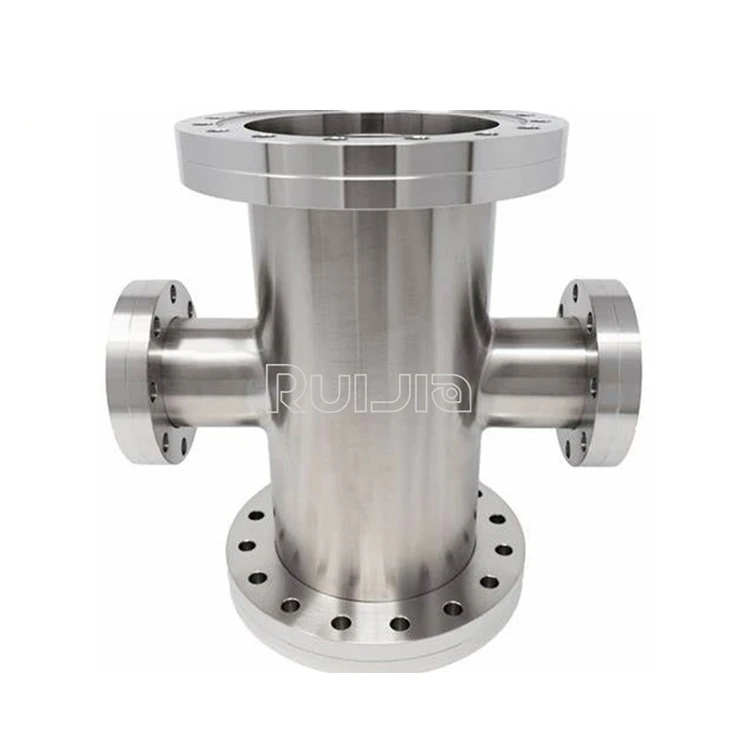

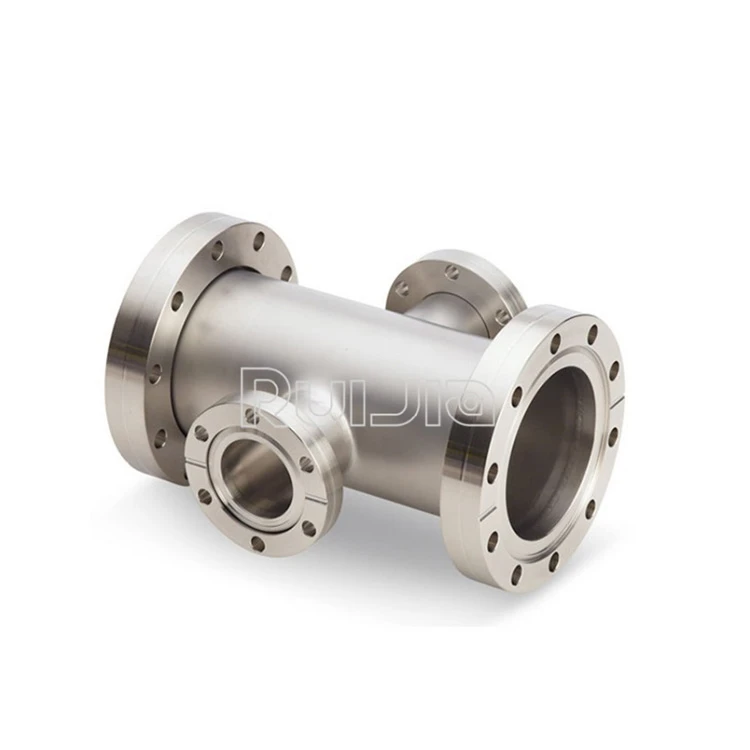

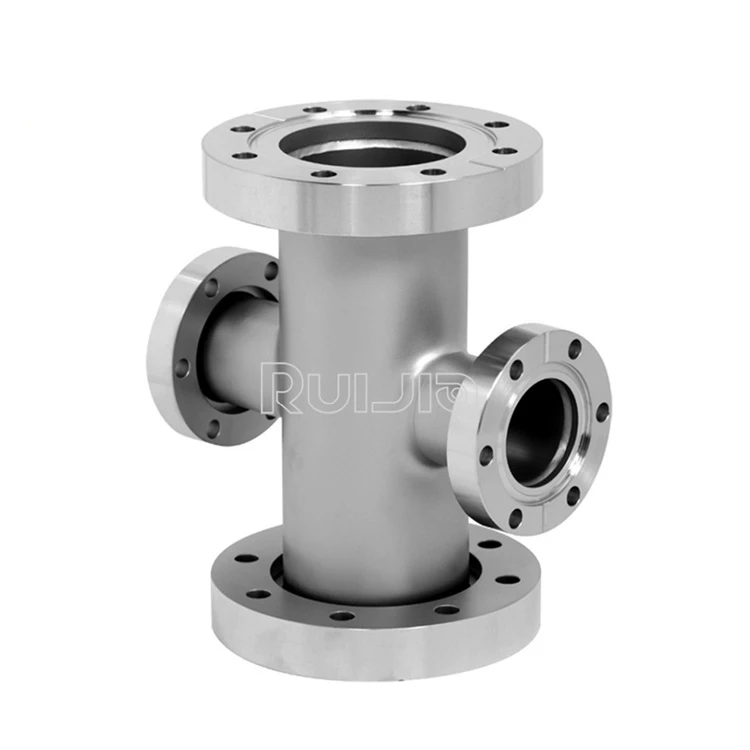

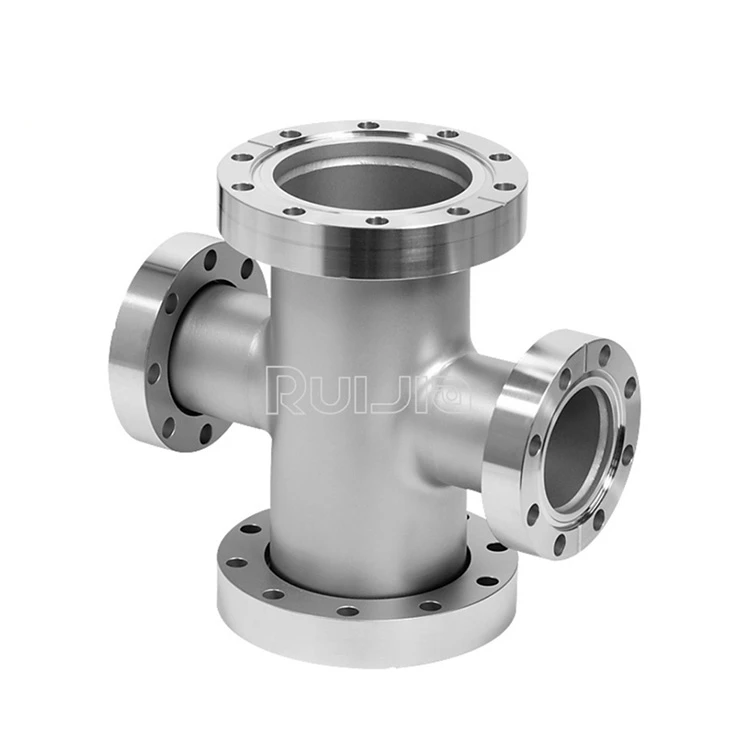

CF Vacuum fittings reducing 4 way Crosses

Brand

RUIJIA

Size

CF-RT-275×133,CF-RT-275×212,CF-RT-338×133,etc

Material

SS304, SS316L

Seal material

Oxygen free copper, silver plated copper

Standard

CF Standard

Temperature

-200~450℃

Working Pressure

Vacuum~atmosphere pressure

Helium Leak Test

1×10 -9 Pa・m³/sec or less

Packing

sealed plastic bag with a protective plastic cap.

CF flange fittings types

CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.

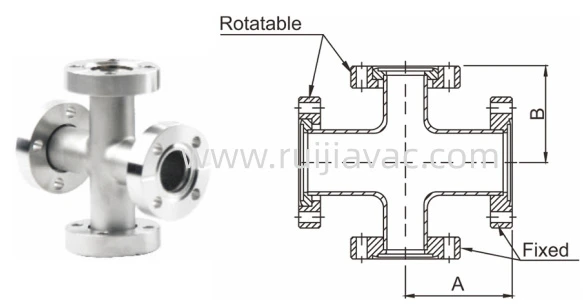

Model No.

Flange Size

A

B

CF-RT-275×133

CF 2.75''/1.33''

62.5

47.5

CF-RT-275×212

CF2.75''/2.12''

62.5

58.2

CF-RT-338×133

CF3.38''/1.33''

81.8

54.1

CF-RT-338×275

CF3.38''/2.75''

81.8

68.8

CF-RT-450×275

CF4.5''/2.75''

85.9

75.2

CF-RT-450×338

CF4.5''/3.38''

85.9

88.4

CF-RT-462×338

CF4.62''/3.8''

89.7

94.7

CF-RT-462×450

CF4.62''/4.5''

89.7

92.2

CF-RT-600×275

CF6.00''/2.75''

109.7

94.2

CF-RT-600×338

CF6.00''/3.38''

109.7

107.4

CF-RT-600×450

CF6.00''/4.5''

109.7

104.9

CF-RT-600×462

CF6.00''/4.62''

109.7

104.9
