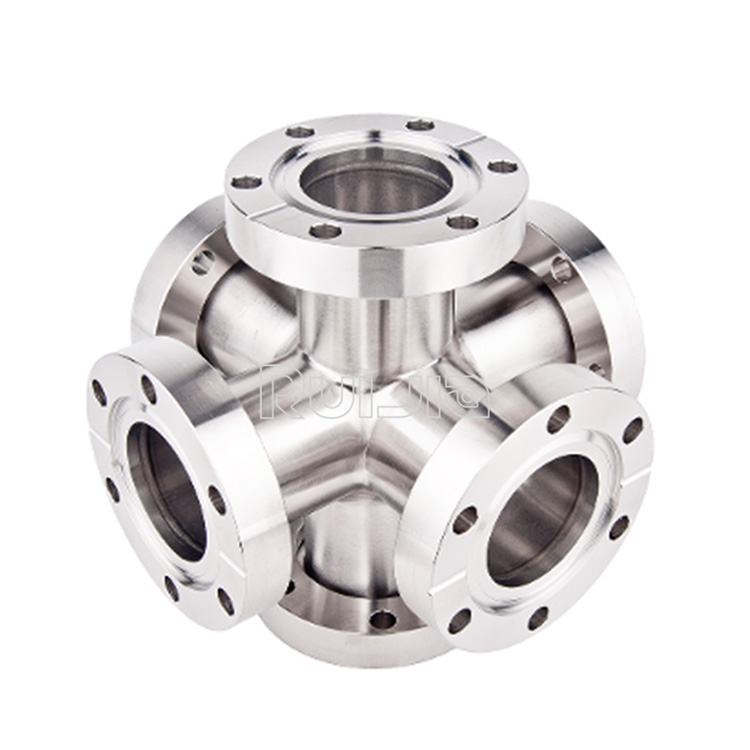

CF16,CF35,CF63,CF100,CF150

CF Vacuum Flanges Fittings & Component 6-way Crosses Fixed Fittings China

CF vacuum fixed fittings, 6-way crosses to create a stable high vacuum environment, reducing preparation time and thus improving work efficiency.

Standard:	CF Standard
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Mainly used for multi-channel and multi-purpose sealed connections in ultra-high vacuum systems

Packaging method: Special packaging materials are usually used for protection. During packaging, anti-static materials and foam packaging will be used .

Test: High pressure system air tightness, low pressure system air tightness testing, quantitative oxygen supply, exhaust pressure testing

Finish: polish surface or sand blasting surface.

Specification

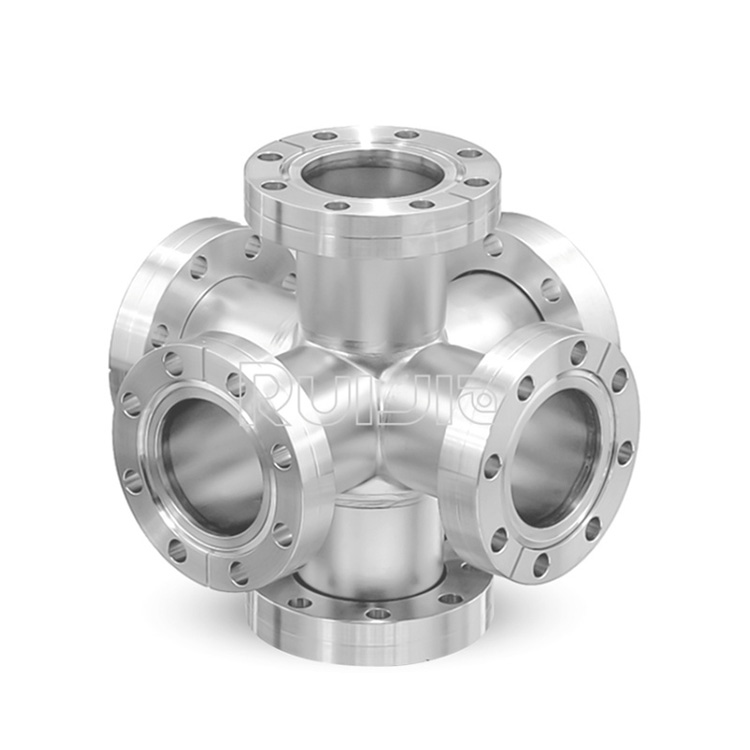

Product Name	CF Vacuum 6 way Crosses fixed fittings
Brand	RUIJIA
Size	CF16,CF35,CF63,CF100,CF150
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF flange fittings types	CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.

Product parameters

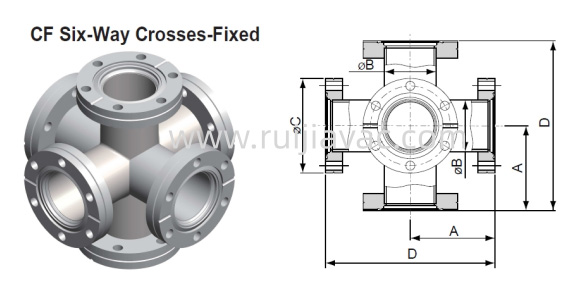

CF Vacuum 6 way Crosses fixed fittings Unit:mm

Model No.	Material	A	B	C	D
CF16SXA	304S.S	37.5	19.05	33.8	75
CF35SXA	304S.S	62.5	38.1	69.5	125
CF63SXA	304S.S	85.7	63.5	113.6	171.4
CF100SXA	304S.S	109.5	101.6	151.6	219
CF150SXA	304S.S	139.7	152.4	202.5	279.4

Special Size available Upon Request.

Part number plus "k" for sand blasting surface.

Part number Plus "L" for polished surface.
