Standard: |
KF-KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application: Suitable for various scientific research and industrial applications, such as materials research, semiconductor manufacturing, bio medicine, and other fields,
Material: Typically made from materials like, stainless steel304/316/316L. these adaptor resist corrosion an maintain a vacuum seal under high vacuum conditions.
Testing: The main testing includes checking its sealing performance, dimensional accuracy, and material qualification.
|
Product Name |

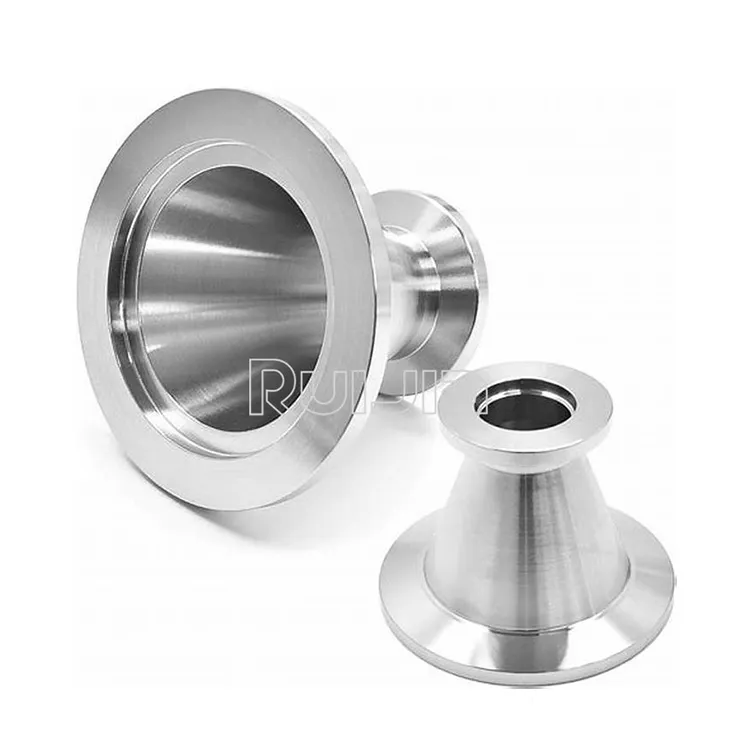

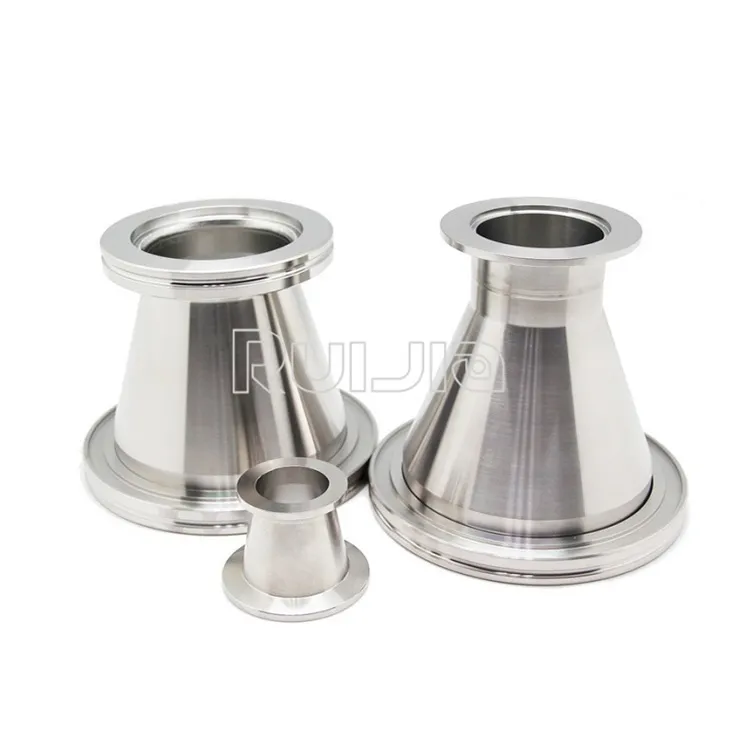

Vacuum fittings KF to KF conical reducing adaptor |
|
Brand |
RUIJIA |
|
Size |
KF25RA16,16,KF40RA25,KF50RA16,KF50RA25,KF50RA40. |
|
Material |
SS304, SS316L |
|
Seal material |
Viton, Silicone, Buna-N seal |
|
Standard |
KF-KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Flange Adaptor types |
ANSI-KF Tubulated Adaptor, CF-ISO Tubulated Adaptor, ISO-KF Tubulated Adaptor, CF reducing adaptor, KF-VCR Male/Female Adaptor, KF-Swagelok adaptor, KF Male/Female Pipe adaptor, KF-KF conical reducing adaptor, ISO-KF/ISO-ISO conical Reducing adaptor. |
Vacuum fittings KF to KF conical reducing adaptor Unit:mm
|
Model No. |
Material |
A |
B |
C |
|
KF25RA16 |
304S.S |
40 |
30 |
40 |
|
KF40RA16 |
304S.S |
55 |
30 |
40 |
|
KF40RA25 |
304S.S |
55 |
40 |
40 |
|
KF50RA16 |
304S.S |
75 |
30 |
40 |
|
KF50RA25 |
304S.S |
75 |
40 |
40 |
|
KF50RA40 |
304S.S |
75 |
55 |
40 |
Special Sizes Available Upon Request.
