| Standard: | KF-ISO Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
Application: Used to connect vacuum interfaces of different sizes, allowing conversion from ISO interface to KF interface, suitable for stainless steel connections in vacuum systems
Material: Typically made from materials like ,stainless steel304/316/316L, these adaptor resist corrosion an maintain a vacuum seal under high vacuum conditions.
Packaging: Sealed packaging is usually used to ensure that its quality and performance are not affected during transportation and storage
|
Product Name |

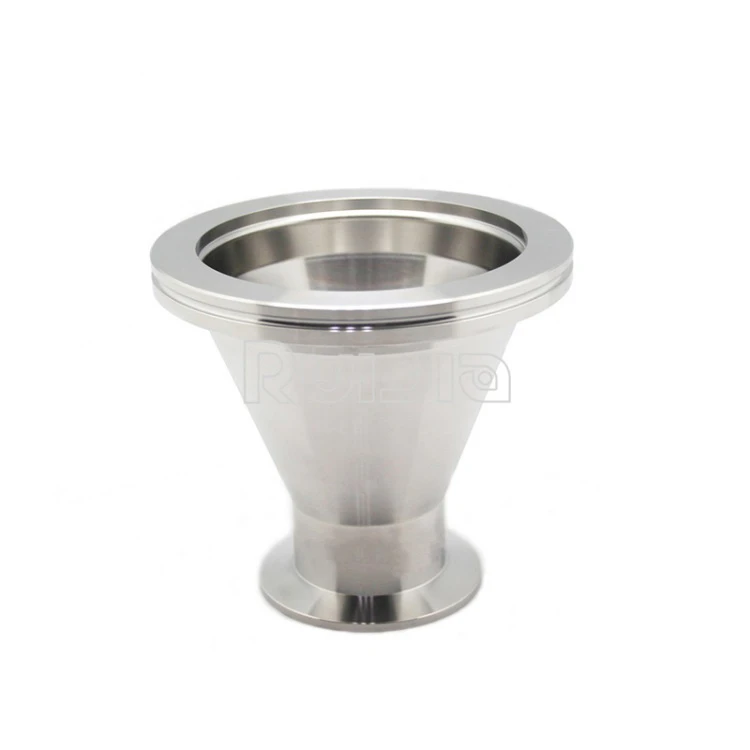

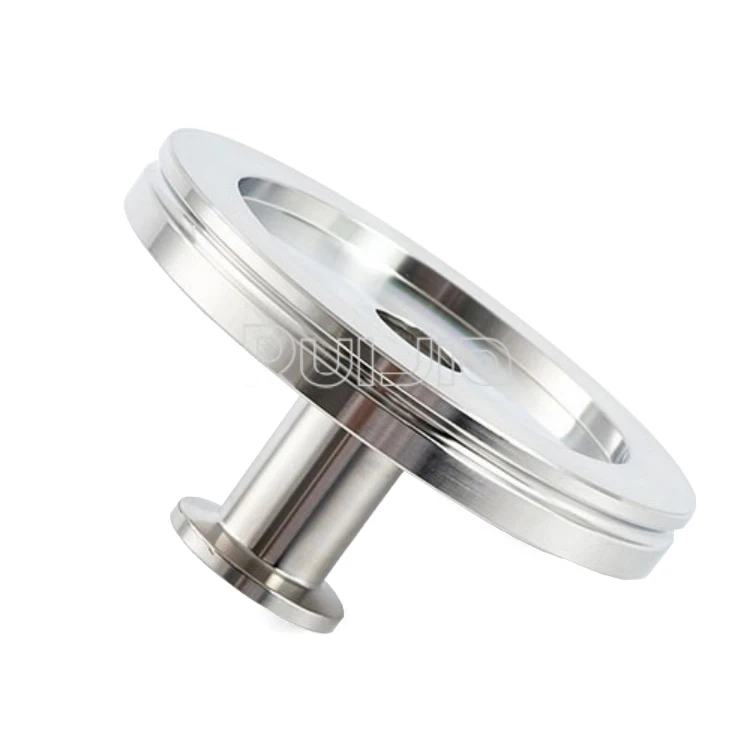

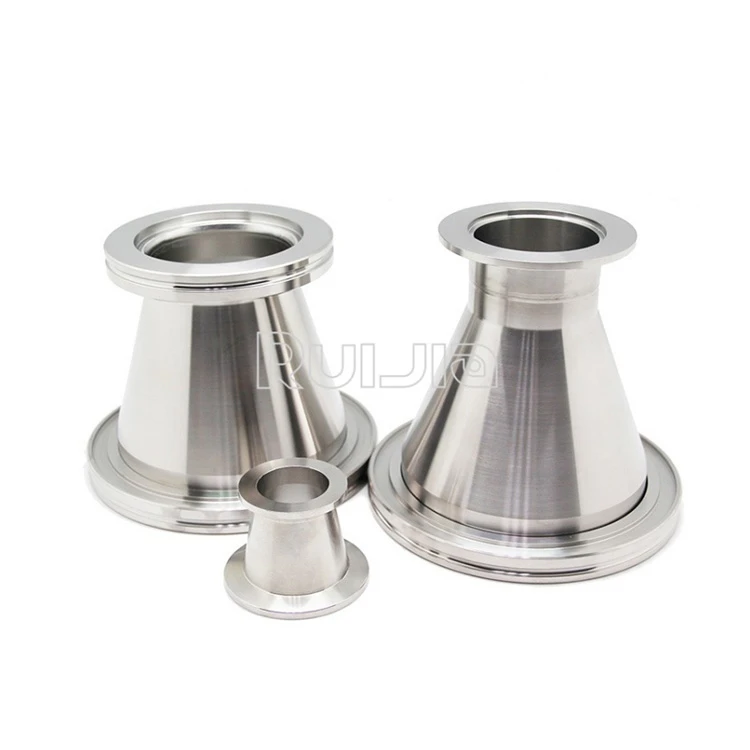

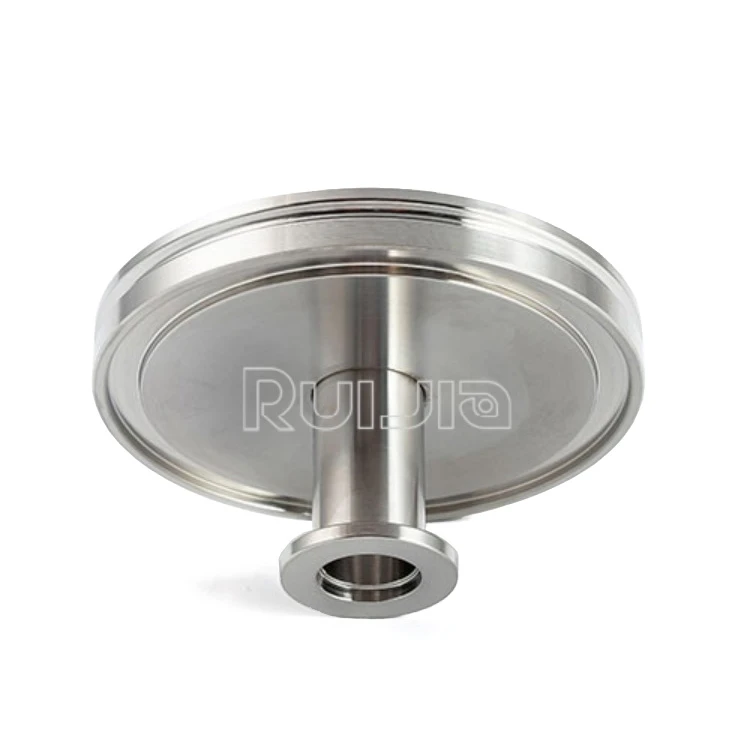

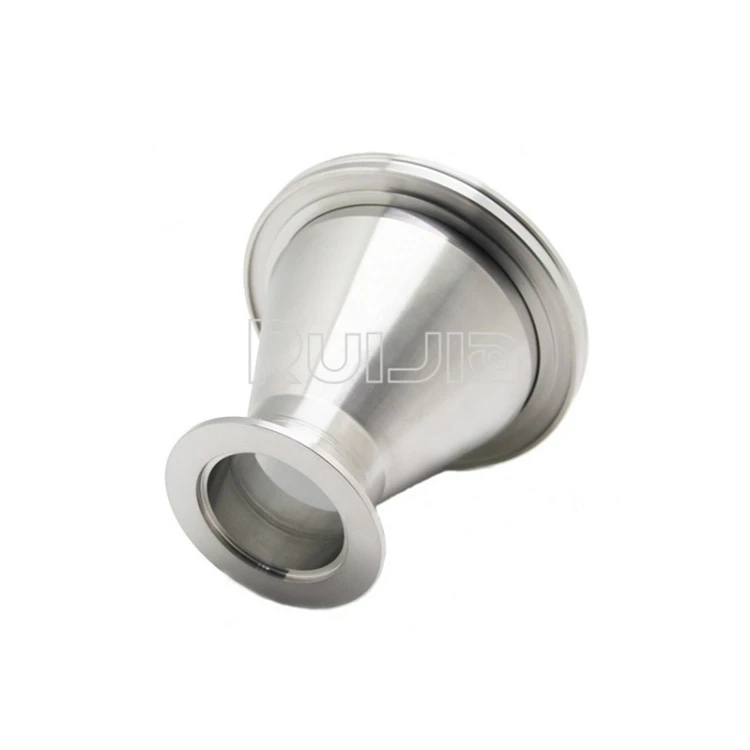

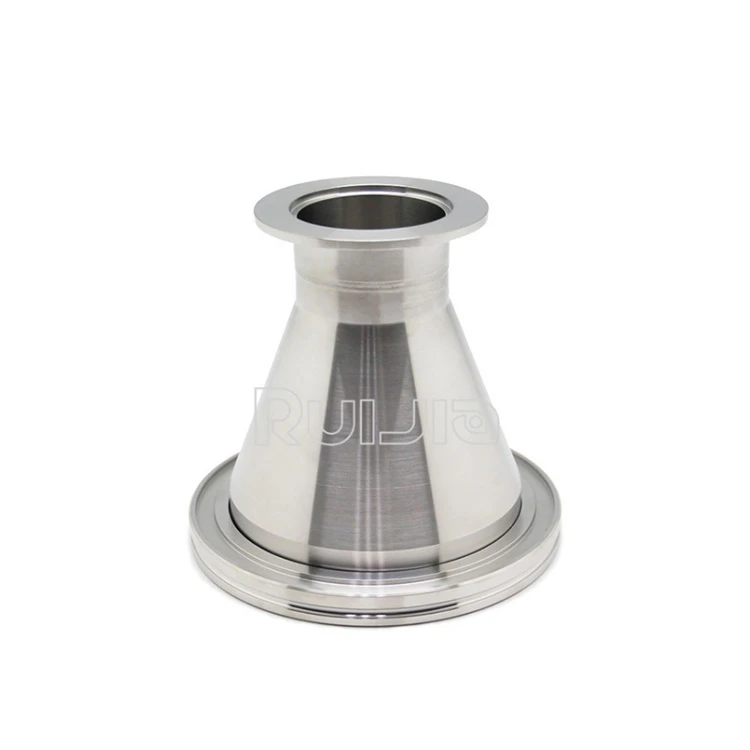

Vacuum fittings ISO to KF conical reducing adaptor |
|
Brand |
RUIJIA |
|
Size |
ISO80KRA40, ISO100KRA40, ISO80KRA50, ISO100KRA50 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF-ISO Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Flange Adaptor types |
ANSI-KF Tubulated Adaptor, CF-ISO Tubulated Adaptor, ISO-KF Tubulated Adaptor, CF reducing adaptor, KF-VCR Male/Female Adaptor, KF-Swagelok adaptor, KF Male/Female Pipe adaptor, KF-KF conical reducing adaptor, ISO-KF/ISO-ISO conical Reducing adaptor. |
Vacuum fittings ISO to KF conical reducing adaptor Unit:mm
|
Model No. |
Material |
A |
B |
C |
|
ISO80KRA40 |
304S.S |
110 |
55 |
63 |
|
ISO100KRA40 |
304S.S |
130 |
55 |
63 |
|
ISO80KRA50 |
304S.S |
110 |
75 |
63 |
|
ISO100KRA50 |
304S.S |
130 |
75 |
63 |
Special Sizes Available Upon Request.
