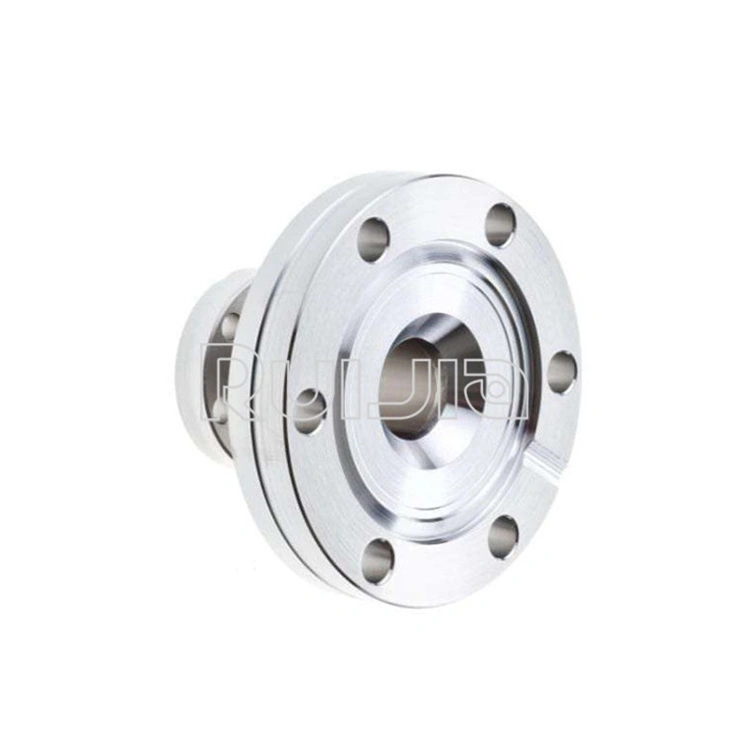

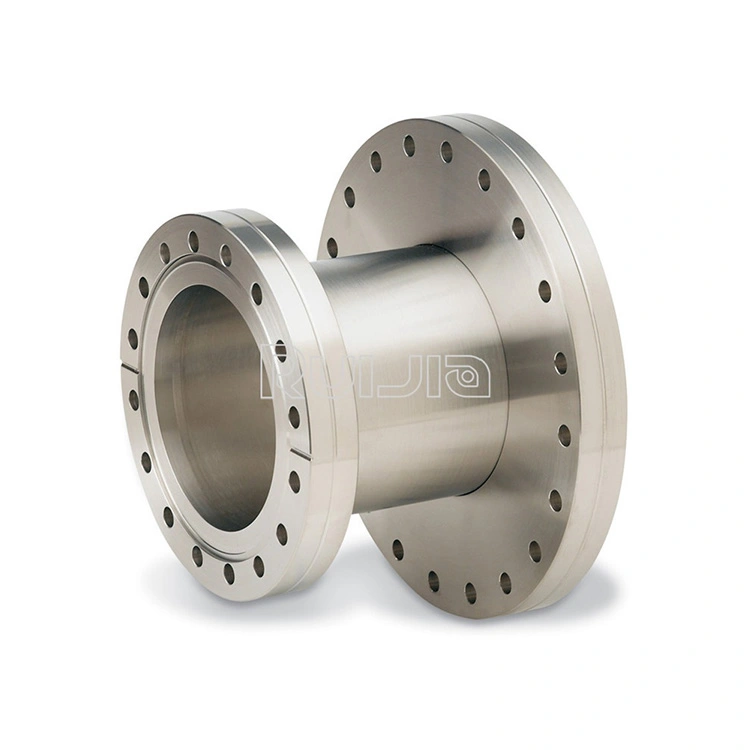

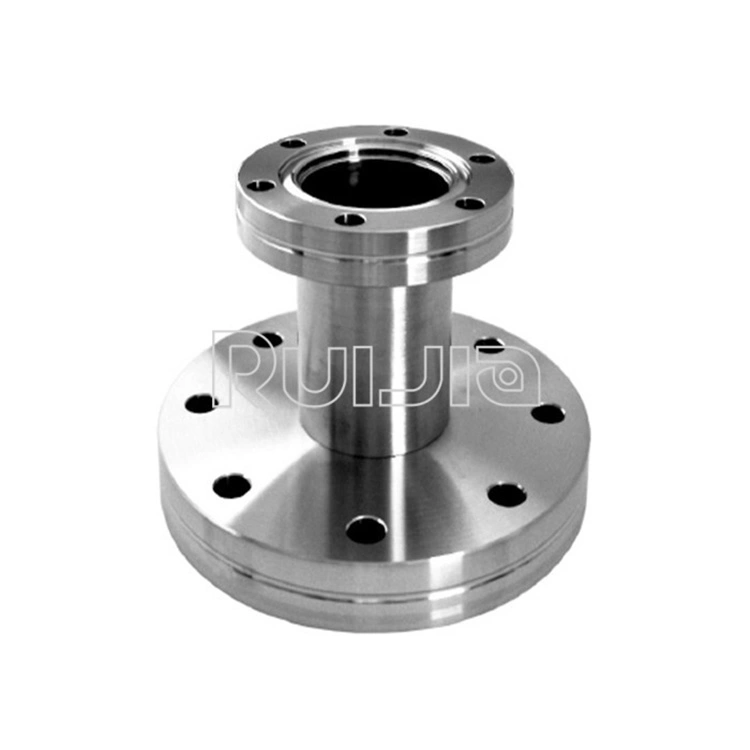

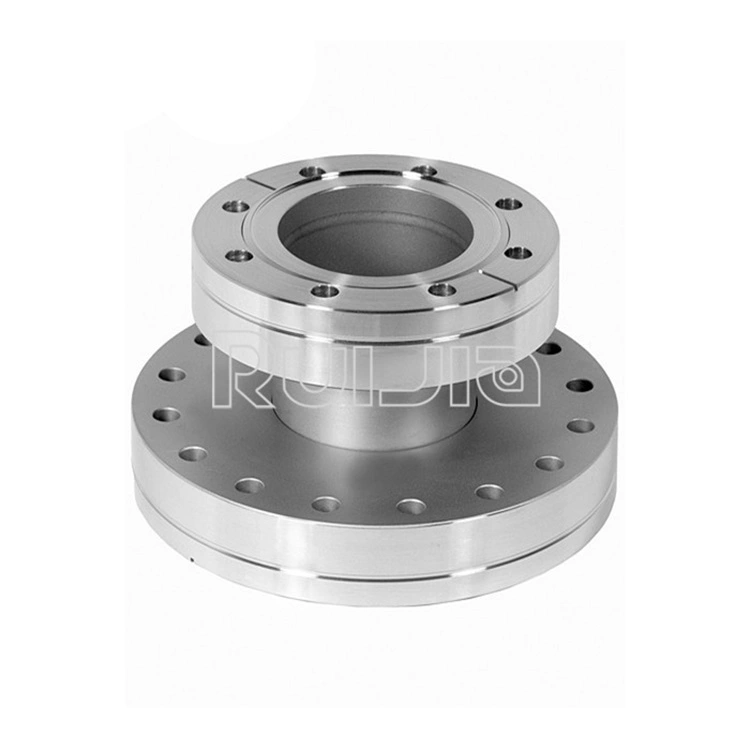

CF35RA16-CF150RA100

Vacuum CF reducing adaptor-fixed ,Vacuum Concentric reducer adapters

Vacuum CF reducer adaptor,CF reducing adaptor-fixed can provide a way to connect equipment with different CF reducing flange standards.

Standard:	CF Standard
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Application: Suitable for various application scenarios that require high vacuum operation, they can withstand high temperature baking, and the applicable vacuum degree can reach up to 10-12 mbar.

Size:Vacuum flanges come in various sizes and types (like ISO, JIS, ULC, etc.) to ensure compatibility and seal integrity when connecting different pieces of equipment.

Testing: Appearance and size testing, material composition testing, mechanical performance testing, non-destructive testing

Specification

Product Name	Vacuum CF Reducing adaptor-Fixed
Brand	RUIJIA
Size	CF35RA16,CF63RA16,CF63RA35,CF100RA35,CF100RA63,CF150RA35,CF150RA63,CF150RA100
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	CF Standard
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Flange Adaptor types	ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.

Product parameters

Vacuum CF Reducing adaptor-Fixed Unit:mm

Model No.	Material	A	B	C	D
CF35RA16	304S.S	69.5	33.8	76.2	19.05
CF63RA16	304S.S	113.6	33.8	76.2	1905
CF63RA35	304S.S	113.6	69.5	76.2	38.1
CF100RA35	304S.S	151.6	69.5	76.2	38.1
CF100RA63	304S.S	151.6	113.6	76.2	63.5
CF150RA35	304S.S	202.5	69.5	76.2	38.1
CF150RA63	304S.S	202.5	113.6	76.2	63.5
CF150RA100	304S.S	202.5	151.6	76.2	101.6

Special Sizes Available Upon Request.
