Standard: |
CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application: Suitable for various application scenarios that require high vacuum operation, they can withstand high temperature baking, and the applicable vacuum degree can reach up to 10-12 mbar.
Size: Vacuum flanges Adaptor come in various sizes(like CF,KF/ISO standard) and types to ensure compatibility and seal integrity when connecting different pieces of equipment.
Testing: Appearance and size testing, material composition testing, mechanical performance testing, non-destructive testing.
|
Product Name |

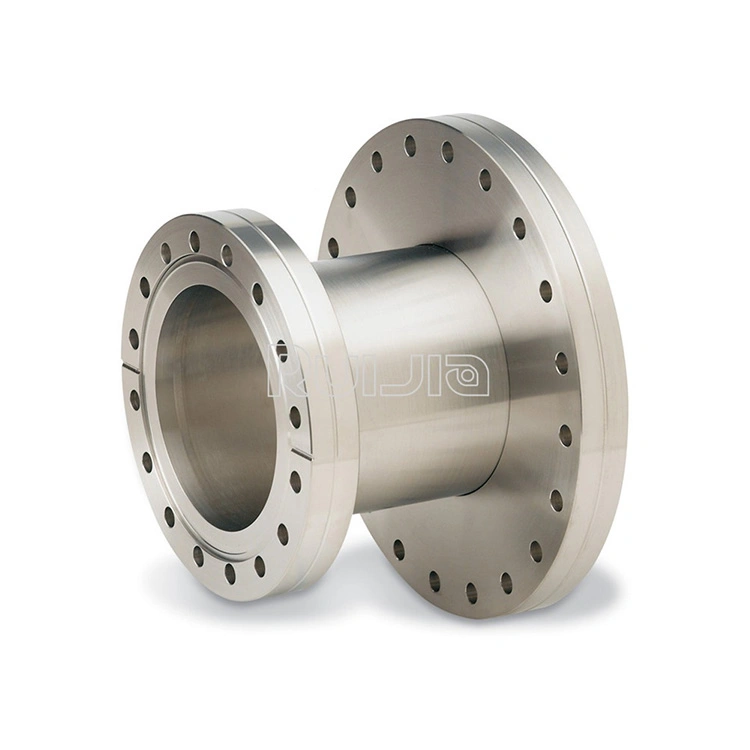

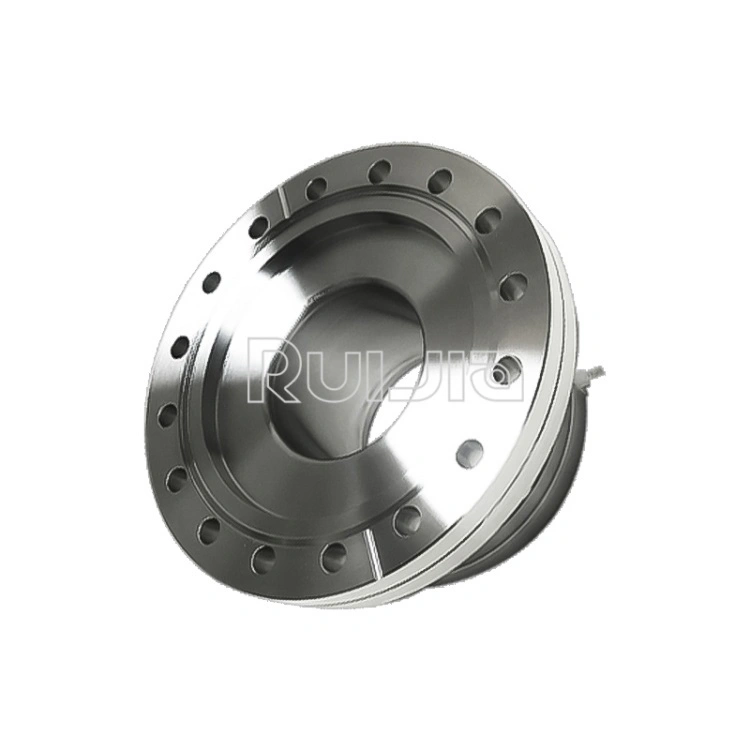

Vacuum CF Reducing adaptor-small Flange Rotatable |
|
Brand |
RUIJIA |
|
Size |
CF35RA16R,CF63RA16R,CF63RA35R,CF100RA35R,CF100RA63R,CF150RA35R,CF150RA63R,CF150RA63R,CF150RA100R |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
CF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |

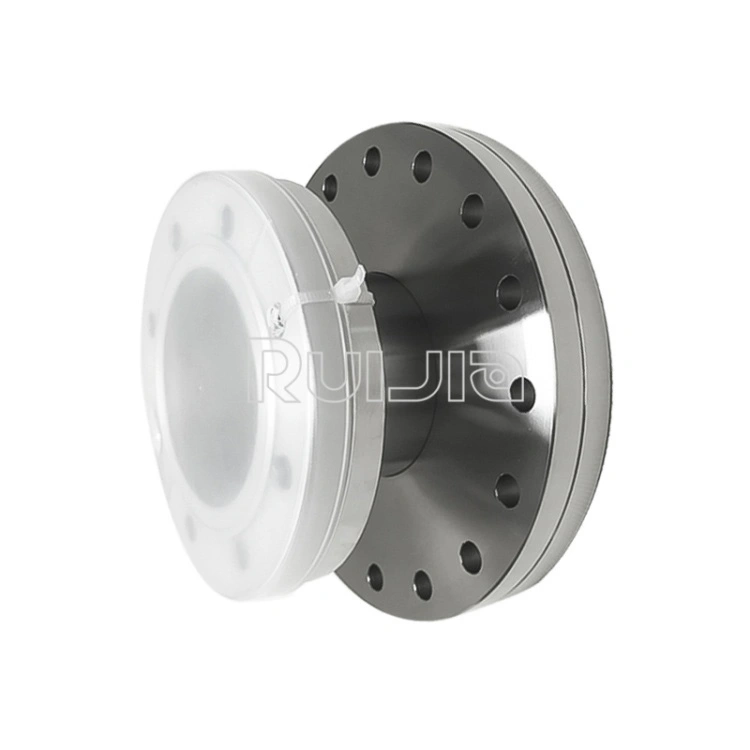

sealed plastic bag with a protective plastic cap. |
|
Flange Adaptor types |

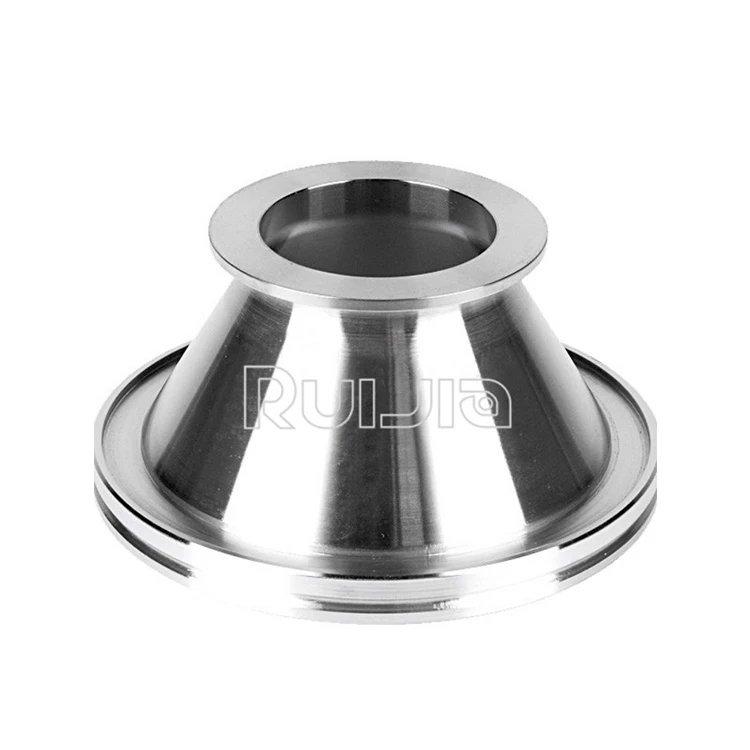

ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor. |

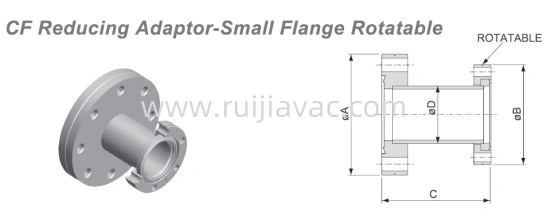

Vacuum CF Reducing adaptor-small Flange Rotatable Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
|
CF35RA16R |
304S.S |
69.5 |
33.8 |
76.2 |
19.05 |
|
CF63RA16R |
304S.S |
113.6 |
33.8 |
76.2 |
1905 |
|
CF63RA35R |
304S.S |
113.6 |
69.5 |
76.2 |
38.1 |
|
CF100RA35R |
304S.S |
151.6 |
69.5 |
76.2 |
38.1 |
|
CF100RA63R |
304S.S |
151.6 |
113.6 |
76.2 |
63.5 |
|
CF150RA35R |
304S.S |
202.5 |
69.5 |
76.2 |
38.1 |
|
CF150RA63R |
304S.S |
202.5 |
113.6 |
76.2 |
63.5 |
|
CF150RA100R |
304S.S |
202.5 |
151.6 |
76.2 |
101.6 |
Special Sizes Available Upon Request.

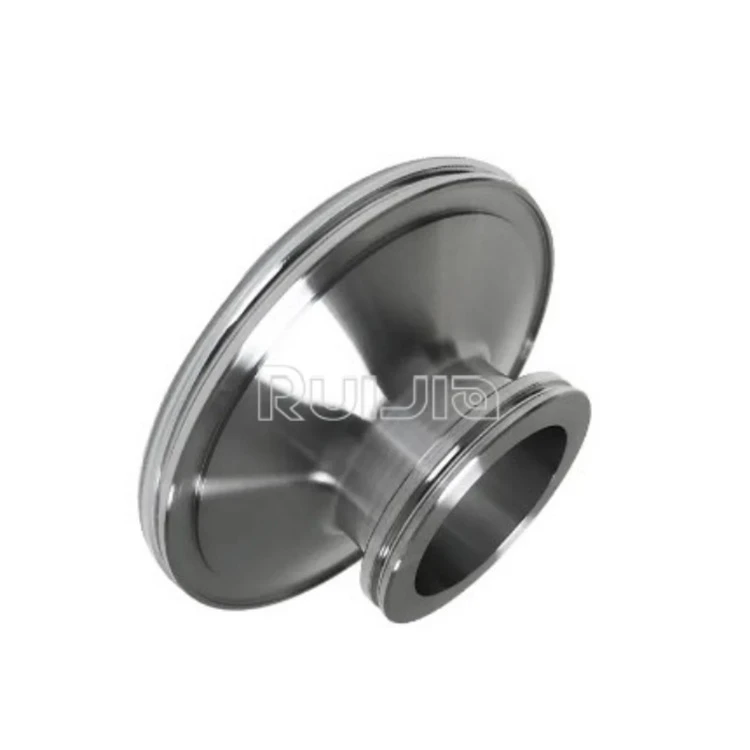

| Standard: | ISO-ISO Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
| Standard: | KF-ISO Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF-KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
