Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |

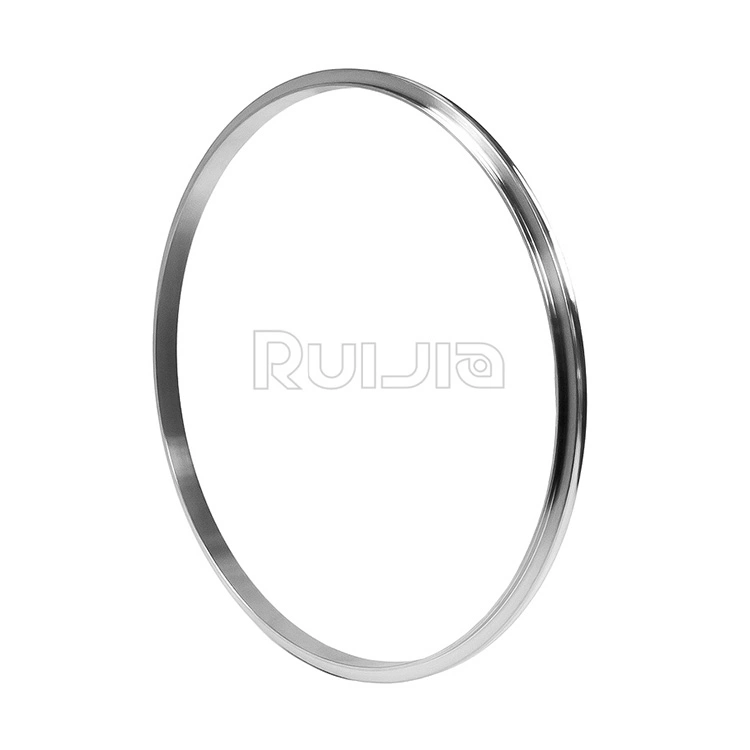

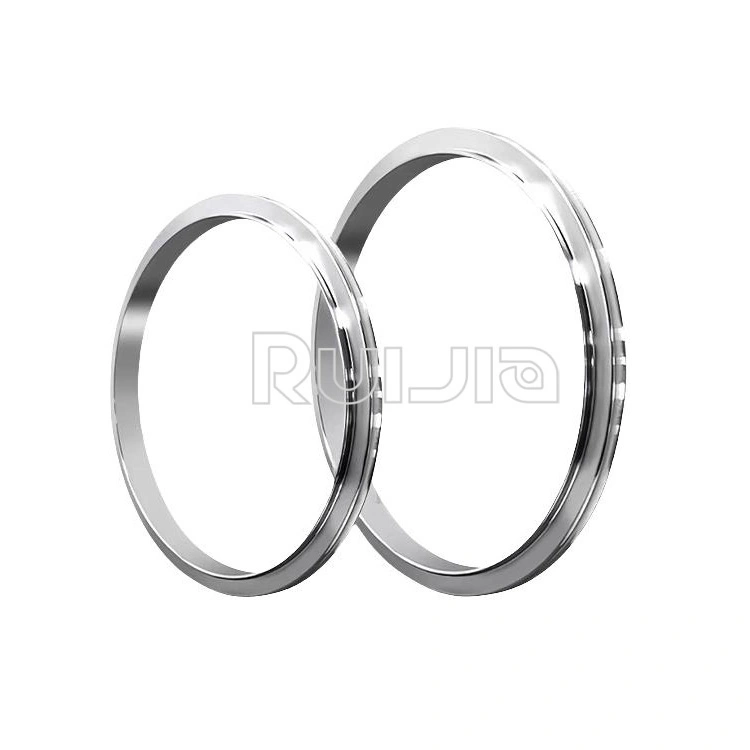

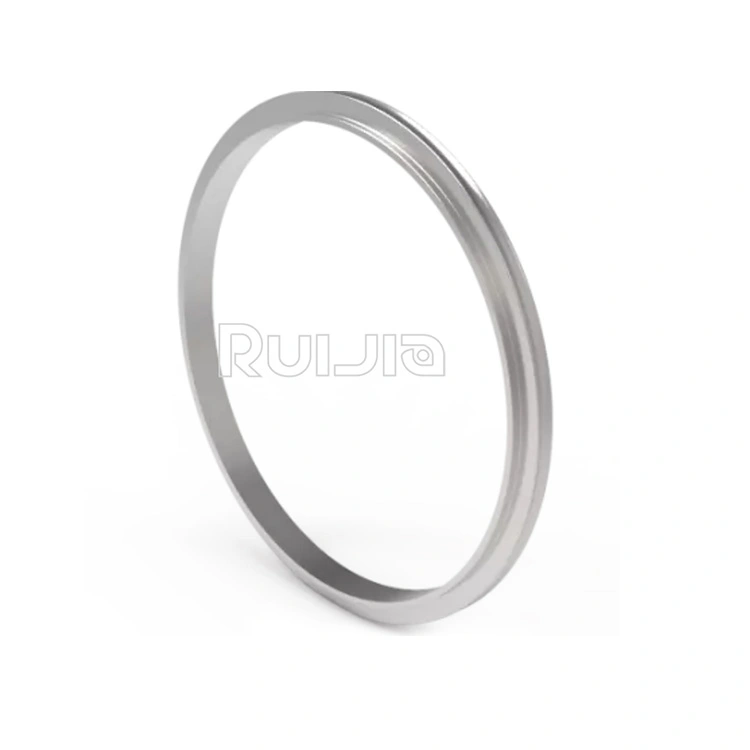

ISO Vacuum Centering Ring is a component used in precision engineering, particularly in applications requiring high accuracy and tight tolerances
This could be in applications such as semiconductor manufacturing, optics assembly, or any high-precision part handling requiring vacuum control.
Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel 304/316,aluminium EN1.4301, EN1.4404.
Designed to maintain airtight seals when placed in a vacuum environment, preventing leaks that could compromise the integrity of the vacuum chamber.
|
Product Name |
ISO Vacuum centering ring stainless steel304/316 |
|
Brand |
RUIJIA |
|
Size |
ISO63,ISO80,ISO100,ISO160,ISO200,ISO250,ISO320,ISO400,ISO500,ISO630 |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
ISO Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
ISO Vacuum Centering Ring types |
ISO centering ring,ISO centering ring with viton O’ring, ISO centering ring with NBR O’ring,ISO outer ring centering ring & viton O’ring |

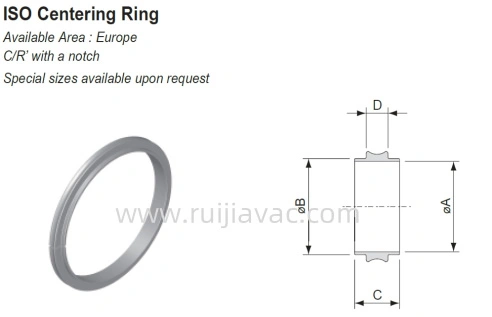

ISO Vacuum Centering Ring Unit:mm
|
Model No. |
Material |
Material O'Ring |
A |
B |
C |
D |
|
ISO63CRVSA |
304 S.S. |
Viton/NBR |
67 |
69.6 |
8 |
3.9 |
|
ISO80CRVSA |
304 S.S. |
Viton/NBR |
80 |
82.6 |
8 |
3.9 |
|
ISO100CRVSA |
304 S.S. |
Viton/NBR |
99 |
101.6 |
8 |
3.9 |
|
ISO160CRVSA |
304 S.S. |
Viton/NBR |
150 |
152.6 |
8 |
3.9 |
|
ISO200CRVSA |
304 S.S. |
Viton/NBR |
210 |
212.6 |
8 |
3.9 |
|
ISO250CRVSA |
304 S.S. |
Viton/NBR |
257.5 |
260.4 |
8 |
3.9 |
|
ISO320CRVSA |
304 S.S. |
Viton/NBR |
312 |
317.3 |
12 |
5.6 |
|
ISO400CRVSA |
304 S.S. |
Viton/NBR |
394 |
399.2 |
12 |
5.6 |
|
ISO500CRVSA |
304 S.S. |
Viton/NBR |
494 |
500.2 |
12 |
5.6 |
|
ISO630CRVSA |
304 S.S. |
Viton/NBR |
644.5 |
650.5 |
12 |
5.6 |
|
ISO63CRAA |
304 S.S. |
Viton/NBR |
67 |
69.6 |
8 |
3.9 |
|
ISO80CRAA |
304 S.S. |
Viton/NBR |
80 |
82.6 |
8 |
3.9 |
|
ISO100CRAA |
304 S.S. |
Viton/NBR |
99 |
101.6 |
8 |
3.9 |
|
ISO160CRAA |
304 S.S. |
Viton/NBR |
150 |
152.6 |
8 |
3.9 |
|
ISO200CRAA |
304 S.S. |
Viton/NBR |
210 |
212.6 |
8 |
3.9 |
|
ISO250CRAA |
304 S.S. |
Viton/NBR |
257.5 |
260.4 |
8 |
3.9 |
|
ISO320CRAA |
304 S.S. |
Viton/NBR |
312 |
317.3 |
12 |
5.6 |
|
ISO400CRAA |
304 S.S. |
Viton/NBR |
394 |
399.2 |
12 |
5.6 |
|
ISO500CRAA |
304 S.S. |
Viton/NBR |
494 |
500.2 |
12 |
5.6 |
|
ISO630CRAA |
304 S.S. |
Viton/NBR |
644.5 |
650.5 |
12 |
5.6 |
Special Sizes available upon request
|
Model No. |
Material |
Material O'Ring |
A |
B |
C |
D |
|
ISO63CRSA |
304 S.S. |
Viton/NBR |
67 |
69.6 |
8 |
3.9 |
|
ISO80CRSA |
304 S.S. |
Viton/NBR |
80 |
82.6 |
8 |
3.9 |
|
ISO100CRSA |
304 S.S. |
Viton/NBR |
99 |
101.6 |
8 |
3.9 |
|
ISO160CRSA |
304 S.S. |
Viton/NBR |
150 |
152.6 |
8 |
3.9 |
|
ISO200CRSA |
304 S.S. |
Viton/NBR |
210 |
212.6 |
8 |
3.9 |
|
ISO250CRSA |
304 S.S. |
Viton/NBR |
257.5 |
260.4 |
8 |
3.9 |
|
ISO320CRSA |
304 S.S. |
Viton/NBR |
312 |
317.3 |
12 |
5.6 |
|
ISO400CRSA |
304 S.S. |
Viton/NBR |
394 |
399.2 |
12 |
5.6 |
|
ISO500CRSA |
304 S.S. |
Viton/NBR |
494 |
500.2 |
12 |
5.6 |
|
ISO630CRSA |
304 S.S. |
Viton/NBR |
644.5 |
650.5 |
12 |
5.6 |
|
ISO63CRAA |
AL |
Viton/NBR |
67 |
69.6 |
8 |
3.9 |
|
ISO80CRAA |
AL |
Viton/NBR |
80 |
82.6 |
8 |
3.9 |
|
ISO100CRAA |
AL |
Viton/NBR |
99 |
101.6 |
8 |
3.9 |
|
ISO160CRAA |
AL |
Viton/NBR |
150 |
152.6 |
8 |
3.9 |
|
ISO200CRAA |
AL |
Viton/NBR |
210 |
212.6 |
8 |
3.9 |
|
ISO250CRAA |
AL |
Viton/NBR |
257.5 |
260.4 |
8 |
3.9 |
|
ISO320CRAA |
AL |
Viton/NBR |
312 |
317.3 |
12 |
5.6 |
|
ISO400CRAA |
AL |
Viton/NBR |
394 |
399.2 |
12 |
5.6 |
|
ISO500CRAA |
AL |
Viton/NBR |
494 |
500.2 |
12 |
5.6 |
|
ISO630CRAA |
AL |
Viton/NBR |
644.5 |
650.5 |
12 |
5.6 |
Special Sizes available upon request
|
Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
