Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |

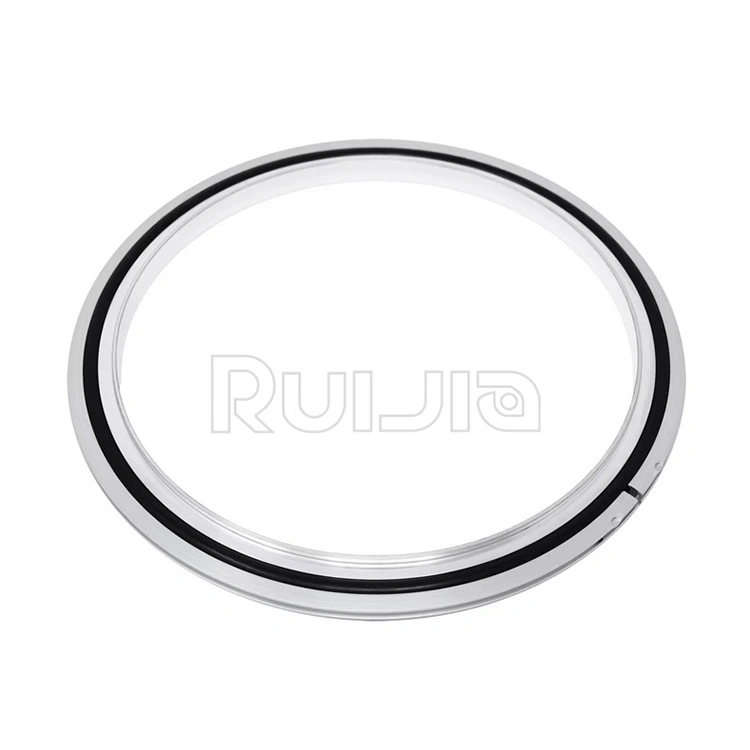

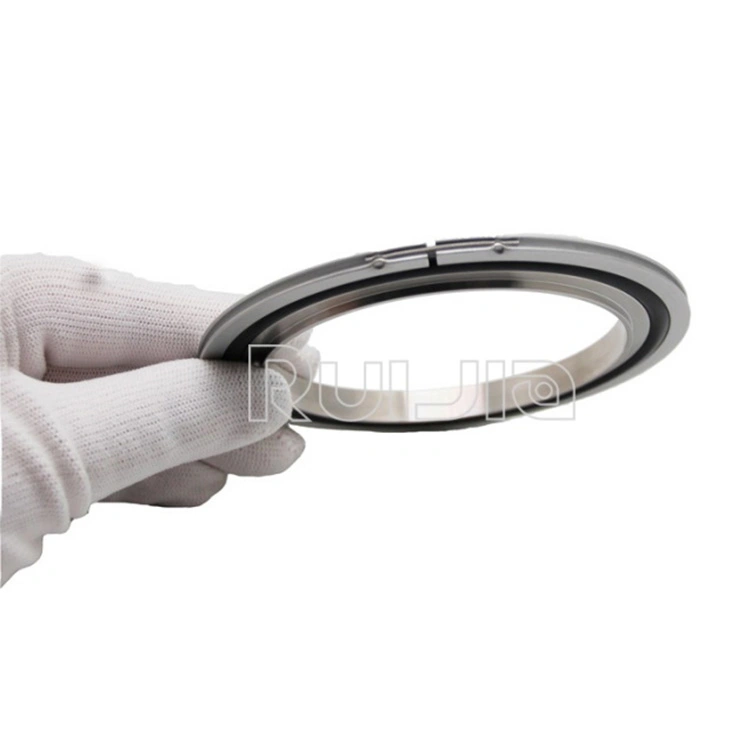

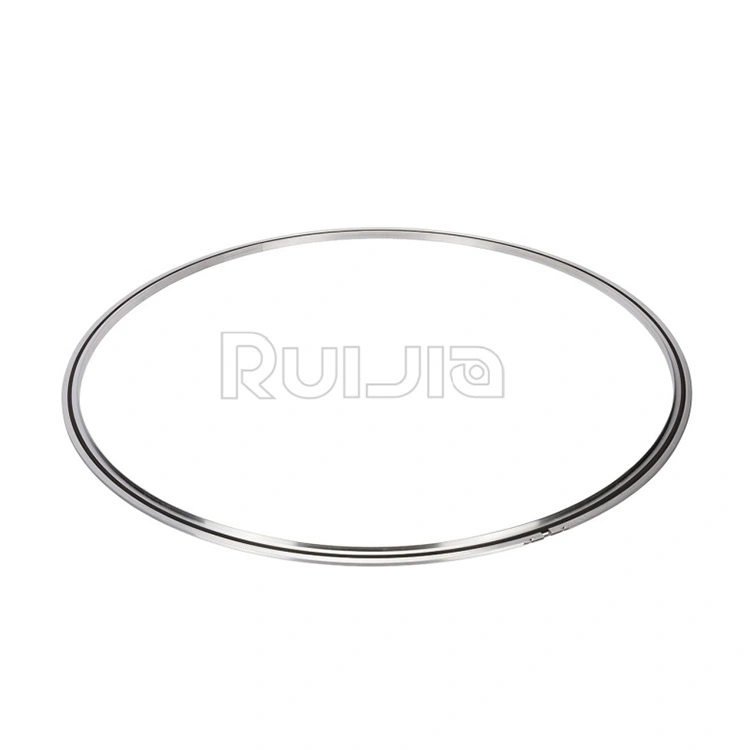

ISO Vacuum outer ring Centering Ring with Viton O’ ring is typically used in conjunction with vacuum systems to ensure that components or parts are precisely located or centered within a vacuum chamber.
Centering ring with Viton O’ ring Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel,Aluminium EN1.4301, EN1.4404.

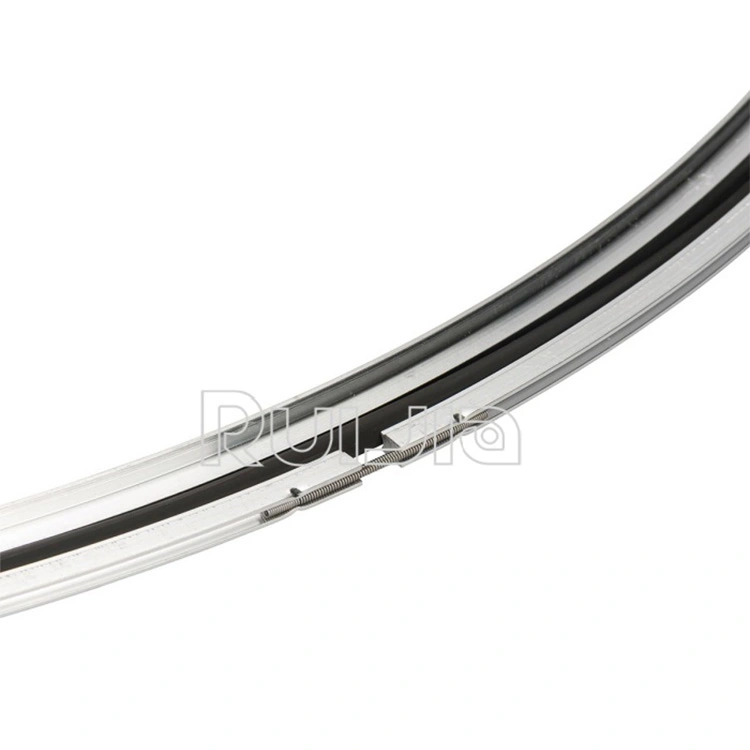

Designed to maintain airtight seals when placed in a vacuum environment, preventing leaks that could compromise the integrity of the vacuum chamber.
|
Product Name |
ISO Vacuum outer ring centering ring with Viton O’ Ring |
|
Brand |
RUIJIA |
|
Size |

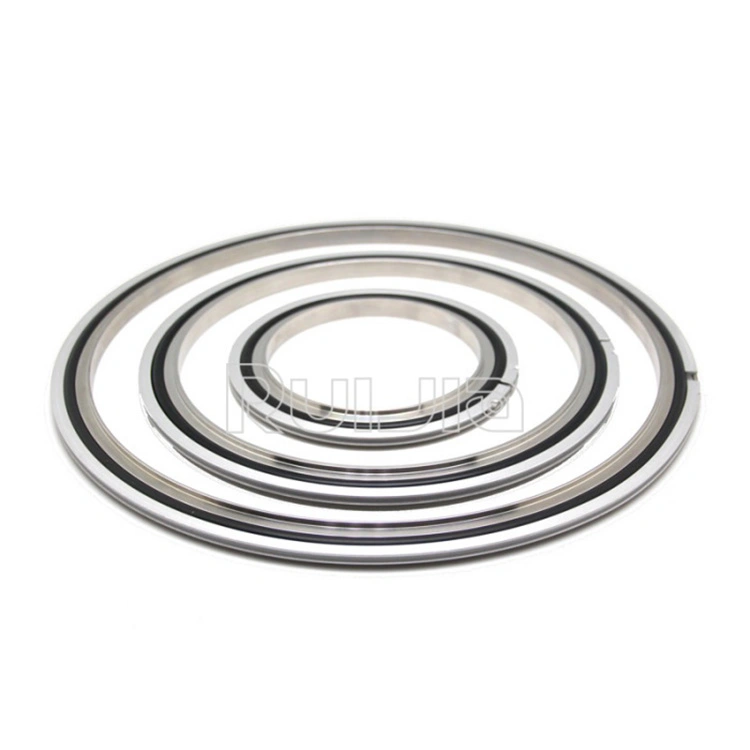

ISO63,ISO80,ISO100,ISO160,ISO200,ISO250,ISO320,ISO400,ISO500,ISO630 |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
ISO Standard |
|
Temperature |
-50~260℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
ISO Vacuum Centering Ring types |

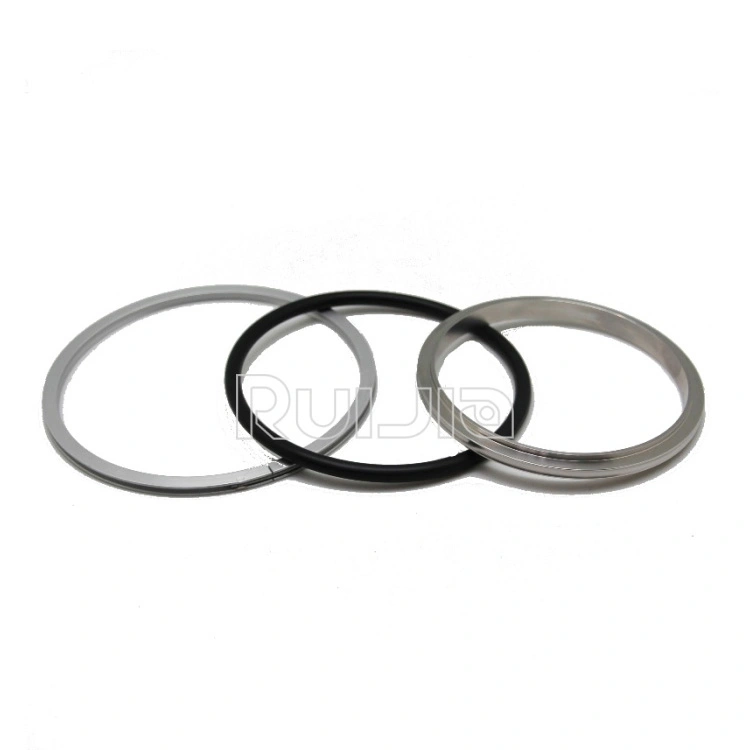

ISO centering ring,ISO centering ring with viton O’ring, ISO centering ring with NBR O’ring,ISO outer ring centering ring & viton O’ring |

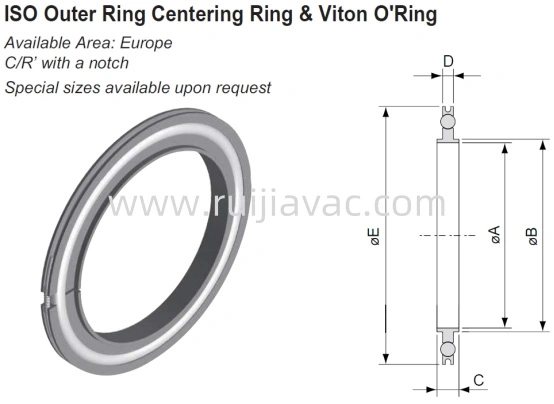

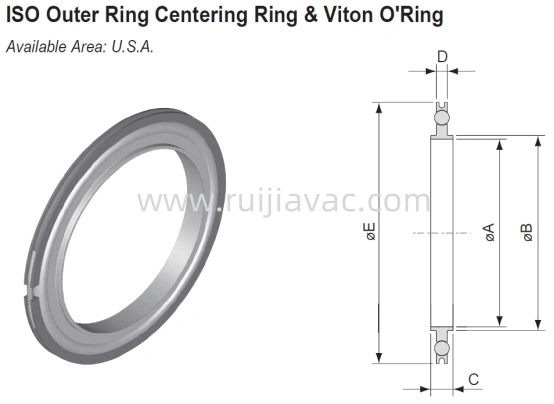

ISO Vacuum outer ring Centering Ring & Viton O’Ring Unit: mm
|
Model No. |
Material |
Material O'Ring |
A |
B |
C |
D |
E |
Material O/R |
O'ring Size |
|
ISO63OCRVSA |
304 S.S |
Viton/NBR |
67 |
69.6 |
8 |
3.9 |
94 |
AL |
AS-337 |
|
ISO80OCRVSA |
304 S.S |
Viton/NBR |
80 |
82.6 |
8 |
3.9 |
109 |
AL |
AS-341 |
|
ISO100OCRVSA |
304 S.S |
Viton/NBR |
99 |
101.6 |
8 |
3.9 |
128 |
AL |
AS-347 |
|
ISO160OCRVSA |
304 S.S |
Viton/NBR |
150 |
152.6 |
8 |
3.9 |
179 |
AL |
AS-362 |
|
ISO200OCRVSA |
304 S.S |
Viton/NBR |
210 |
212.6 |
8 |
3.9 |
238 |
AL |
AS-371 |
|
ISO250OCRVSA |
304 S.S |
Viton/NBR |
257.5 |
260.4 |
8 |
3.9 |
287 |
AL |
AS-378 |
|
ISO320OCRVSA |
304 S.S |
Viton/NBR |
312 |
317.3 |
12 |
5.6 |
344 |
AL |
AS-454 |
|
ISO400OCRVSA |
304 S.S |
Viton/NBR |
394 |
399.2 |
12 |
5.6 |
446 |
AL |
AS-461 |
|
ISO500OCRVSA |
304 S.S |
Viton/NBR |
494 |
500.2 |
12 |
5.6 |
535 |
AL |
AS-469 |
|
ISO630OCRVSA |
304 S.S |
Viton/NBR |
644.5 |
650.5 |
12 |
5.6 |
684.8 |
AL |
AS-475 |
Special Sizes available upon request.
Seal Material(Viton/NBR/Silicone) can be provide
*O'Ring color for Viton material is brown, black is available upon request.
|
Model No. |
Material |
Material O'Ring |
A |
B |
C |
D |
E |
Material O/R |
O'ring Size |
|
ISO63OCRVSE |
304 S.S |
Viton/NBR |
68 |
70 |
8 |
3.9 |
94 |
AL |
AS-337 |
|
ISO80OCRVSE |
304 S.S |
Viton/NBR |
81 |
82.6 |
8 |
3.9 |
109 |
AL |
AS-341 |
|
ISO100OCRVSE |
304 S.S |
Viton/NBR |
100 |
102 |
8 |
3.9 |
128 |
AL |
AS-347 |
|
ISO160OCRVSE |
304 S.S |
Viton/NBR |
148 |
153 |
8 |
3.9 |
179 |
AL |
AS-362 |
|
ISO200OCRVSE |
304 S.S |
Viton/NBR |
210 |
213 |
8 |
3.9 |
238 |
AL |
AS-371 |
|
ISO250OCRVSE |
304 S.S |
Viton/NBR |
257.5 |
261 |
8 |
3.9 |
287 |
AL |
AS-378 |
|
ISO320OCRVSE |
304 S.S |
Viton/NBR |
312 |
318 |
12 |
5.6 |
344 |
AL |
AS-454 |
|
ISO400OCRVSAE |
304 S.S |
Viton/NBR |
394 |
400 |
12 |
5.6 |
446 |
AL |
AS-461 |
|
ISO500OCRVSE |
304 S.S |
Viton/NBR |
494 |
501 |
12 |
5.6 |
535 |
AL |
AS-469 |
|
ISO630OCRVSE |
304 S.S |
Viton/NBR |
644.5 |
650.5 |
12 |
5.6 |
684.8 |
AL |
AS-475 |
|
|
|
|
|
|
|
|
|
|
|
|
ISO63OCRVAE |
AL |
Viton |
68 |
70 |
8 |
3.9 |
94 |
AL |
AS-337 |
|
ISO80OCRVAE |
AL |
Viton |
81 |
82.6 |
8 |
3.9 |
109 |
AL |
AS-341 |
|
ISO100OCRVAE |
AL |
Viton |
100 |
102 |
8 |
3.9 |
128 |
AL |
AS-347 |
|
ISO160OCRVAE |
AL |
Viton |
148 |
153 |
8 |
3.9 |
179 |
AL |
AS-362 |
|
ISO200OCRVAE |
AL |
Viton |
210 |
213 |
8 |
3.9 |
238 |
AL |
AS-371 |
|
ISO250OCRVAE |
AL |
Viton |
257.5 |
261 |
8 |
3.9 |
287 |
AL |
AS-378 |
|
ISO320OCRVAE |
AL |
Viton |
312 |
318 |
12 |
5.6 |
344 |
AL |
AS-454 |
|
ISO400OCRVAE |
AL |
Viton |
394 |
400 |
12 |
5.6 |
446 |
AL |
AS-461 |
|
ISO500OCRVAE |
AL |
Viton |
494 |
501 |
12 |
5.6 |
535 |
AL |
AS-469 |
|
ISO630OCRVAE |
AL |
Viton |
644.5 |
650.5 |
12 |
5.6 |
684.8 |
AL |
AS-475 |
Special Sizes available upon request.
Seal Material(Viton/NBR/Silicone) can be provide
*O'Ring color for Viton material is brown, black is available upon request.
|
Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
5 Tips to Choose Vacuum Flanges & Fittings
7 Questions Before Buying Vacuum Hardware
How KF Vacuum Flanges Achieve Reliable Sealing
Avoid Over-Torquing CF Flange Bolts
