Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |

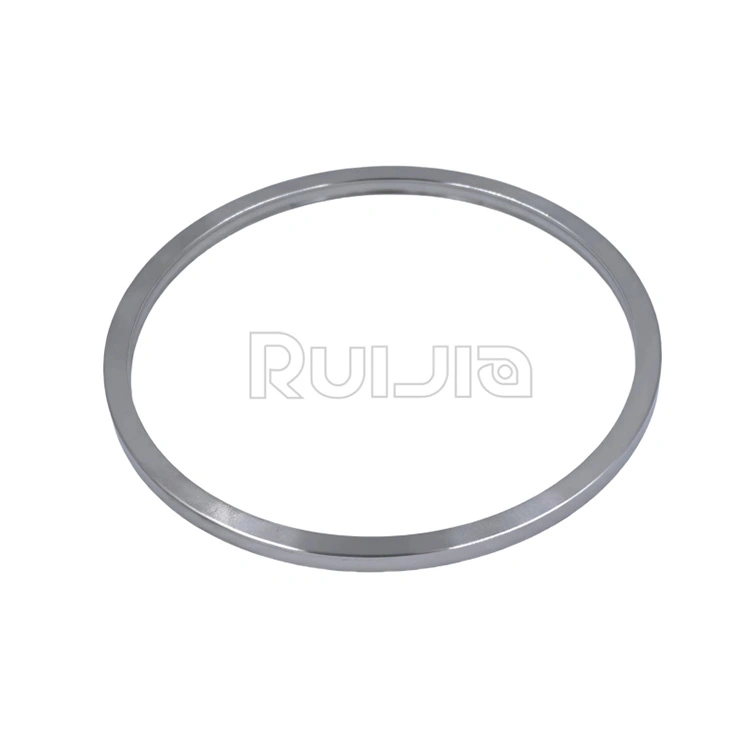

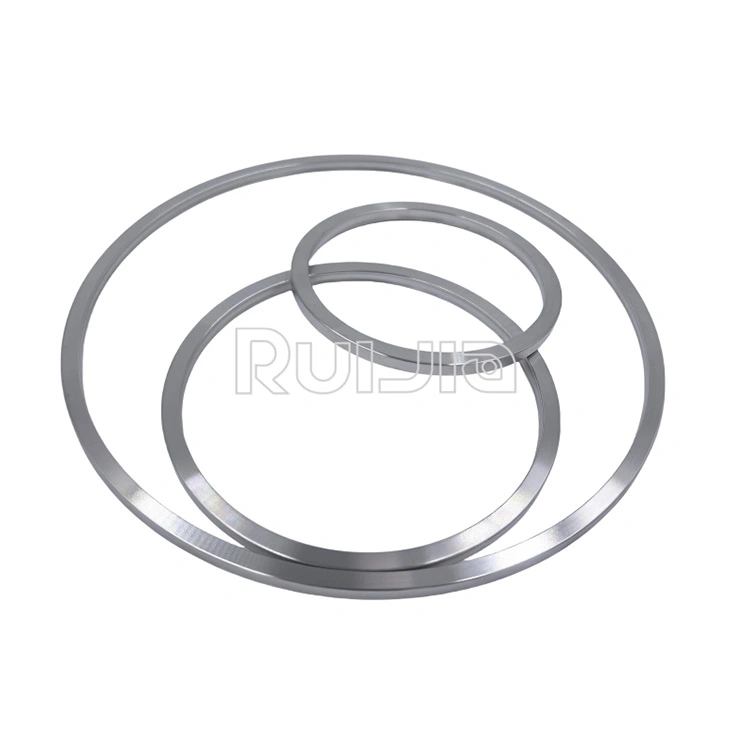

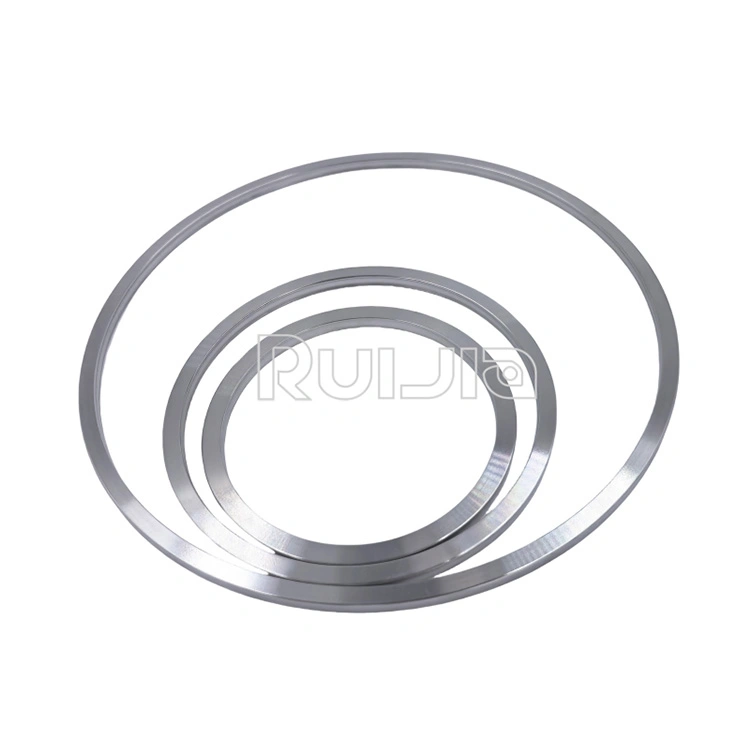

ISO Vacuum outer Ring is a component used in precision engineering, particularly in applications requiring high accuracy and tight tolerances
This could be in applications such as semiconductor manufacturing, optics assembly, or any high-precision part handling requiring vacuum control.
Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel 304/316,AluminiumEN1.4301, EN1.4404.
Designed to maintain airtight seals when placed in a vacuum environment, preventing leaks that could compromise the integrity of the vacuum chamber.
|
Product Name |
ISO Stainless steel Vacuum outer ring |
|
Brand |
RUIJIA |
|
Size |
ISO63,ISO80,ISO100,ISO160,ISO200,ISO250,ISO320,ISO400,ISO500,ISO630 |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
ISO Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
ISO Vacuum Outer ring types |

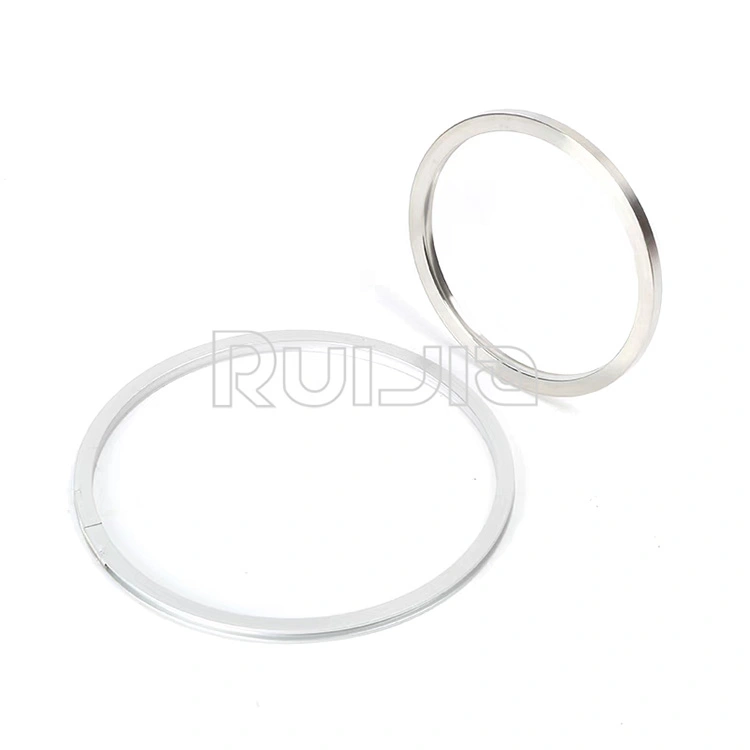

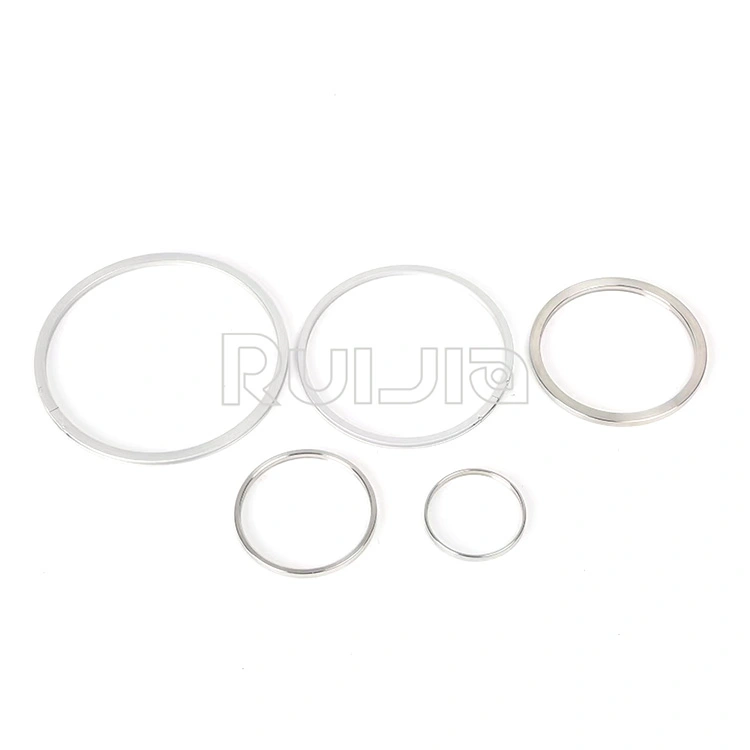

ISO vacuum aluminium outer ring with spring and ISO vacuum stainless steel outer ring without spring. |
|
Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
