Standard: |
ISO Standard |
|
Brand |
RUIJIA |
Used in semiconductor manufacturing, national defense research etc.
Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.
The packaging method of vacuum clamps varies depending on their material. Stainless steel vacuum clamps are packaged and sold after secondary polishing treatment, while aluminum alloy vacuum clamps are cleaned and packaged after electrolytic polishing.
|
Product Name |

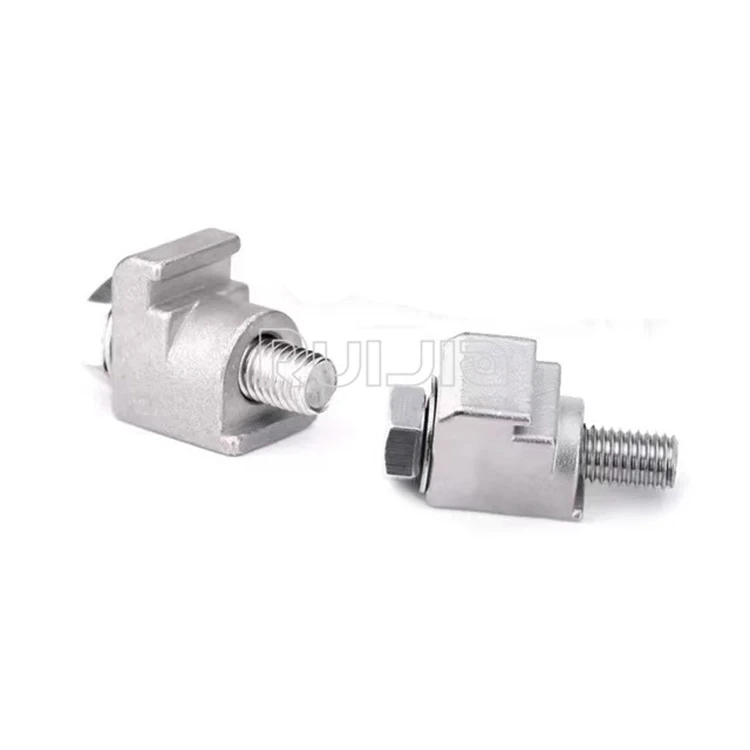

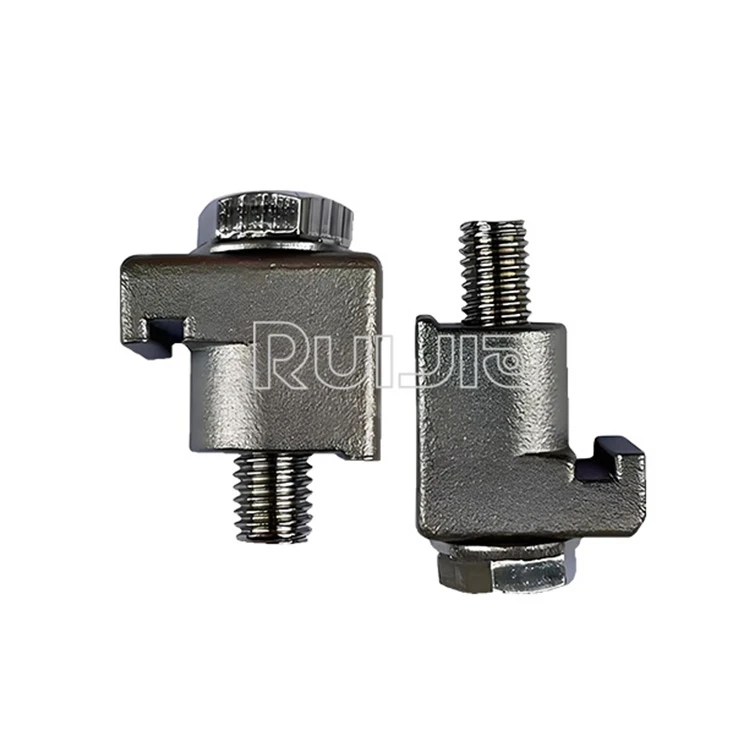

ISO Vacuum 304.S.S single wall clamps |
|
Brand |
RUIJIA |
|
Size |
ISO63,ISO160,ISO320. |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
ISO Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
ISO Vacuum clamp types |

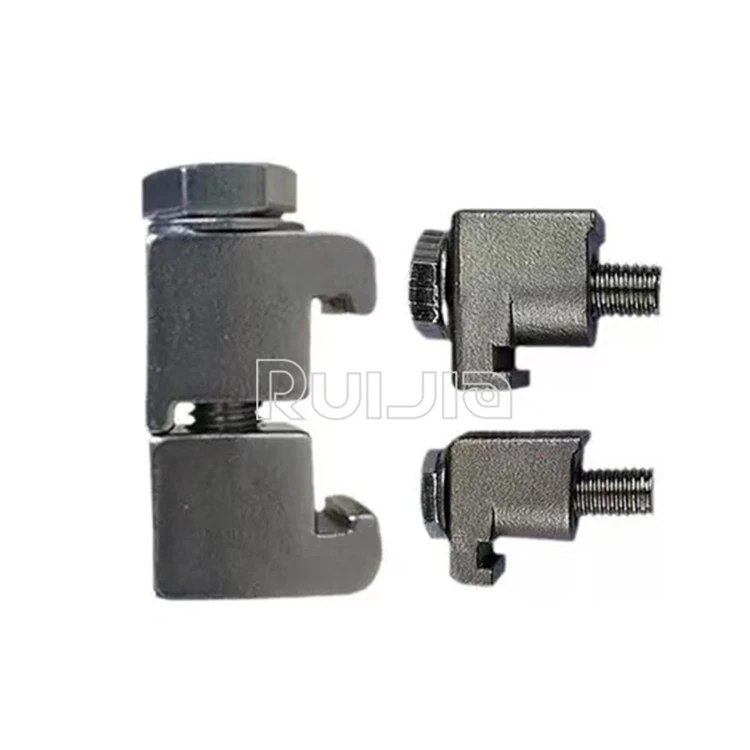

ISO vacuum single wall clamp, ISO vacuum double wall clamp, ISO vacuum double claw clamp, ISO vacuum nail clamps. |

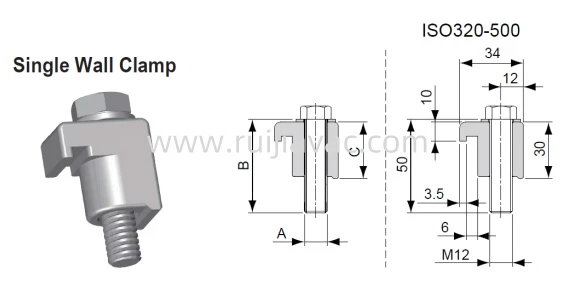

ISO Vacuum 304.S.S single wall clamp Unit:mm
|
Model No. |
Material |
A |
B |
C |
Fit Flange |
|
ISO63-100SWC304 |
S.S. 304 |
M8 |
35 |
23 |
ISO63 |
|
ISO80 |
|||||
|
ISO100 |
|||||
|
ISO160-250SWC304 |
S.S. 304 |
M10 |
35 |
23 |
ISO160 |
|
ISO200 |
|||||
|
ISO250 |
|||||
|
ISO320-500SWC304 |
S.S.304 |
M12 |
50 |
30 |
ISO320 |
|
ISO400 |
|||||
|
ISO500 |
|||||
|
ISO63-100SWC-ZP |
Steel+Zn Plated |
M8 |
35 |
23 |
ISO63 |
|
ISO80 |
|||||
|
ISO100 |
|||||
|
ISO160-250SWC-ZP |
Steel+Zn Plated |
M10 |
35 |
23 |
ISO160 |
|
ISO200 |
|||||
|
ISO250 |
|||||
|
ISO320-500SWC-ZP |
Steel+Zn Plated |
M12 |
50 |
30 |
ISO320 |
|
ISO400 |
|||||
|
ISO500 |
|
