ISO63-250,ISO320-500,ISO630

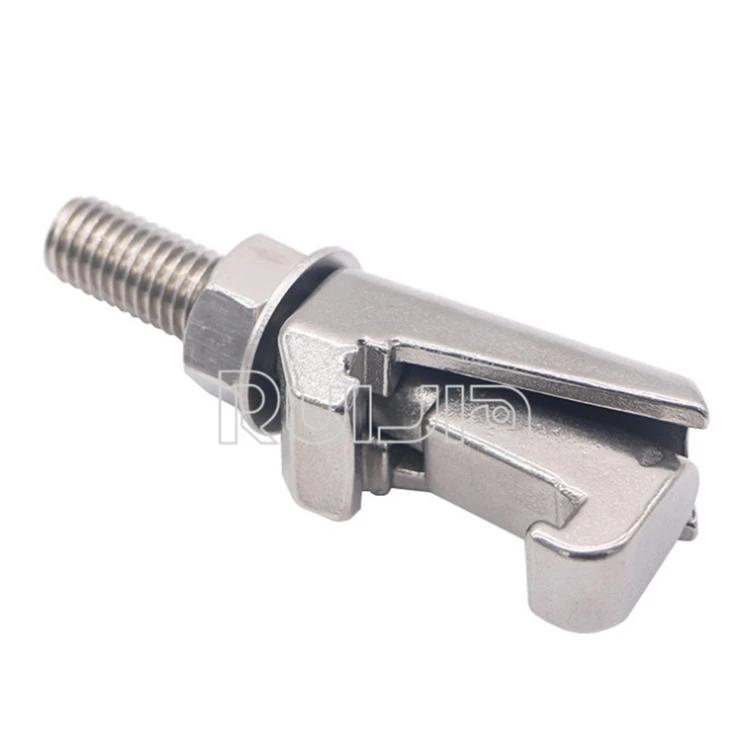

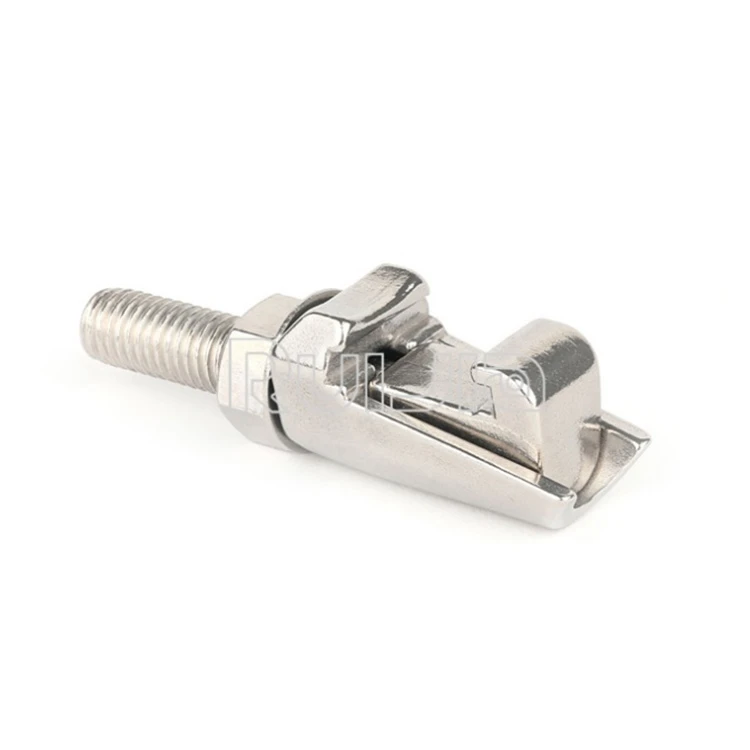

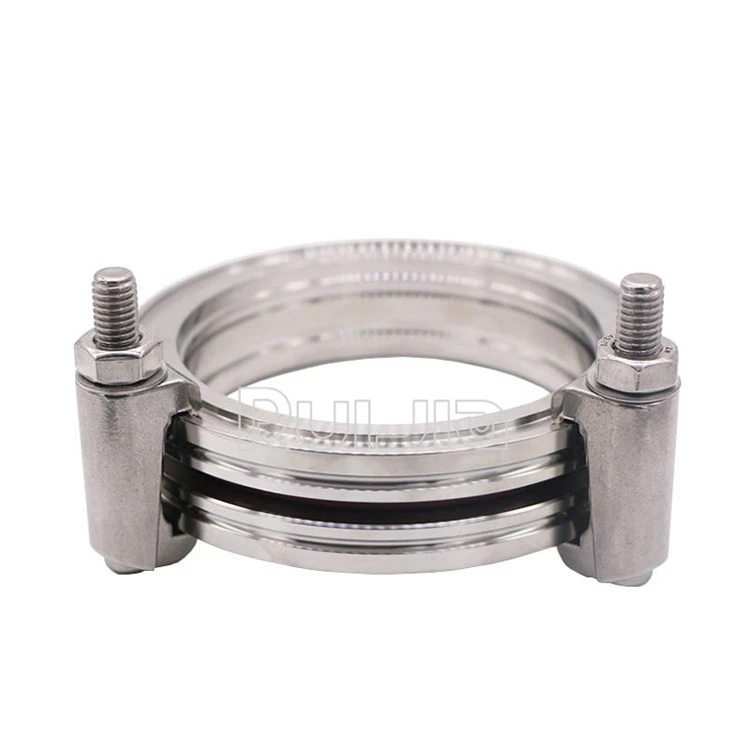

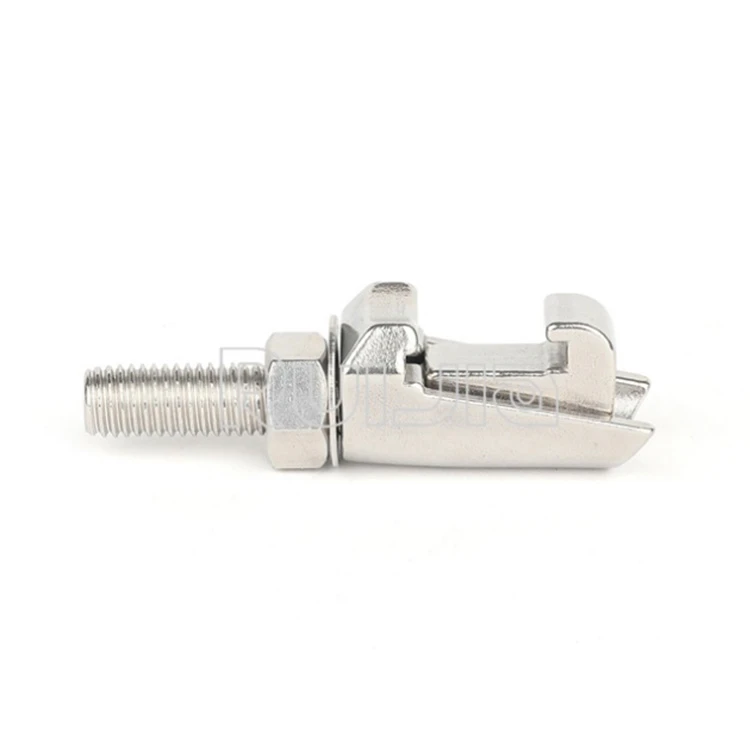

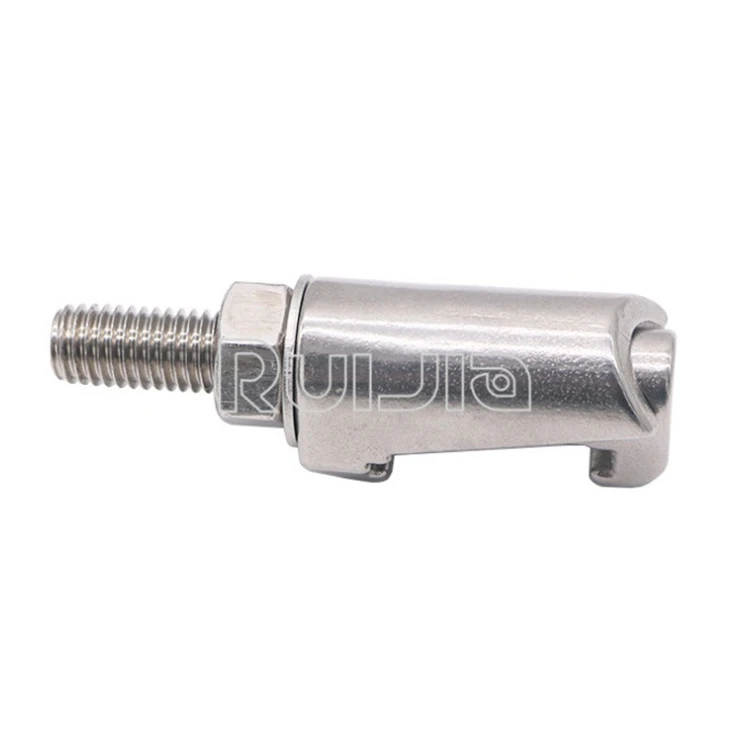

ISO Vacuum double claw clamp 316L.S.S

Vacuum double claw clamps, ISO vacuum clamps is designed for use in semiconductor, pharmaceutical, and food industries. size range:ISO63-ISO630.

Standard:	ISO Standard
Brand	RUIJIA

Cart

Product Introduction

Used in semiconductor manufacturing, national defense research etc.

Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.

The packaging method of vacuum clamps varies depending on their material. Stainless steel vacuum clamps are packaged and sold after secondary polishing treatment, while aluminum alloy vacuum clamps are cleaned and packaged after electrolytic polishing.

Specification

Product Name	ISO Vacuum double claw clamps
Brand	RUIJIA
Size	ISO63-250,ISO320-500,ISO630
Material	SS304, SS316L,Steel+Zn Plated
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO Vacuum clamp types	ISO vacuum single wall clamp, ISO vacuum double wall clamp, ISO vacuum double claw clamp, ISO vacuum nail clamps.

Product parameters

ISO Vacuum double claw clamps Unit:mm

Model No.	Material	A	B	Min.Quantity	Fit Flange
ISO63-250DCC316	316S.S	61.5	M10	4	ISO63
				4	ISO80
				4	ISO100
				4	ISO160
				6	ISO200
				6	ISO250
ISO320-500DCC316	316S.S	76	M12	8	ISO320
				8	ISO400
				12	ISO500
ISO630DCC316	316S.S	86	M12	12	ISO630
ISO63-250DCC-ZP	Steel+Zn Plated	61.5	M10	4	ISO63
				4	ISO80
				4	ISO100
				4	ISO160
				6	ISO200
				6	ISO250
ISO320-500DCC-ZP	Steel+Zn Plated	76	M12	8	ISO320
				8	ISO400
				12	ISO500
ISO630DCC-ZP	Steel+Zn Plated	86	M12	12	ISO630
