ISO63,ISO160,ISO320

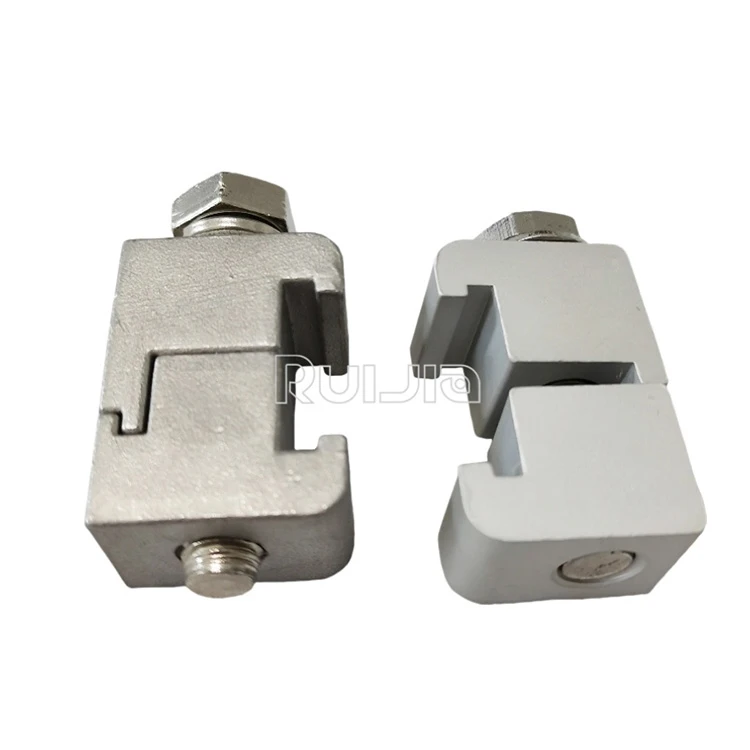

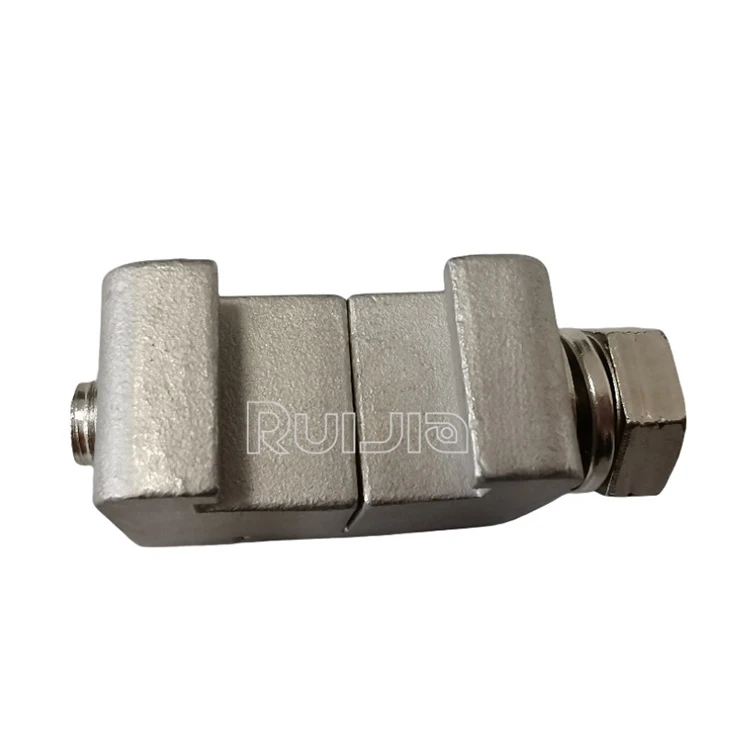

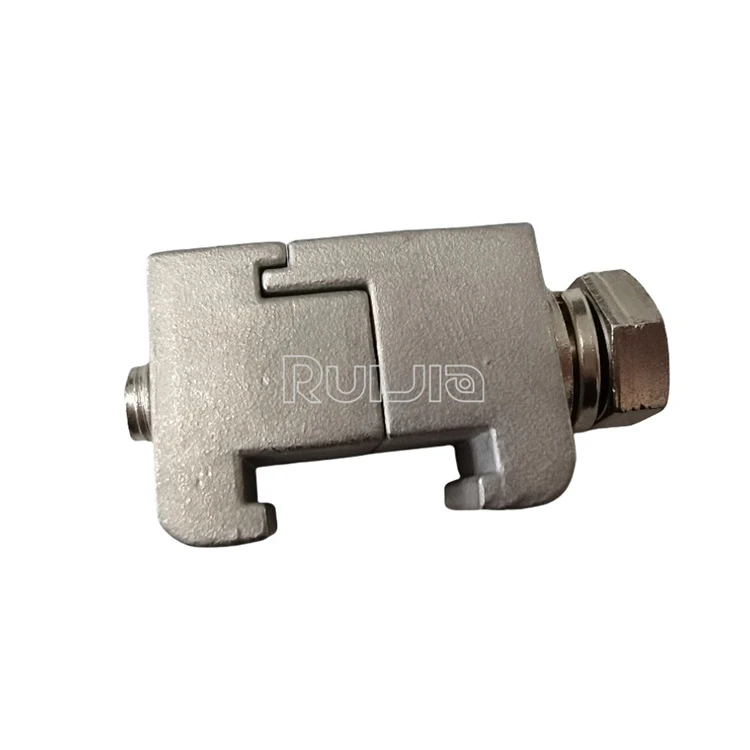

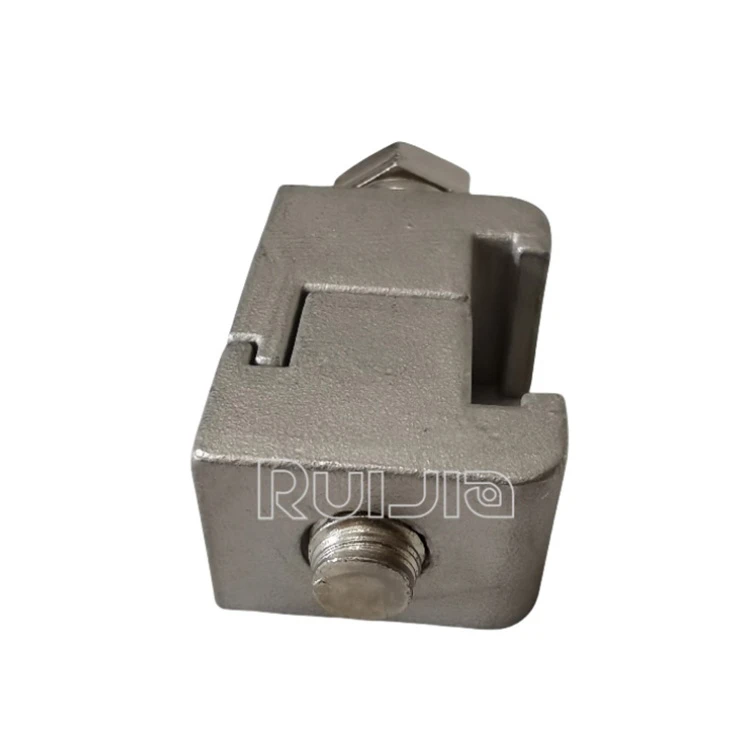

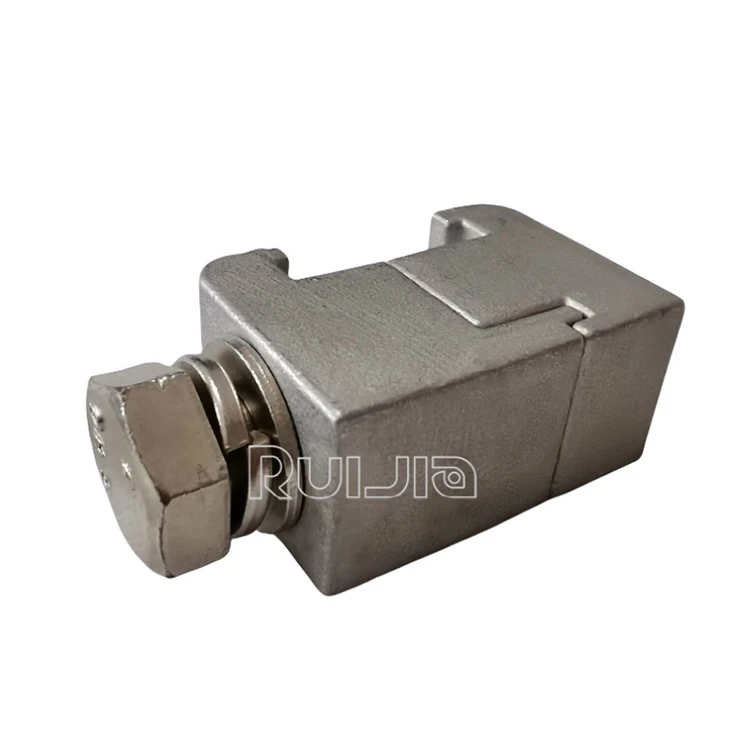

ISO Vacuum Double Wall Clamp Stainless Steel

Double Claw Clamps,ISO type,is made out of aluminium, ISO fittings are quick to assemble using claw clamps and can be connected in any orientation. Double claw clamps hooks into a ridged groove in the back side of the ISO vacuum flange.

Standard:	ISO Standard
Brand	RUIJIA

Cart

Product Introduction

Used in semiconductor manufacturing, national defense research etc.

Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.

The packaging method of vacuum clamps varies depending on their material. Stainless steel vacuum clamps are packaged and sold after secondary polishing treatment, while aluminum alloy vacuum clamps are cleaned and packaged after electrolytic polishing.

Specification

Product Name	ISO Vacuum double claw clamps Stainless steel
Brand	RUIJIA
Size	ISO63,ISO160,ISO320.
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO Vacuum clamp types	ISO vacuum single wall clamp, ISO vacuum double wall clamp, ISO vacuum double claw clamp, ISO vacuum nail clamps.

Product parameters

ISO Aluminium Double Wall Clamp

ISO Vacuum double wall clamps Aluminium Unit:mm

Model No.	Material	A	B	Min.Quantity	Fit Flange
ISO63-100DWCA	SS304	45	M8	4	ISO63
				4	ISO80
				4	ISO100
ISO160-250DWCA	SS304	45	M10	4	ISO160
				6	ISO200
				6	ISO250
ISO320-500DWCA	SS304	60	M12	8	ISO320
				8	ISO400
				12	ISO500
