Standard: |
ISO Bellows |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Soft, flexible, easy to bend, vibration absorbing
Helium leakage test passed before shipping
Plastic flange protective cap is included to avoid flange scratching during transportation
Delicate Welding to ensure integrity and reliability
Made of corrosive resistant stainless steel.
|

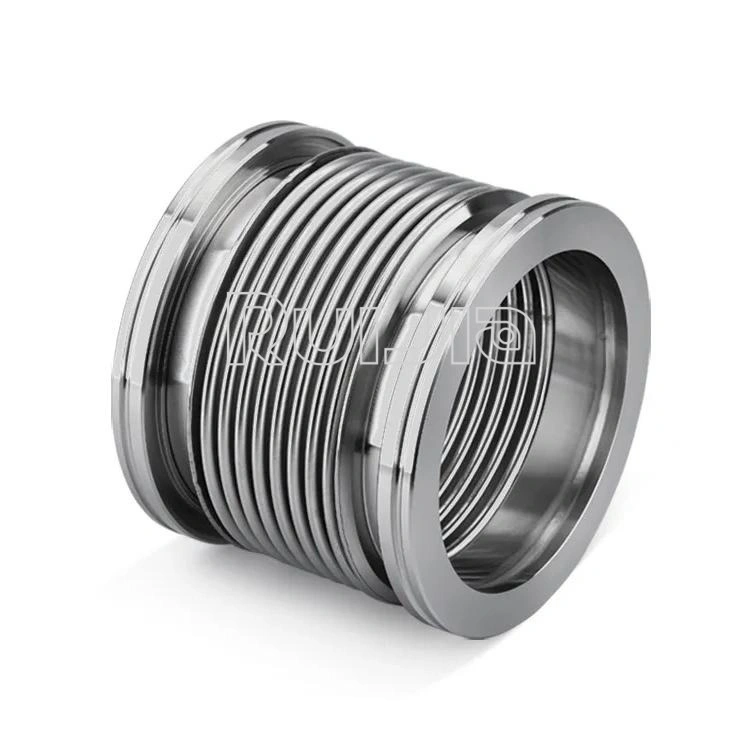

Bellows Type |
Vacuum ISO Compressible bellows connections |
|
Material |
Bellows SUS304, SUS316L |
|
Flange SUS304, SUS316L |
|
|
Standard |
ISO Bellows |
|
Size Range |
ISO63-ISO100 |
|
Length |
100mm,140mm,187mm,250mm,500mm,750mm,1000mm, Customizable for 3meters |
|
Wall Thickness |
0.2mm for ISO63-ISO100 0.25mm for ISO125-ISO160 0.3/0.4mm for ISO200-ISO250 |
|
Elasticity of bellows |
40% |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Leakage rate |
1×10 -9 Pa・m³/sec or less |
IS0 Compressible Bellows Connections Unit:mm
|
Item No. |
Flange Size |
Material |
A |
B |
C |
T |
|
ISO63FXC |
ISO63 |
SS304 |
95 |
140 |
125 |
0.2 |
|
ISO80FXC |
ISO80 |
SS304 |
110 |
187 |
160 |
0.2 |
|
ISO100FXC |
ISO100 |
SS304 |
130 |
187 |
160 |
0.2 |
|
ISO125FXC |
ISO125 |
SS304 |
155 |
187 |
160 |
0.25 |
|
ISO160FXC |
ISO160 |
SS304 |
180 |
187 |
160 |
0.25 |
|
ISO200FXC |
ISO200 |
SS304 |
240 |
187 |
160 |
0.3/0.4 |
|
ISO250FXC |
ISO250 |
SS304 |
290 |
187 |
160 |
0.3/0.4 |
|
ISO320FXC |
ISO320 |
SS304 |
370 |
187 |
160 |
0.4 |
Material SS316, Teflon & Customized Length Upon Request
|
Standard: |
ISO |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
ISO Bellows |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
