Standard: |
ISO |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Soft, flexible, easy to bend, vibration absorbing
Helium leakage test passed before shipping
Plastic flange protective cap is included to avoid flange scratching during transportation
Delicate Welding to ensure integrity and reliability
|
Bellows Type |

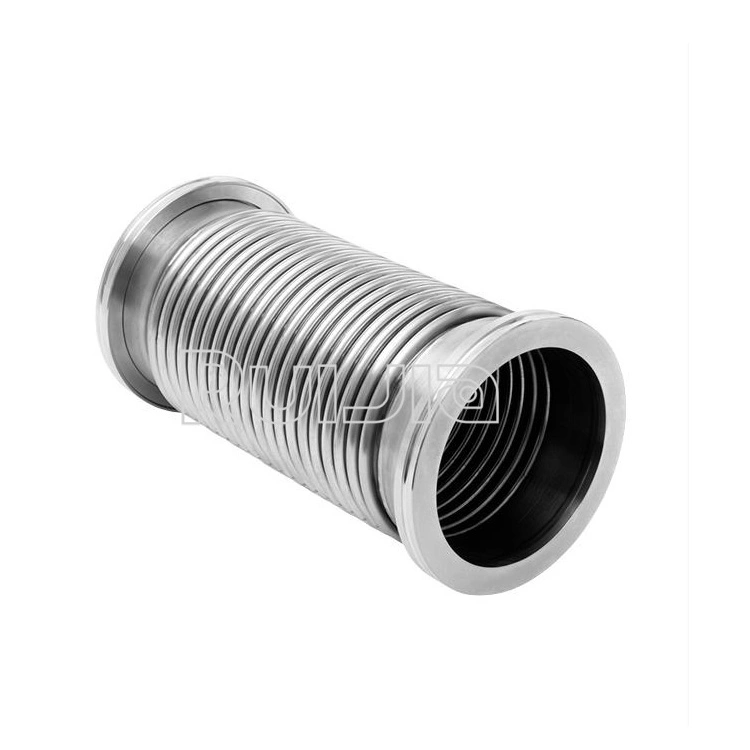

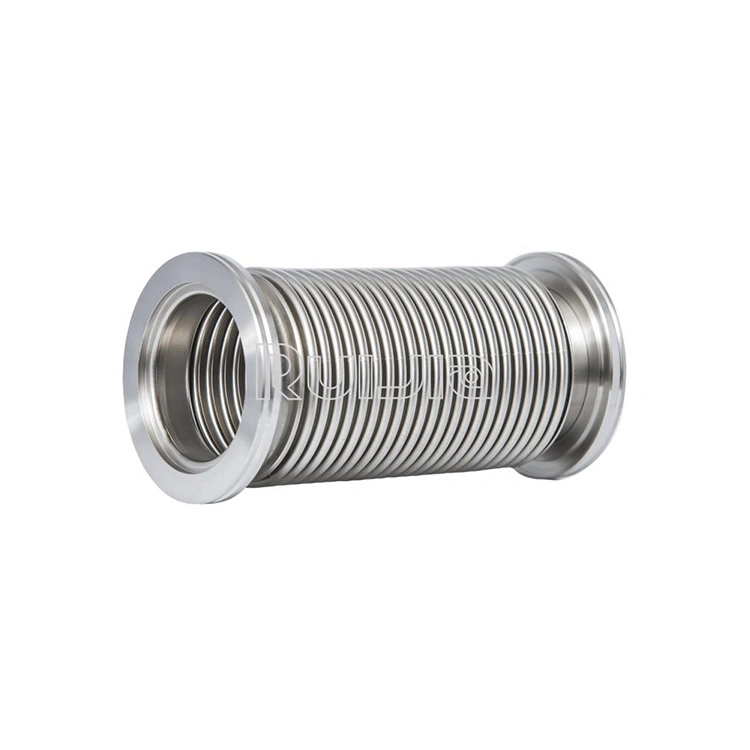

Vacuum ISO flexible hoses |
|
Material |
Bellows SUS304, SUS316L |
|
Flange SUS304, SUS316L |
|
|
Standard |
ISO |
|
Size Range |
ISO63-ISO100 |
|
Length |
250mm,500mm,750mm,1000mm or as customer request |
|
Wall Thickness |
0.2mm,0.25mm,0.3mm |
|
Elasticity of bellows |
40% |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Leakage rate |
1×10 -9 Pa・m³/sec or less |
IS0 Flexible Hoses Unit:mm
|
Item No. |
Flange Size |
Material |
A |
B |
|
ISO63FX250 |
ISO63 |
SS304 |
95 |
250 |
|
ISO63FX500 |
ISO63 |
SS304 |
95 |
500 |
|
ISO63FX750 |
ISO63 |
SS304 |
95 |
750 |
|
ISO63FX1000 |
ISO63 |
SS304 |
95 |
1000 |
|
ISO63FX3000 |
ISO63 |
SS304 |
95 |
3000 |
|
|
|
|
|
|
|
ISO80FX250 |
ISO80 |
SS304 |
110 |
250 |
|
ISO80FX500 |
ISO80 |
SS304 |
110 |
500 |
|
ISO80FX750 |
ISO80 |
SS304 |
110 |
750 |
|
ISO80FX1000 |
ISO80 |
SS304 |
110 |
1000 |
|
ISO80FX3000 |
ISO80 |
SS304 |
110 |
3000 |
|
|
|
|
|
|
|
ISO100FX250 |
ISO100 |
SS304 |
130 |
250 |
|
ISO100FX500 |
ISO100 |
SS304 |
130 |
500 |
|
ISO100FX750 |
ISO100 |
SS304 |
130 |
750 |
|
ISO100FX1000 |
ISO100 |
SS304 |
130 |
1000 |
|
ISO100FX3000 |
ISO100 |
SS304 |
130 |
3000 |
Material SS316,Customized length is acceptable upon request. ISO160-ISO320 is unpon request.
Inner hose PTFE coating upon request.
|
Standard: |
ISO |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
ISO Bellows |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
