Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application: Applied to high vacuum and ultra-high vacuum systems that require cleaning and corrosion resistance. This three-way design and material selection ensure its reliability and durability in extreme environments.
Finish: polish surface or sand blasting surface.
Testing: the testing items for vacuum pipe fittings include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, sealing testing, and corrosion resistance testing.
|
Product Name |

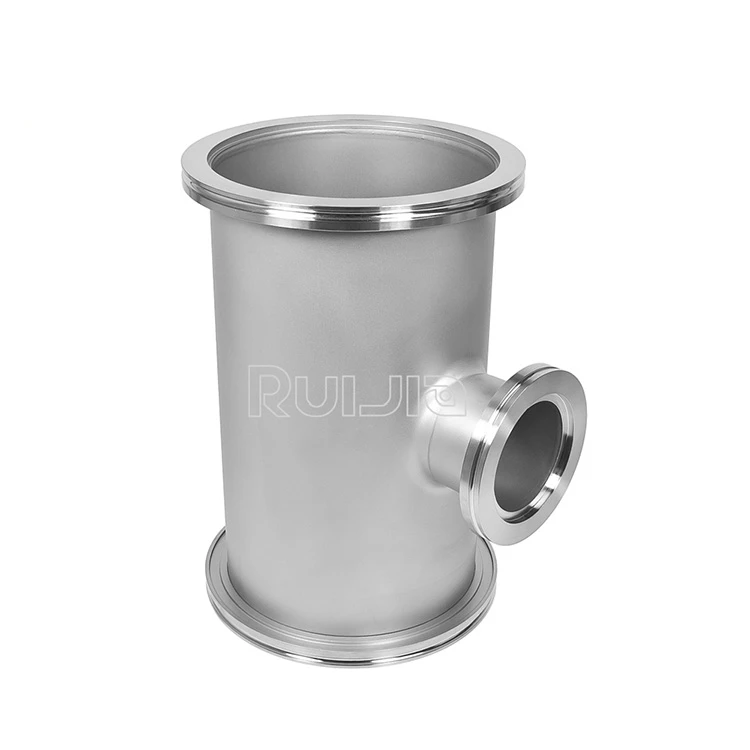

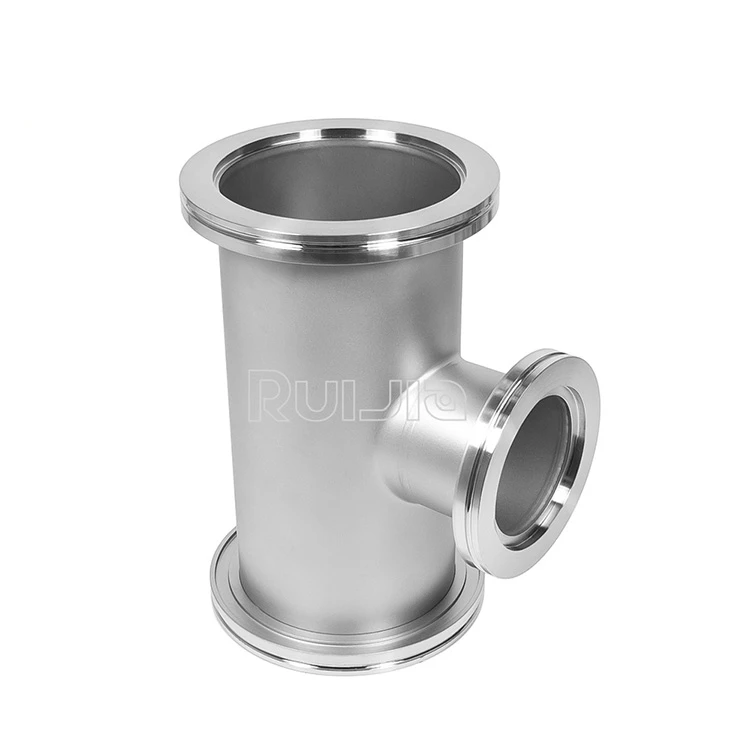

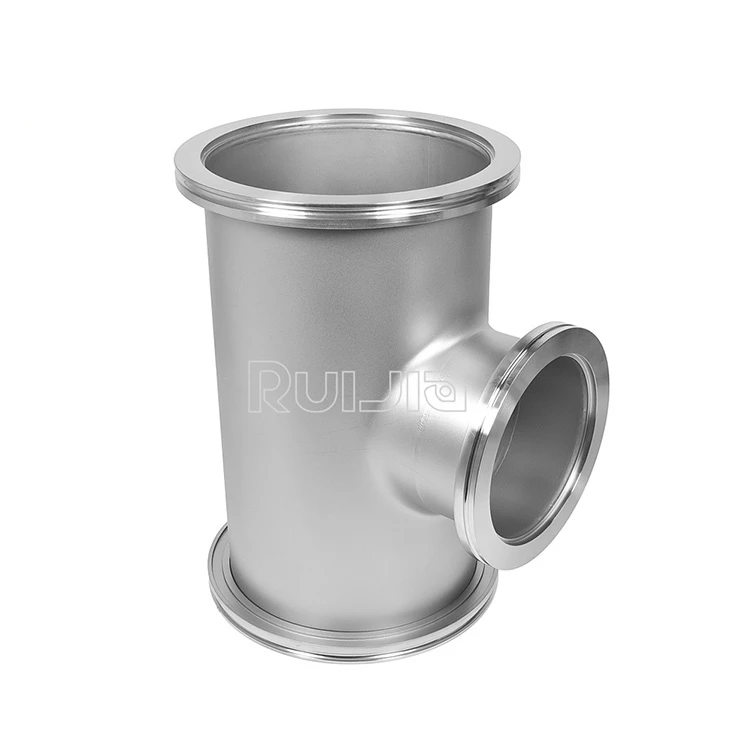

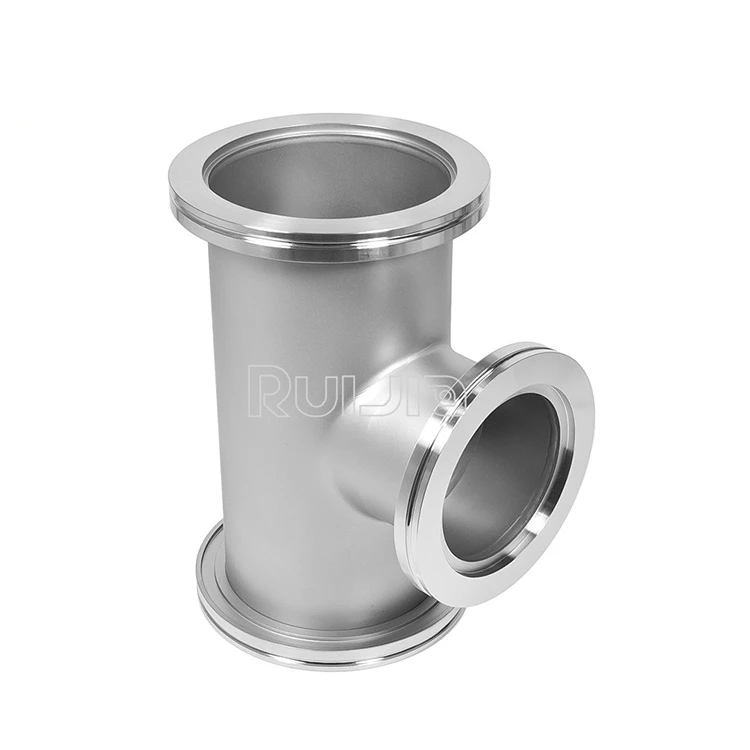

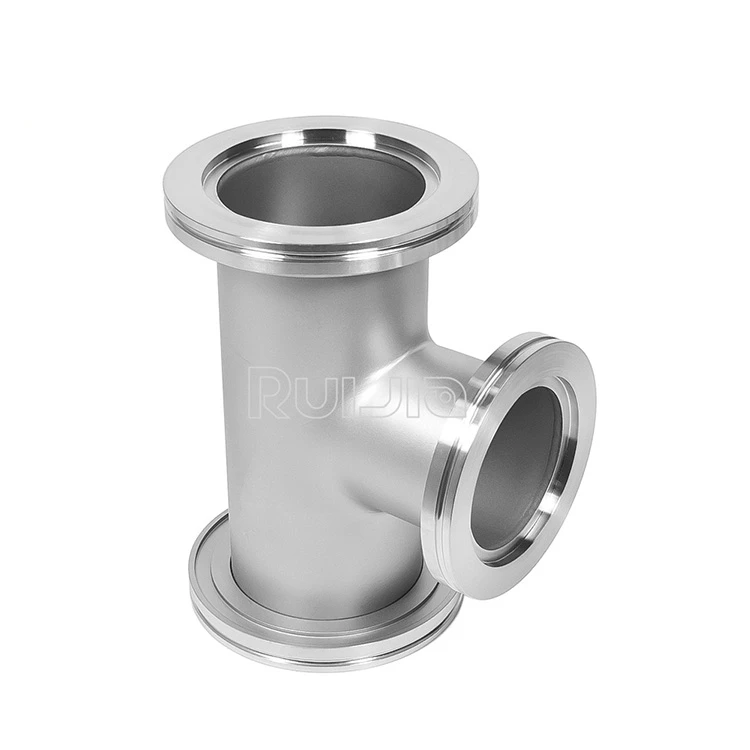

ISO Vacuum flange fittings reducing 3 way cross |
|
Brand |
RUIJIA |
|
Size |
ISO63,ISO80,ISO100,ISO160 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
ISO Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
ISO flange fittings types |
ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses. |

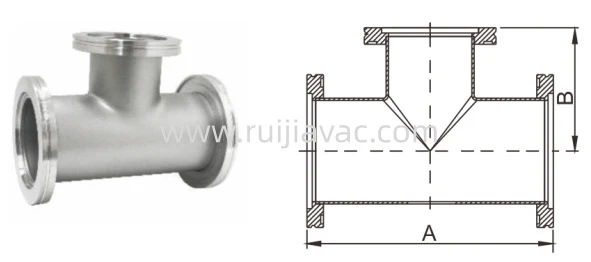

ISO Vacuum flange fittings reducing 3 way cross
|
Model No. |
Size |
A |
B |
|
ISOK-RT-80×63 |
ISO80×ISO63 |
177.7 |
88.9 |
|
ISOK-RT-100×63 |
ISO100×ISO63 |
209.7 |
101.6 |
|
ISOK-RT-100×80 |
ISO100×ISO80 |
209.7 |
101.6 |
|
ISOK-RT-160×63 |
ISO160×ISO63 |
266.6 |
126.9 |
|
ISOK-RT-160×80 |
ISO160×ISO80 |
266.6 |
126.9 |
|
ISOK-RT-160×100 |
ISO160×ISO100 |
266.6 |
130.3 |
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
|
