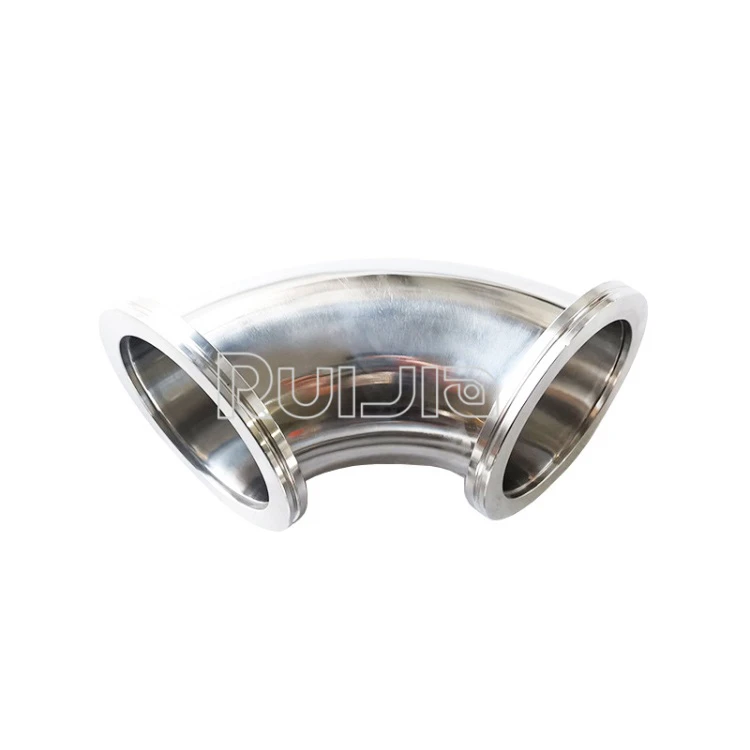

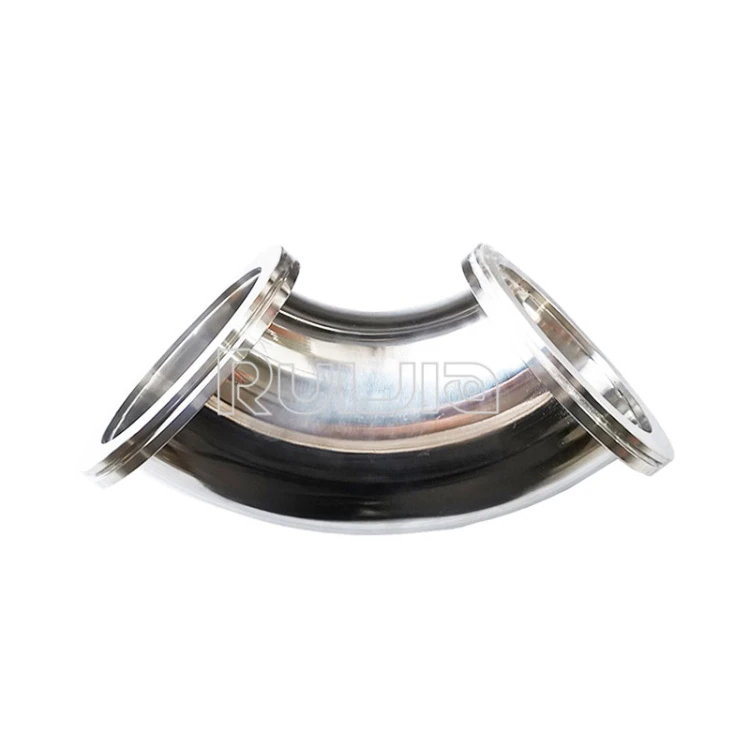

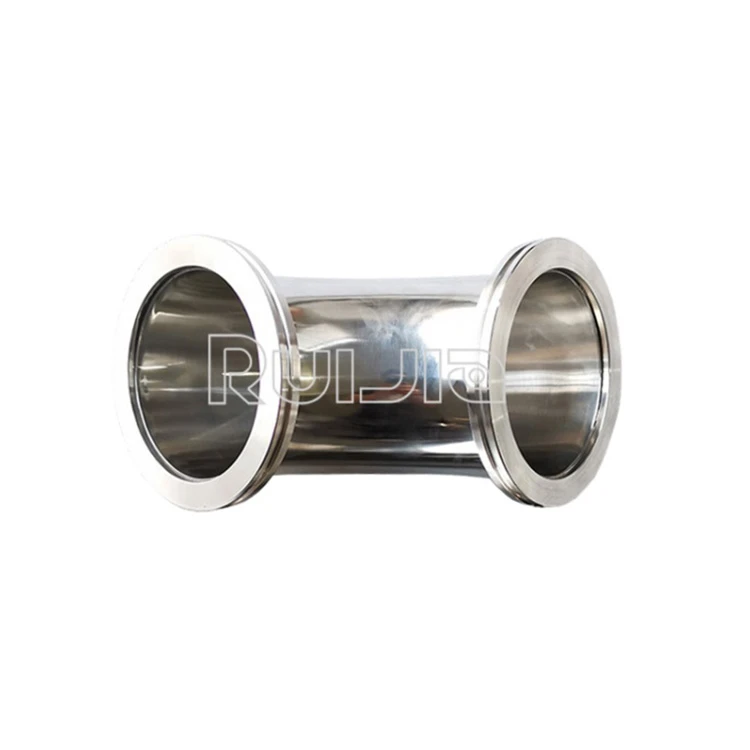

ISO Vacuum Flange Radius 90 Degree Elbows Fittings Wholesale China

ISO fittings, ISO vacuum flanges fittings,ISO 90 degree elbows They are used to make a right angle change of direction between two ISO-ISO flange faces.

Standard:	ISO Standard
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Used in plumbing, HVAC systems, and industrial piping applications to change the direction of the flow by 90 degrees.

Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.

Thread type: Match the thread type of the elbow to the rest of your system to maintain integrity and prevent leaks.

Surface finish: Some applications require a high level of cleanliness, so choose fittings with appropriate surface finishes to minimize particle generation.

Specification

Product Name	ISO Vacuum flange fittings 90 degree Elbow
Brand	RUIJIA
Size	ISO63,ISO80,ISO100,ISO160
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO flange fittings types	ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses.

Product parameters

ISO Vacuum flange fittings 90 degree Elbow Unit:mm

Model No.	Material	A	B	C
ISO63EL90A	304S.S	138.4	63.5	95
ISO80EL90A	304S.S	166.9	76.2	110
ISO100EL90A	304S.S	217.7	101.6	130
ISO160EL90A	304S.S	235.2	152.4	180

Special Size available Upon Request.

Part number plus "k" for sand blasting surface.

Part number Plus "L" for polished surface.
