Used in plumbing, HVAC systems, and industrial piping applications to change the direction of the flow by 90 degrees.
Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.
Thread type: Match the thread type of the elbow to the rest of your system to maintain integrity and prevent leaks.
Surface finish: Some applications require a high level of cleanliness, so choose fittings with appropriate surface finishes to minimize particle generation.
|
Product Name |

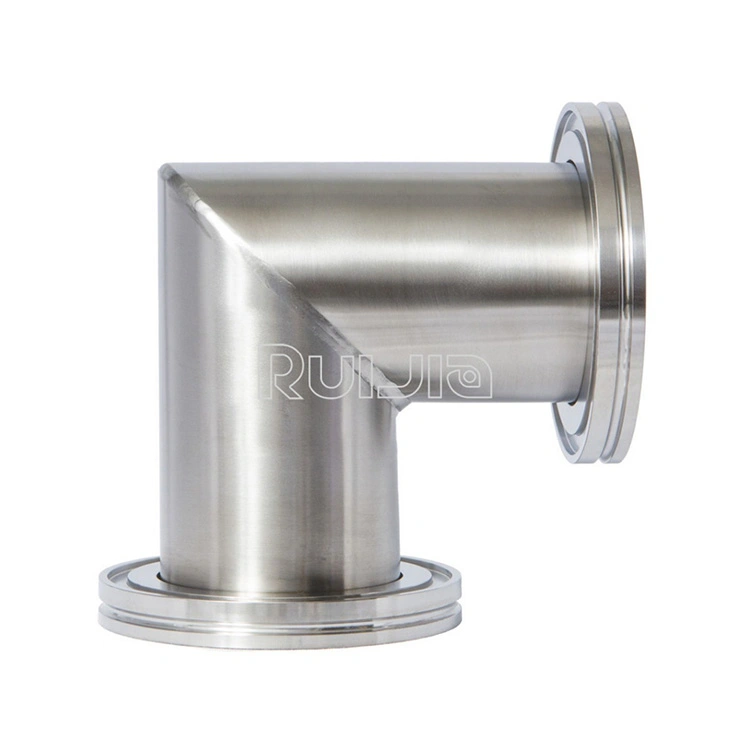

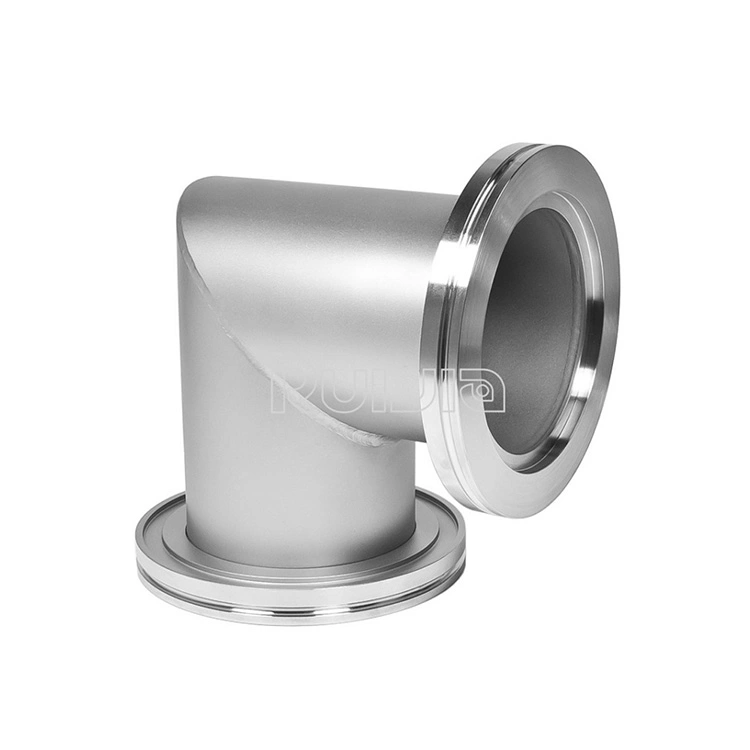

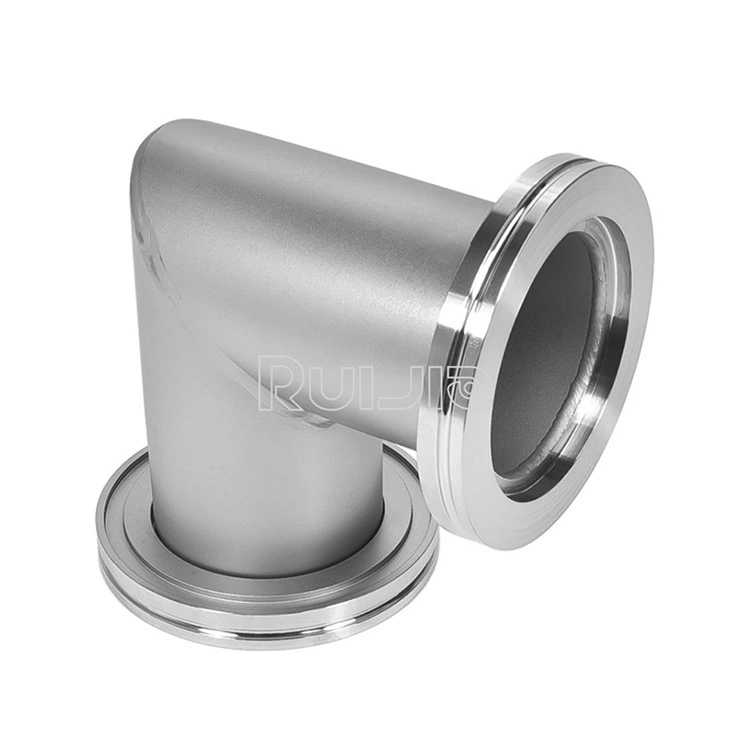

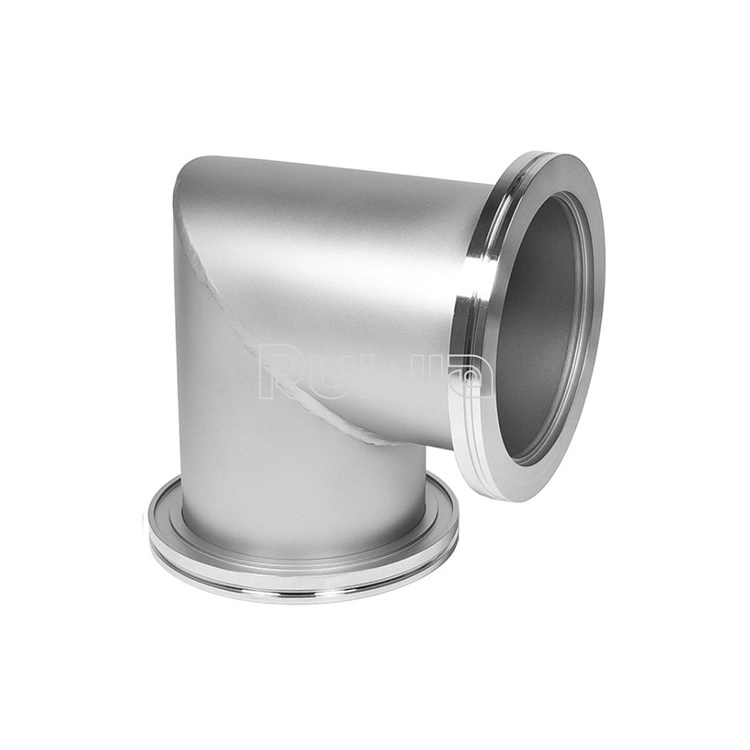

ISO Vacuum flange fittings 90 degree mitered Elbow |
|
Brand |
RUIJIA |
|
Size |
ISO63,ISO80,ISO100,ISO160 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
ISO Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
ISO flange fittings types |
ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses. |

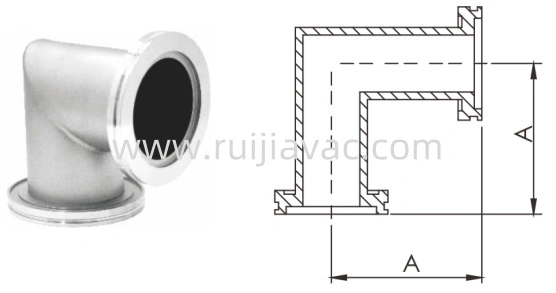

ISO Vacuum flange fittings 90 degree mitered Elbow Unit:mm
|
Model No. |
Size |
A |
|
ISOK-90MEL-63 |
ISO63 |
82.6 |
|
ISOK-90MEL-63-1 |
ISO63-H |
87.93 |
|
ISOK-90MEL-80 |
ISO80 |
88.9 |
|
ISOK-90MEL-80-1 |
ISO80-H |
108 |
|
ISOK-90MEL-100 |
ISO100 |
1049 |
|
ISOK-90MEL-100-1 |
ISO100-H |
108 |
|
ISOK-90MEL-160 |
ISO160 |
138 |
|
ISOK-90MEL-160-1 |
ISO160-H |
160.2 |
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
|
Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
