Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application: Mainly application areas include but are not limited to scientific research, semiconductor manufacturing, and other industrial fields that require high purity and high vacuum.
Packaging methods: including bubble wrap packaging, anti-static packaging bags
Testing: the testing items for vacuum pipe fittings include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing,
|
Product Name |

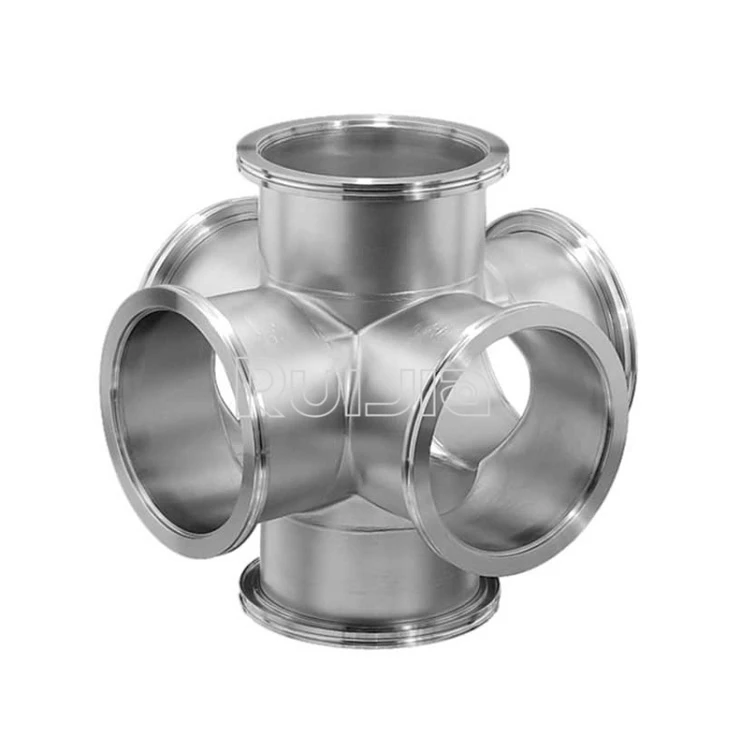

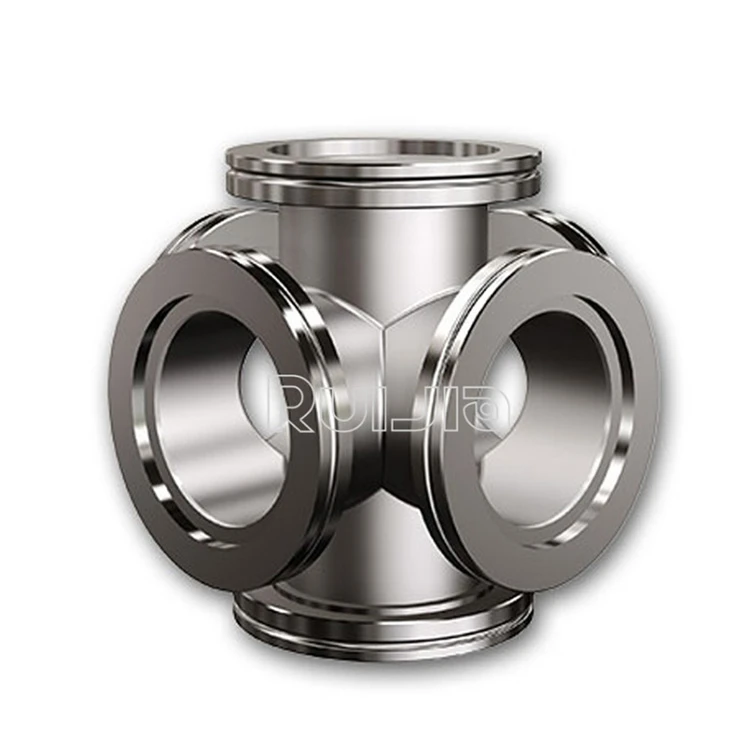

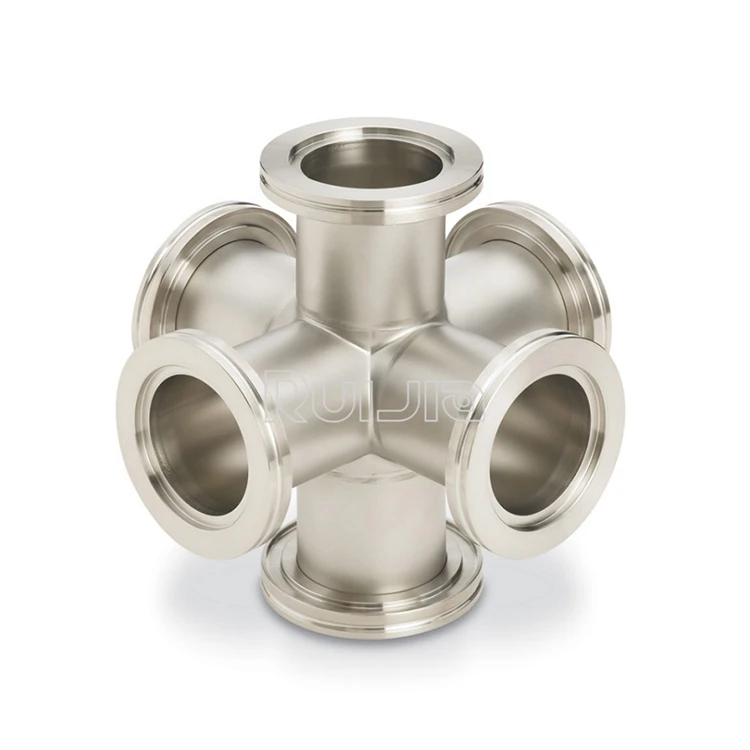

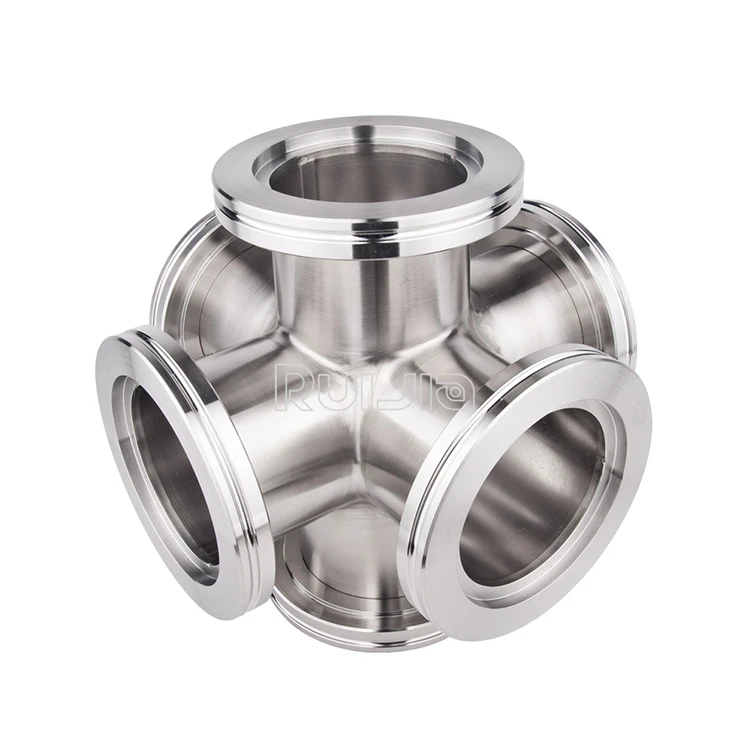

ISO Vacuum flange fittings 6 way crosses |
|
Brand |
RUIJIA |
|
Size |
ISO63,ISO80,ISO100,ISO160 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
ISO Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
ISO flange fittings types |
ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses. |

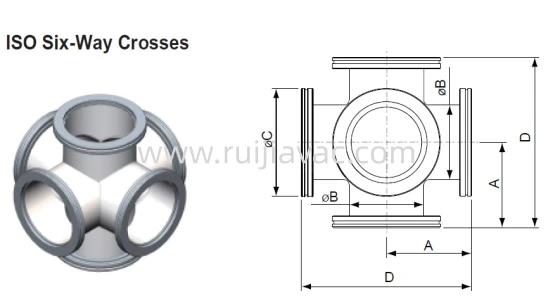

ISO Vacuum flange fittings 6 way crosses Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
|
ISO63SXA |
304S.S |
82.8 |
63.5 |
95 |
165.6 |
|
ISO80SXA |
304S.S |
89.15 |
76.2 |
110 |
178.3 |
|
ISO100SXA |
304S.S |
105 |
101.6 |
130 |
210 |
|
ISO160SXA |
304S.S |
133.6 |
152.4 |
180 |
267.2 |
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
|
