Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application：Applied to high vacuum and ultra-high vacuum systems that require cleaning and corrosion resistance. This three-way design and material selection ensure its reliability and durability in extreme environments.
Finish:polish surface or sand blasting surface.
Testing：the testing items for vacuum pipe fittings include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, sealing testing, and corrosion resistance testing.
|
Product Name |

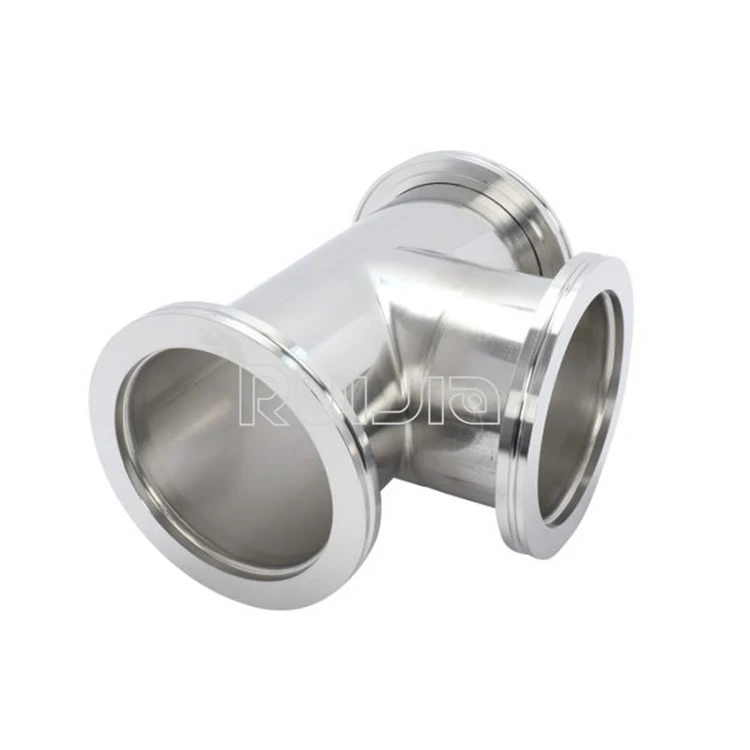

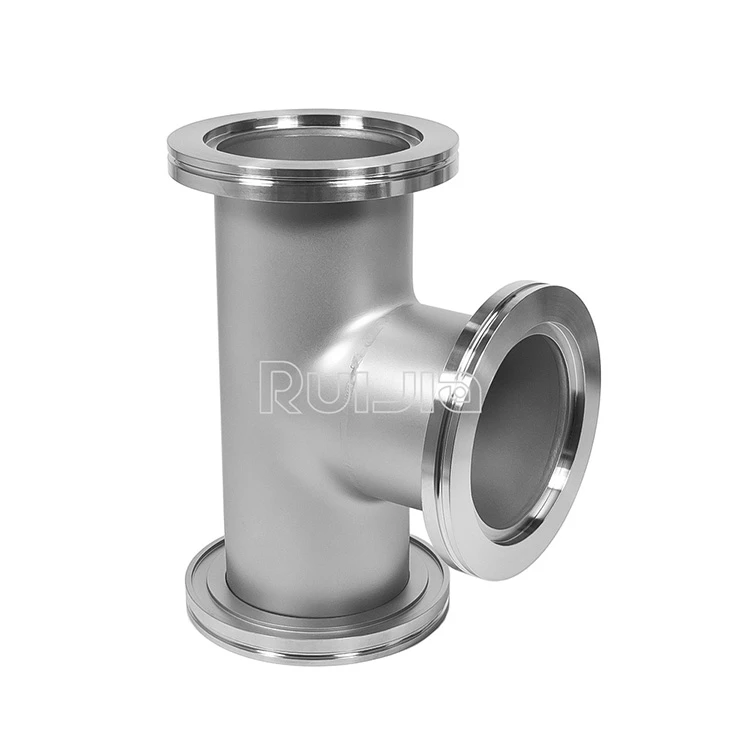

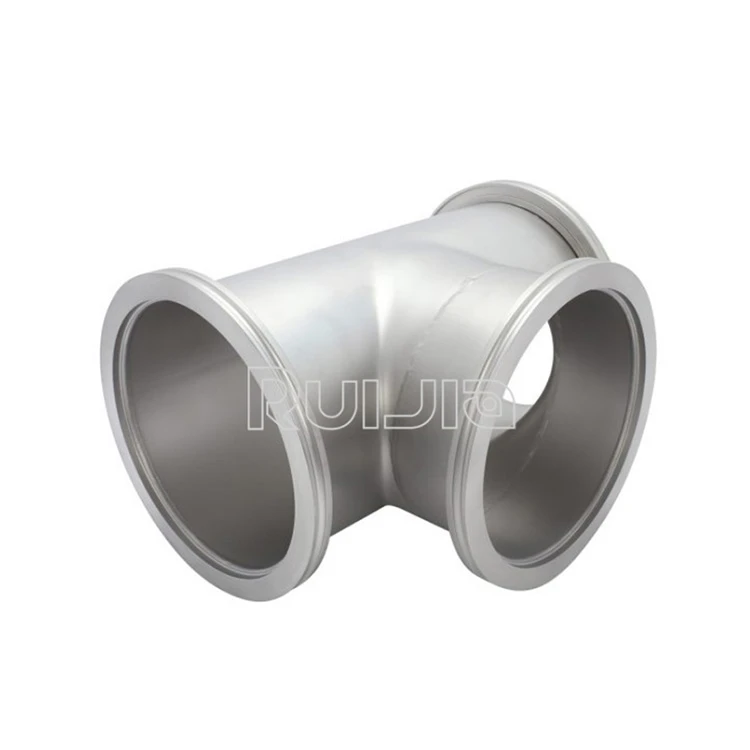

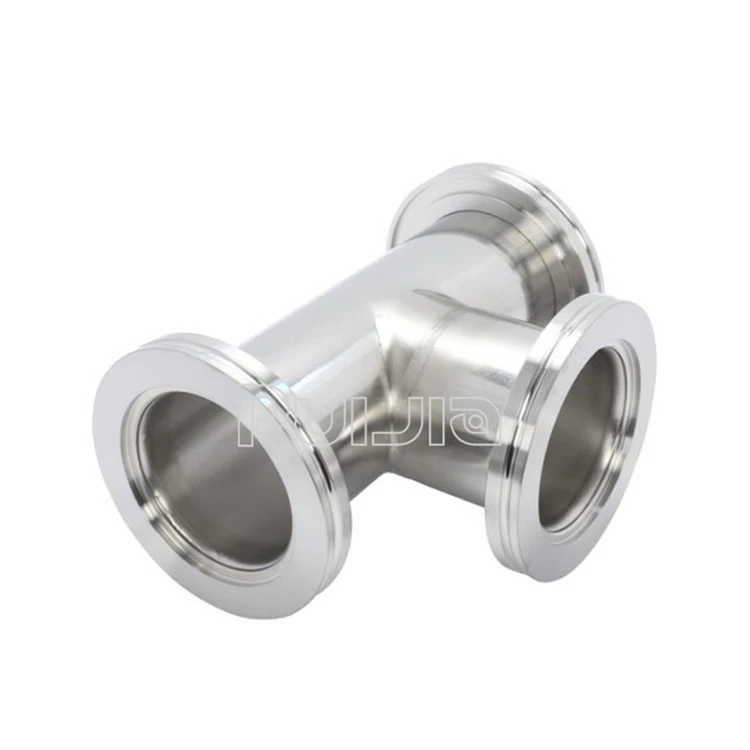

ISO Vacuum flange fittings Tees |
|
Brand |
RUIJIA |
|
Size |
ISO63,ISO80,ISO100,ISO160 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
ISO Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
ISO flange fittings types |
ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses. |
ISO Vacuum flange fittings Tees Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
|
ISO63TA |
304S.S |
82.8 |
63.5 |
95 |
165.6 |
|
ISO80TA |
304S.S |
89.15 |
76.2 |
110 |
178.3 |
|
ISO100TA |
304S.S |
105 |
101.6 |
130 |
210 |
|
ISO160TA |
304S.S |
133.6 |
152.4 |
180 |
267.2 |
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
|
