ISO63,ISO80,ISO100,ISO160

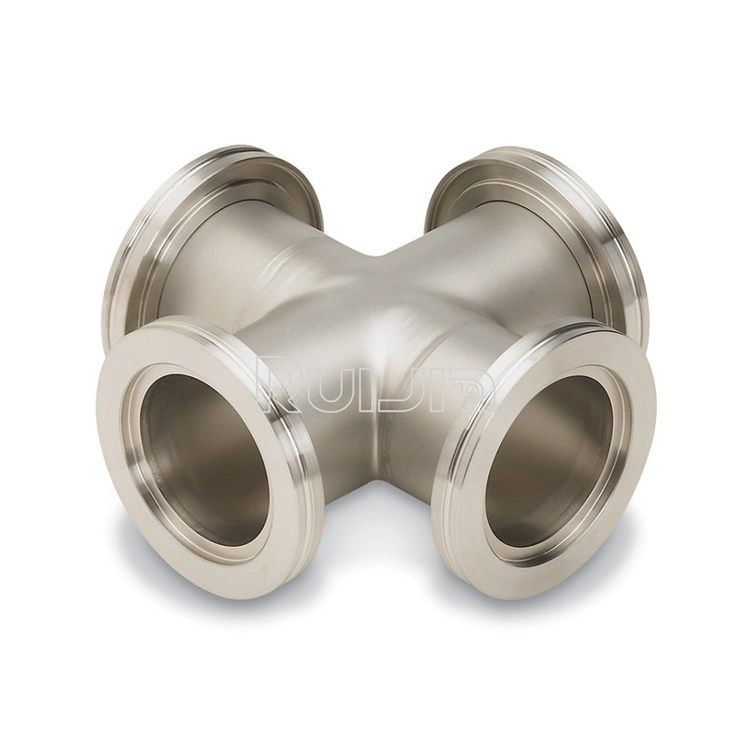

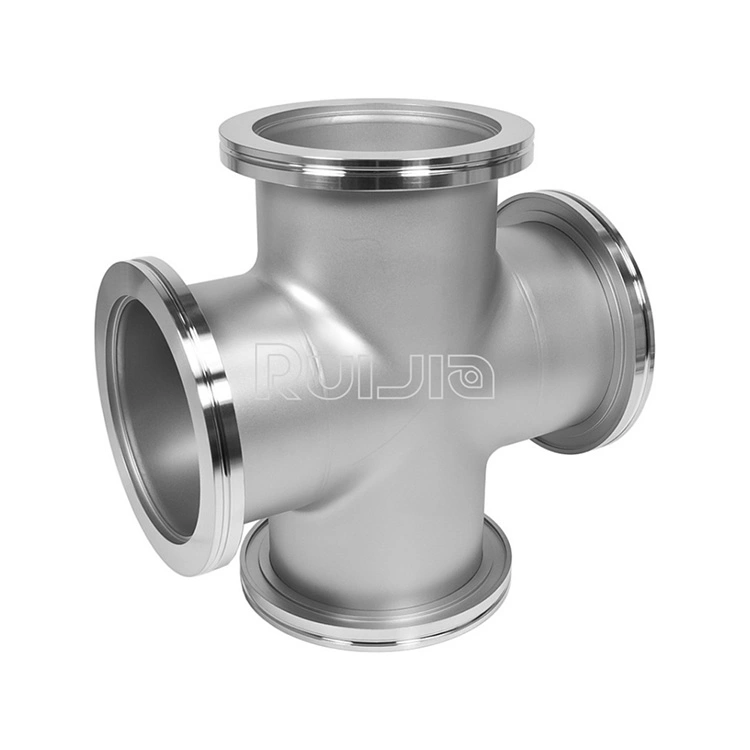

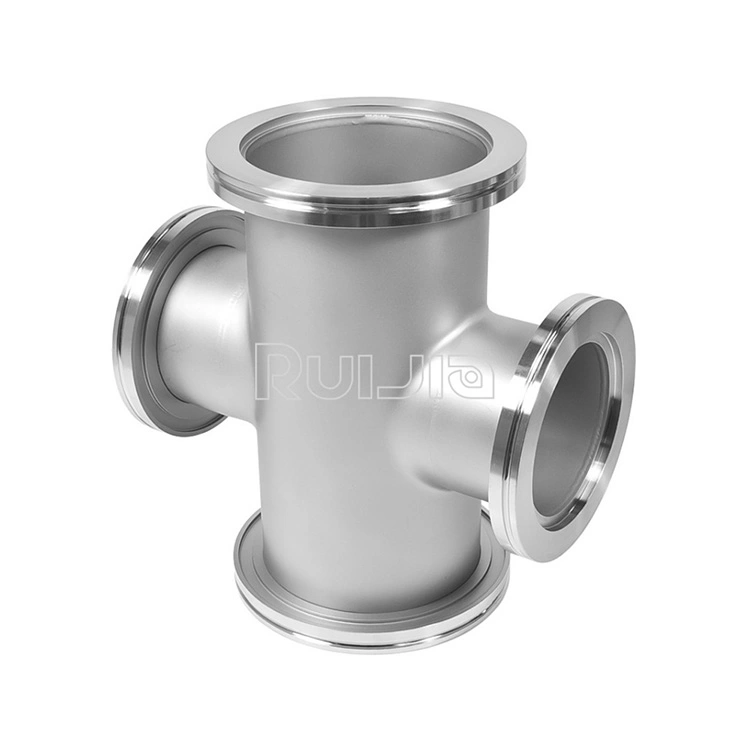

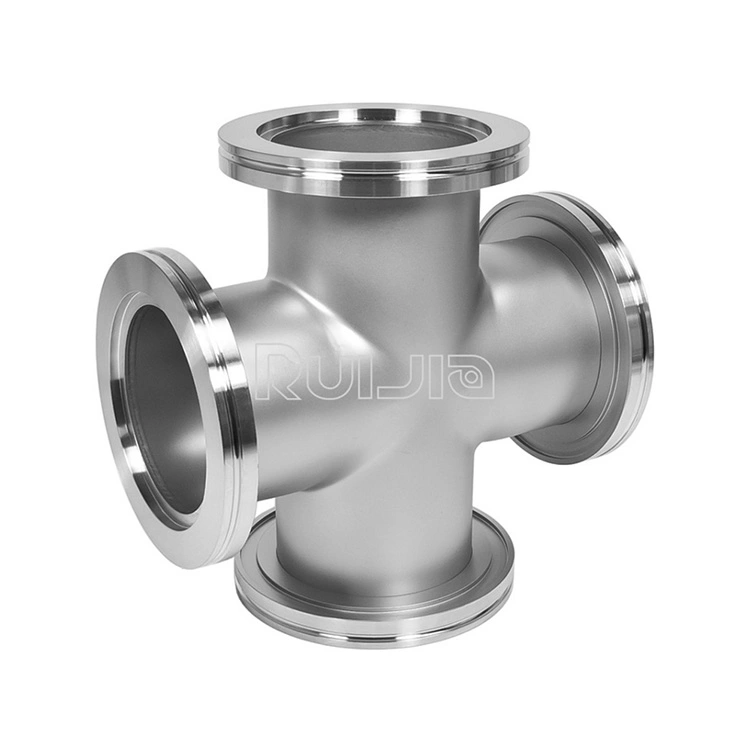

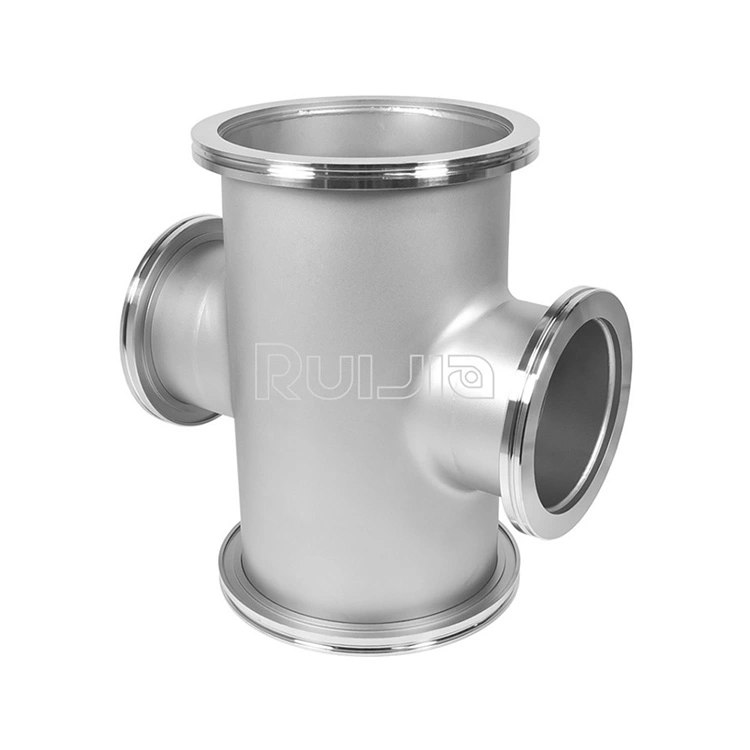

Vacuum ISO 4-way crosses Vacuum Fittings SS304/SS316L

ISO vacuum fittings,Vacuum fittings crosses are used in scientific research, semiconductor manufacturing, a series of strict tests are conducted to ensure the quality and reliability of the tees.

Standard:	ISO Standard
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Application: application areas include but are not limited to scientific research, semiconductor manufacturing, and other industrial fields that require high purity and high vacuum.

Packaging methods: including bubble wrap packaging, anti-static packaging bags, and customized wooden or metal protective boxes.

Testing: the testing items for vacuum pipe fittings include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, sealing testing, and corrosion resistance testing.

Specification

Product Name	ISO Vacuum flange fittings 4 way crosses
Brand	RUIJIA
Size	ISO63,ISO80,ISO100,ISO160
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO flange fittings types	ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses.

Product parameters

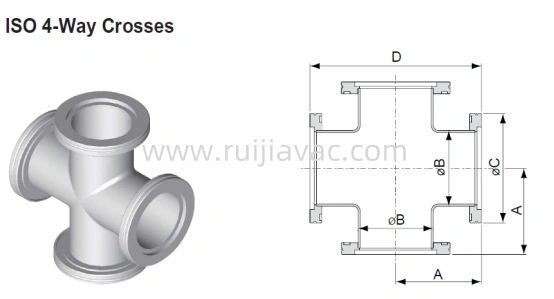

ISO Vacuum flange fittings 4 way crosses Unit:mm

Model No.	Material	A	B	C	D
ISO63XA	304S.S	82.8	63.5	95	165.6
ISO80XA	304S.S	89.15	76.2	110	178.3
ISO100XA	304S.S	105	101.6	130	210
ISO160XA	304S.S	133.6	152.4	180	267.2

Special Size available Upon Request.

Part number plus "k" for sand blasting surface.

Part number Plus "L" for polished surface.
