KF16-KF50

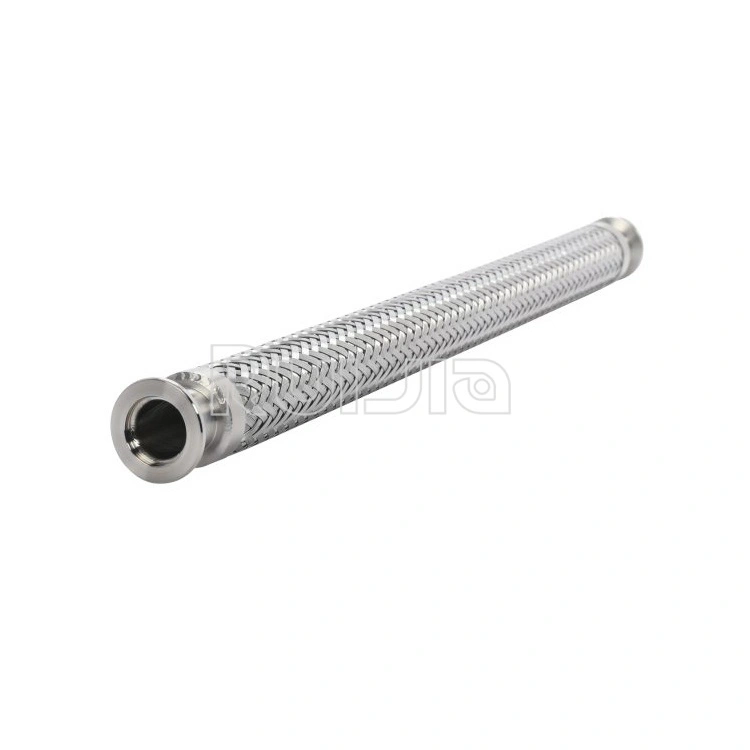

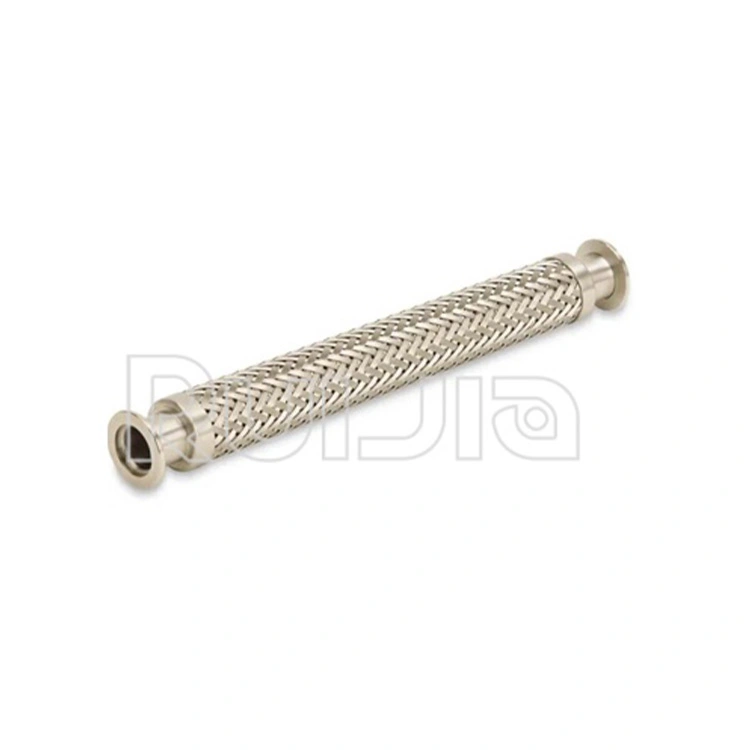

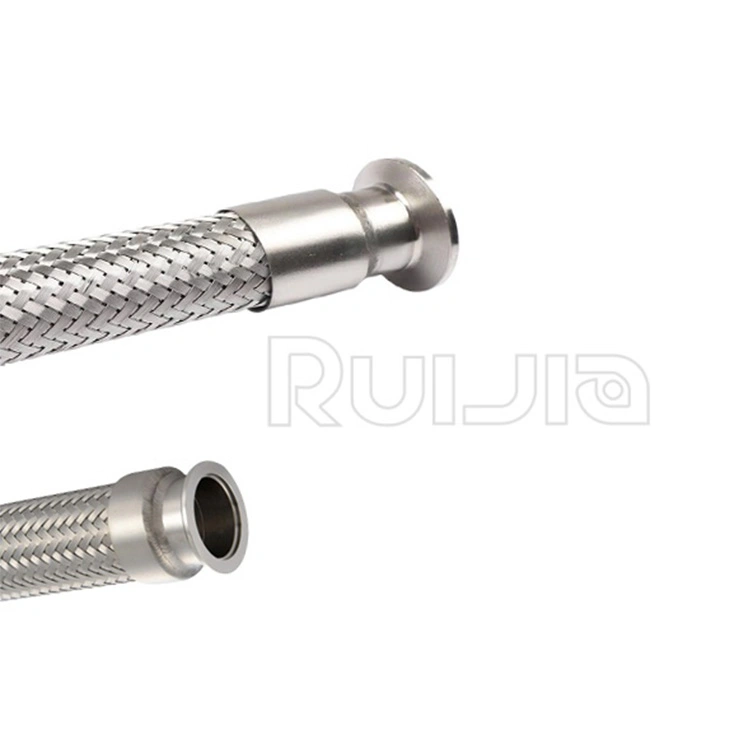

KF Braided bellows vacuum flexible hose KF16-KF50 Stainless Steel

Name: KF Braided bellows vacuum flexible hose KF16-KF50 Stainless Steel
Brand: Ruijia
SKU: 00046
Rating: 4.9 (73 reviews)

Ruijia vacuum braided flexible hose can be better adapted to complex conditions and frequent bending operations, and to a certain extent to prevent the hose from being scratched or abraded by external objects, to ensure the sealing and stability of the vacuum environment.

Standard:	KF / ISO / CF flange type
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Adopts the braiding process, through the metal wire or other materials braided in the outer layer of the hose, which can enhance the strength, pressure resistance and flexibility of the hose and other properties.

Helium leakage test passed before shipping

Plastic flange protective cap is included to avoid flange scratching during transportation

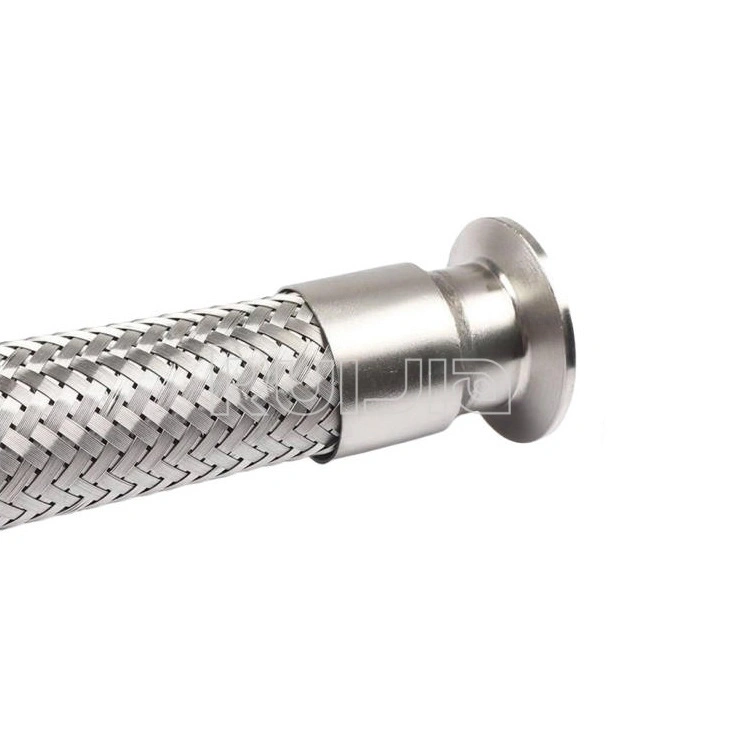

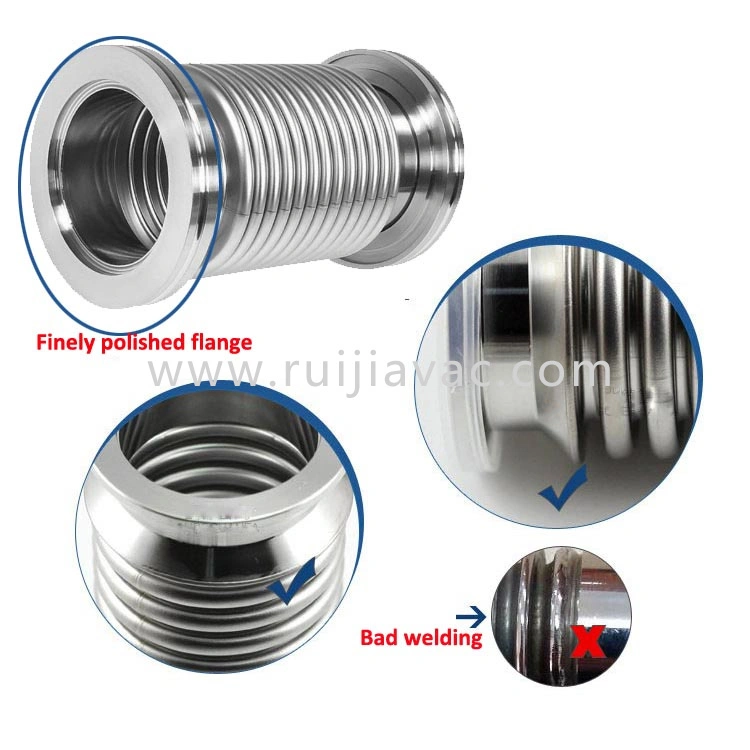

Delicate Welding to ensure integrity and reliability

Specification

Bellows Type	Vacuum KF Braided Flexible Hoses
Material	Bellows SUS304, SUS316L
Material	Flange SUS304, SUS316L
Standard	KF / ISO / CF flange type
Size Range	KF16-KF50
Length	100mm,250mm,500mm,750mm,1000mm or as customer request
Wall Thickness	0.15mm
Elasticity of bellows	40%
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Leakage rate	1×10 -9 Pa・m³/sec or less

Product parameters

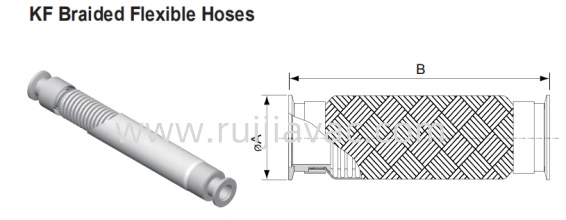

KF Braided Flexible Hoses Unit:mm

Model No.	Flange Size	Material	A	B
KF16BFX250	NW16	SS304	30	250
KF16BFX500	NW16	SS304	30	500
KF16BFX750	NW16	SS304	30	750
KF16BFX1000	NW16	SS304	30	1000

KF25BFX250	NW25	SS304	40	250
KF25BFX500	NW25	SS304	40	500
KF25BFX750	NW25	SS304	40	750
KF25BFX1000	NW25	SS304	40	1000

KF40BFX250	NW40	SS304	55	250
KF40BFX500	NW40	SS304	55	500
KF40BFX750	NW40	SS304	55	750
KF40BFX1000	NW40	SS304	55	1000

KF50BFx250	NW50	SS304	75	250
KF50BFX500	NW50	SS304	75	500
KF50BFX750	NW50	SS304	75	750
KF50BFX1000	NW50	SS304	75	1000
