Standard: |
KF / CF / ISO flange type |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
The product is soft, flexible, and easy to bend, with excellent vibration - absorbing properties.
Prior to shipping, it has successfully passed the helium leakage test.
A plastic flange protective cap is provided to prevent the flange from being scratched during transportation.
The delicate welding process ensures the integrity and reliability of the product.
|
Bellows Type |

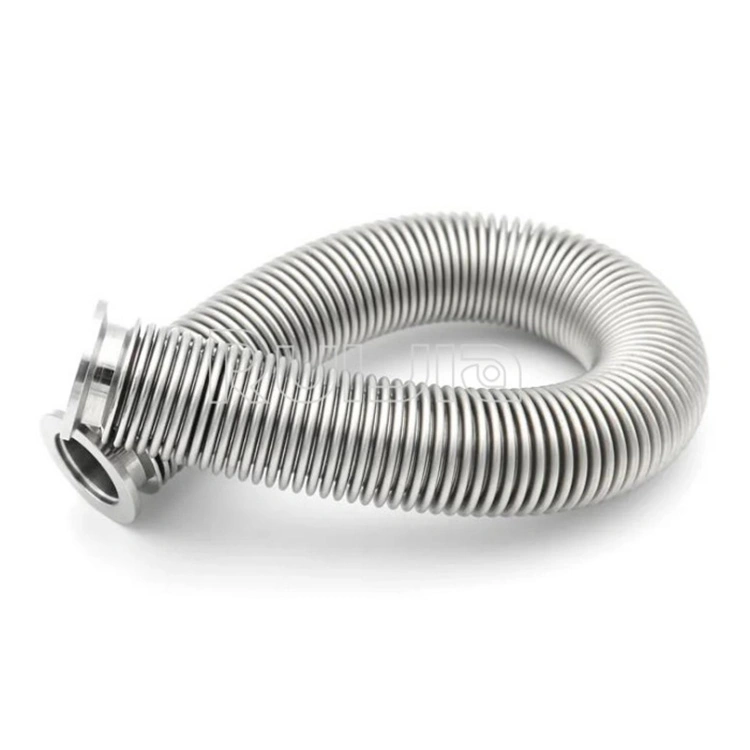

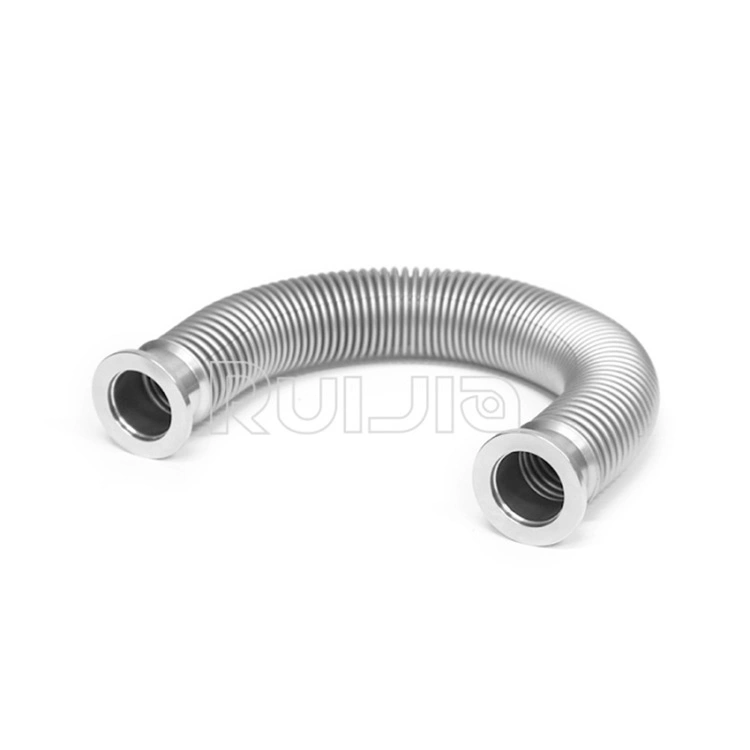

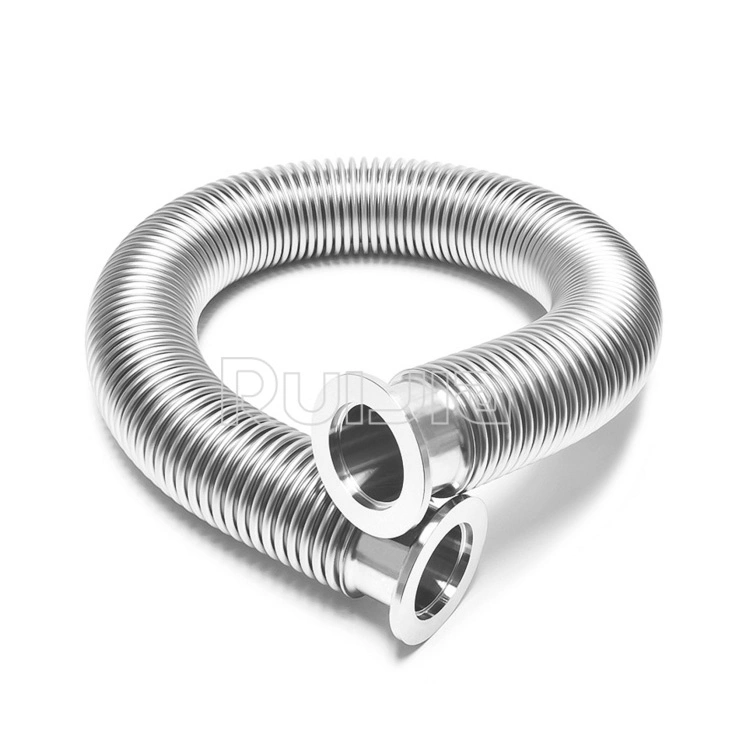

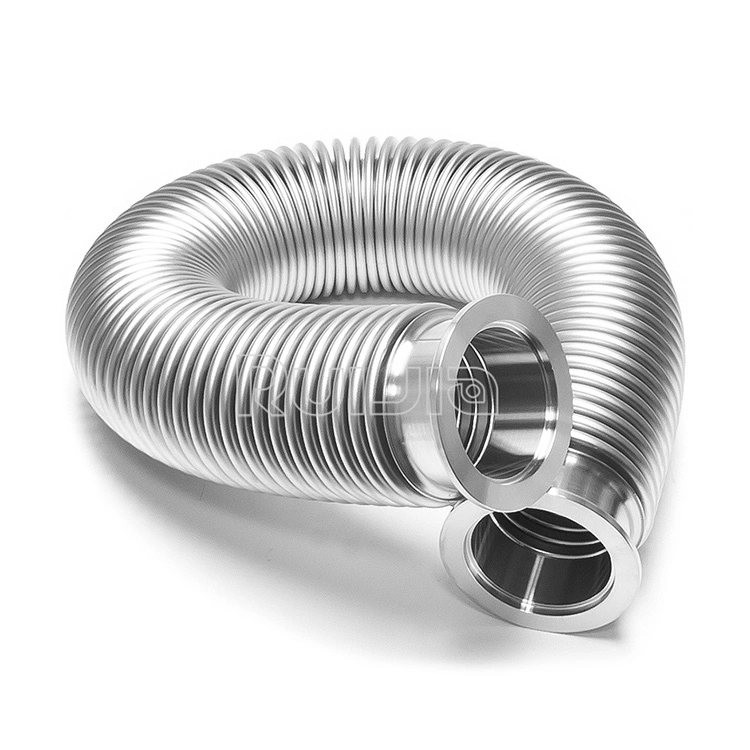

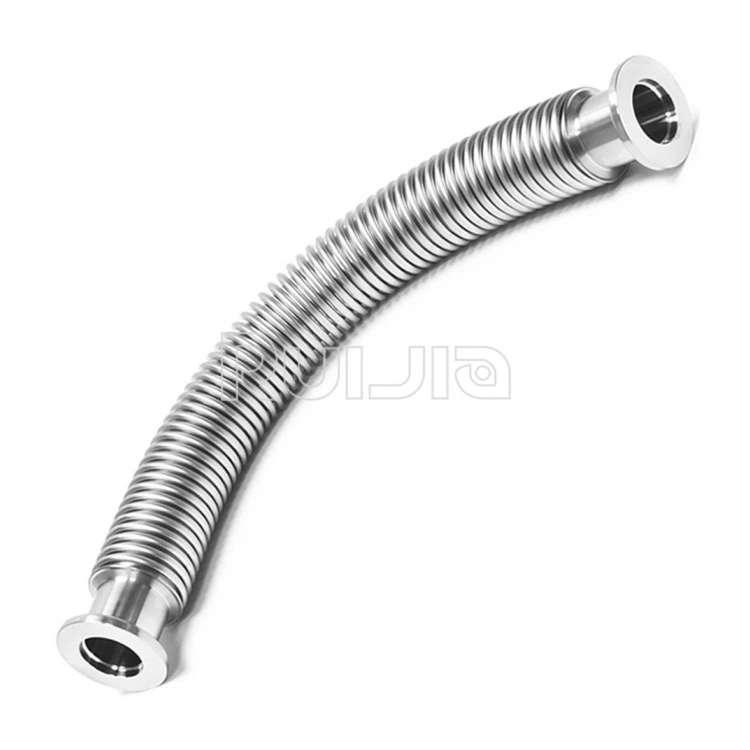

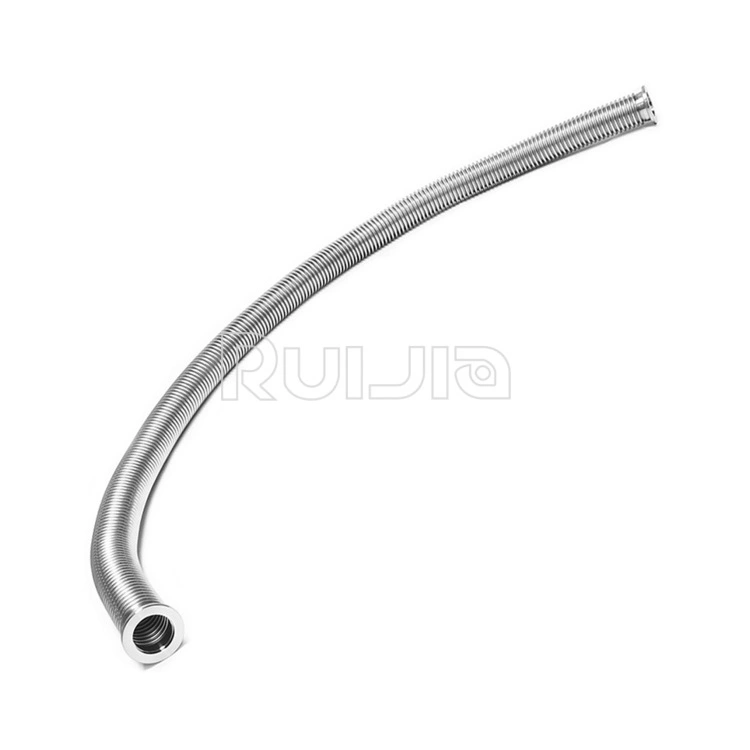

KF Vacuum Flexible Hoses |
|
Material |
Bellows SUS304, SUS316L |
|
Flange SUS304, SUS316L |
|
|
Standard |
KF / CF / ISO flange type |
|
Size Range |
KF16-KF100,ISO63-ISO320, CF16,CF35,CF63,CF100 |
|
Length |
100mm,250mm,500mm,750mm,1000mm,1500mm,2000mm,3000mm or as customer request |
|
Wall Thickness |
0.15mm,0.2mm,0.25mm,0.3/0.4mm |
|
Elasticity of bellows |
40% |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Leakage rate |
1×10 -9 Pa・m³/sec or less |
●Remarks
Hoses of sizes of NW125 or more can be fabricated
Hose with braid can be fabricated
Customized length is acceptable upon request.
KF Flexible Hoses Unit:mm
|
Item No. |
Flange Size |
Material |
A |
B |
|
KF16FX250 |
NW16 |
SS304 |
30 |
250 |
|
KF16FX500 |
NW16 |
SS304 |
30 |
500 |
|
KF16FX750 |
NW16 |
SS304 |
30 |
750 |
|
KF16FX1000 |
NW16 |
SS304 |
30 |
1000 |
|
|
|
|
|
|
|
KF25FX250 |
NW25 |
SS304 |
40 |
250 |
|
KF25FX500 |
NW25 |
SS304 |
40 |
500 |
|
KF25FX750 |
NW25 |
SS304 |
40 |
750 |
|
KF25FX1000 |
NW25 |
SS304 |
40 |
1000 |
|
|
|
|
|
|
|
KF40FX250 |
NW40 |
SS304 |
55 |
250 |
|
KF40FX500 |
NW40 |
SS304 |
55 |
500 |
|
KF40FX750 |
NW40 |
SS304 |
55 |
750 |
|
KF40FX1000 |
NW40 |
SS304 |
55 |
1000 |
|
|
|
|
|
|
|
KF50FX250 |
NW50 |
SS304 |
75 |
250 |
|
KF50FX500 |
NW50 |
SS304 |
75 |
500 |
|
KF50FX750 |
NW50 |
SS304 |
75 |
750 |
|
KF50FX1000 |
NW50 |
SS304 |
75 |
1000 |
|
|
|
|
|
|
|
KF63FX250 |
NW63 |
SS304 |
95 |
250 |
|
KF63FX500 |
NW63 |
SS304 |
95 |
500 |
|
KF63FX750 |
NW63 |
SS304 |
95 |
750 |
|
KF63FX1000 |
NW63 |
SS304 |
95 |
1000 |
|
|
|
|
|
|
|
KF80FX250 |
NW80 |
SS304 |
110 |
250 |
|
KF80FX500 |
NW80 |
SS304 |
110 |
500 |
|
KF80FX750 |
NW80 |
SS304 |
110 |
750 |
|
KF80FX1000 |
NW80 |
SS304 |
110 |
1000 |
|
|
|
|
|
|
|
KF100FX250 |
NW100 |
SS304 |
130 |
250 |
|
KF100FX500 |
NW100 |
SS304 |
130 |
500 |
|
KF100FX750 |
NW100 |
SS304 |
130 |
750 |
|
KF100FX1000 |
NW100 |
SS304 |
130 |
1000 |
*Material SS316,Customized length is acceptable upon request. KF series longest length 3000mm
*Inner hose PTFE coating upon request.
|
