| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
Application: Used in situations where it is necessary to change the flow direction of the medium or cut off the flow of the medium, such as petroleum, chemical, natural gas, power plants, metallurgy, national defense research and other fields.
Size: Depending on specific application requirements and design specifications.
Finish: Polished surface or sand blasting surface.
|
Product Name |

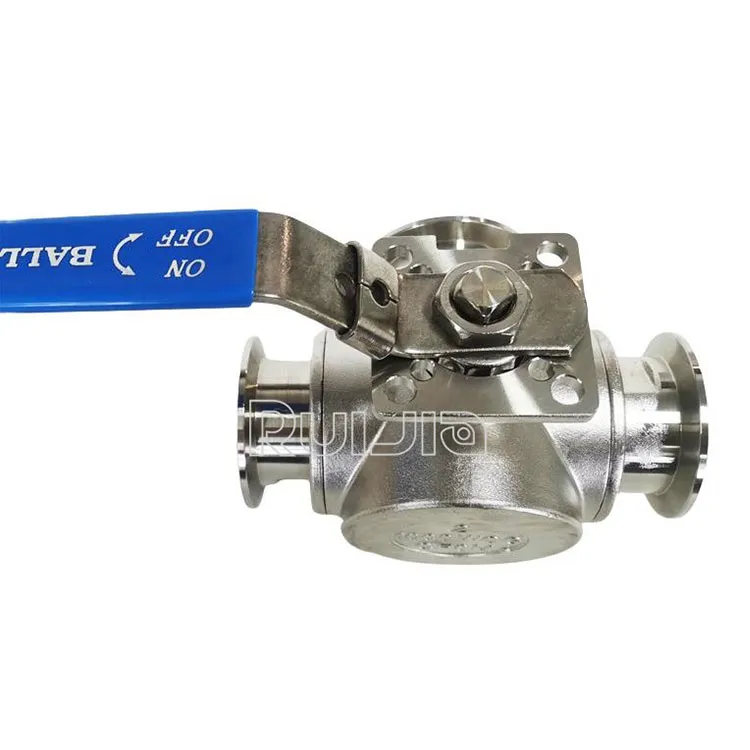

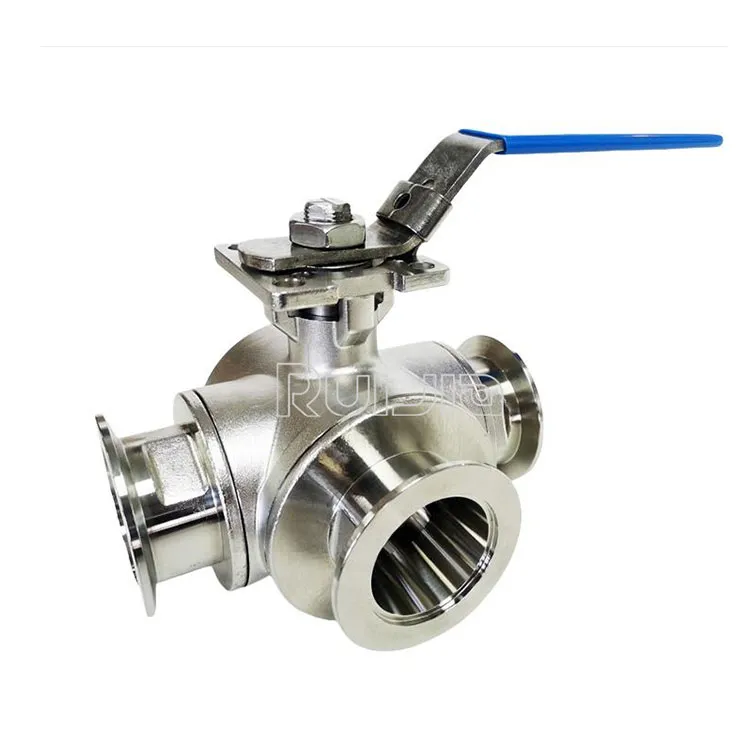

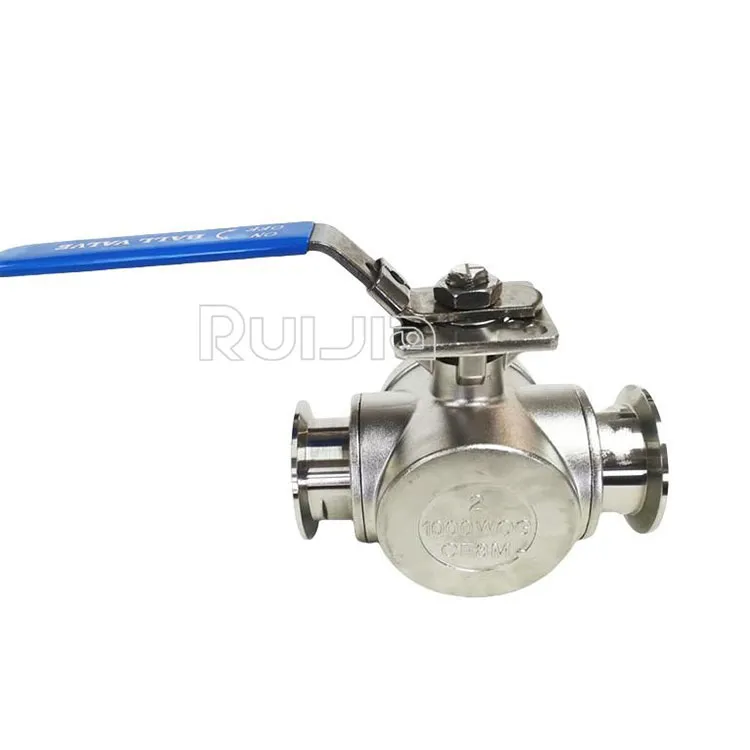

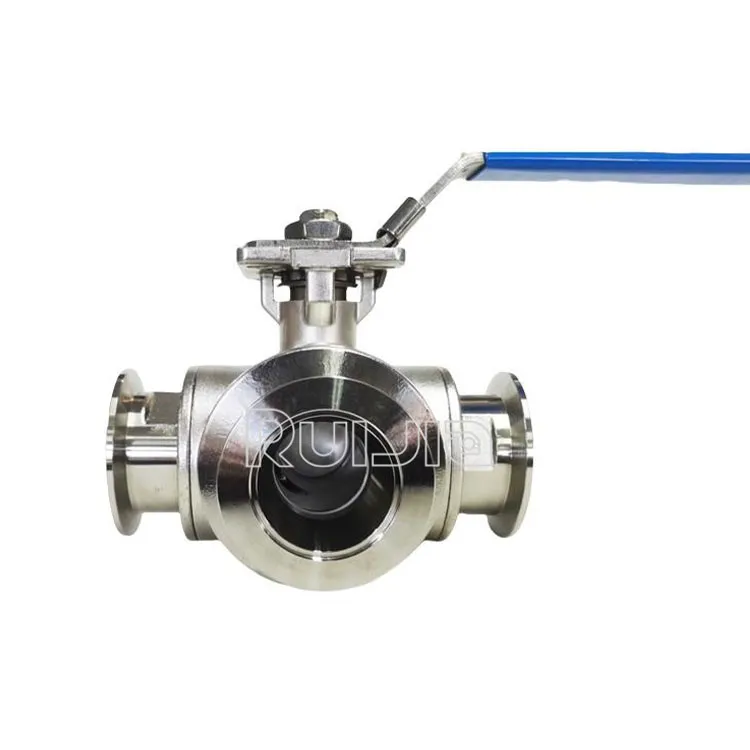

KF Vacuum 3 way ball valves |
|
Brand |
RUIJIA |
|
Size |
KF25,KF40,KF50. |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-20~150℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Vacuum Valve types |
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve |
KF Vacuum 3 way ball valves Unit:mm
|
Size |
Material |
A/mm |
B/mm |
C/mm |
|
KF25 (1'') |
SS304 |
110 |
50 |
55 |
|
KF40 (1 1/2"') |
SS304 |
160 |
68 |
80 |
|
KF50 (2'') |
SS304 |
180 |
73 |
90 |
Special Sizes Available Upon Request.
