| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
Application: Used for fluid interception, regulation, and flow control, meeting fluid control requirements under various working conditions
KF flange ball valve Type: manual Type/ Pneumatic type/ Electric Actuator type, we can provide according to the requirement.
Testing: Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
|
Product Name |

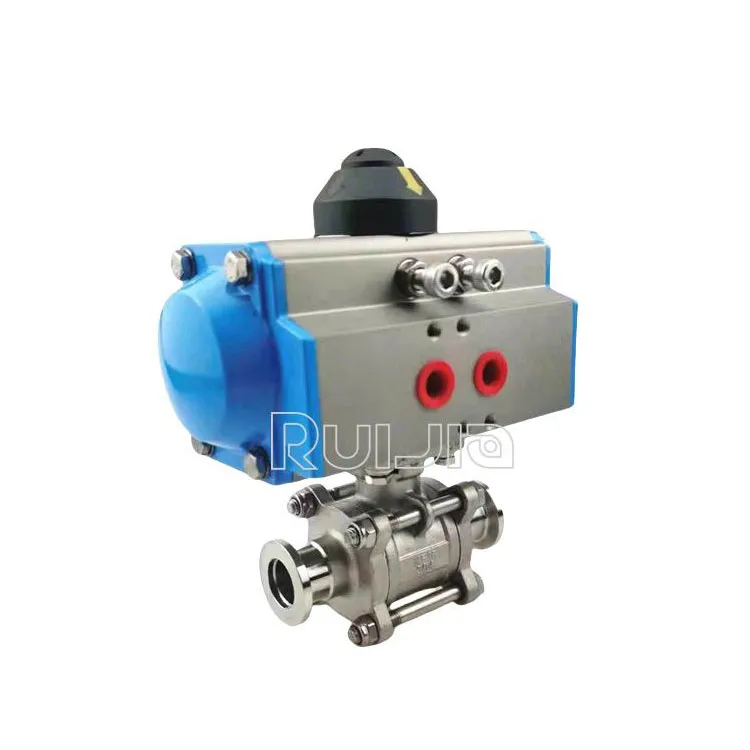

KF Vacuum pneumatic Actuated Ball Valve |
|
Brand |
RUIJIA |
|
Size |
KF25,KF40,KF50. |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-20~150℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Vacuum Valve types |
Vacuum ball valve, Vacuum Electric ball valve, Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/ pneumatic/ Electric, Vacuum Angle Valve, Vacuum Manual/ Pneumatic/ Electric Neutral Plate Valve |

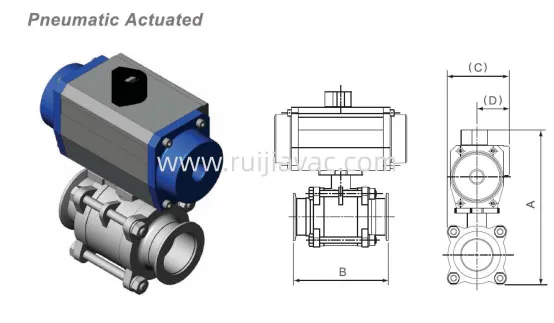

Vacuum Pneumatic Actuated Ball Valve Unit:mm
|
Model No. |
Size |
Connector |
A |
B |
C |
D |
|
KF25BV107P |
1'' |
KF25 |
173 |
107 |
71 |
41.5 |
|
KF40BV130P |
1.5'' |
KF40 |
216 |
130 |
88 |
48 |
|
KF50BV151P |
2'' |
KF50 |
246 |
151 |
99 |
51.5 |
Vacuum Electric Actuated Ball Valve Unit:mm
|
Model No. |
Size |
Connector |
A |
B |
C |
D |
|
KF25BV107E |
1'' |
KF25 |
231 |
107 |
114 |
79 |
|
KF40BV130E |
1.5'' |
KF40 |
258 |
130 |
119 |
79 |
|
KF50BV151E |
2'' |
KF50 |
318 |
151 |
114 |
57 |
| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
