Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application: Vacuum ball valves are used to control the flow of media, ensuring the vacuum degree and work efficiency of the system.
Size:the size and specifications of ball valves include nominal diameter (DN), external dimensions, flange standards, gas source pressure, applicable range, leakage rate, etc.
Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
|
Product Name |

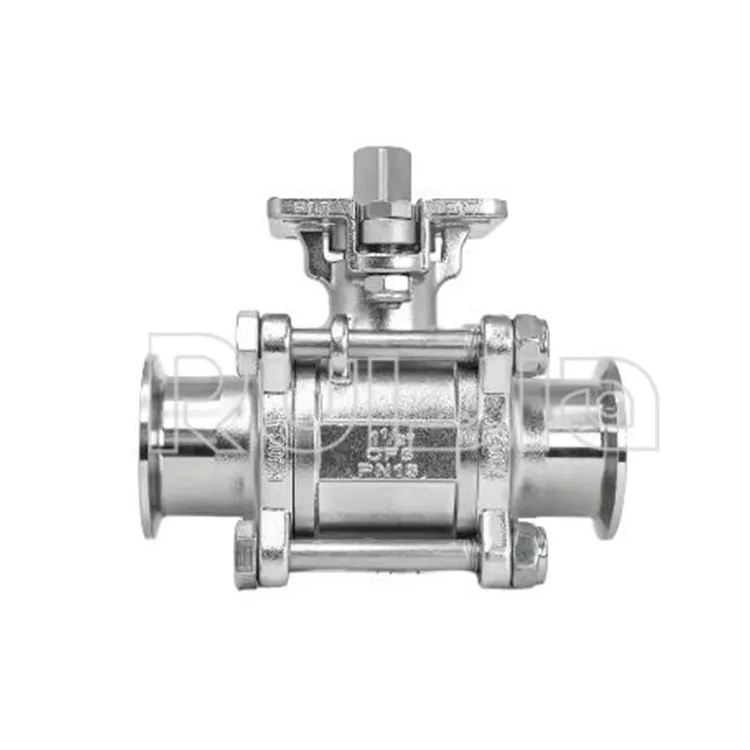

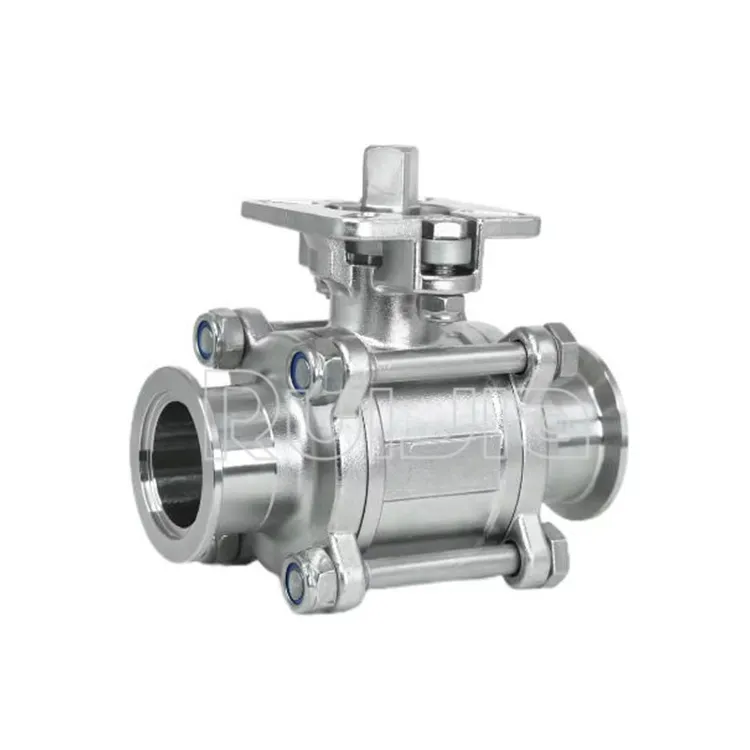

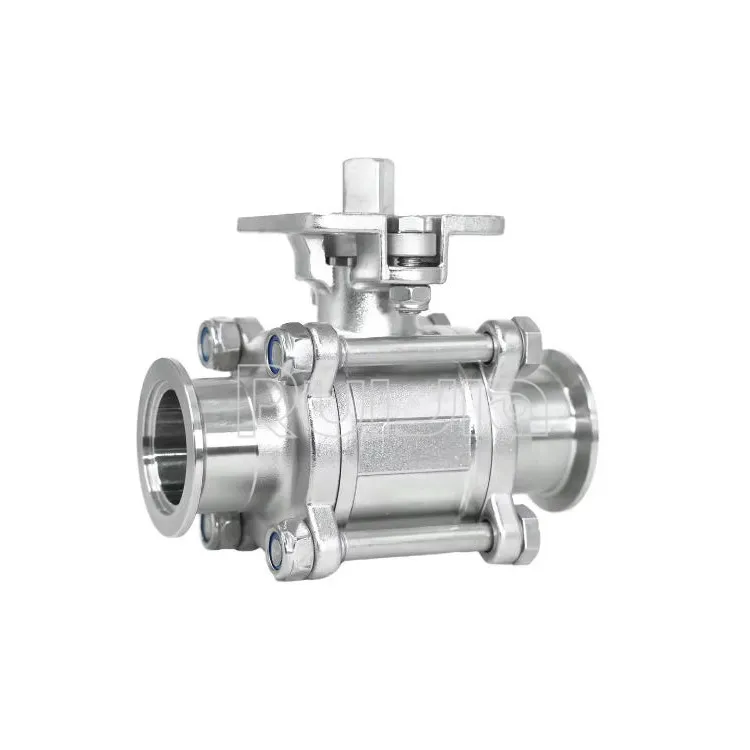

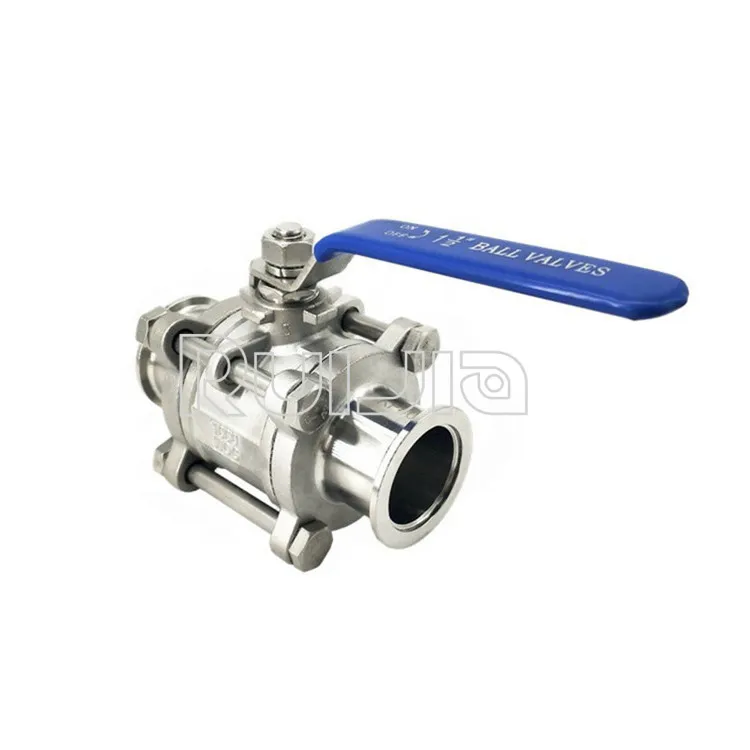

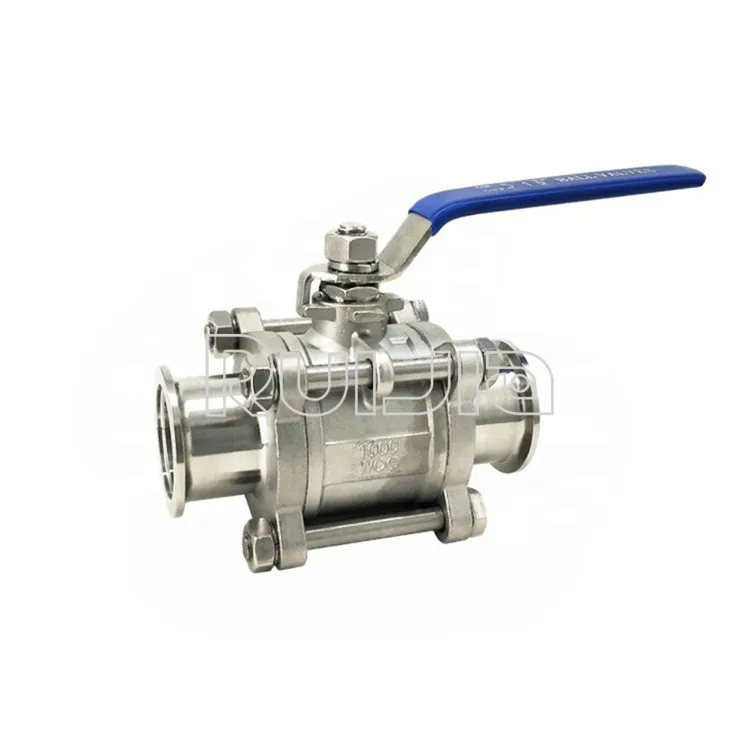

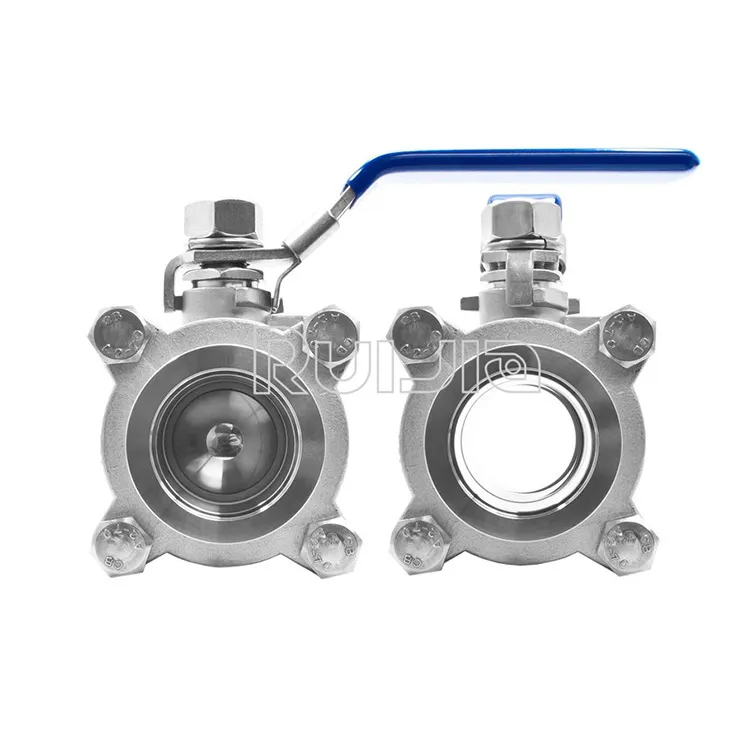

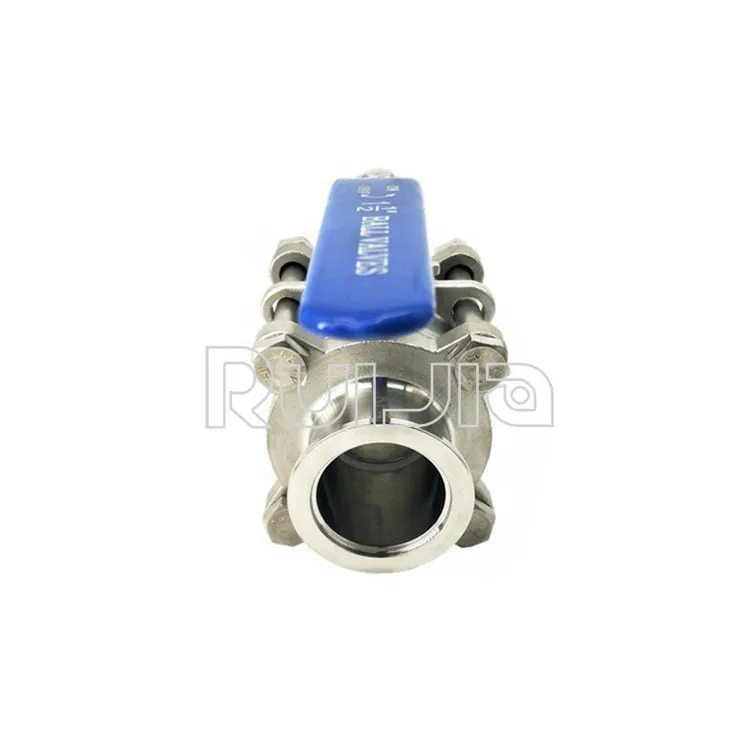

KF Vacuum 3-Pieces Quick-Loading Ball Valve |
|
Brand |
RUIJIA |
|
Size |
KF10-KF50 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-20~150℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Vacuum Valve types |
Vacuum no platform valves,Vacuum low platform,Vacuum high platform,handle Vacuum valves,Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve |

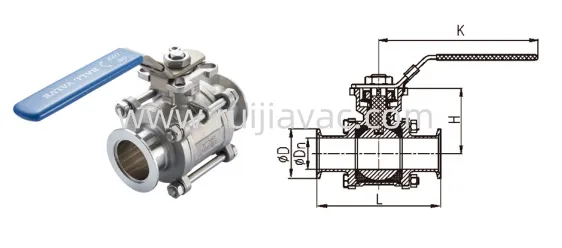

KF Vacuum 3-Pieces Quick-Loading Ball Valve Unit:mm
|
Size |
D |
Dn |
L |
K |
H |
|
KF10 |
30 |
9.4 |
89 |
130 |
38 |
|
KF16 |
30 |
15.8 |
92 |
130 |
42.5 |
|
KF25 |
40 |
22.1 |
107 |
165 |
52.5 |
|
KF40 |
55 |
34.8 |
130 |
215 |
73 |
|
KF50 |
75 |
47.5 |
151 |
215 |
78.5 |
Special Sizes Available Upon Request.
