Standard: |
ISO Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application: Including but not limited to diversion and merging or flow direction switching devices used as media in pipeline systems such as coal chemical, petrochemical, rubber, paper, pharmaceutical, etc.
Size: Depending on specific application requirements and design specifications
Testing: Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
|
Product Name |

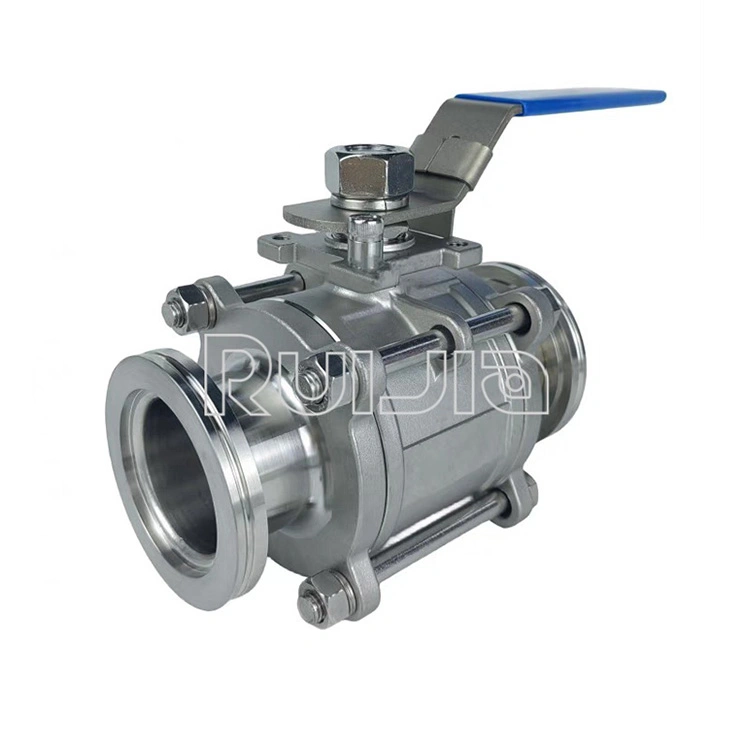

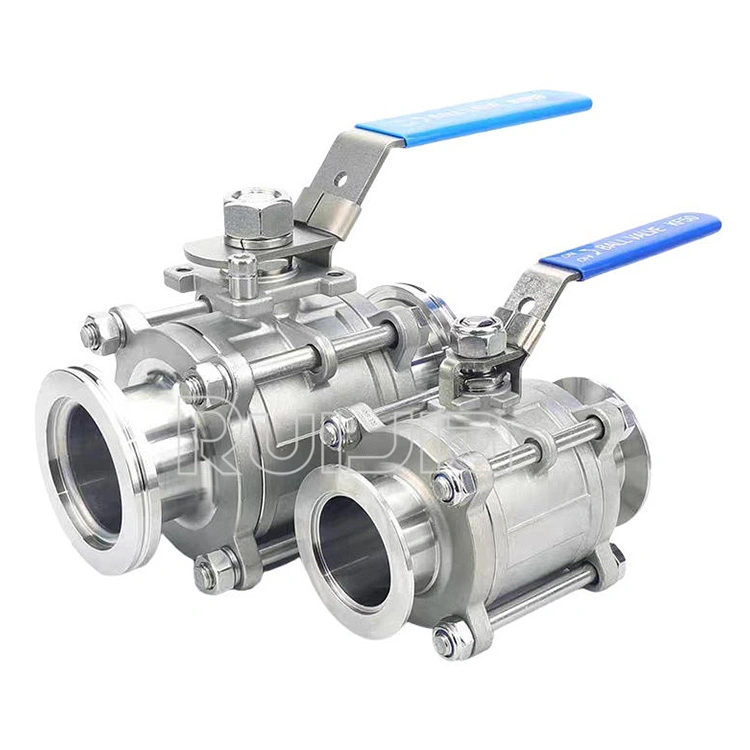

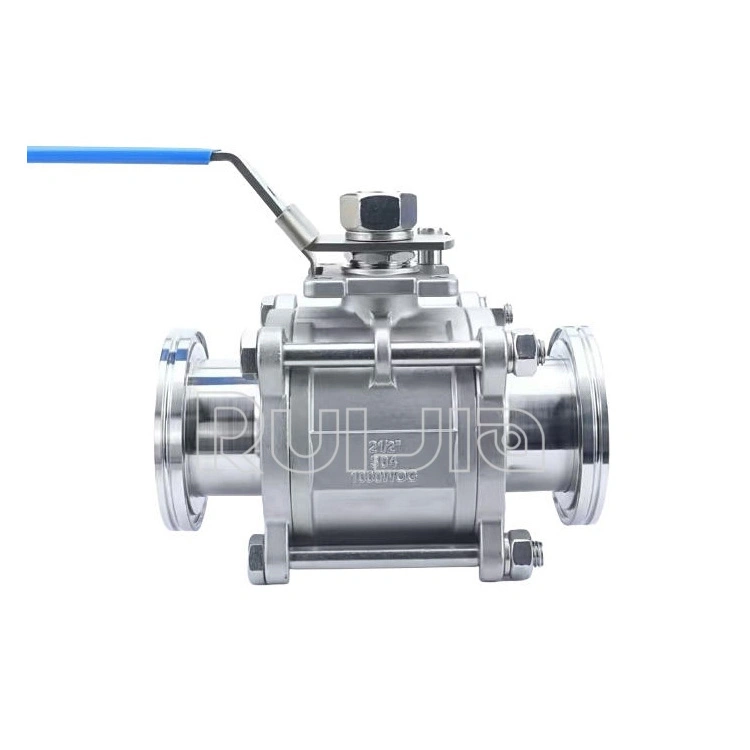

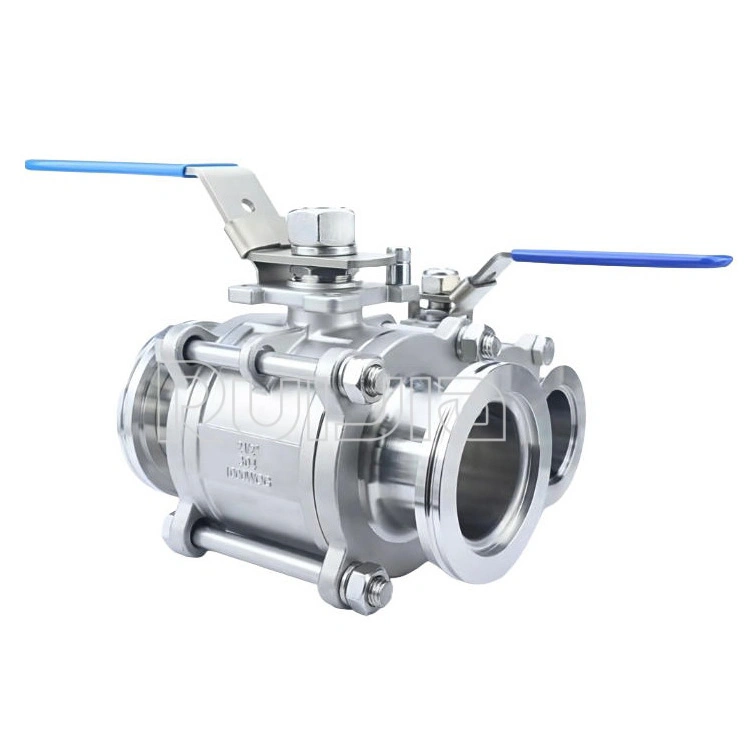

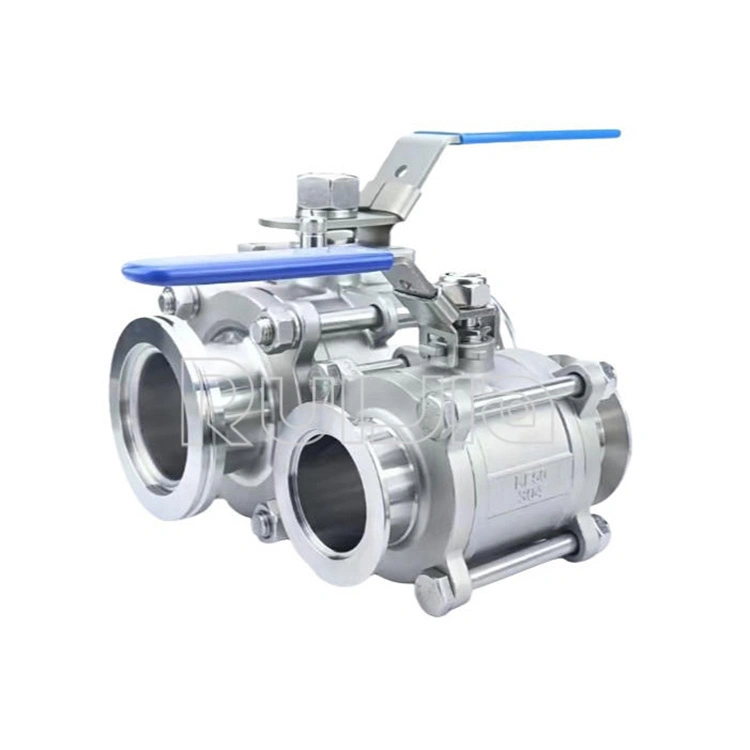

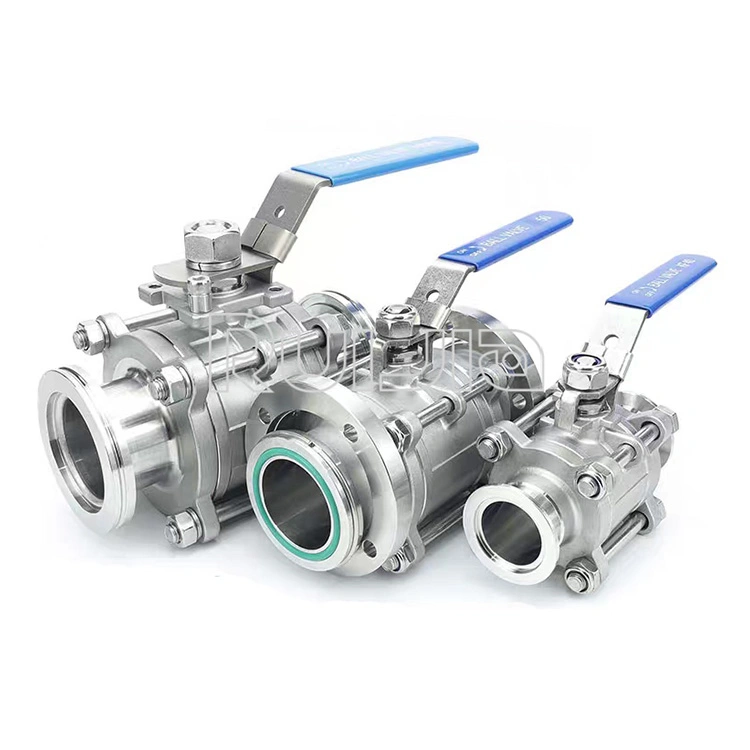

Vacuum Valve ball valve ISO-Type |
|
Brand |
RUIJIA |
|
Size |
ISI63,ISO80,ISO100 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
ISO Standard |
|
Temperature |
-20~150℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Vacuum Valve types |
Vacuum no platform valves,Vacuum low platform,Vacuum high platform,handle Vacuum valves,Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve |

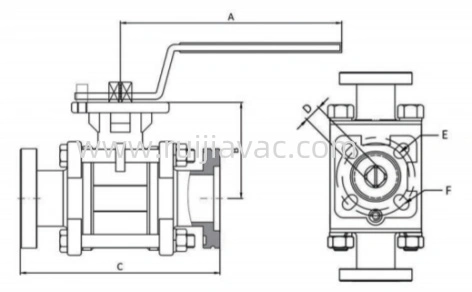

Vacuum Valve ball valve ISO-Type Unit:mm
|
Size |
Material |
A/mm |
B/mm |
C/mm |
D/mm |
E/mm |
F/mm |
|
ISO63 (2 1/2'') |
SS304 |
370 |
96.52 |
198.12 |
16.99 |
F07 |
F10 |
|
ISO80 (3"') |
SS304 |
370 |
106.68 |
228.6 |
16.99 |
F10 |
F12 |
|
ISO100 (4'') |
SS304 |
400 |
134.62 |
241.3 |
21.99 |
F10 |
F12 |
Special Sizes Available Upon Request.
