Standard: |
KF |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application: A device that uses rotary electric and electronic regulating valve drive devices, suitable for controlling or cutting off fluid media such as water, gas, oil, steam, etc
Depending on the specific model and design requirements, it is usually necessary to carefully review the drawings to determine.
Testing: Sealing performance, corrosion resistance, wear resistance, torque and other tests
Flange standard: JB919/GB6070 standard
|

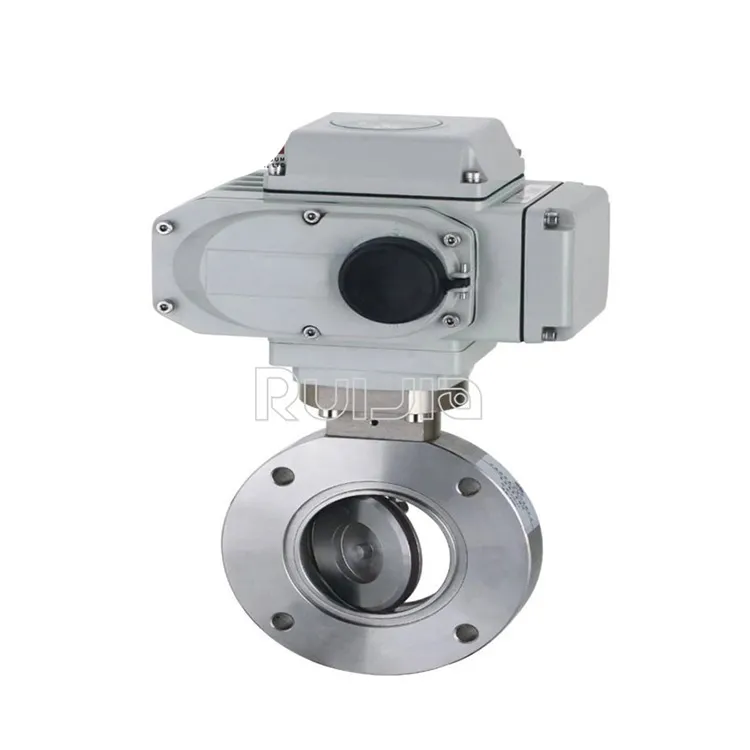

Product Name |
High Vacuum butterfly valve Electric operation |
|
Brand |
RUIJIA |
|
Size |
DN25-DN400 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
JB919/GB607 Standard |
|
Temperature |
-50~180℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Vacuum Valve types |
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve |
Connection standard:JB919 Unit:mm
|
Model No. |
DN |
ΦD |
ΦD0 |
ΦD1 |
H |
B |
L |
B1 |
n-Φc |
|
GID-25 |
25 |
70 |
55 |
30 |
163.5 |
22 |
166.5 |
114 |
4-Φ7 |
|
GID-32 |
32 |
78 |
64 |
36 |
167.5 |
22 |
166.5 |
114 |
4-Φ7 |
|
GID-40 |
40 |
85 |
70 |
45 |
171 |
22 |
166.5 |
114 |
4-Φ7 |
|
GID-50 |
50 |
110 |
90 |
55 |
184 |
22 |
166.5 |
114 |
4-Φ9 |
|
GID-63 |
63 |
125 |
105 |
70 |
196.3 |
26 |
166.5 |
114 |
4-Φ9 |
|
GID-80 |
80 |
145 |
125 |
90 |
227.5 |
30 |
195 |
120 |
4-Φ9 |
|
GID-100 |
100 |
170 |
145 |
110 |
239.5 |
30 |
195 |
120 |
4-Φ12 |
|
GID-125 |
125 |
195 |
170 |
135 |
252.5 |
35 |
195 |
120 |
4-Φ12 |
|
GID-150 |
150 |
220 |
195 |
160 |
284.5 |
35 |
254.5 |
159 |
8-Φ12 |
|
GID-200 |
200 |
275 |
250 |
215 |
311.5 |
40 |
254.5 |
159 |
8-Φ12 |
|
GID-250 |
250 |
330 |
300 |
270 |
340.5 |
45 |
254.5 |
159 |
8-Φ14 |
|
GID-300 |
300 |
380 |
350 |
320 |
363.5 |
55 |
254.5 |
159 |
8-Φ14 |
|
GID-400 |
400 |
500 |
465 |
420 |
420.5 |
60 |
254.5 |
159 |
8-Φ18 |
Connection standard:GB6070 Unit:mm
|
Model No. |
DN |
ΦD |
ΦD0 |
ΦD1 |
H |
B |
L |
B1 |
n-Φc |
|
GID-25 |
25 |
70 |
55 |
30 |
163.5 |
22 |
166.5 |
114 |
4-Φ7 |
|
GID-32 |
32 |
90 |
70 |
36 |
174 |
22 |
166.5 |
114 |
4-Φ9 |
|
GID-40 |
40 |
100 |
80 |
45 |
179 |
22 |
166.5 |
114 |
4-Φ9 |
|
GID-50 |
50 |
110 |
90 |
55 |
184 |
22 |
166.5 |
114 |
4-Φ9 |
|
GID-63 |
63 |
130 |
110 |
70 |
198 |
26 |
166.5 |
114 |
4-Φ9 |
|
GID-80 |
80 |
145 |
125 |
90 |
227.5 |
30 |
195 |
120 |
8-Φ9 |
|
GID-100 |
100 |
165 |
145 |
110 |
237 |
30 |
195 |
120 |
8-Φ9 |
|
GID-125 |
125 |
200 |
175 |
135 |
255 |
35 |
195 |
120 |
8-Φ12 |
|
GID-150 |
150 |
225 |
200 |
160 |
387 |
35 |
254.5 |
159 |
8-Φ12 |
|
GID-200 |
200 |
285 |
260 |
215 |
316 |
40 |
254.5 |
159 |
12-Φ12 |
|
GID-250 |
250 |
335 |
310 |
270 |
343 |
45 |
254.5 |
159 |
12-Φ14 |
|
GID-300 |
300 |
425 |
395 |
320 |
388 |
55 |
254.5 |
159 |
12-Φ14 |
|
GID-400 |
400 |
510 |
480 |
420 |
425 |
60 |
254.5 |
159 |
16-Φ14 |
Special Sizes available Upon Request.
|
