ISI63,ISO80,ISO100

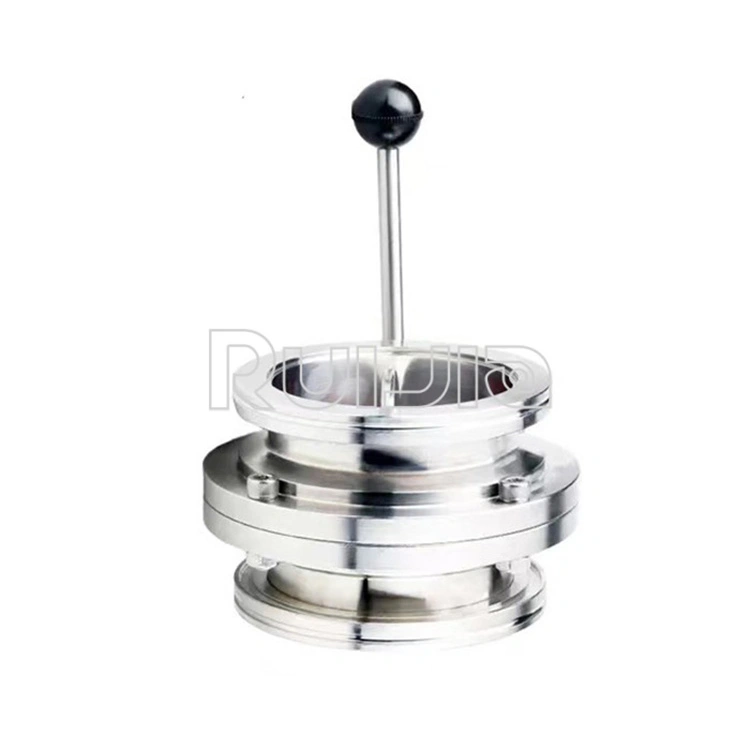

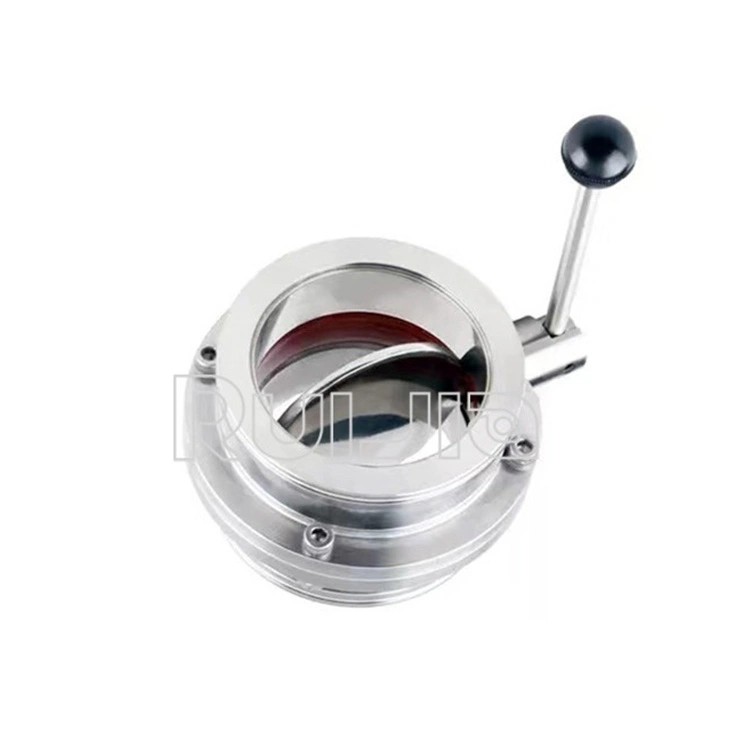

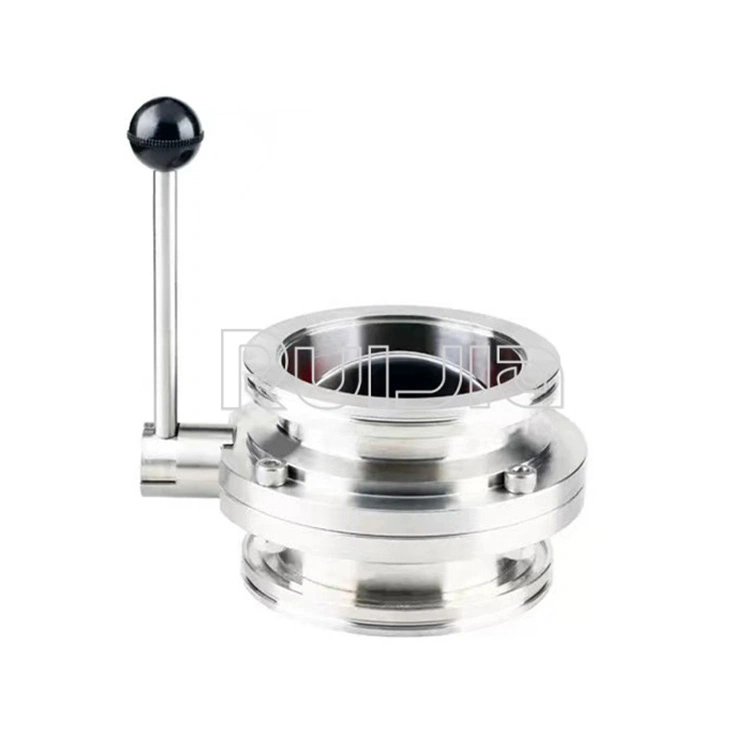

ISO Vacuum Butterfly Valves Manual SS304/SS316L

Vacuum butterfly valve ISO Type as a device for separating and merging or switching the flow direction of the medium, Can provide many sizes according to KF standards to meet practical application scenarios.

Standard:	ISO Standard
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Application: Including but not limited to diversion and merging or flow direction switching devices used as media in pipeline systems such as coal chemical, petrochemical, rubber, paper, pharmaceutical, etc.

Size: Depending on specific application requirements and design specifications

Testing: Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions

Specification

Product Name	Vacuum Valve butterfly valve ISO-Type
Brand	RUIJIA
Size	ISI63,ISO80,ISO100
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard
Temperature	-50~180℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Vacuum Valve types	Vacuum no platform valves,Vacuum low platform,Vacuum high platform,handle Vacuum valves,Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve

Product parameters

Vacuum Valve butterfly valve ISO-Type Unit:mm

Model No.	Size	Connector	A	B	C	D	E
ISO63BFV	2.5''	ISO63	93.2	96.6	191.6	112	152.3
ISO80BFV	3.0''	ISO80	95.2	103.8	192.6	125	166.3
ISO100BFV	4.0''	ISO100	101.2	120.6	195 3/5	157	200

Special Sizes available Upon Request.
