Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application: Including but not limited to diversion and merging or flow direction switching devices used as media in pipeline systems such as coal chemical, petrochemical, rubber, paper, pharmaceutical, etc.
Size: Depending on specific application requirements and design specifications
Testing: Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
|
Product Name |

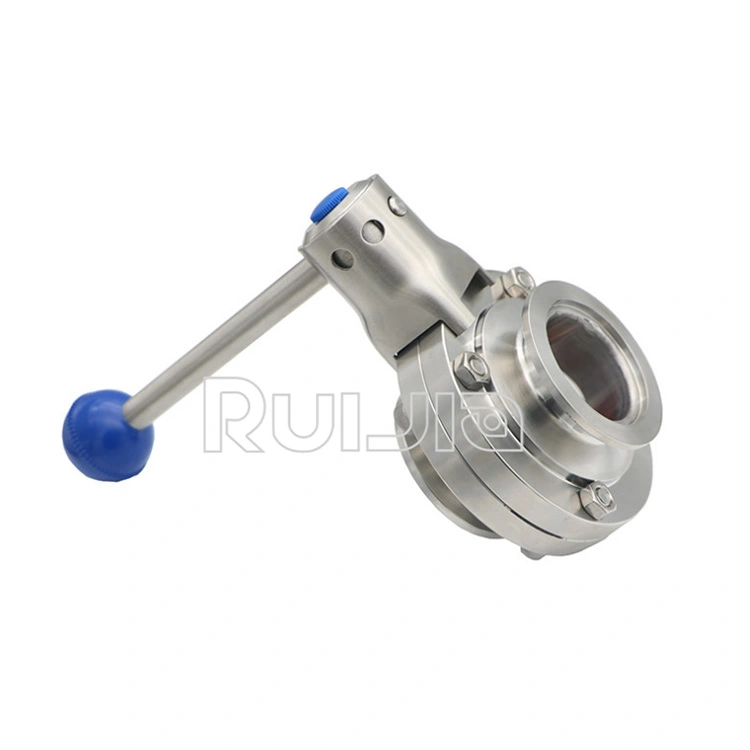

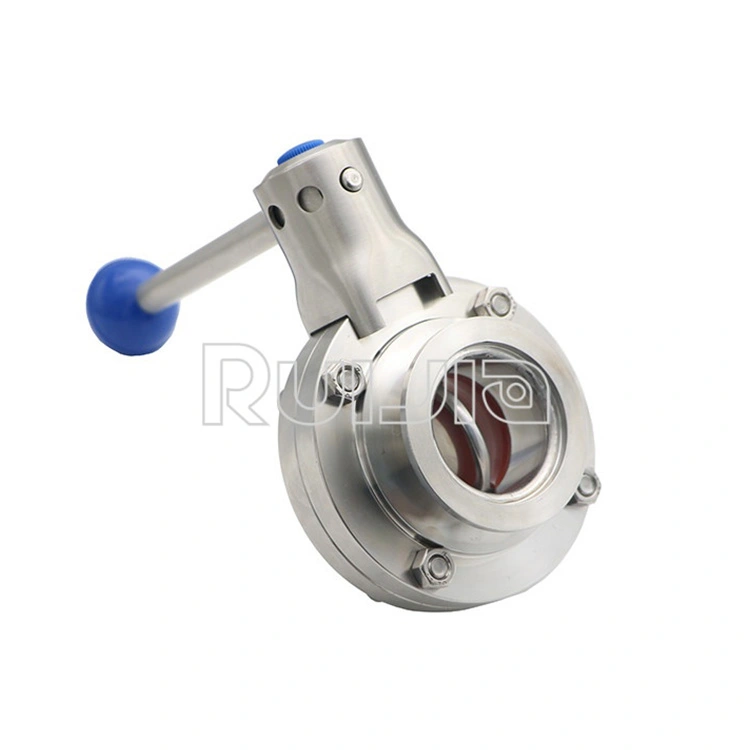

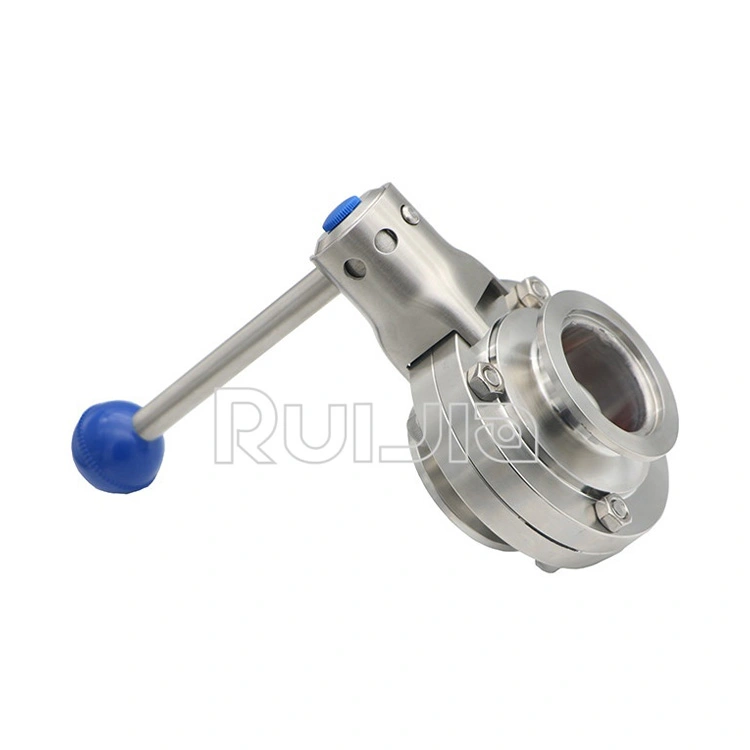

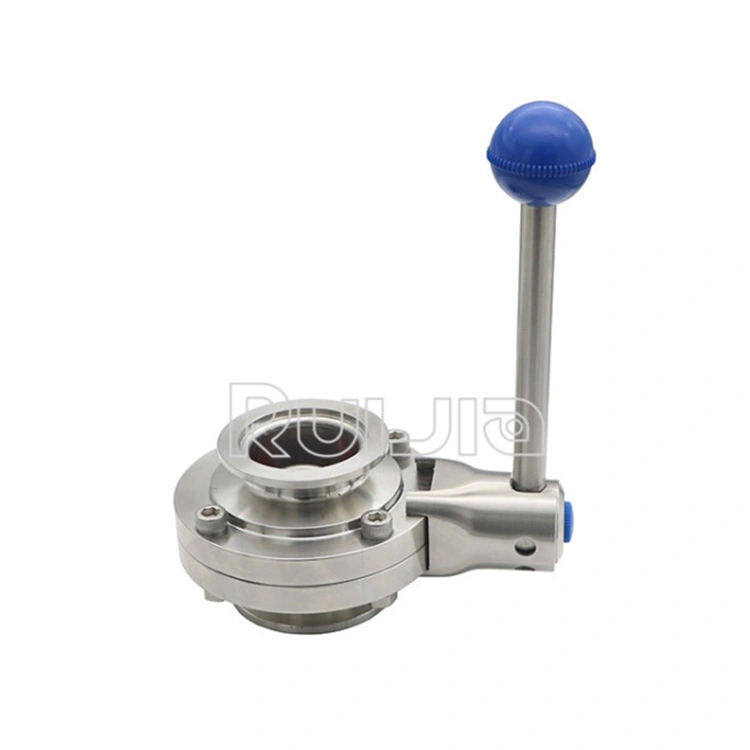

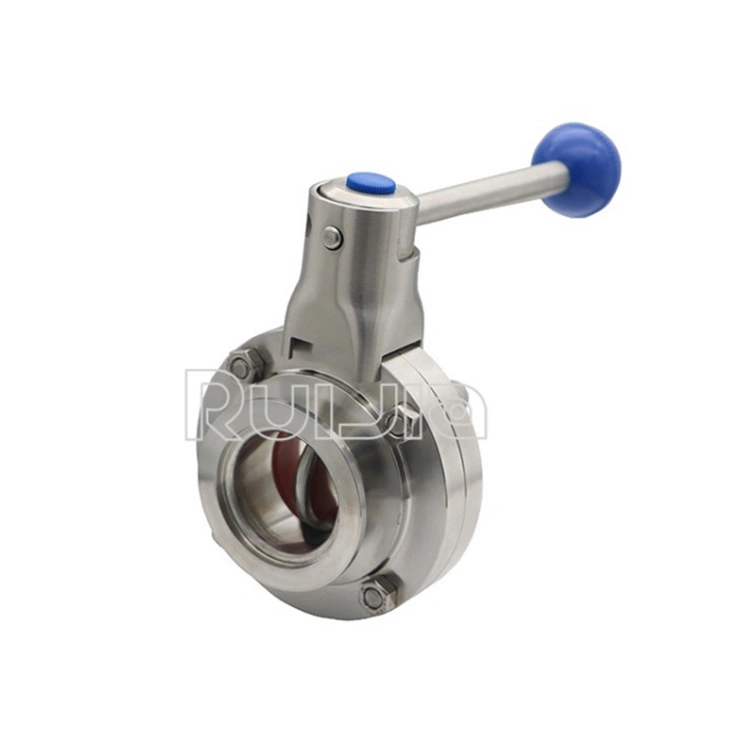

Vacuum Valve butterfly valve KF-Type |
|
Brand |
RUIJIA |
|
Size |
KF25,KF40,KF50 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-50~180℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Vacuum Valve types |
Vacuum no platform valves,Vacuum low platform,Vacuum high platform,handle Vacuum valves,Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve |

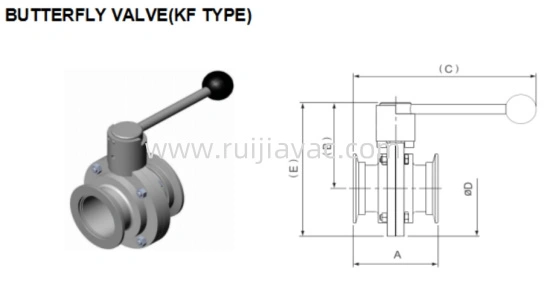

Vacuum Valve butterfly valve KF-Type Unit:mm
|
Model No. |
Size |
Connector |
A |
B |
C |
D |
E |
|
KF25BFV |
1'' |
KF25 |
75.6 |
80 |
179 |
79 |
119.5 |
|
KF40BFV |
1.5'' |
KF40 |
83.6 |
83.3 |
186.8 |
85 |
125.5 |
|
KF50BFV |
2'' |
KF50 |
87.6 |
93.3 |
185 |
105 |
145.5 |
Special Sizes Available Upon Request.
|
