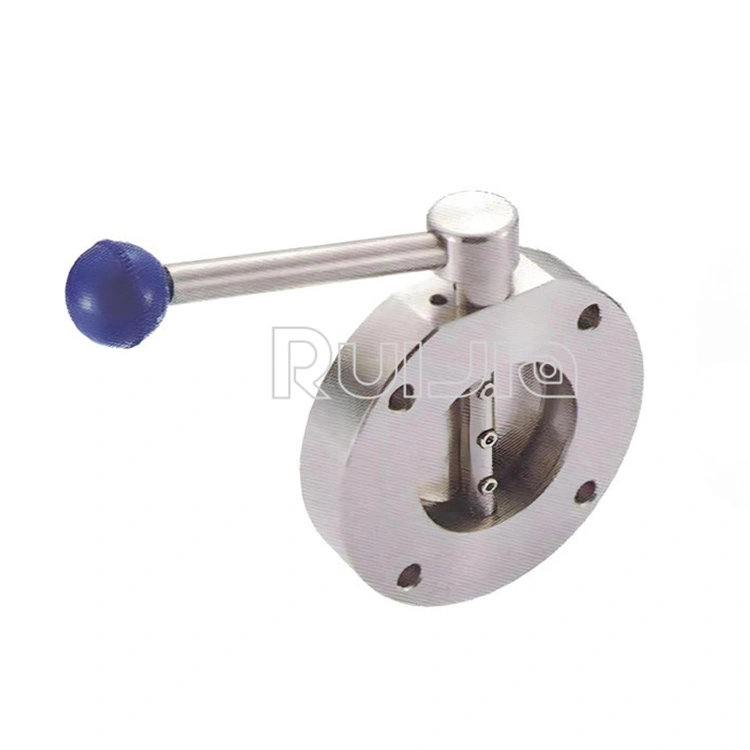

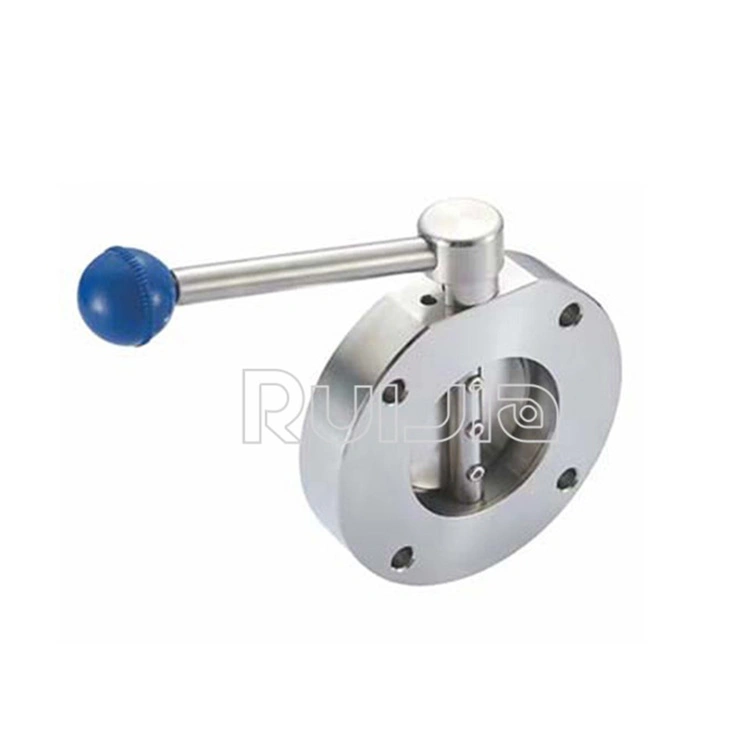

Vacuum ISO Butterfly Valves Manual Stainless Steel 304.S.S

Vacuum valves,manual,butterfly valves are widely used in production processes such as building materials, metallurgy, mining, and electricity and are used for connecting, opening, closing, or regulating medium quality.

Standard:	ISO Standard
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Product parameters

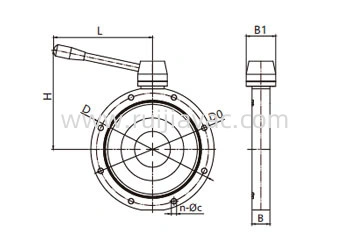

Manual ISO-F Type Butterfly Valve Unit:mm

Model for 304	Size	D/mm	D0/mm	B/mm	H/mm	B1/mm	L/mm
S63NN	ISO63	130	110	26	128.5	45	135
S100NN	ISO100	165	145	30	152.5	45	135
S160NN	ISO160	225	200	35	180.5	45	165
S200NN	ISO200	285	260	40	213	45	185

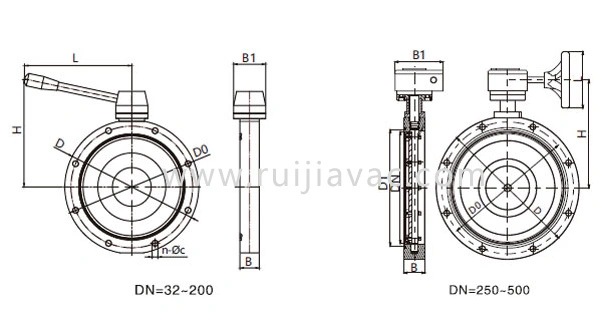

Manual JB919 Type Butterfly Valve Unit:mm

Size	Material	D/mm	D0/mm	D1/mm	B/mm	H/mm	B1/mm	L/mm	n-Φc
DN32	SS304	78	64	36	22	102	45	115	4-Φ7
DN40	SS304	85	70	44	22	106	45	115	4-Φ7
DN50	SS304	110	90	55	22	118	45	115	4-Φ9
DN65	SS304	125	105	70	26	126	45	135	4-Φ9
DN80	SS304	145	125	85	30	135	45	15	4-Φ9
DN100	SS304	170	145	105	30	150	45	135	8-Φ12
DN125	SS304	195	170	131	35	165	45	165	8-Φ12
DN150	SS304	220	195	156	35	178	45	165	8-Φ12
DN200	SS304	275	250	208	40	208	45	165	8-Φ12
DN250	SS304	330	300	258	45	262	127	160	8-Φ14
DN300	SS304	380	350	308	55	287	127	160	8-Φ14
DN400	SS304	500	465	408	60	361	175	200	8-Φ18
DN500	SS304	600	565	510	80	447	175	200	12-Φ18

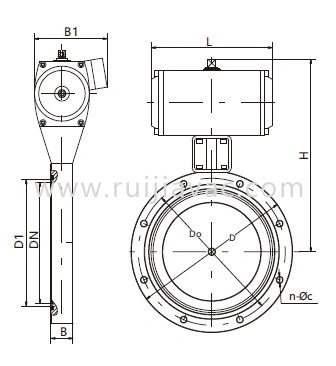

Pneumatic JB919 Type Butterfly Valve Unit:mm

Size	Material	D/mm	D0/mm	D1/mm	B/mm	H/mm	B1/mm	L/mm	n-Φc
DN40	SS304	85	70	44	22	180	90	152	4-Φ7
DN50	SS304	110	90	55	22	195	90	152	4-Φ9
DN65	SS304	125	105	70	26	200	90	152	4-Φ9
DN80	SS304	145	125	85	30	208	90	152	4-Φ9
DN100	SS304	170	145	105	30	225	90	152	8-Φ12
DN125	SS304	195	170	131	35	256	115	185	8-Φ12
DN150	SS304	220	195	156	35	272	115	185	8-Φ12
DN200	SS304	275	250	208	40	325	125	230	8-Φ12
DN250	SS304	330	300	258	45	355	125	230	8-Φ14
DN300	SS304	380	350	308	55	380	125	230	8-Φ14
DN400	SS304	500	465	408	60	490	180	308	8-Φ18
DN500	SS304	600	565	510	80	585	210	378	12-Φ18
DN600	SS304	710	670	610	100	760	270	524	12-Φ21
DN800	SS304	920	880	815	130	962	320	648	20-Φ21
DN1000	SS304	1120	1090	1015	140	980	385	1480	32-Φ14
DN1200	SS304	1440	1404	1280	150	1360	358	1480	36-Φ19

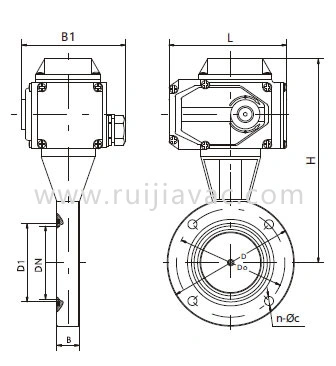

Electric Actuator JB919 Type Butterfly Valve Unit:mm

Size	Material	D/mm	D0/mm	D1/mm	B/mm	H/mm	B1/mm	L/mm	n-Φc
DN40	SS304	85	70	44	22	180	125	155	4-Φ7
DN50	SS304	110	90	55	22	195	125	155	4-Φ7
DN65	SS304	125	105	70	26	200	125	155	4-Φ9
DN80	SS304	145	125	85	30	208	125	155	4-Φ9
DN100	SS304	170	145	105	30	225	125	155	8-Φ12
DN125	SS304	195	170	131	35	256	125	155	8-Φ12
DN150	SS304	220	195	156	35	272	125	155	8-Φ12
DN200	SS304	275	250	208	40	325	157	208	8-Φ12
DN250	SS304	330	300	258	45	355	157	208	8-Φ14
DN300	SS304	380	350	308	55	380	157	208	8-Φ14
DN400	SS304	500	465	408	60	490	182	256	8-Φ18
DN500	SS304	600	565	510	80	585	182	256	12-Φ18
DN600	SS304	710	670	610	100	760	220	280	12-Φ21
DN800	SS304	920	880	815	130	960	220	280	20-Φ21
DN900	SS304	1040	990	915	130	970	250	350	24-Φ23
DN1000	SS304	1120	1090	1015	140	980	250	350	32-Φ14

Product Name	Manual ISO-F type butterfly valve
Brand	RUIJIA
Size	ISO63,ISO100,ISO160,ISO200.
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO standard
Temperature	-50~180℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Vacuum Valve types	Vacuum no platform valves,Vacuum low platform,Vacuum high platform,handle Vacuum valves,Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
