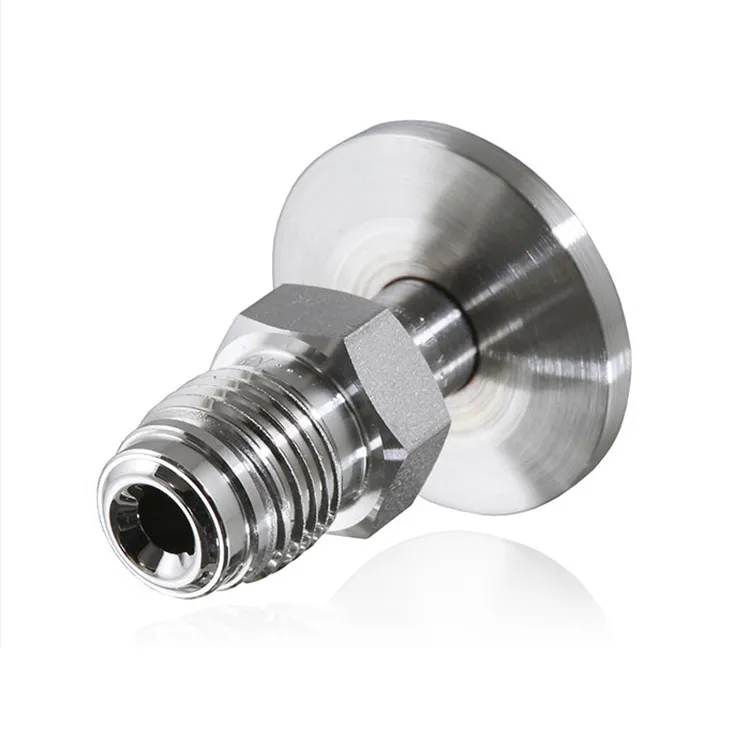

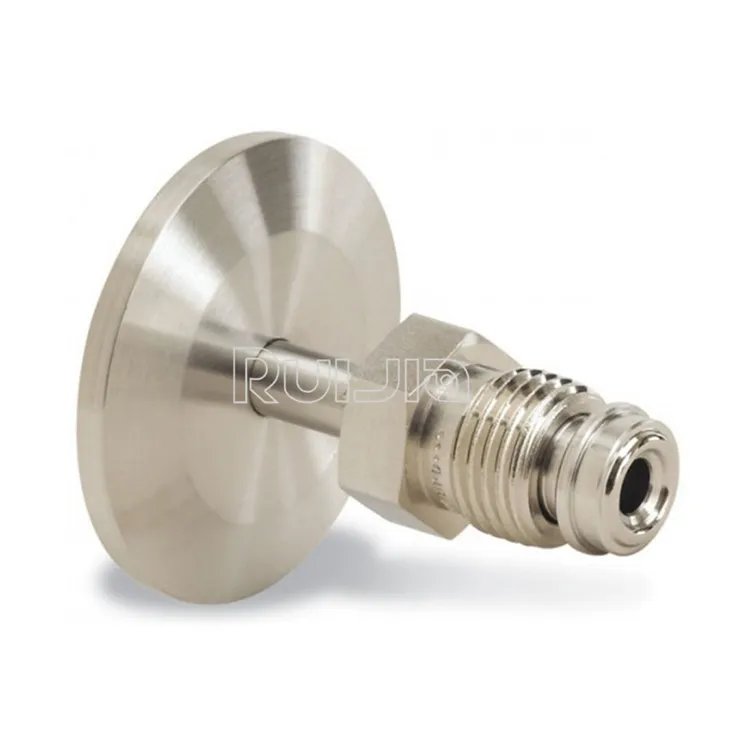

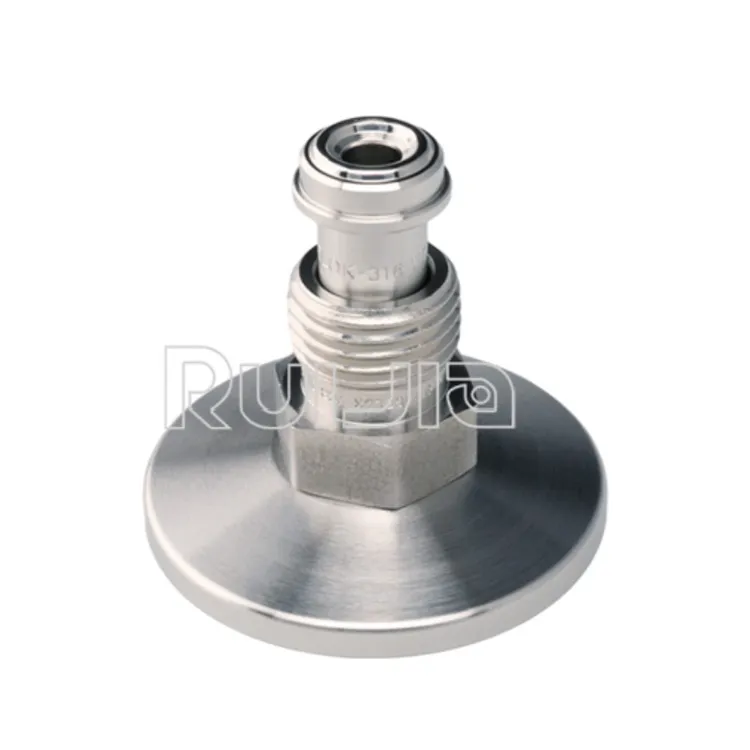

304.S.S Vacuum Flange KF to VCR Male Adaptor Fittings China manufacture

Product Name

Vacuum KF to VCR Male Adaptor Flange fittings

Brand

RUIJIA

Size

KF16MVCR6,KF16MVCR13,KF25MVCR6,KF25MVCR13,KF40MVCR6,KF40MVCR13,KF50MVCR6,KF50MVCR13

Material

SS304, SS316L

Seal material

Viton,Silicone,Buna-N seal

Standard

KF-VCR Standard

Temperature

-200~450℃

Working Pressure

Vacuum~atmosphere pressure

Helium Leak Test

1×10 -9 Pa・m³/sec or less

Packing

sealed plastic bag with a protective plastic cap.

Flange Adaptor  types

ANSI-KF Tubulated Adaptor, CF-ISO Tubulated Adaptor, ISO-KF Tubulated Adaptor, CF reducing adaptor, KF-VCR Male/ Female Adaptor, KF-Swagelok adaptor, KF Male/ Female Pipe adaptor, KF-KF conical reducing adaptor, ISO-KF/ISO-ISO conical Reducing adaptor.

Model No.

Material

A

B

C

VCR

KF16MVCR6

304S.S

30

4.4

37

1/4''

KF16MVCR13

304S.S

30

10.4

41.9

1/2''

KF25MVCR6

304S.S

40

4.4

37

1/4''

KF25MVCR13

304S.S

40

10.4

41.9

1/2''

KF40MVCR6

304S.S

55

4.4

37

1/4''

KF40MVCR13

304S.S

55

10.4

41.9

1/2''

KF50MVCR6

304S.S

75

4.4

37

1/4''

KF50MVCR13

304S.S

75

10.4

41.9

1/2''
